Windows10 Linux, J4105 J4125 Fanless Industrial Pc
This video shows the product in 360 degrees.
The 10 inch industrial panel pc is an IP65 waterproof, dustproof and shockproof panel computer produced by COMPT for the manufacturing industry for durability in manufacturing environments.
COMPT's industrial PCs are powered by Intel J4105 or J4125 processors and are compatible with Windows 10 and Linux operating systems, making them suitable for a wide range of industrial applications.
Fanless design is an important feature of these industrial computers. Thanks to low-power processors and efficient thermal designs, these computers can run stably for long periods of time without a fan. This not only reduces noise and vibration, but also improves the reliability and longevity of the equipment.
Windows 10: Windows 10 is an operating system developed by Microsoft with a wide range of applications and hardware support. the J4105 and J4125 processors both support Windows 10 systems, which allows users to install and run Windows 10 on these industrial computers.
Linux: Linux is an open source operating system that is highly flexible and customisable. Due to its kernel design, Linux is well suited to run on low-power hardware. Therefore, the J4105 and J4125 processors also support Linux, and users can choose the appropriate Linux distribution to install as needed.
Our COMPT industrial pcs are used in a wide range of applications, such as: commercial advertising displays and digital signage, home entertainment & connected TVs, projectors, virtualisation, edge computing, teaching and training, business offices, medical equipment, security monitoring, traffic control, intelligent terminals, automation equipment and more.
HDMI: Supports high-definition display output for connecting to modern monitors and TVs to provide clear visual effects.
VGA: Compatible with traditional display devices, suitable for users with older monitors.
Dual Display Output ports ,support synchronous heterodyne and synchronous homodyne, linking 2 HDMI dual-screen display, to achieve multi-tasking processor, HD playback, convenient and fast.
| Standard Parameters | CPU | Intel Gemini Lake J4105/J4125 TDP:10W Made of 14NM |
| Memory | Supports one DDR4L/SO-DIMM slot Maximum support 16G | |
| Graphics Card | Integrated intelUHD600 core graphics card | |
| Network Card | Onboard 4 intel I211 Gigabit LAN cards | |
| Storage | Supports one MSATA slot with 2.5’ SATA storage | |
| Expansion Interface | Provide a MINIPCIE slot, support half-length wireless card or 4G module | |

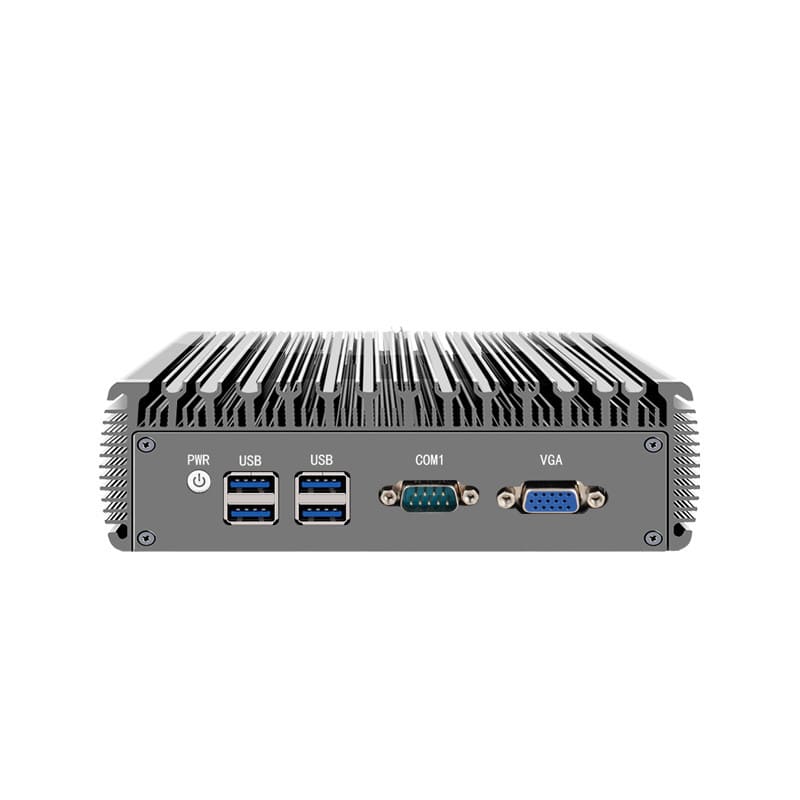

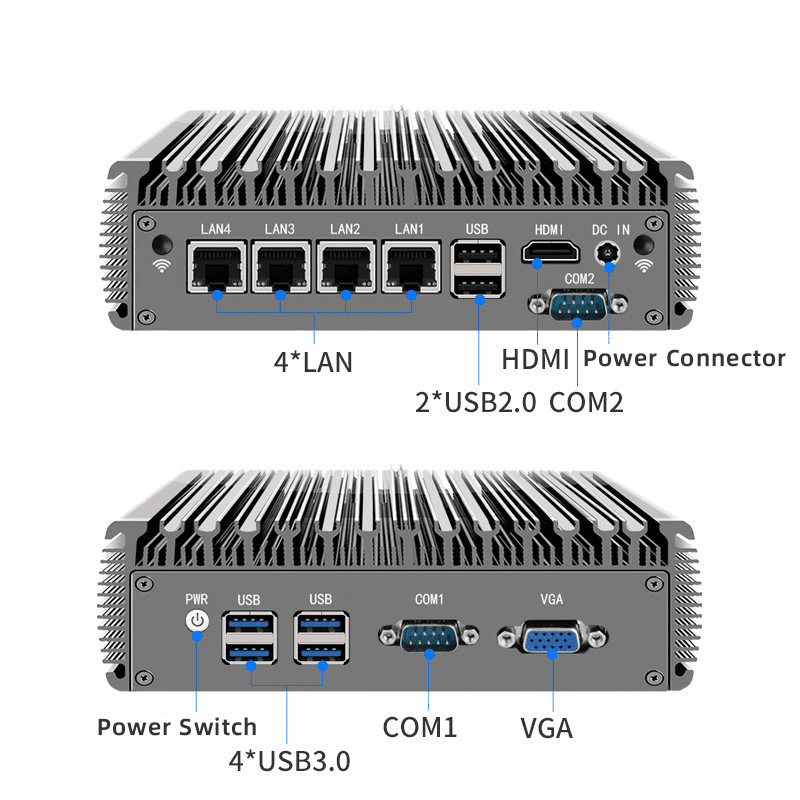

| I/O Parameters | Switch Panel Interface | 1*Power switch, 2*USB3.0, 2*USB2.0, 1*COM1(RS232), 1*HDMI, 1*RST reset button |

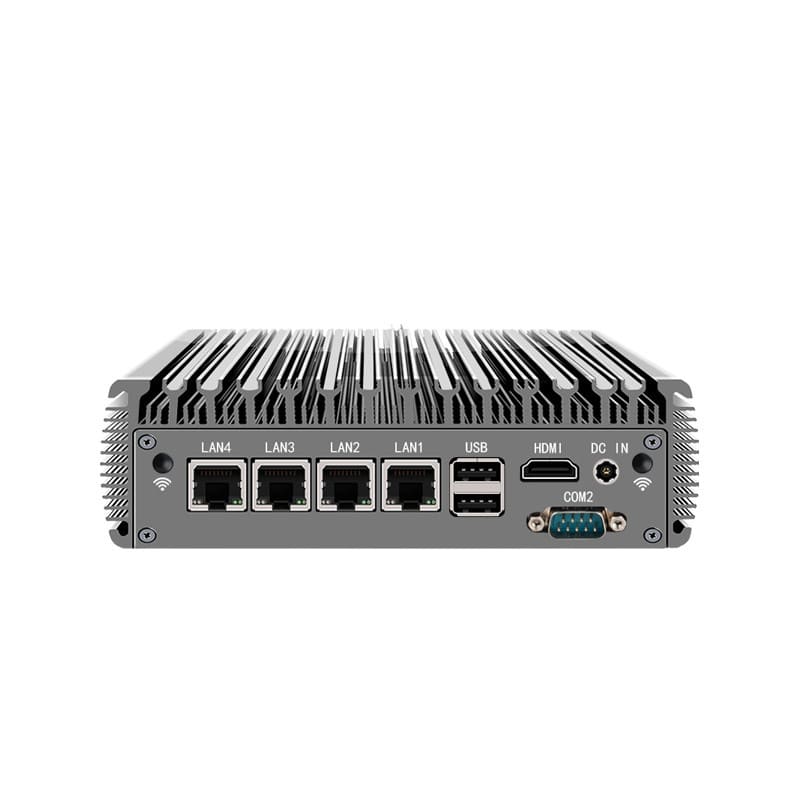

| Rear Panel Connectors | 1*DC12V power input connector, 4 intel I211 Gigabit NICs, 1*HDD indicator, 1*power indicator | |
| Power supply parameters | Power Input | Support DC 12V DC current input; Interface (2.5 5525) |
| Chassis Parameters | Chassis Parameters | Colour: Black Material: Aluminium Alloy Cooling: Fanless Passive Cooling |

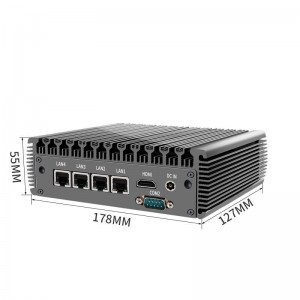

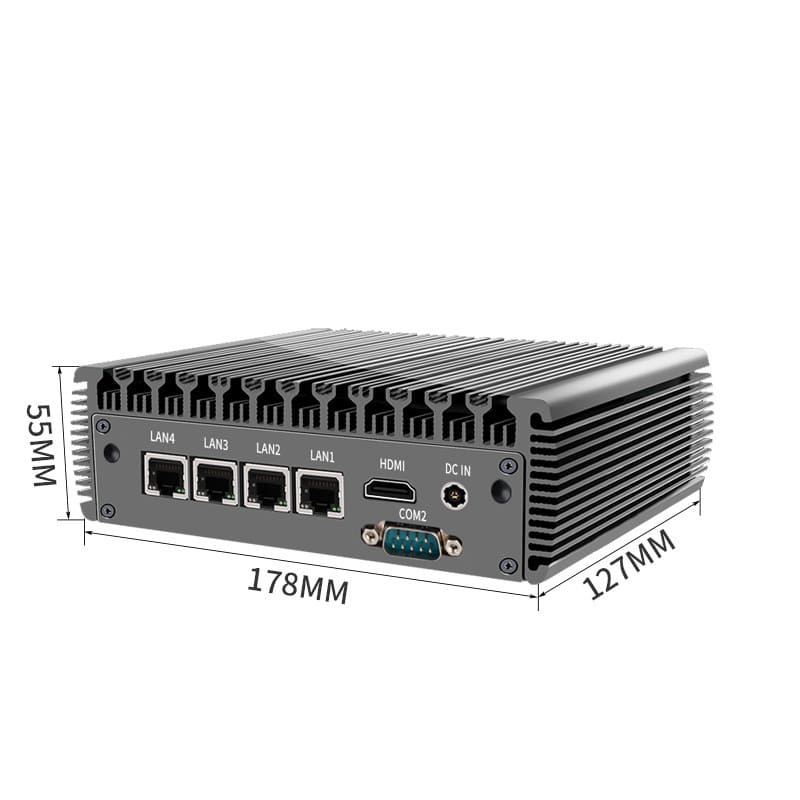

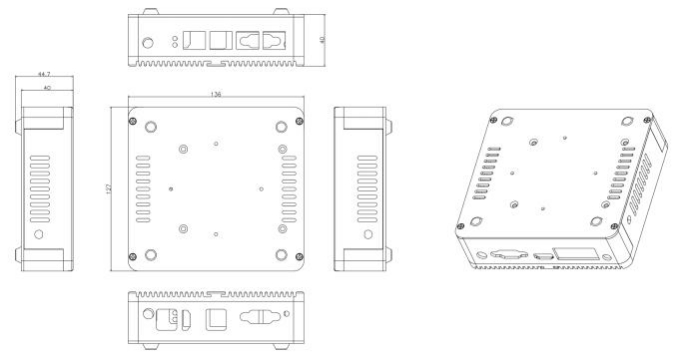

| Chassis Parameters | Dimension: 13.6*12.7*40cm | |
| Temperature and humidity | Working Temperature | 0°C~55°C (32°F~131°F) |
| Working Humidity | 10%-95% @40°C non-condensing | |
| Storage Humidity | 10%-95% @40°C non-condensing | |
| Operating System | Support System | Windows 10, Linux |
Fanless Design:
The fanless design provides a quiet operating environment while reducing the accumulation of dust and debris, extending the life of the unit.

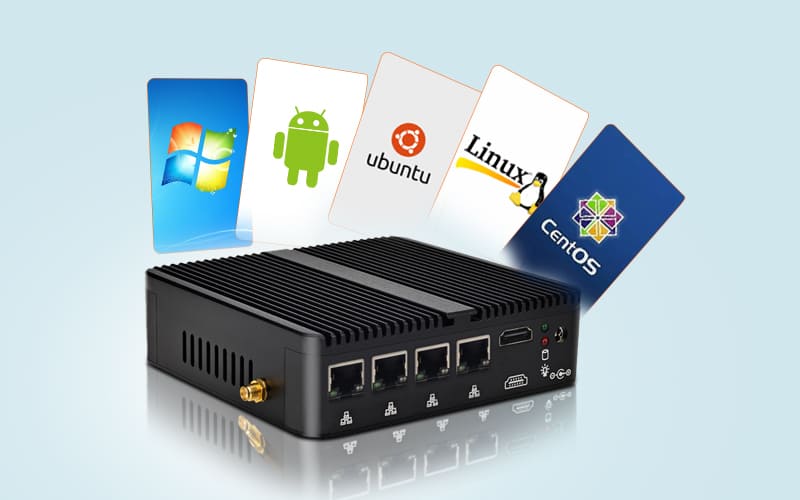

Multi-OS Support:
Compatible with Windows 10 and various Linux distributions to meet the needs of different users.
High Performance Processor:
Equipped with Intel J4105 or J4125 processors to provide efficient performance for a variety of industrial control and data processing tasks.
Ruggedness:
Adopts a rugged metal casing, capable of operating in harsh industrial environments with good shock and dust resistance.
Rich interfaces:
Provides multiple interfaces such as USB, HDMI, serial port, etc., supporting a variety of peripheral connections, suitable for a variety of application scenarios.
