Wall-Mounted Industrial Panel Mounted Touch Screen Pc

Short Description:

COMPT industrial wall-mounted touch computer has a large 21.5-inch screen, which can be customised on demand. It adopts X86 architecture, equipped with I7_10510U processor and 8+256G RAM, and configured with capacitive touch, 1920*1080 resolution, and bandwidth pressure module. The exterior is made of silver face frame and black colour, suitable for various industrial environments. Its wall-mounted design saves space, making it ideal for industrial control and monitoring systems.

For 9 years, we have provided one-stop customization solutions in the intelligent computer industry and have successfully executed thousands of remarkable cases across the globe since our establishment in 2014.


Product Detail

interface

Product Tags

Products Video

This video shows the product in 360 degrees.

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

Product Information:

COMPT industrial wall-mounted touch computer has a large 21.5-inch screen, which can be customised on demand. It adopts X86 architecture, equipped with I7_10510U processor and 8+256G RAM, and configured with capacitive touch, 1920*1080 resolution, and bandwidth pressure module. The exterior is made of silver face frame and black colour, suitable for various industrial environments. Its wall-mounted design saves space, making it ideal for industrial control and monitoring systems.

COMPT's Industrial Panel Wall Mount Touch PC is a high-performance device designed for the industrial sector with a variety of key features designed to meet a wide range of industrial control and monitoring needs. With a large 21.5-inch screen, this product provides a clear display that enables operators to easily view a variety of industrial data and control interfaces.

Product Superiority:

COMPT industrial wall-mounted touch computer is suitable for the following scenarios:
1.Industrial automation control system: for monitoring and controlling production lines, equipment and robots to improve production efficiency and quality.
2. Intelligent Warehouse Management: Used for goods tracking, inventory management and order processing in warehouses to improve warehousing efficiency.
3. Video monitoring system: used as a display in the monitoring and control centre for real-time monitoring and video playback. Industrial Equipment Maintenance: For checking equipment status, recording maintenance logs and scheduling maintenance programmes.
4. Environmental monitoring system: for monitoring air quality, temperature, humidity and other environmental parameters, and real-time display of monitoring data.
5. Transportation control system: for street light control, traffic signal management and intelligent traffic monitoring.
The stability and high performance of this industrial wall-mounted touch PC make it ideal for control and monitoring applications in a variety of industrial environments.

SOLUTIONS
SOLUTIONS
SOLUTIONS
SOLUTIONS1
SOLUTIONS
SOLUTIONS
AI in Manufacturing
Medical equipment

Product Superiority:

  • Industrial aesthetic design
  • Streamlined appearance design
  • Independent research and development independent mold opening
  • Stable performance and low power consumption
  • Front panel waterproof design
  • Flat panel up to IP65 waterproof standard
  • GB2423 anti-vibration standard
  • Added shock-proof EVA material
  • Recessed cabinet installation
  • 3mm tightly fitted to the embedded cabinet
  • Fully enclosed dust-proof design
  • Greatly improve the service life of the fuselage
  • Aluminum alloy body
  • Aluminum alloy die-casting integrated forming
  • EMC/EMI Anti-interference standard Anti-electromagnetic interference

Designed for wall mounting, this product can be easily installed on the wall of industrial equipment or control room, which saves space and makes it easier for operators to input and operate data. In terms of appearance, the product adopts a silver frame and black body design, stylish appearance, but also has excellent durability and adaptability to adapt to a variety of industrial environments. Adopting capacitive touch technology, users can easily and accurately carry out touch operations and support multi-touch function, which enhances operational convenience and efficiency. The screen resolution reaches 1920*1080, which can present delicate and clear images, together with rich colour expression, making industrial data and graphical interface display more vivid and intuitive.
In addition, the product is also equipped with a bandwidth pressure module, which can effectively inhibit electromagnetic interference and ensure the stability and reliability of data transmission.

Parameter:

Name X86 Panel PC all-in-one
Display Screen size  21.5 Inch
Resolution  1920*1080
Brightness  300 cd/m2
Color 16.7M
Contrast Rato 1000:1
Viewing angle  85/85/80/80 (Typ.)(CR≥10)
Display Area 478.6(W)×270.1(H) mm
Touch Parameter Type 10 points Capacitive touch
Lifetime >50 millions times
Surface Hardness >7H
Touch strength 45g
Glass type chemically strengthened plexiglass
Transmittance >85%
Hardware Mainboard J4125 (jJ1900 i3 i5 i7)
CPU Intel®Celeron J4125 2.0GHz Quad Cores
GPU Intel®UHD Graphics Core Graphics
Memory  4G(Max support 8GB)
Harddisc 64G S.S.D(Optional 128G)
Operation system Default Windows 10(support Linux)
Audio ALC888/ALC662 6-channel high-fidelity audio
Network Realtek RTL8111H Gigabit LAN
Wifi Built-in wifi antenna, support wireless connection

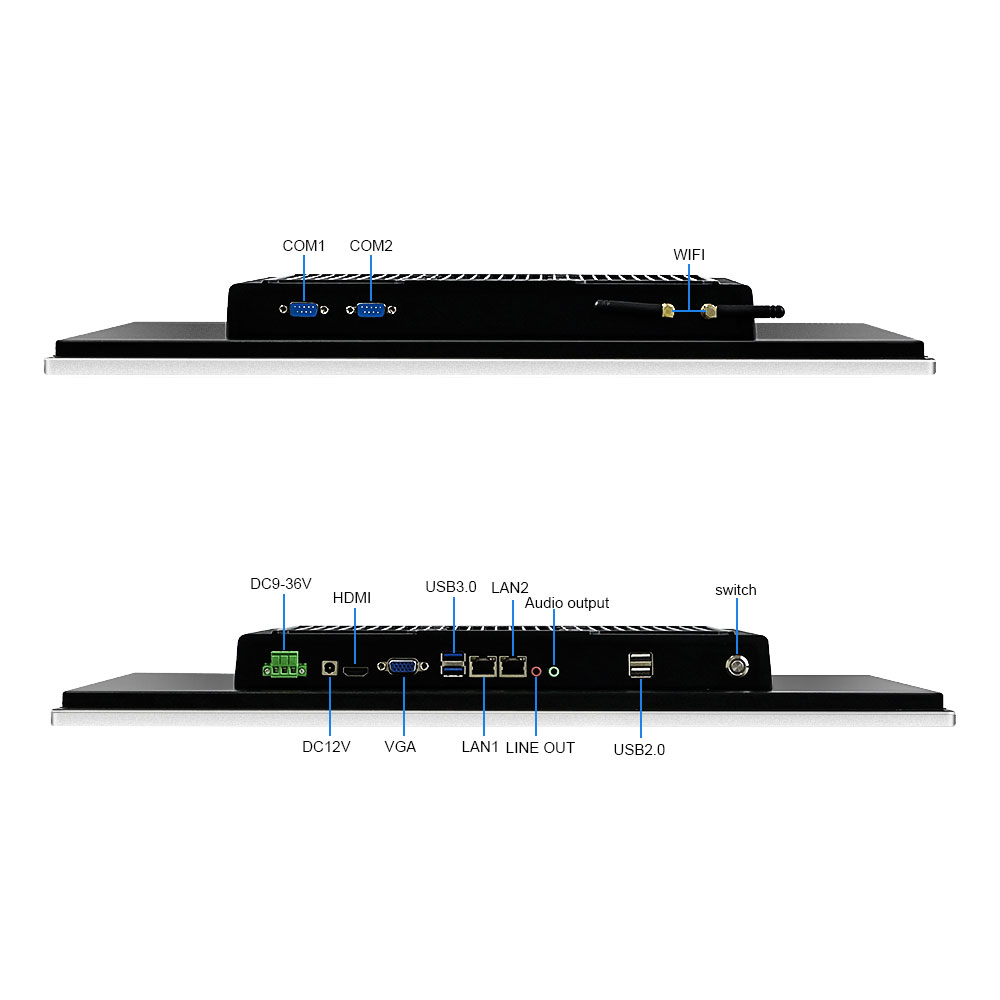

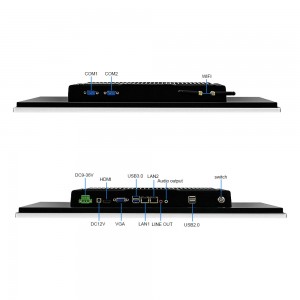

interface DC Power 1*DC12V/5525 socket
USB3.0 2*USB3.0
USB2.0 2*USB2.0
Ethernet  2*RJ45 Gigabit LAN
Serial port  2*COM
VGA 1*VGA IN
HDMI 1*HDMI IN
WIFI 1*WIFI  Antena
Bluetooth  1**Bluetooth Antena
Audio output 1*EAR port
Parameter Material  Aluminum  alloy front Panel
Color Black
AC adapter  AC 100-240V  50/60Hz CCC certified、CE certified
Power dissipation ≤30W
Power output DC12V / 5A



Engineering Dimention Drawing:

https://www.gdcompt.com/wall-mounted-industrial-panel-mounted-touch-screen-pc-product/

In summary, this industrial panel wall-mounted touch computer will become a powerful assistant in the field of industrial control, monitoring systems, etc., and its stability, high performance and personalised customisation features will bring a more convenient and efficient operating experience for industrial applications.

Penny

Web Content Writer

4 years of experience

This article is edited by Penny, the website content writer of COMPT, who has 4 years working experience in the industrial PCs industry and often discusses with colleagues in R&D, marketing and production departments about the professional knowledge and application of industrial controllers, and has a deep understanding of the industry and products.

Please feel free to contact me to discuss more about industrial controllers. zhaopei@gdcompt.com


  • Previous:
  • Next:

  • interface DC Power 1*DC12V/5525 socket
    USB3.0 2*USB3.0
    USB2.0 2*USB2.0
    Ethernet  2*RJ45 Gigabit LAN
    Serial port  2*COM
    VGA 1*VGA IN
    HDMI 1*HDMI IN
    WIFI 1*WIFI  Antena
    Bluetooth  1**Bluetooth Antena
    Audio output 1*EAR port
    Parameter Material  Aluminum  alloy front Panel
    Color Black
    AC adapter  AC 100-240V  50/60Hz CCC certified、CE certified
    Power dissipation ≤30W
    Power output DC12V / 5A
    Other Parameter Backlight lifetime 50000h
    Temperature  Working:-10°~60°;Storage-20°~70°
    Installing mode Wall mounted/Embedded /Desktop louver /folding bracket/cantilever
    Warranty 1 YEAR

    Packing List G.W 5.5KG
    Product size 517.6*310.2*46mm
    VESA hole  100*100mm
    Carton size
    AC adapter Included
    Power line  Included
