17 inch J4125 PC industrial with Screen Resolution 1280*1024
Industrial computers are mostly industry-specific specifications, not standardized products, so there are compatibility problems between systems. At the same time, the product must meet the special needs of customers for the working environment, such as temperature (humidity), water (dust) resistance, voltage stabilizing system, continuous power system, etc. for special design and adjustment, so the manufacturer must have considerable R&D, production, testing, marketing and system integration capabilities, and have a certain technical threshold.
1. The industrial computer has high reliability and can work normally in the environment of dust, smoke, high/low temperature, humidity, vibration and corrosion.
2. High performance and quick response
The industrial computer can monitor the production process in real time, respond quickly to changes in working conditions, adjust and correct in time, and ensure the normal operation of production.
3. Good scalability
The industrial computer has a strong information processing function and can be connected with various peripherals and boards on the industrial site, such as the track controller, video monitoring system, vehicle detector, etc., to complete various tasks.
4. Industrial computers support various operating systems, multi language assembly, and multi task operating systems.
| Display | Screen Size | 17 inch |
| Screen Resolution | 1280*1024 | |
| Luminous | 250 cd/m2 | |
| Color Quantitis | 16.7M | |
| Contrast | 1000:1 | |
| Visual Range | 89/89/89/89 (Typ.)(CR≥10) | |
| Display Size | 337.92(W)×270.336(H) mm | |
| Touch parameter | Reaction Type | Electric capacity reaction |
| Lifetime | More than 50 million times | |
| Surface Hardness | ＞7H | |
| Effective Touch Strength | 45g | |
| Glass Type | Chemical reinforced perspex | |
| Luminousness | ＞85% | |
| Hardware | MAINBOARD MODEL | J4125 |
| CPU | Integrated Intel®Celeron J4125 2.0GHz quad-core | |
| GPU | Integrated Intel®UHD Graphics 600 core card | |
| Memory | 4G（maximum 16GB） | |
| Harddisk | 64G solid state disk（128G replacement available） | |
| Operate system | Default Windows 10（Windows 11/Linux/Ubuntu replacement available） | |
| Audio | ALC888/ALC662 6 channels Hi-Fi Audio controller/Supporting MIC-in/Line-out | |
| Network | Integrated giga network card | |
| Wifi | Internal wifi antenna,supporting wireless connect | |

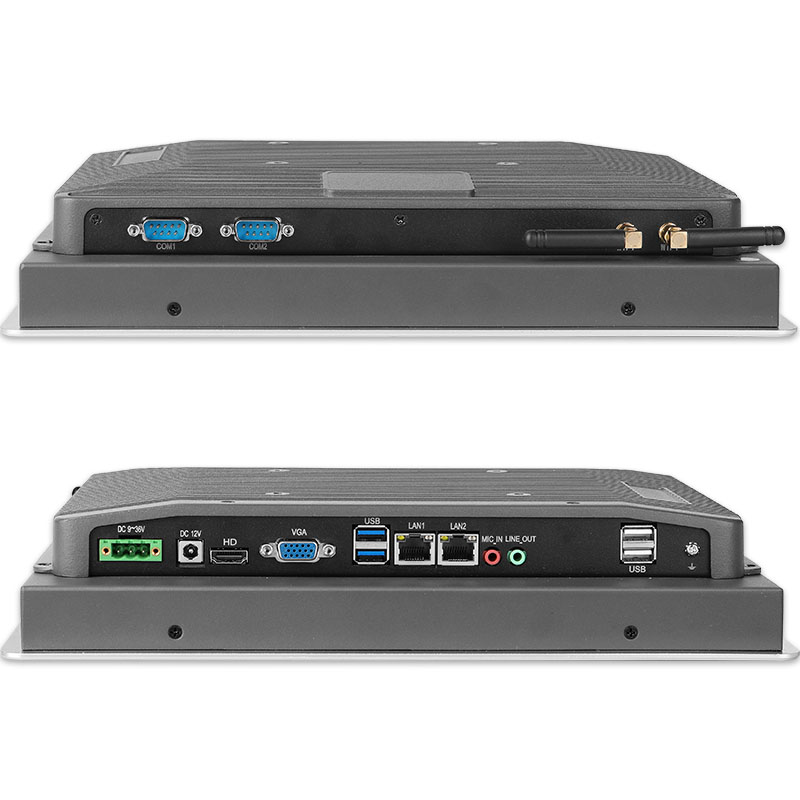

| Interfaces | DC Port 1 | 1*DC12V/5525 socket |
| DC Port 2 | 1*DC9V-36V/5.08mm phonix 4 pin | |
| USB | 2*USB3.0，1*USB 2.0 | |
| Serial-Interface RS232 | 0*COM（upgrade able） | |
| Ethernet | 2*RJ45 giga ethernet | |
| VGA | 1*VGA | |
| HDMI | 1*HDMI OUT | |
| WIFI | 1*WIFI antenna | |
| Bluetooth | 1*Bluetooch antenna | |
| Audio imput | 1* earphone Interfaces | |
| Audio output | 1*MIC Interfaces | |
| Parameter | Material | CNC aluminum oxgenated drawing craft for the front surface frame |
| Color | Black | |
| Power adapter | AC 100-240V 50/60Hz CCC certificated、CE certificated | |
| Power dissipation | ≈20W | |
| Power output | DC12V / 5A | |
| Other parameter | Backlight lifetime | 50000h |
| Temperature | Working：-10°~60°；storage-20°~70° | |
| Install | Embedded snap-fit | |
| Guarantee | Whole computer free for maintain in 1 year | |
| Maintenance terms | Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain | |
| Packing list | N.W. | 4.5KG |

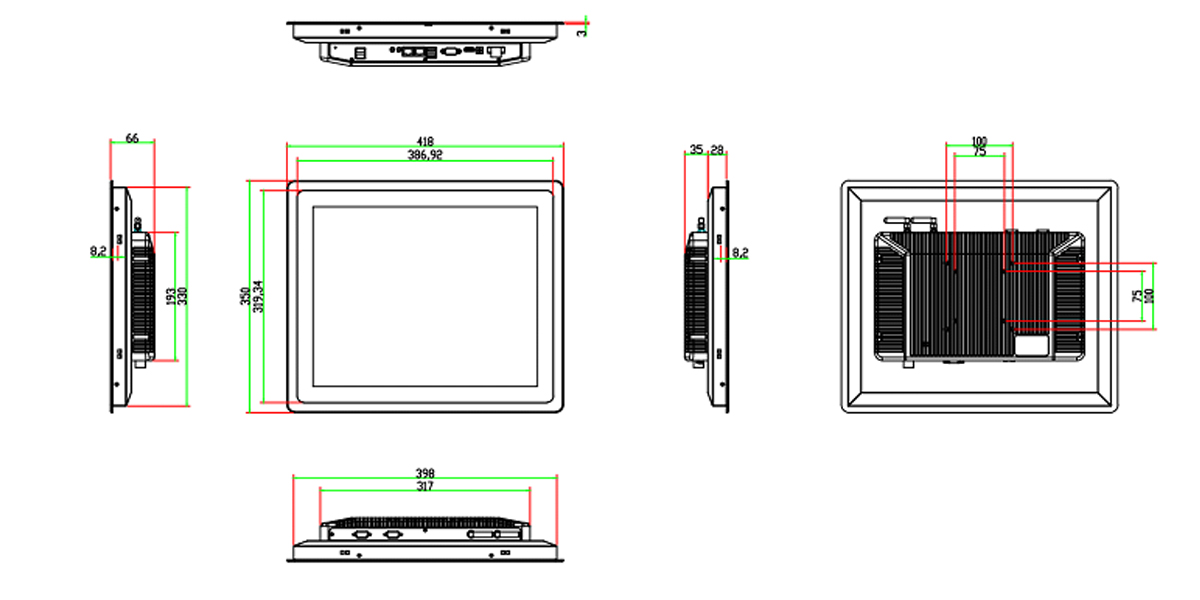

| Product size（not in cluding brackt） | 418*350*66mm | |
| Range for embedded trepanning | 400*332mm | |
| Carton size | 503*435*125mm | |
| Power adapter | Available for purchase | |
| Power line | Available for purchase | |
| Parts for install | Embedded snap-fit * 4，PM4x30 screw * 4 |
