Panel Mount Computer Monitor | Industrial Panel Mount PCs-COMPT
This video shows the product in 360 degrees.

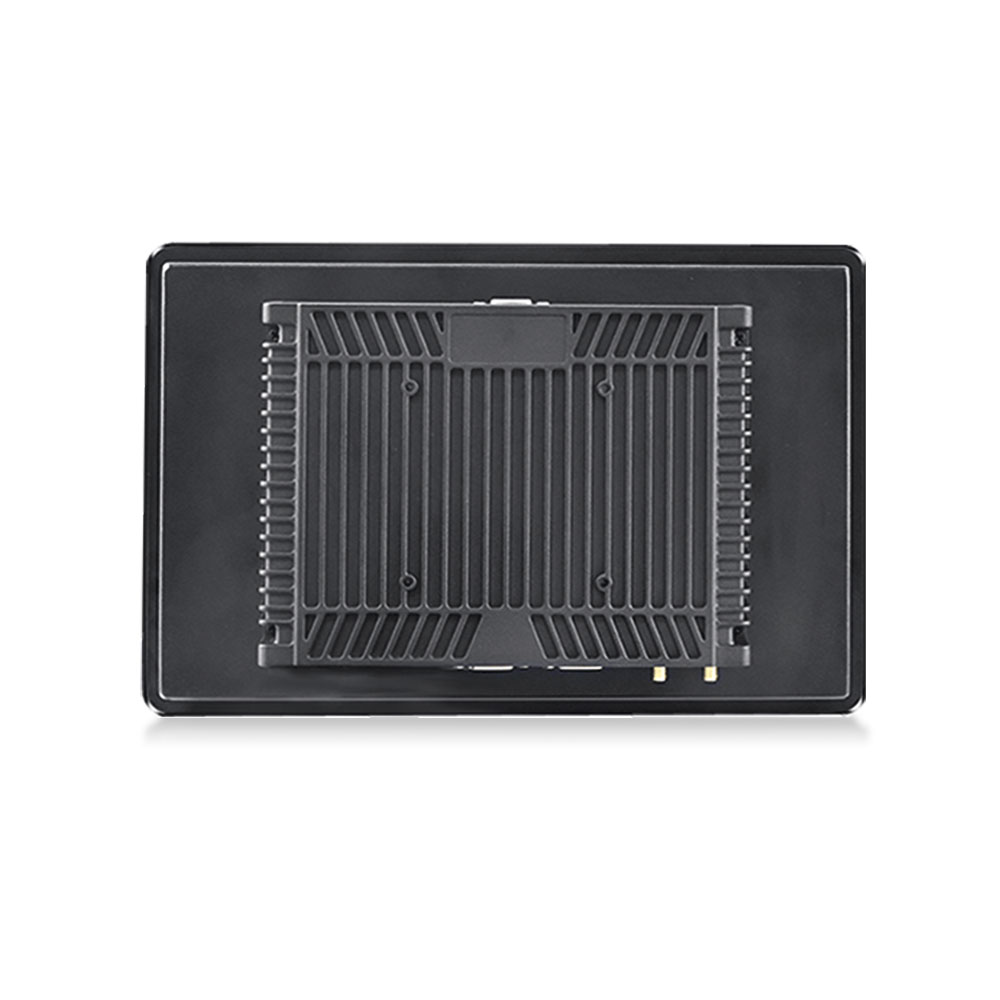

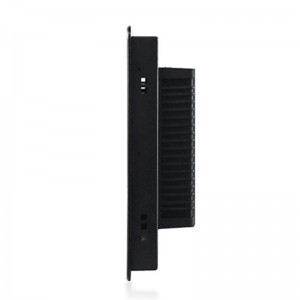

The 10 inch industrial panel pc is an IP65 waterproof, dustproof and shockproof panel computer produced by COMPT for the manufacturing industry for durability in manufacturing environments.
Our COMPT panel mount computer combine advanced computing power with a range of hardened displays, providing a rugged solution for human/machine interface (HMI), factory automation, in-vehicle use, inventory management, kiosk systems, or industrial control, for various industrial applications.
A Panel Mount Computer is a type of computer equipment designed specifically for industrial environments, and is designed to allow users to mount it directly to the panel of a device or machine, usually with more compact dimensions and a more durable case design. They are usually dustproof, waterproof, and temperature resistant, and are able to operate stably in harsh operating environments to adapt to the challenges of industrial environments such as vibration, shock, dust, temperature fluctuations, and more.

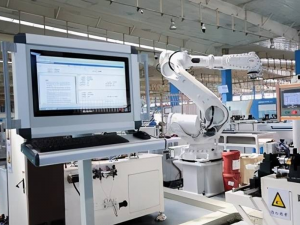

1. Industrial Automation

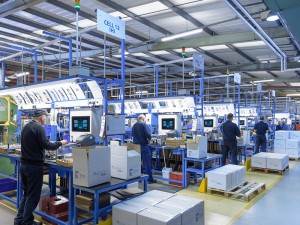

Panel Mount Computers are ideal for industrial automation. They can be embedded into the control panel of a production line or equipment as a master controller or data acquisition device to automate the monitoring and control of the production process. By connecting with sensors, actuators and other devices, they can acquire production data in real time and perform corresponding control operations to improve production efficiency and quality.
2. Energy Management
In the field of energy management, Panel Mount Computers are used to monitor and control energy consumption. They can be installed on the console of the energy equipment to monitor the energy consumption data of the equipment in real time, such as electricity, gas, water and so on. By connecting with the energy management system, intelligent scheduling and optimization of energy use can be achieved, reducing energy consumption and improving energy efficiency.
3. Environmental Monitoring
Panel Mount Computers are also widely used in the field of environmental monitoring. They can be installed in the control cabinets of environmental monitoring stations or equipments, and are used to collect and process environmental data, such as temperature, humidity, air quality and so on. By combining with data analysis and visualization software, they can monitor environmental changes in real time and provide early warning and decision support to protect the environment and human health.

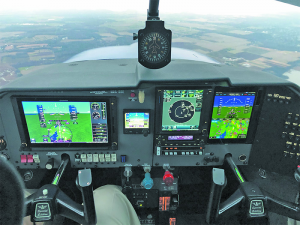

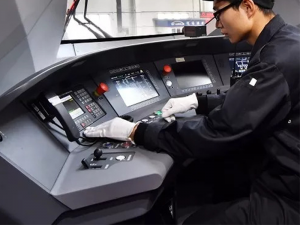

4. Transportation
In the field of transportation, Panel Mount Computers are commonly used for control and monitoring of vehicles or transportation equipment. They can be integrated into vehicle dashboards or traffic control systems to provide real-time navigation, traffic monitoring, vehicle status detection, etc. The reliability and stability of Panel Mount Computers ensure the safe and efficient operation of transportation systems.
Of course, only some of the applications are listed here, and more applications can be found on our website.
The technical specifications and configurations of Panel Mount Computers are available in standard versions or can be customized to meet different needs based on customer requirements. They are usually equipped with high-performance processors, high-capacity memory and reliable storage devices to meet the demands of complex computing and data processing. In addition, there are abundant I/O interfaces and expansion slots for connecting various external devices and sensors.
| Name | panel mount computer | |
| Display | Screen size | 11.6 inches |
| Resolution | 1920*1080 | |
| Brightness | 280 cd/m2 | |
| Colour | 16.7M | |
| Ratio | 1000:1 | |
| visual Angle | 89/89/89/89(Typ.)(CR≥10) | |
| Display area | 256.32(W)×144.18(H) mm | |
| Touch Feature |
Type | Capactive |
| Communication mode | USB communicate | |
| Touch method | Fingure/Capactive pen | |
| Touch life | Capactive＞50 Milion | |
| luminousness | >87% | |
| Surface hardness | ＞7H | |
| Glass type | Chemically enhanced plexiglass | |
| Hard ware SPEC |
CPU | Intel®Celeron J4125 2.0GHz |
| GPU | Intel®UHD Graphics 600 | |
| RAM | 4G（MAX 8GB） | |
| ROM | 64G SSD（Optional 128G/256G/512G） | |
| System | Deafult Windows 10（Windows 11/Linux/Ubuntu OPTIONAL） | |
| Audio | ALC888/ALC662 /Support MIC-in/Line-out | |
| Network | Integrated Gigabit network RJ45 | |
| Wireless Network | WiFi autenna,wireless internet support | |

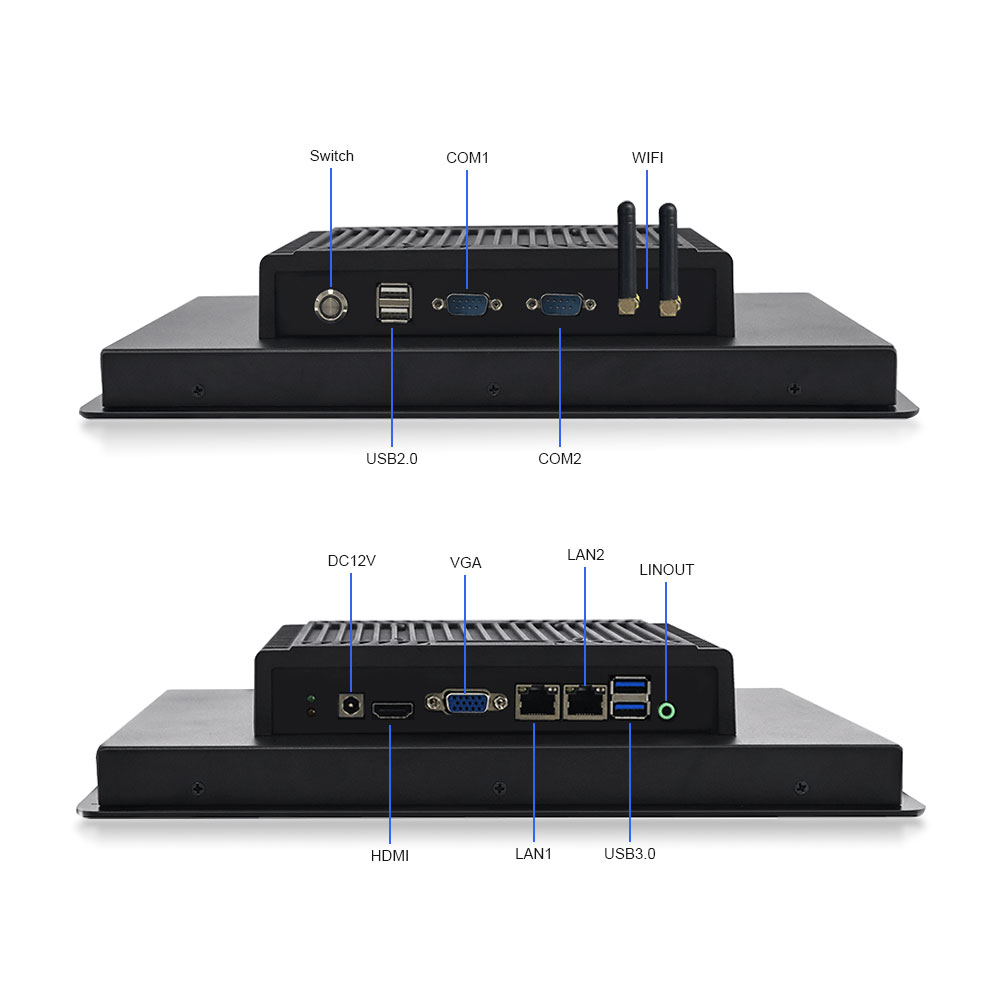

| Interface | DC 1 | 1*DC12V/5525 |
| DC 2 | 1*DC9V-36V/5.08mm（optional） | |
| USB | 2*USB3.0，2*USB 2.0 | |
| RS232 | 2*COM | |
| Network | 2*RJ45 1000Mbps | |
| VGA | 1*VGA IN | |
| HDMI | 1*HDMI IN | |
| WIFI | 1*WIFI autenna | |
| BT | 1*Blue tooth Autenna | |
| Audio | 1*3.5MM | |
