Optional embedded, desktop, wall mounted, cantilever type industrial touch screen display

Short Description:

COMPT industrial display is different from the ordinary liquid crystal display, can adapt to extreme environment, stable operation, long service life, dust, shock and so on.
Industrial display application in industrial control process or equipment display, it and civil or commercial display the main difference is that the shell design is generally made of steel design, panel is divided into ordinary iron plate, stainless iron, stainless steel, aluminum panel and other different materials, dust, shockproof special design, the use of industrial grade LCD, in the case of high environmental requirements, Consider a wide temperature LCD screen.



  • Model:CPT-120M1BC3
  • Screen Size:12 inch
  • Screen Resolution:1024*768
  • Product size:317*252*62mm

Product Detail

PRODUCT INTRODUCTION

Product Tags

Products Video

This video shows the product in 360 degrees.

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

Product installation method:

1. Open industrial display
Industrial display is no face frame shell, only internal, most customer applications are mainly in the equipment and small size already have a beautiful shell, there is not much space to install the general display, such as ATM machines, commercial POS, etc., are generally installed inside the customer equipment.

2. Embedded industrial displays
Embedded industrial display as the name implies he must be embedded in the customer's product, the customer's product to have a large control cabinet, our embedded industrial display is only the remaining panel, the rest are embedded in the customer's equipment, the back with a hook fixed (large control cabinet as long as the size of our embedded display installation diagram open a large square hole) other places do not need to open any installation holes.

3. Rack type industrial display
Generally speaking, the rack type industrial display is, for example: installed in the 19-inch cabinet, so his width is the standard 19 inches, the installation hole according to the standard U number opened. Generally applied in telecommunications, electricity, large servers and other large cabinets used.

4. Inverted industrial display
To put it simply, it is installed in reverse in the customer's cabinet and equipment, is installed inside the customer's machinery and equipment industrial display, different from the open industrial display is that it has a shell and power supply, its edge and the edge of the customer's chassis overlap, generally used in medium and large equipment, such as electricity, machinery, medical industry.

5. Wall-mounted industrial display
The characteristic is that it can be hung up, not only on the wall, most of them are installed on the customer's equipment, it can adjust the angle with the customer's requirements, with the appropriate mounting arm, he can stay in any position for the user to watch, generally used in small, medium and large equipment.

https://www.gdcompt.com/optional-embedded-desktop-wall-mounted-cantilever-type-industrial-display-product/

Parameter information

Display Screen Size 12  inch
Screen Resolution 1024*768
Luminous 400 cd/m2
Color Quantitis 16.2M
Contrast 500:1
Visual Range 89/89/89/89 (Typ.)(CR≥10)
Display Size 246(W)×184.5(H) mm

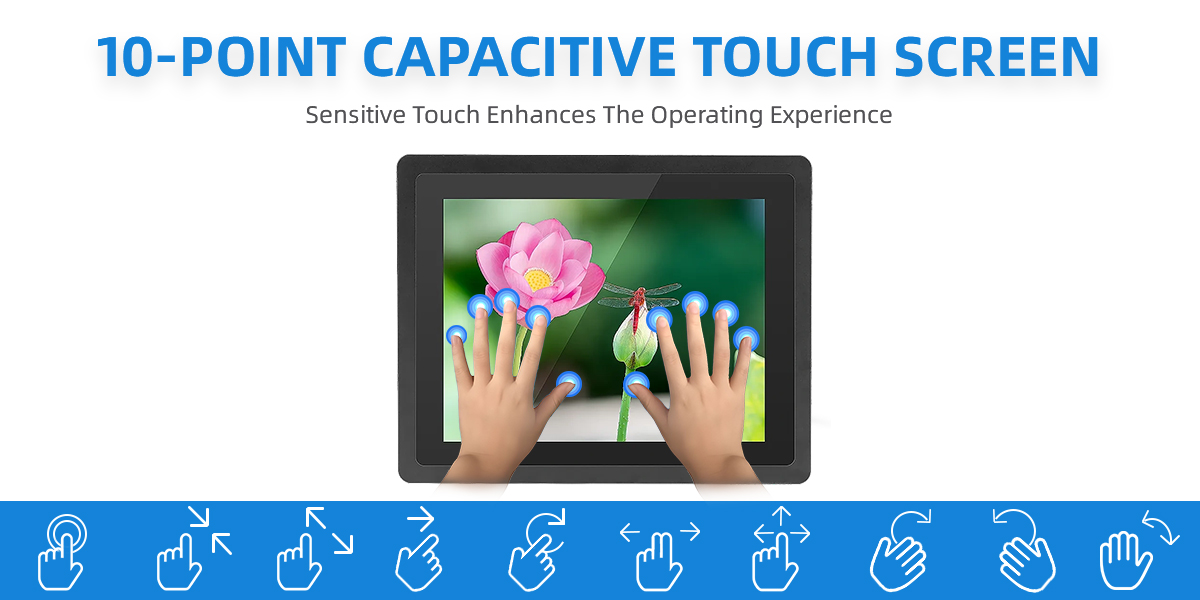

Touch parameter Reaction Type Electric capacity reaction
Lifetime More than 50 miliion times
Surface Hardness >7H
Effective Touch Strength  45g
Glass Type More than 50 miliion times
Luminousness >85%
Parameter Power suplier mode 12V/5A external power adapter / industral interface
Power specs 100-240V,50-60HZ

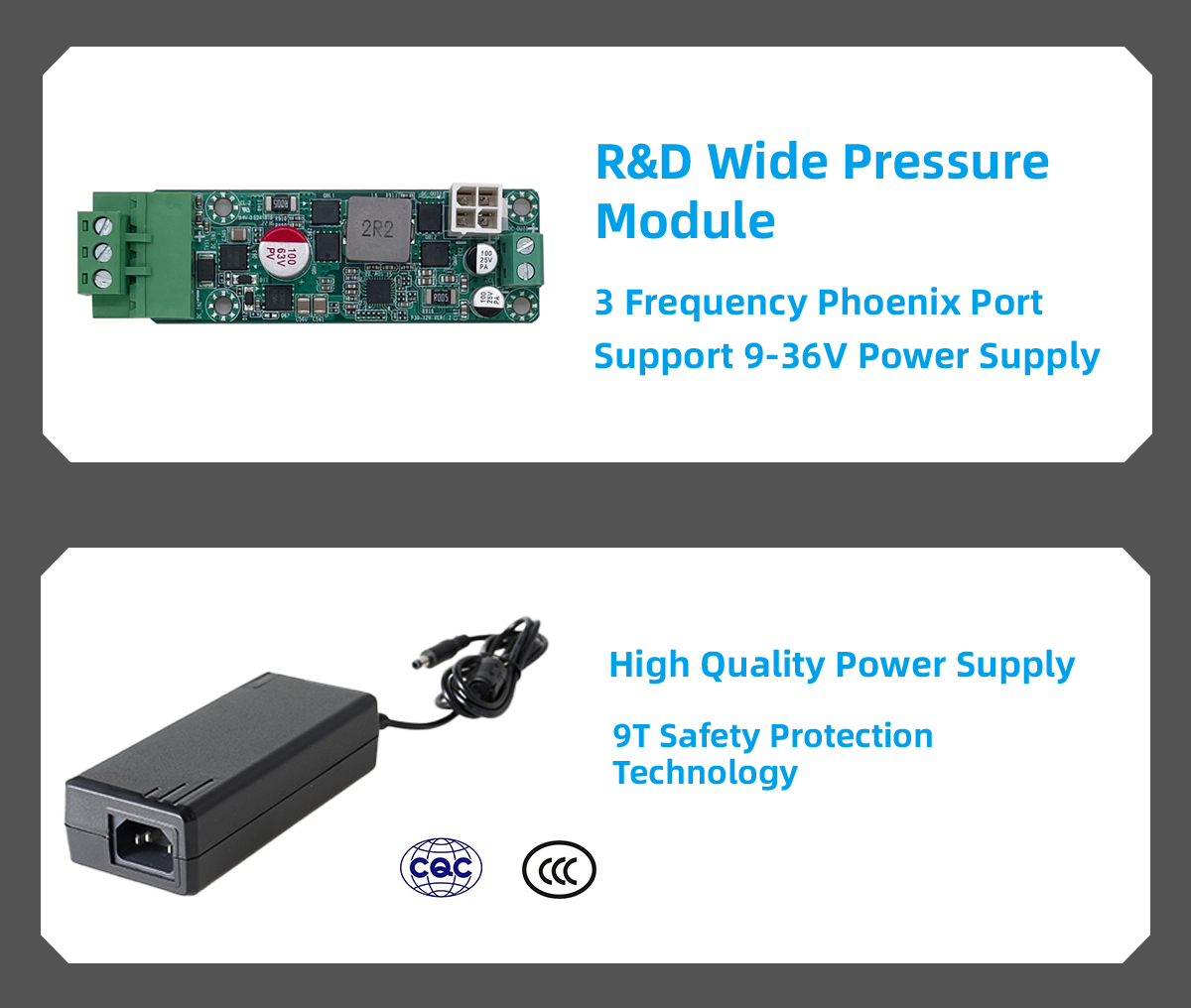

Imput voltage 9-36V/12V
Anti-static Contact discharge 4KV-air discharge 8KV(customization available≥16KV)
Rate of work ≤40W
Vibration proof GB242 standard
Anti-interference EMC|EMI anti-electromagnetic interference
Protection Front panel IP65 dustproof waterproof
Color of shell Black
Install mode Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type
Environment temperature <80%,Condesation forbidden
Working temperature Working:-10°~60°;Storage:-20°~70°
Language menu Chinese、English、Gemman、French、Korean、Spanish、
Italia、Russia
Install mode Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type
Guarantee Whole computer free for maintain in 1 year
Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain

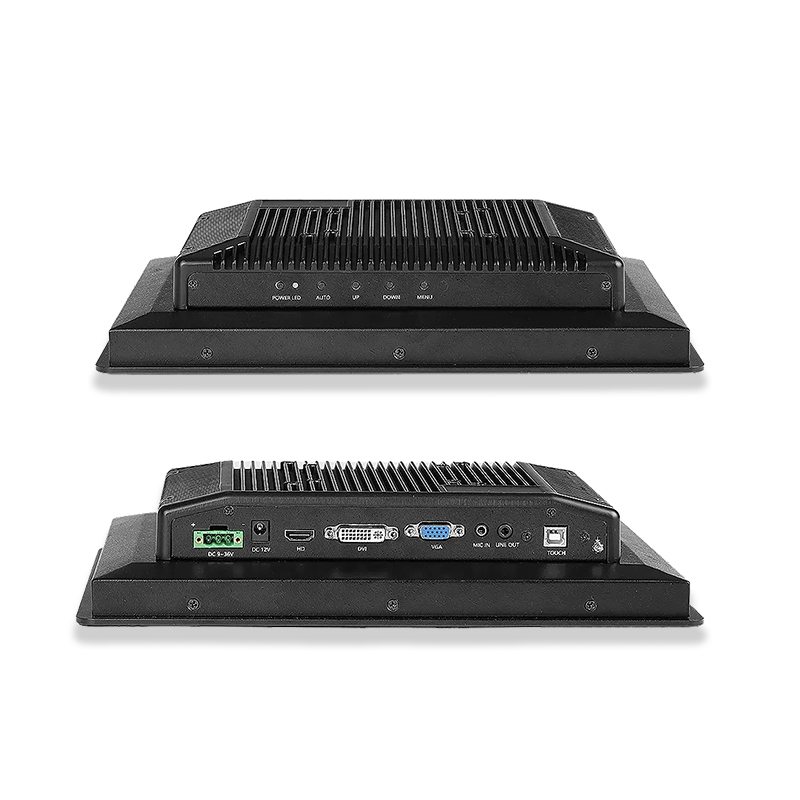

I/O interface parameter DC port 1 1*DC12V/5525 socket
DC port 2 1*DC9V-36V/5.08mm phonix 4 pin
Touch function 1*USB-B external interface
VGA 1*VGA IN
HDMI 1*HDMI IN
DVI 1*DVI IN
PC AUDIO 1*PC AUDIO
EARPHONE 1*EARPHONE
Packing list N.W. 3.5KG
Product size 317*252*62mm
Range for embedded trepanning 303*238mm
Carton size 402*337*125mm
Power adapter Available for purchase
Power line Available for purchase
Parts for install Embedded snap-fit * 4,PM4x30 screw * 4

SOLUTIONS:

  • 1. displays for industrial field control;
  • 2. embedded into various types of equipment as display devices;
  • 3. displays for telecommunication and network room hosts;
  • 4. monitors for trains, subway stations, ports;
  • 5. displays for vehicles (trains, subways, automobiles);
  • 6. reinforced grade or military standard grade displays generally used in the field in severe environments, military vehicles, warships;
  • 7. advertising machine, in the living community elevator, public places, commercial office buildings, etc. as the country advertising machine to play commercial advertising.

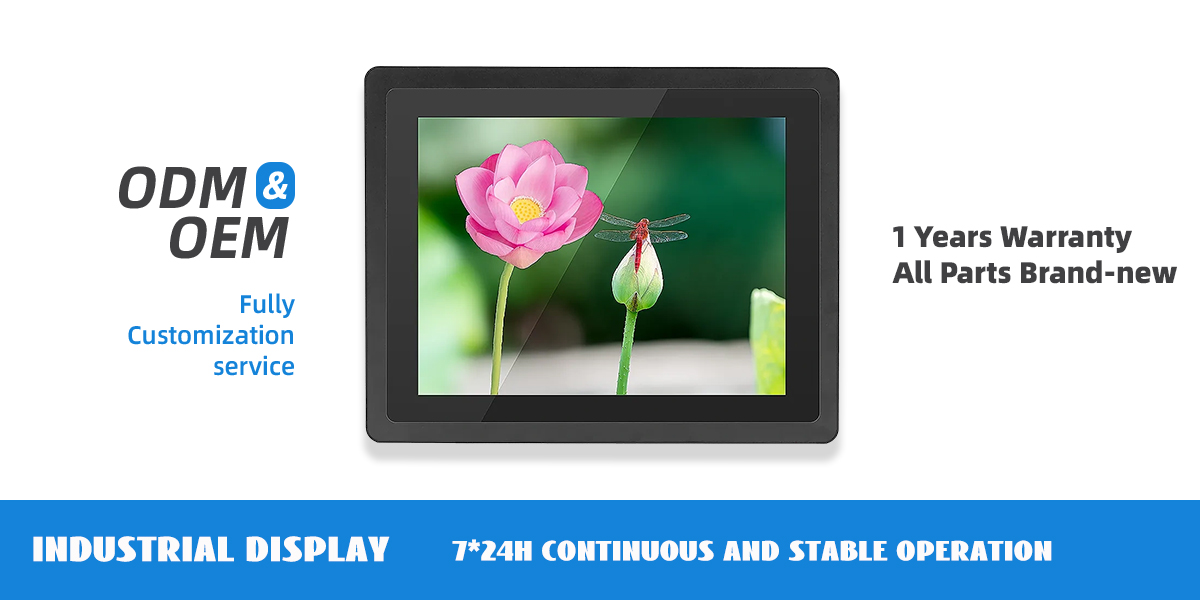

Support display customization

The common sizes of industrial displays are 12" 12.1" 13.3" 15" 15.6" 17" 17.3" 18.5" 19" 21.5", etc. We support the customization of each large, medium and small size display, and can customize the size according to customer requirements.
