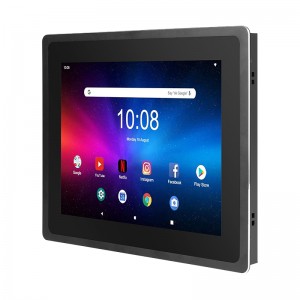

OEM 12 inch RK3368 Industrial Android all-in-one for inclement weather

Short Description:

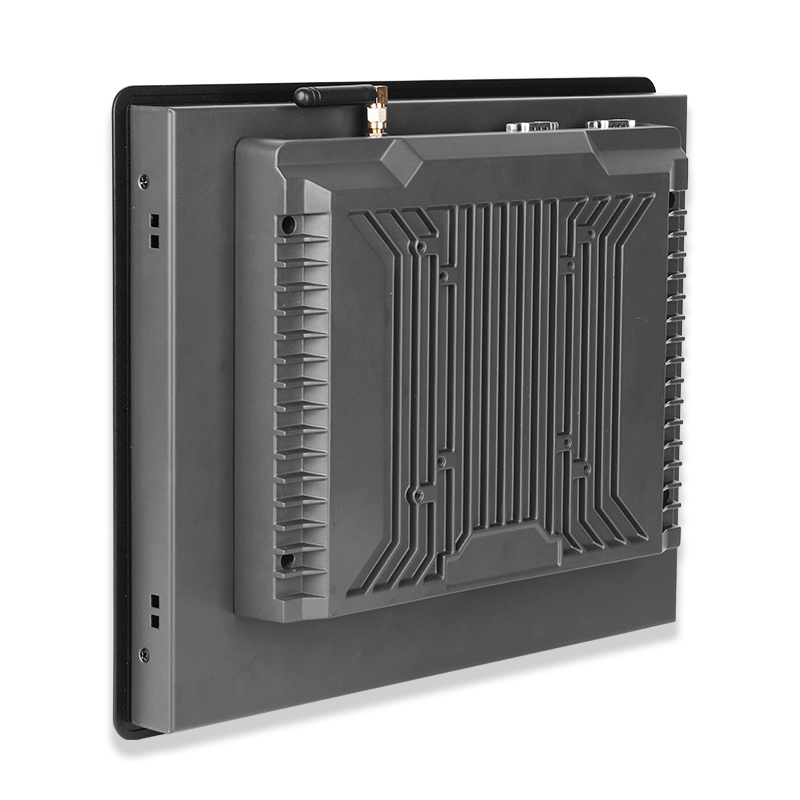

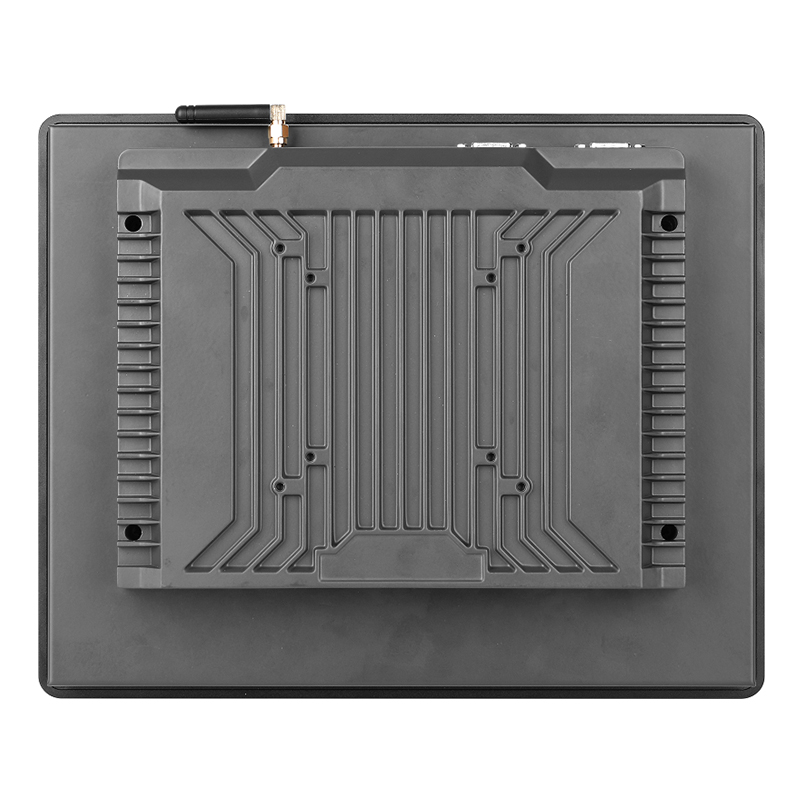

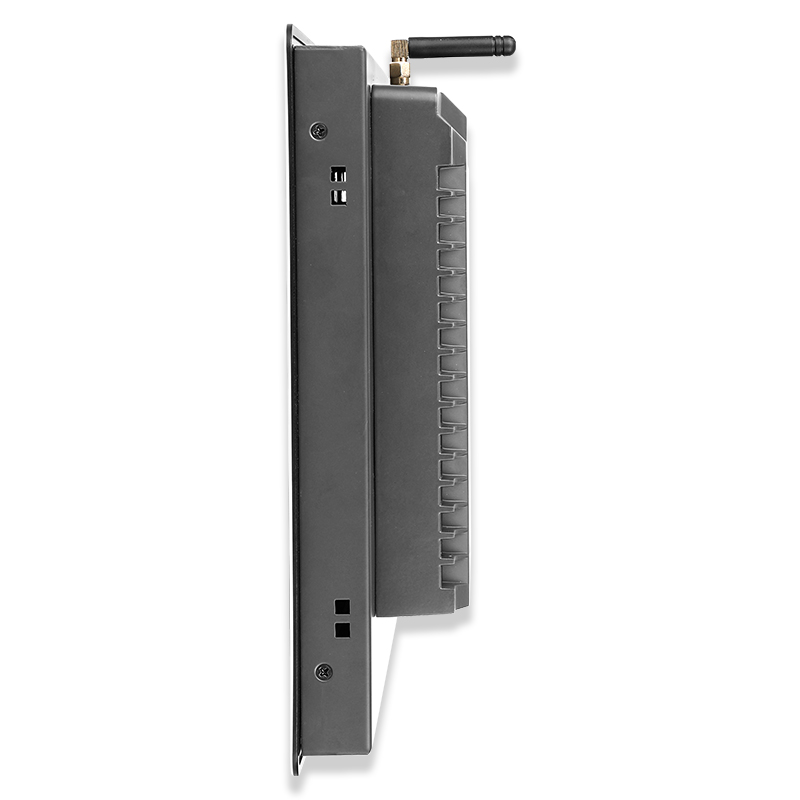

Industrial Android all-in-one machine adopts all-aluminum alloy structure, fan-less fully closed design scheme, low power consumption, compact appearance, is specially designed for a variety of environment and industrial products, can ensure long-term stable work in harsh environment, in the material we pay more attention to its reliability, environmental adaptability, real-time, scalability, EMC compatibility and other performance, Standard configuration.

Model:CPT-120A1BC1-RK3368
Screen Size：12 inch
Screen Resolution:1024*768
Product size:317*252*62mm

Download as pdf whatsapp email

Product Detail

Product Introduction

Product Tags

Products Video

This video shows the product in 360 degrees.

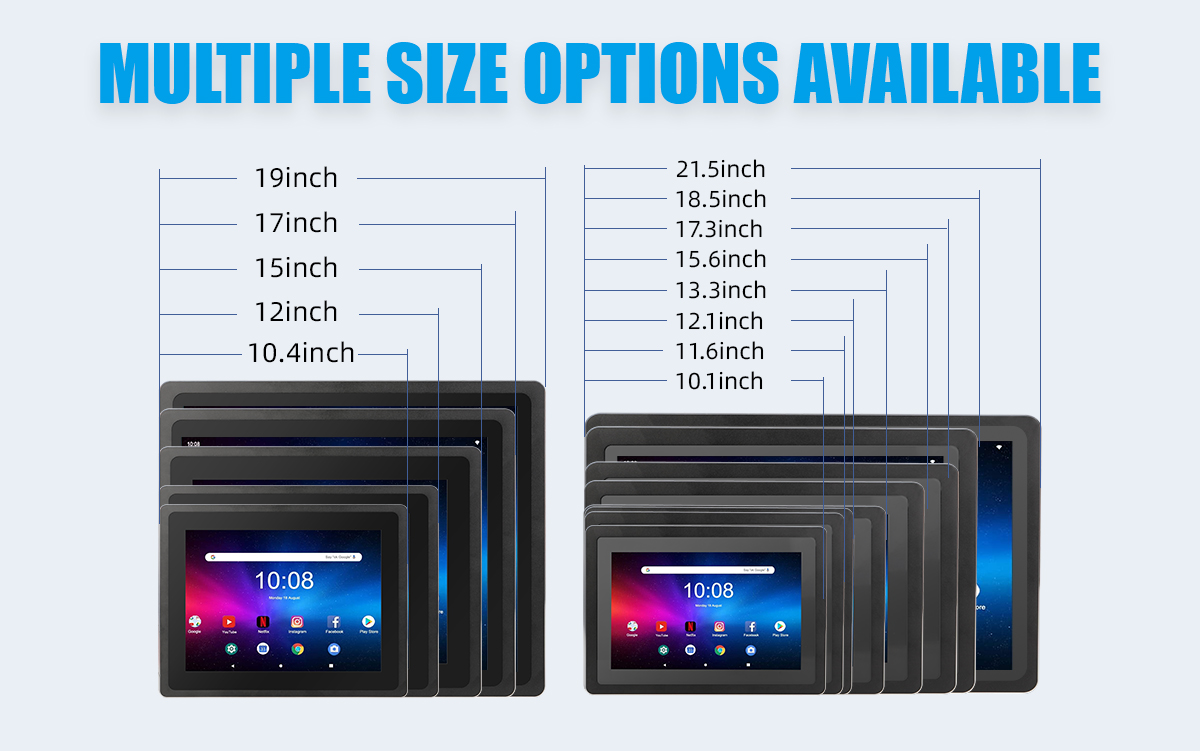

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

Features of Industrial Android all-in-one：

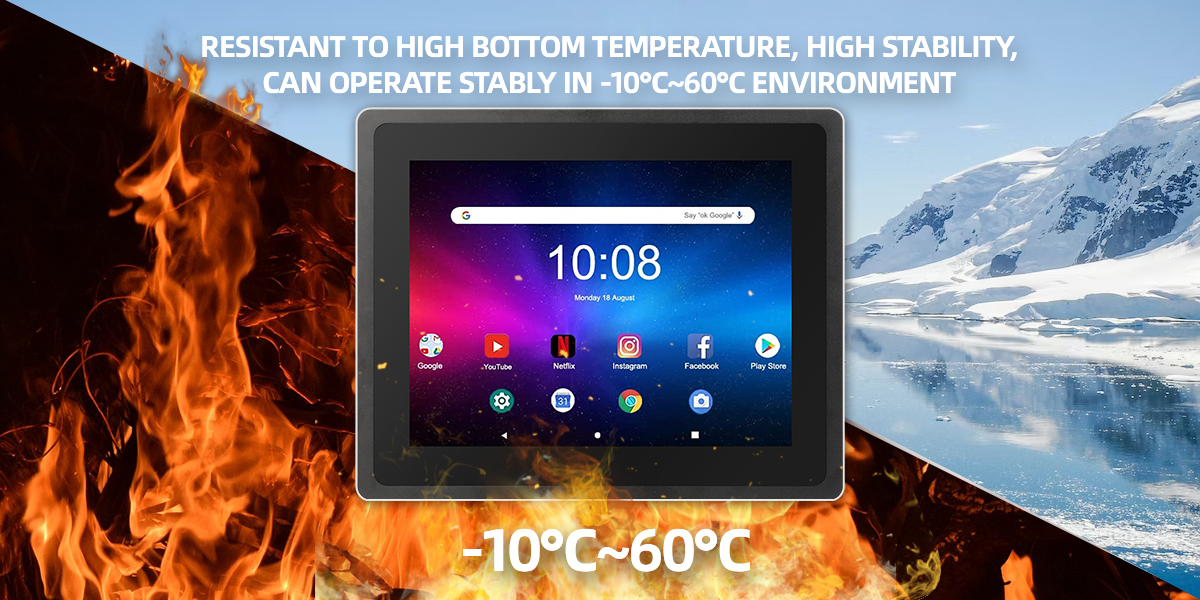

Based on the RK3288 high-performance quad-core application processor platform, the RK3288 main chip integrates the quad-core Cortex-A17 and Mali-T764 high-performance quad-core GPU, with the main frequency up to 1.8GHz. With super computing performance, 2D/3D graphics processing capacity and full HD video encoding and decoding ability, perfect support 4Kx2K@60fps ultra HD decoding and 4Kx2K HDMI ultra HD output. Meet the field needs of a variety of application interfaces, provide a variety of work efficiency, widely used in industrial control, military, communications, electric power, network and other high-end automation fields. Resistant to high bottom temperature, high stability, can operate stably in -10°c~60°c environment.

Hardware Configuration information:

Hardware	Motherboard Type	RK3288
	CPU	RK3288 Cortex-A17 Quad-Core 1.8GHz
	GPU	Mali-T764 quad-core
	Memory	2G (4G Optional)
	Hard Disk	16G (UP To 128G optional)
	Operating System	Android 7.1
	3GModule	Optional
	4GModule	Optional
	WIFI	2.4G
	Bluetooth	BT4.0
	GPS	Optional
	MIC	Optional
	RTC Real Time Clock	Yes
	Network Wakeup	Yes
	PShutDown	Yes
	System Upgrade	Support local SD, USB upgrade

Industrial Android all-in-one Monitors information:

Display	Screen	12 inch
	Resolution Ratio	1024*768
	Brightness	400 cd/m2
	Color	16.2M
	Contrast Ratio	500:1
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
	Screen Scale	246(W)×184.5(H) mm

Industrial Android all-in-one Touch Parameter information:

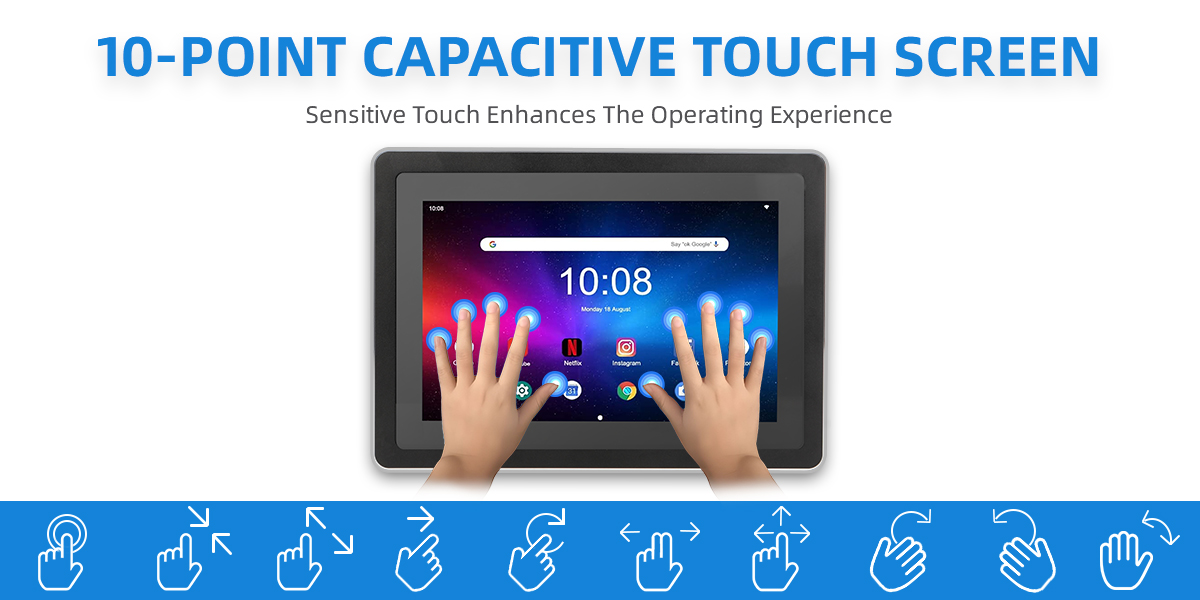

Touch Parameter	Reaction Type	Electric capacity reaction
	Lifetime	More than 50 miliion times
	Surface Hardness	＞7H
	Effective Touch Strength	45g
	Glass Type	Chemical reinforced perspex
	Luminousness	＞85%

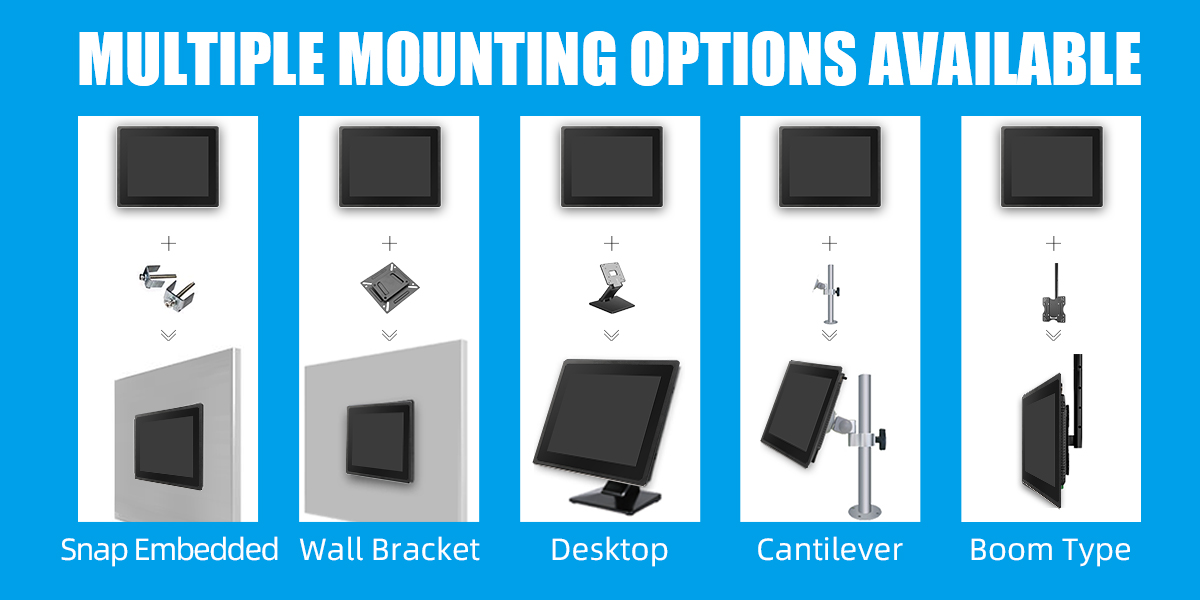

Multiple mounting options available

Snap Embedded.
Wall Bracket.
Desktop.

Cantilever.
Boom Type.

Industrial Android all-in-one more information:

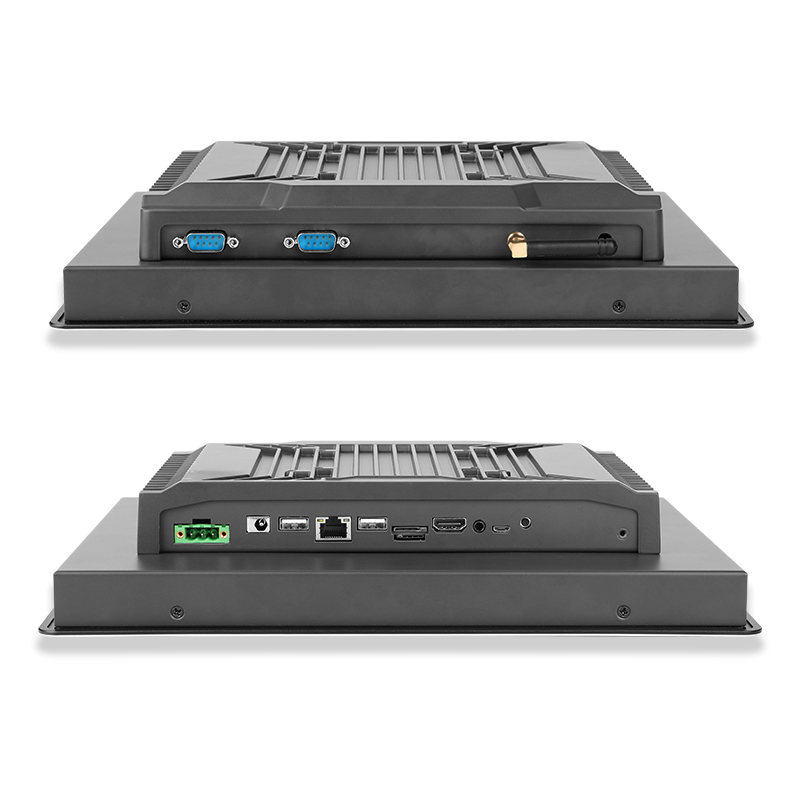

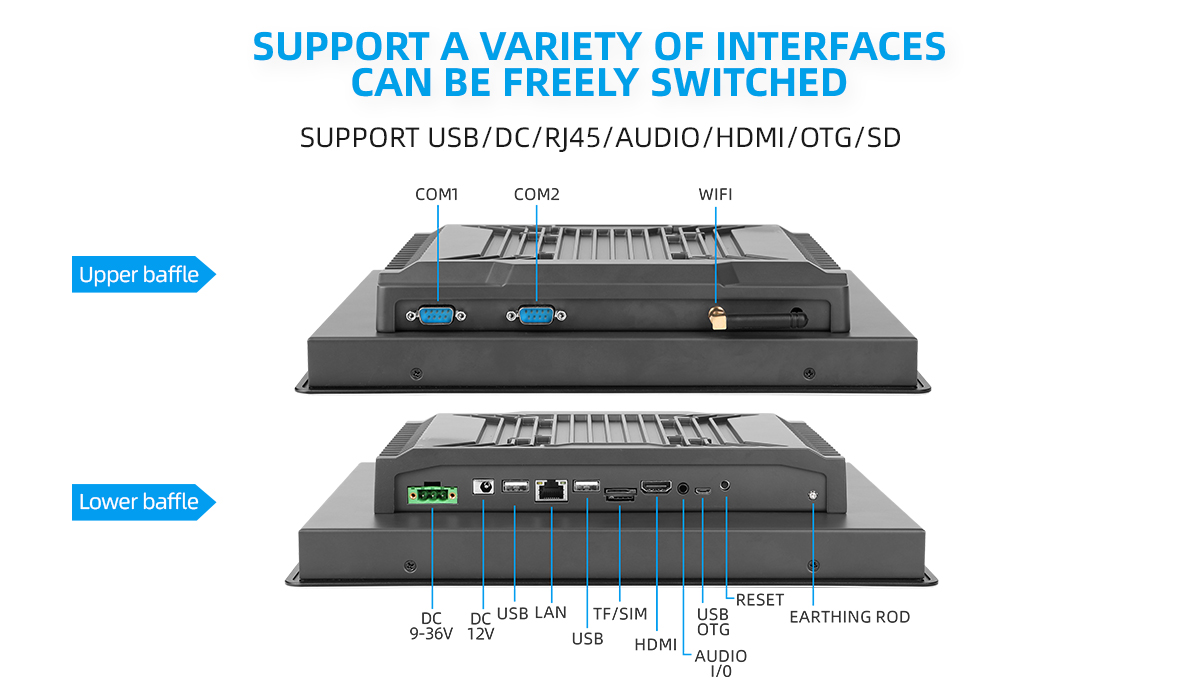

Interfaces	MAINBOARD MODEL	RK3288
	DC Port 1	1*DC12V / 5525 socket
	DC Port 2	1*DC9V-36V / 5.08mm phonix 4 pin
	HDMI	1*HDMI
	USB-OTG	1*Mirco
	USB-HOST	2*USB2.0
	RJ45 Ethernet	1*10M/100M Self-adaptive ethernet
	SD/TF	1*TF card slot,supporting up to 128G
	Earphone jack	1*3.5mm Standard
	Serial-Interface RS232	2*COM
	Serial-Interface RS422	Replacement available
	Serial-Interface RS485	Replacement available
	SIM Card	SIM card standard interfaces,customization available
Parameter	Material	Sand blasting oxygenated aluminium front surface frame
	Color	black
	Power adapter	AC 100-240V 50/60Hz CCC certificated、CE certificated
	Power dissipation	≤12W
	Power output	DC12V / 5A
Other Parameter	Backlight lifetime	50000h
	Temperature	Working：-10°~60°；storage-20°~70°
	Install	Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type
	Guarantee	Whole computer free for maintain in 1 year
	Maintain mode	Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain
Packing List	N.W.	3.5KG
	Product size（not in cluding brackt）	31725262mm

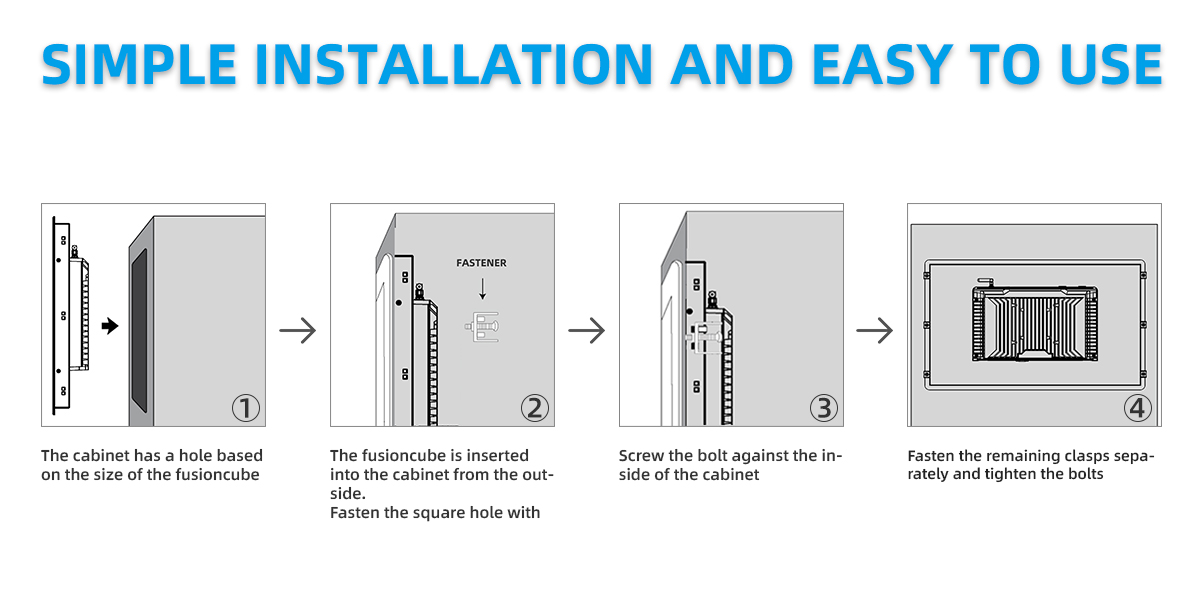

	Range for embedded trepanning	303*238mm
	Carton size	402337125mm
	Power adapter	Available for purchase
	Power line	Available for purchase
	Parts for install	Embedded snap-fit * 4，PM4x30 screw * 4
