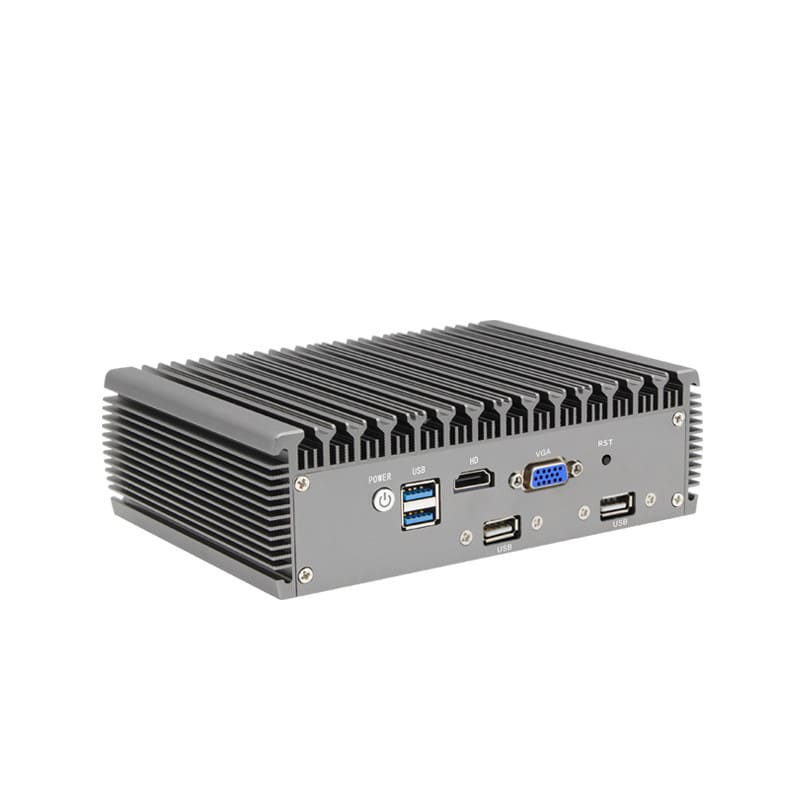

N5095 Industrial Grade Pc | Industrial Computer-COMPT
Key Features:
1. High reliability: COMPT Industrial Grade PCs are able to maintain stable performance in a 24/7 operating environment.
2. Strong expandability: support a variety of interfaces and expansion slots, convenient to connect a variety of industrial equipment.
3. Anti-interference ability: with excellent electromagnetic compatibility, it can work normally in the environment with strong electromagnetic interference.
4. High durability: Adopting high-quality materials and sturdy design, dustproof, waterproof and shockproof.
5. Low power consumption design: energy efficient, reduce energy consumption and operating costs.
COMPT Industrial Grade PCs are computers designed for use in harsh environments and demanding applications.COMPT brand Industrial Grade PCs offer exceptional durability, high performance and stability, and are capable of operating reliably in harsh conditions such as extreme temperatures, humidity, dust and vibration.COMPT Industrial Grade PCs are typically designed with a fanless design to minimise the build-up of dust and contaminants, and are equipped with a rugged enclosures and high-quality electronics to ensure stable operation over long periods of time.

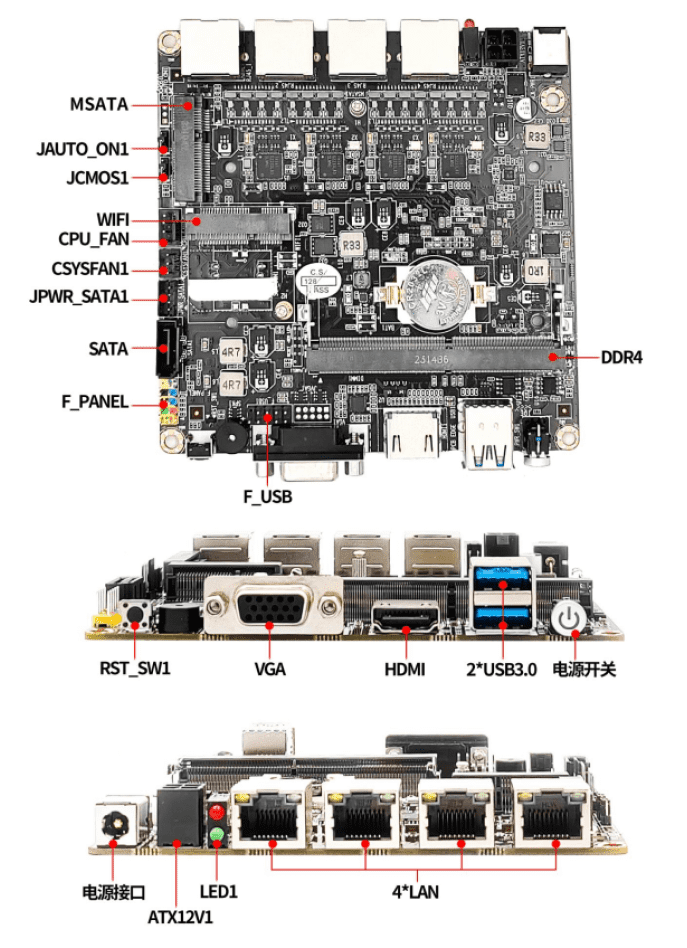

| Processor: | N5095 4-core 4-thread processor, main frequency 2.0GHz, RW frequency 2.9GHz |
| Internal Memory: | 1*DDR4 memory slot, maximum support 16GB |
| Hard Drive: | 1*MSATA SSD interface, 1*SATA 2.5-inch hard drive interface |
| Graphics integration: | Intel® UHD Graphics display core |

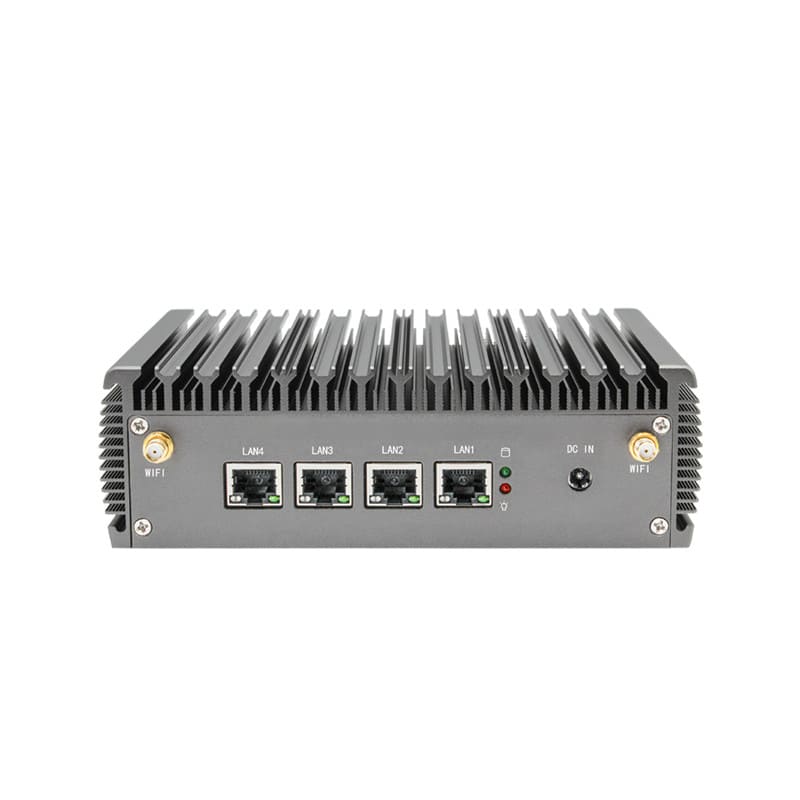

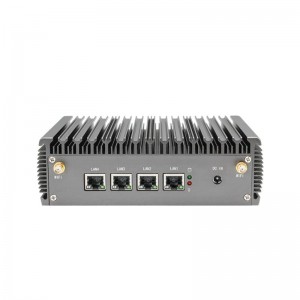

| Network: | 4* Intel I225-V 2.5G NIC, 1*M-PCIE WiFi interface |
| Display interface: | VGA, HDMI, support synchronous or asynchronous display |

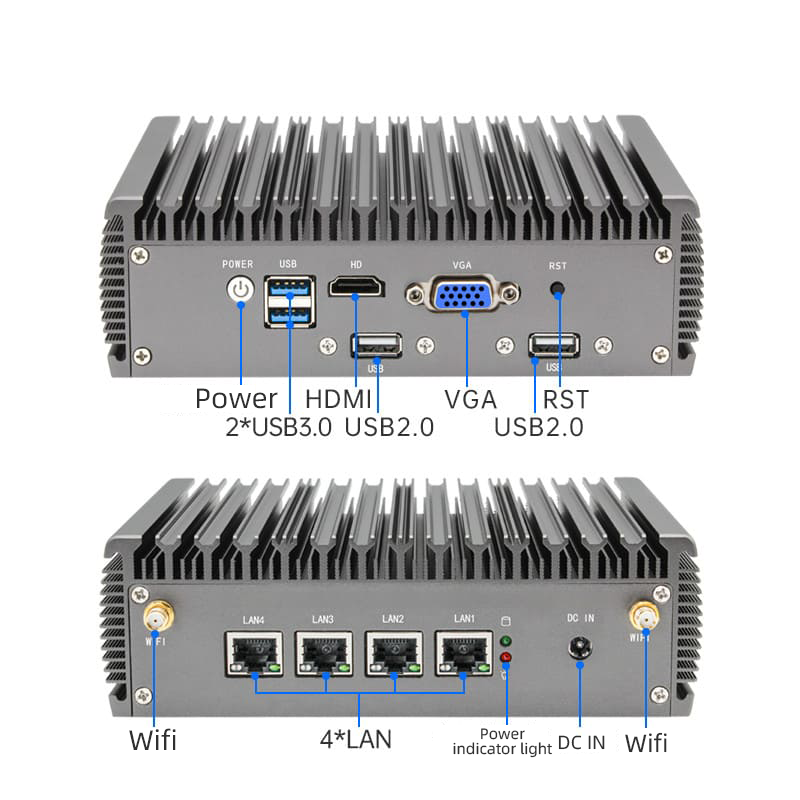

| Other interfaces: | 2*USB3.0, 2*Pin USB2.0, power connector, 4*LAN network interface, 2*WiFi antenna interface |
| System: | Support Win10/Linux etc. |
| BIOS: | support power on, timer boot, diskless boot, network wake-up |
| Physical size: | 178*127*55mm |
| Installation: | desktop, wall-mounted, embedded |
| Operating temperature: | -20°~60°C |
| Chassis colour: | silver (more can be customized) |
| Power supply: | external power adapter, input AC 110V-220V, output DC 12V, 5.5*2.5 DC specifications |

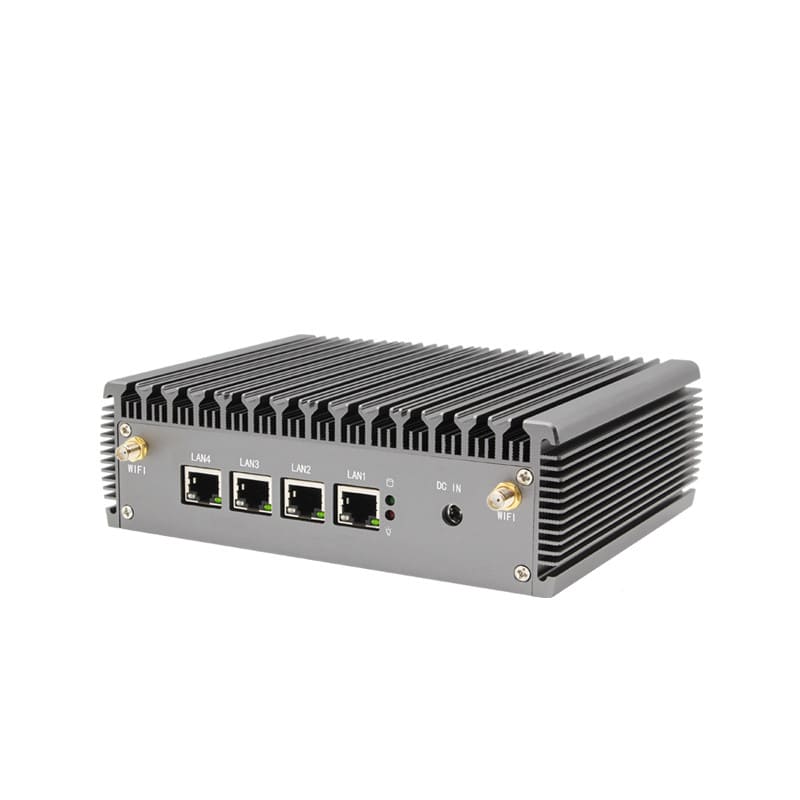

Designed with a rugged enclosure for long-term stable operation in harsh environments, COMPT's embedded computers are built with rugged enclosure materials, typically aluminium alloy or industrial-grade plastics, which are not only lightweight, but also offer excellent resistance to shock and vibration. These materials are not only lightweight, but also have excellent shock and vibration resistance. The rugged casing protects the internal electronic components from damage due to external physical shocks. compt's embedded computers are the preferred choice for many industries due to their highly durable design and ability to operate stably for long periods of time in extreme environment

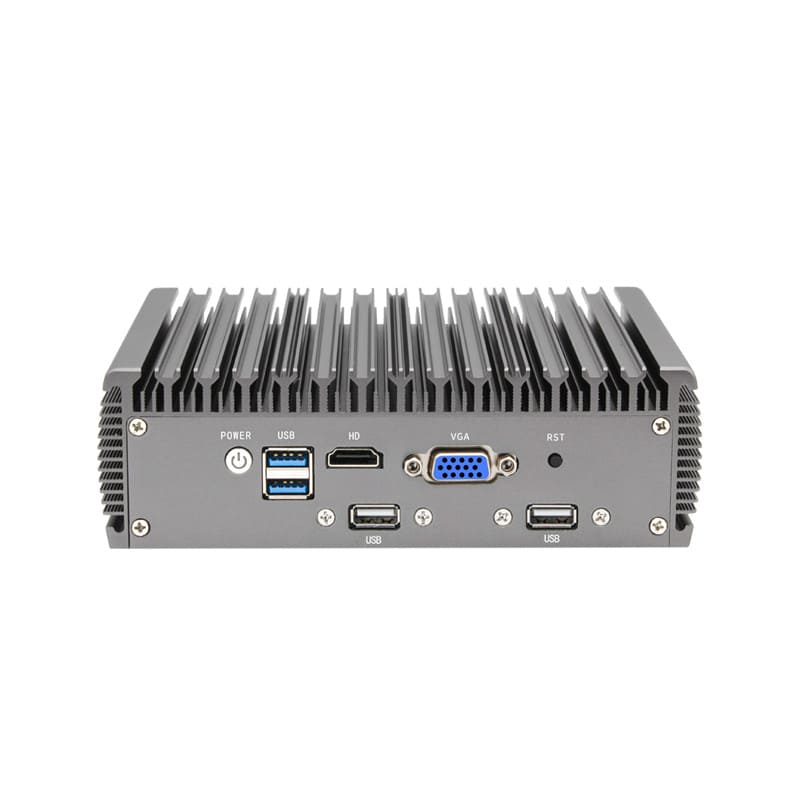

HDMI: Supports high-definition display output for connecting to modern monitors and TVs to provide clear visual effects.
VGA: Compatible with traditional display devices, suitable for users with older monitors.
Dual Display Output ports ,support synchronous heterodyne and synchronous homodyne, linking 2 HDMI dual-screen display, to achieve multi-tasking processor, HD playback, convenient and fast.
1.Compact design:

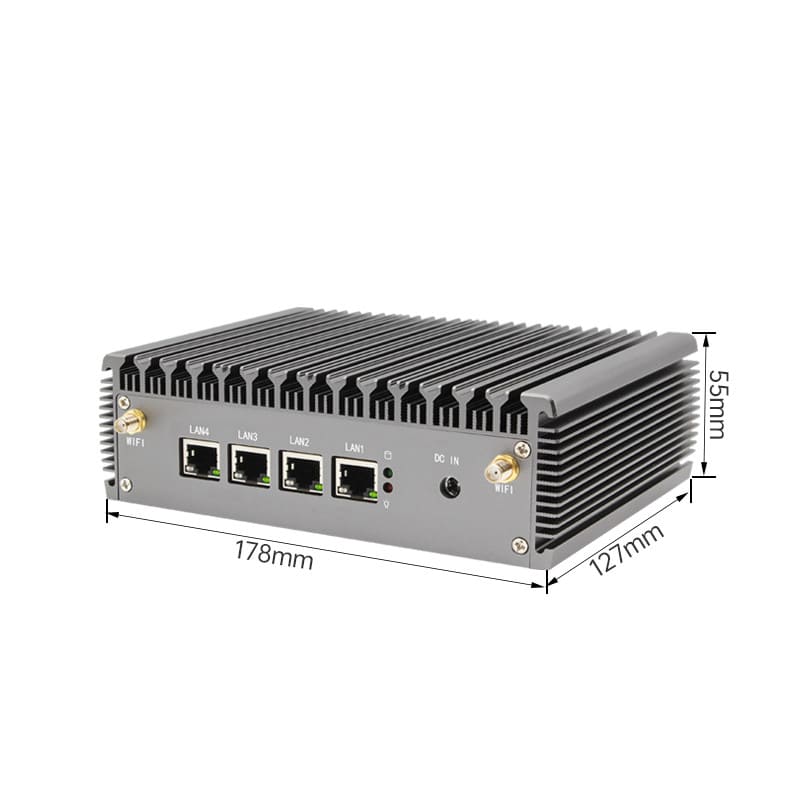

COMPT industrial grade PCs feature a compact design with overall dimensions of 17812755mm, significantly smaller than traditional industrial computers. This compact design is not only more flexible when it comes to installation, but also facilitates use in environments where space is limited. For example, within control cabinets, enclosures or other tightly packed industrial facilities, COMPT Industrial Grade PCs can easily find a suitable mounting location.
2. Flexible installation:
Due to their small size, COMPT Industrial Grade PCs can be mounted in a variety of ways, including DIN-rail mounting, wall mounting and VESA mounting. This flexible mounting allows them to be easily integrated into existing industrial systems without the need for significant modifications to existing equipment, saving installation time and costs.
3. Portability:
The small size of COMPT industrial grade PCs not only saves space, but also provides better portability. For industrial applications that require frequent movement or redeployment, such as temporary workstations, field test equipment, etc., these PCs can be easily transported and reconfigured, greatly facilitating user operations.
4. High-density applications:
In environments that require high-density computing power, such as data centres or high-density production lines, the small size of COMPT Industrial Grade PCs enables higher device density. Multiple small form factor PCs can be grouped together in a single cabinet, increasing overall system computing power while maintaining maximum space utilisation.
5. Optimise space utilisation:
For specific industrial environments, such as medical devices, automated production lines and traffic monitoring systems, where space is often at a premium, the small form factor of COMPT Industrial Grade PCs significantly optimises space utilisation, enabling the integration of more functionality and devices in a limited space. For example, in automated production lines, small PCs can be more flexibly arranged between machines and sensors, increasing the overall efficiency of the system.
