MES Hardware Terminals Panel Pc With NFC RFID Card Reader Customized Logo
| Model | Screen Size | Resolution | Aspect Ratio | Get A Quote Now! |
| CPT-101A-MSCBZ01 | 10.1 | 1280*800 | 16:10 | Inquiry |
| CPT-116A-MSCBZ01 | 11.6 | 1920*1080 | 16:9 | Inquiry |
| CPT-156A-MSCBZ01 | 15.6 | 1920*1080 | 16:9 | Inquiry |
| CPT-215P-MSCBZ01 | 21.5 | 1920*1080 | 16:9 | Inquiry |

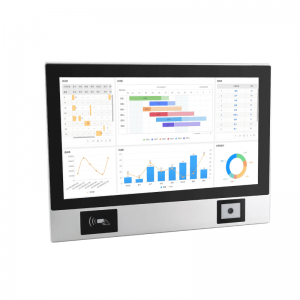

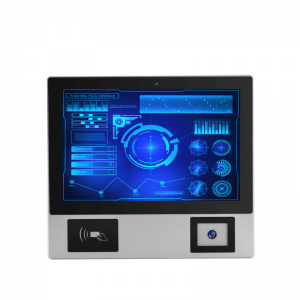

COMPT's MES Hardware Terminals Panel PC is specially designed for the factory'sMES applications. And developed to meet the requirements of the harshproduction environment.Support multiple functional modules, including NFC, RFlD, scanner, camera.realizing accurate information transmission, and production tracking ina timely.SupportVESA, wall-hanging, and desktop mount.Multi-touch capacitive touch screens.RK3568，Cortex-A55 2.0Ghz, quad-core processor,2GB/4GB DDR3L memory.Industrial-grade LED touch screen, backlight life of over 50,000 hours.Aluminum alloy structure, resistant to corrosion/heat/chemical damageAbundant interface, USB+VGA/ LAN / DC interface, etc. Support l/Oexpansion. lt is the best choice of MES terminalsfor data acquisition.
IC sensor：0~10cm Bar/QR Code，UART-TTL
Card reader ：Read-write frequency 125KHz/13.56MHz
Camera Pixel: 200W（500W/800W optional）, supports dynamic monitoring capture.
LED Indicator Lights: this industrial panel PC also integrates LED indicator lights to present the device's operation status.
- Embedded
- esigned with front panels and mounting brackets suitable for embedded installation, the device can be embedded into cabinets, consoles or other equipment to achieve seamless integration with the overall environment. Suitable for industrial consoles, outdoor billboards and other application scenarios that require aesthetics and integrated design.
- Wall-mounted
- Choose a suitable wall or bracket according to the installation environment. With the VESA standard mounting holes on the back, the unit can be easily mounted on the wall. Suitable for applications where space is limited or where fixed installation is required, such as public information displays and intelligent traffic systems. Be sure to install securely and make the necessary wiring connections and commissioning.
- Desktop
- Use the special bracket to place the Industrial All-in-One PC on the workbench or on the ground. Adjust the height and angle of the stand so that the display achieves the best viewing effect. Ensure the stand is stable and make necessary wiring connections and debugging. This mounting method is easy to operate and maintain, and is suitable for industrial automation control, laboratories and other environments that require frequent operation.
- Cantilever
- Use special mounting accessories to fix the Industrial All-in-One on a wall or stand. With the cantilever mount, the unit can be flexibly adjusted in angle and position, providing greater ease of operation and range of viewing angles. It is suitable for places that require flexible operation and adjustment, such as medical equipment and monitoring centres.
MES, or Manufacturing Execution System, is the Chinese name for Manufacturing Execution System.
MES is a set of production information management system for manufacturing enterprise shop floor execution layer. It is in the enterprise upper planning management system and the bottom of the industrial control between, plays the role of the top and bottom. It is an integrated software system used to monitor, manage and optimise the production process, aiming to improve factory productivity, reduce waste and ensure product quality.MES system realises the whole process management from raw materials to finished products through real-time collection and processing of data on the factory site, including production planning, equipment status, work order execution, quality control and other aspects.
For enterprises, MES can achieve real-time monitoring and management of the production process. It can accurately collect a variety of data from the production site, including production progress, equipment operation status, product quality and other information. Through the analysis and processing of these data, business managers can understand the production situation in a timely manner and make scientific decisions.
MES can optimise the production process. It can carry out reasonable distribution and scheduling of production tasks, to ensure that the various production processes operate efficiently and collaboratively. At the same time, MES can also make timely warning and treatment of abnormalities in the production process, reduce production risks, improve production efficiency and product quality.
Sunlight Readable Display is widely used in intelligent transport systems, industrial automation, outdoor kiosks, public information displays, self-service platforms and other human-machine interface applications.
It plays an important role in the development of Internet of Things and Smart City, and is the key node for information collection and display.
COMPT adheres to the service tenet of "product quality first, customer satisfaction first", devotes itself to strictly controlling product quality and appearance design, and continuously improves product quality and customer satisfaction. The company establishes and implements continuous improvement of quality control and after-sales service system, and strictly follows 1S09001 quality system and 1S0140001 environmental management system. By continuously improving product quality and after-sales service, the company has won the trust and recognition of our customers. In addition to mainland China, the products have been exported to Germany, the United States, India, the Middle East, Brazil, Chile and other major countries and regions.
Penny
Web Content Writer
4 years of experience
This article is edited by Penny, the website content writer of COMPT, who has 4 years working experience in the industrial PCs industry and often discusses with colleagues in R&D, marketing and production departments about the professional knowledge and application of industrial controllers, and has a deep understanding of the industry and products.
Please feel free to contact me to discuss more about industrial controllers. zhaopei@gdcompt.com
| Name | 21.5″ Android MES computer | |
| Display | Screen size | 21.5″ |
| Resolution | 1920*1080 | |
| Brightness | 300 cd/m2 | |
| Color | 16.7M | |
| Contrast Rato | 1000:1 | |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) | |
| Display Area | 476.064(W)×267.786(H) mm | |
| Touch Parameter | Type | Capactive |
| communication | USB | |
| Touch method | Finger/Capactive pen | |
| lifetime | ＞50 million touch | |
| Transmittance | >87% | |
| Surface hardness | ＞7H | |
| Glasses type | chemically strengthened plexiglass | |
| Hardware | MB model | RK3568 |
| CPU | RK3568，Cortex-A55 2.0Ghz | |
| RAM | 2G（4G/8G optional） | |
| ROM | 16G （Max 128G optional） | |
| OS | Android 11 | |
| WIFI | WIFI2.4G（WIFI5.0 optional） | |
| BT | BT-4.1 | |
| 4G module | optional | |
| GPS | optional | |
| MIC | optional | |
| RealTimeClockRTC | Support | |
| Wake On LAN | Support | |
| time-power-off | Support | |
| System Update | U-drive | |

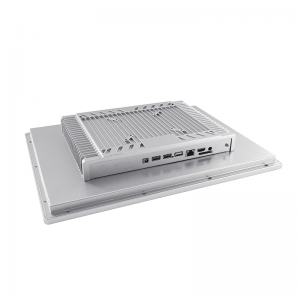

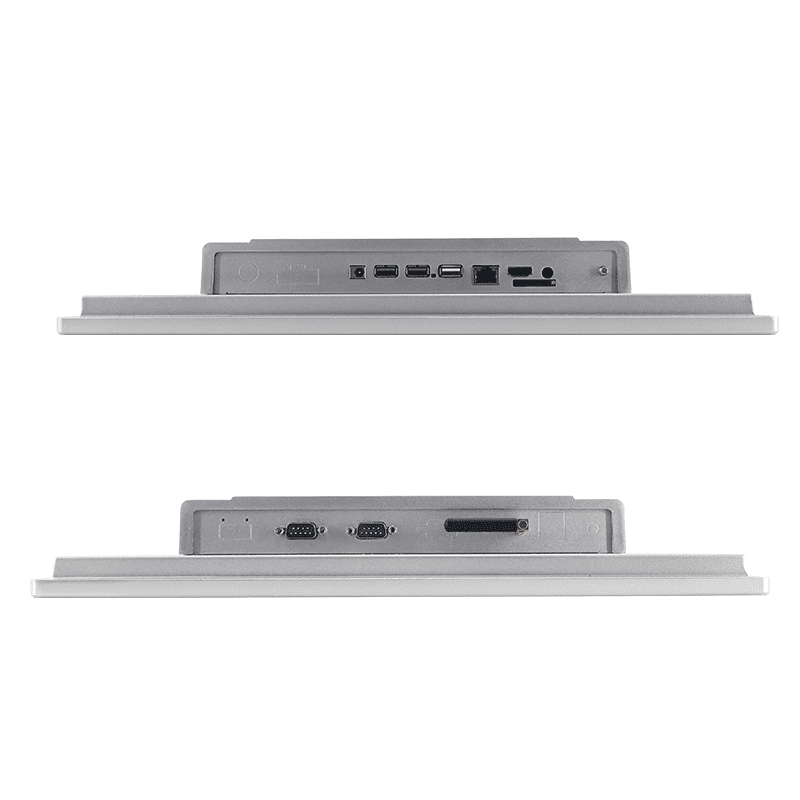

| I/O | Power supply 1 | 1*DC12V/5521 |
| Power supply 2 | 1*Wide voltage 9~36V socket（optional） | |
| HDMI | 1*HDMI | |
| USB-OTG | 1*USB3.0 | |
| USB-HOST | 1*USB2.0，1*USB3.0 | |
| RJ45 | 1*10/100/1000M self-adaptive Ethernet | |
| SIM card slot | 1*SIM slot（optional for 4G module） | |
| RS232 | 2*RS232 | |
| RS485 | 1*RS485（optional） | |
| Audio | 1*3.5mm | |
| WIFI/BT antenna | 1*WIFI/BT | |
| Camera | Pixel | 200W（500W/800W optional） |
| view Angle | 72.5° | |
| communication | USB | |
| Card reader | Read-write frequency | 125KHz/13.56MHz |
| communication | UART-TTL | |
| IC sensor | Scan type | Bar/QR Code |
| Sensing distance | 0~10cm | |
| communication | UART-TTL | |
| Other parameter | Material | Aluminum alloy front Panel |
| Color | Sliver/Black | |
| Power input | AC 100-240V 50/60Hz CCC、CE certificated | |
| Power adapter | DC12V / 4A | |
| power consumption | ≤15W | |
| backlight lifetime | 50000h | |
| Temp | function temp -10-60℃，storage temp：-20-70℃ | |
| Humidity | ≤95% | |
| Installing method | Wall mounted/Embedded /Desktop louver /folding bracket/cantilever | |
| warranty | 12 month | |
| Maintenance | Post | |
| Packing list | Dimension | 533.8*377.3*56mm |
| VESA | 75*75/100*100mm | |
| Power cable | 1*Power cable 1.2M | |
| Power adapter | 1*Power adapter 1.2M | |
| Certificate | 1*QC card | |
| warranty | 1*warranty card | |
| Name | 15.6″ Android MES computer | |
| Display | Screen size | 15.6″ |
| Resolution | 1920*1080 | |
| Brightness | 250 cd/m2 | |
| Color | 16.7M | |
| Contrast Rato | 3000:1 | |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) | |
| Display Area | 344.16 (W) * 193.59 (H)mm | |
| Touch Parameter | Type | Capactive |
| communication | USB | |
| Touch method | Finger/Capactive pen | |
| lifetime | ＞50 million touch | |
| Transmittance | >87% | |
| Surface hardness | ＞7H | |
| Glasses type | chemically strengthened plexiglass | |
| Hardware | MB model | RK3568 |
| CPU | RK3568，Cortex-A55 2.0Ghz | |
| RAM | 2G（4G/8G optional） | |
| ROM | 16G （Max 128G optional） | |
| OS | Android 11 | |
| WIFI | WIFI2.4G（WIFI5.0 optional） | |
| BT | BT-4.1 | |
| 4G module | optional | |
| GPS | optional | |
| MIC | optional | |
| RealTimeClockRTC | Support | |
| Wake On LAN | Support | |
| time-power-off | Support | |
| System Update | U-drive | |
| I/O | Power supply 1 | 1*DC12V/5521 |
| Power supply 2 | 1*Wide voltage 9~36V socket（optional） | |
| HDMI | 1*HDMI | |
| USB-OTG | 1*USB3.0 | |
| USB-HOST | 1*USB2.0，1*USB3.0 | |
| RJ45 | 1*10/100/1000M self-adaptive Ethernet | |
| SIM card slot | 1*SIM slot（optional for 4G module） | |
| RS232 | 2*RS232 | |
| RS485 | 1*RS485（optional） | |
| Audio | 1*3.5mm | |
| WIFI/BT antenna | 1*WIFI/BT | |
| Camera | Pixel | 200W（500W/800W optional） |
| view Angle | 72.5° | |
| communication | USB | |
| Card reader | Read-write frequency | 125KHz/13.56MHz |
| communication | UART-TTL | |
| IC sensor | Scan type | Bar/QR Code |
| Sensing distance | 0~10cm | |
| communication | UART-TTL | |
| Other parameter | Material | Aluminum alloy front Panel |
| Color | Sliver/Black | |
| Power input | AC 100-240V 50/60Hz CCC、CE certificated | |
| Power adapter | DC12V / 4A | |
| power consumption | ≤15W | |
| backlight lifetime | 50000h | |
| Temp | function temp -10-60℃，storage temp：-20-70℃ | |
| Humidity | ≤95% | |
| Installing method | Wall mounted/Embedded /Desktop louver /folding bracket/cantilever | |
| warranty | 12 month | |
| Maintenance | Post | |
| Packing list | Dimension | 394.6*296*56mm |
| VESA | 75*75/100*100mm | |
| Power cable | 1*Power cable 1.2M | |
| Power adapter | 1*Power adapter 1.2M | |
| Certificate | 1*QC card | |
| warranty | 1*warranty card | |
| Name | 11.6″ Android AIO computer | |
| Display | Screen size | 11.6″ |
| Resolution | 1920*1080 | |
| Brightness | 280 cd/m2 | |
| Color | 16.7M | |
| Contrast Rato | 1000:1 | |
| Viewing angle | 89/89/89/89(Typ.)(CR≥10) | |
| Display Area | 256.32(W)×144.18(H) mm | |
| Touch Parameter | Type | Capactive |
| communication | USB | |
| Touch method | Finger/Capactive pen | |
| lifetime | ＞50 million touch | |
| Transmittance | >87% | |
| Surface hardness | ＞7H | |
| Glasses type | chemically strengthened plexiglass | |
| Hardware | MB model | RK3568 |
| CPU | RK3568，Cortex-A55 2.0Ghz | |
| RAM | 2G（4G/8G optional） | |
| ROM | 16G （Max 128G optional） | |
| OS | Android 11 | |
| WIFI | WIFI2.4G（WIFI5.0 optional） | |
| BT | BT-4.1 | |
| 4G module | optional | |
| GPS | optional | |
| MIC | optional | |
| RealTimeClockRTC | Support | |
| Wake On LAN | Support | |
| time-power-off | Support | |
| System Update | U-drive | |
| I/O | Power supply 1 | 1*DC12V/5521 |
| Power supply 2 | 1*Wide voltage 9~36V socket（optional） | |
| HDMI | 1*HDMI | |
| USB-OTG | 1*USB3.0 | |
| USB-HOST | 1*USB2.0，1*USB3.0 | |
| RJ45 | 1*10/100/1000M self-adaptive Ethernet | |
| SIM card slot | 1*SIM slot（optional for 4G module） | |
| RS232 | 2*RS232 | |
| RS485 | 1*RS485（optional） | |
| Audio | 1*3.5mm | |
| WIFI/BT antenna | 1*WIFI/BT | |
| Camera | Pixel | 200W（500W/800W optional） |
| view Angle | 72.5° | |
| communication | USB | |
| Card reader | Read-write frequency | 125KHz/13.56MHz |
| communication | UART-TTL | |
| IC sensor | Scan type | Bar/QR Code |
| Sensing distance | 0~10cm | |
| communication | UART-TTL | |
| Other parameter | Material | Aluminum alloy front Panel |
| Color | Sliver/Black | |
| Power input | AC 100-240V 50/60Hz CCC、CE certificated | |
| Power adapter | DC12V / 4A | |
| power consumption | ≤15W | |
| backlight lifetime | 50000h | |
| Temp | function temp -10-60℃，storage temp：-20-70℃ | |
| Humidity | ≤95% | |
| Installing method | Wall mounted/Embedded /Desktop louver /folding bracket/cantilever | |
| warranty | 12 month | |
| Maintenance | Post | |
| Dimension | 297.5*235.4*56.05mm | |
| VESA | 75*75mm | |
| Power cable | 1*Power cable 1.2M | |
| Power adapter | 1*Power adapter 1.2M | |
| Certificate | 1*QC card | |
| warranty | 1*warranty card | |
| Name | 10.1″ Android MES computer | |
| Display | Screen size | 10.1″ |
| Resolution | 1280*800 | |
| Brightness | 320 cd/m2 | |
| Color | 16.7M | |
| Contrast Rato | 1000:1 | |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) | |
| Display Area | 216.96(W)×135.6(H) mm | |
| Touch Parameter | Type | Capactive |
| communication | USB | |
| Touch method | Finger/Capactive pen | |
| lifetime | ＞50 million touch | |
| Transmittance | >87% | |
| Surface hardness | ＞7H | |
| Glasses type | chemically strengthened plexiglass | |
| Hardware | MB model | RK3568 |
| CPU | RK3568，Cortex-A55 2.0Ghz | |
| RAM | 2G（4G/8G optional） | |
| ROM | 16G （Max 128G optional） | |
| OS | Android 11 | |
| WIFI | WIFI2.4G（WIFI5.0 optional） | |
| BT | BT-4.1 | |
| 4G module | optional | |
| GPS | optional | |
| MIC | optional | |
| RealTimeClockRTC | Support | |
| Wake On LAN | Support | |
| time-power-off | Support | |
| System Update | U-drive | |
| I/O | Power supply 1 | 1*DC12V/5521 |
| Power supply 2 | 1*Wide voltage 9~36V socket（optional） | |
| HDMI | 1*HDMI | |
| USB-OTG | 1*USB3.0 | |
| USB-HOST | 1*USB2.0，1*USB3.0 | |
| RJ45 | 1*10/100/1000M self-adaptive Ethernet | |
| SIM card slot | 1*SIM slot（optional for 4G module） | |
| RS232 | 2*RS232 | |
| RS485 | 1*RS485（optional） | |
| Audio | 1*3.5mm | |
| WIFI/BT antenna | 1*WIFI/BT | |
| Camera | Pixel | 200W（500W/800W optional） |
| view Angle | 72.5° | |
| communication | USB | |
| Card reader | Read-write frequency | 125KHz/13.56MHz |
| communication | UART-TTL | |
| IC sensor | Scan type | Bar/QR Code |
| Sensing distance | 0~10cm | |
| communication | UART-TTL | |
| Other parameter | Material | Aluminum alloy front Panel |
| Color | Sliver/Black | |
| Power input | AC 100-240V 50/60Hz CCC、CE certificated | |
| Power adapter | DC12V / 4A | |
| power consumption | ≤15W | |
| backlight lifetime | 50000h | |
| Temp | function temp -10-60℃，storage temp：-20-70℃ | |
| Humidity | ≤95% | |
| Installing method | Wall mounted/Embedded /Desktop louver /folding bracket/cantilever | |
| warranty | 12 month | |
| Maintenance | Post | |
| Packing list | Dimension | 254.22*225.1*56.05mm |
| VESA | 75*75mm | |
| Power cable | 1*Power cable 1.2M | |
| Power adapter | 1*Power adapter 1.2M | |
| Certificate | 1*QC card | |
| warranty | 1*warranty card | |
