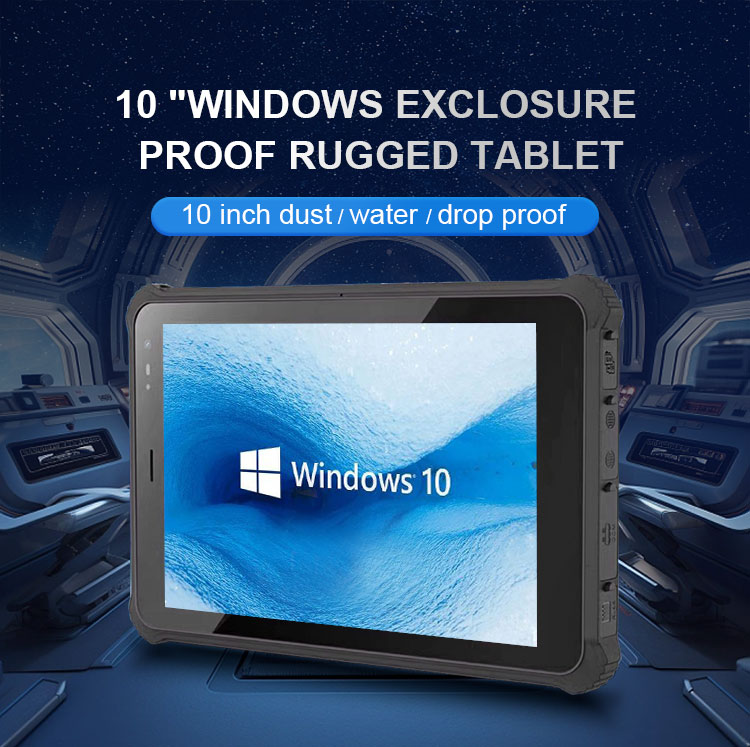

IP67 Rugged Windows 10 Tablet Pc With Barcode Generator

Short Description:

COMPT Rugged Tablet PC is a powerful and durable mobile device with the latest Windows 10 operating system, CPU Z8350, Corning Gorilla Glass, 4G, Bluetooth, Dual Band wifi, this tablet comes with a number of key features including Barcode Generator barcode Barcode Generator, Evidence Support Function, 800*1280 HD Screen, Front and Rear Camera, Built-in GPS Locator and more.

Key Highlights：
10.1″ Gorilla Glass Touchscreen
Intel Quad Core Z8350 CPU
Optional Barcode Scanner
MIL-STD-810G Shock and Drop Resistant
Optional High Brightness
Full IP67 Waterproof Protection
Win 10 OS with GMS
Optional 4g Internet module

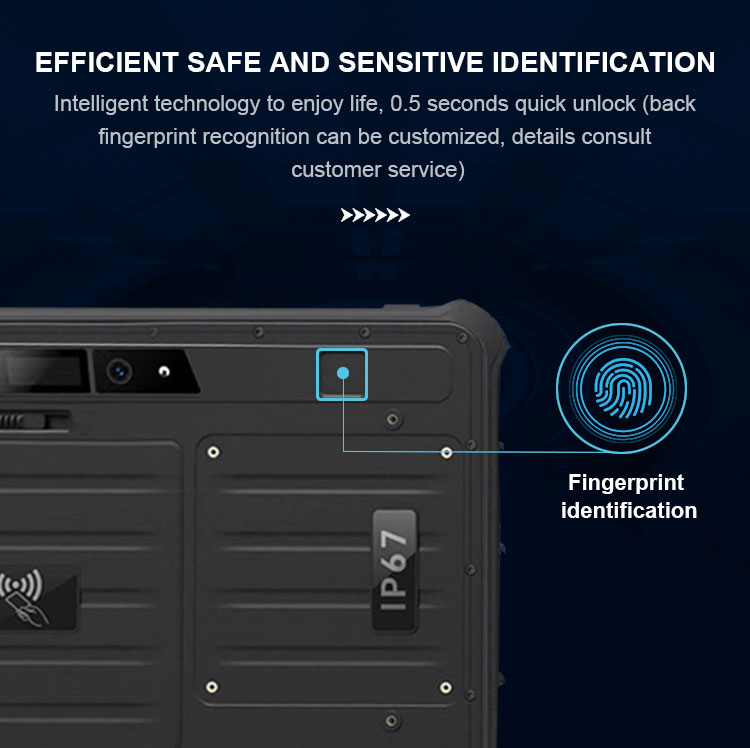

Optional Fingerprint acquisition module

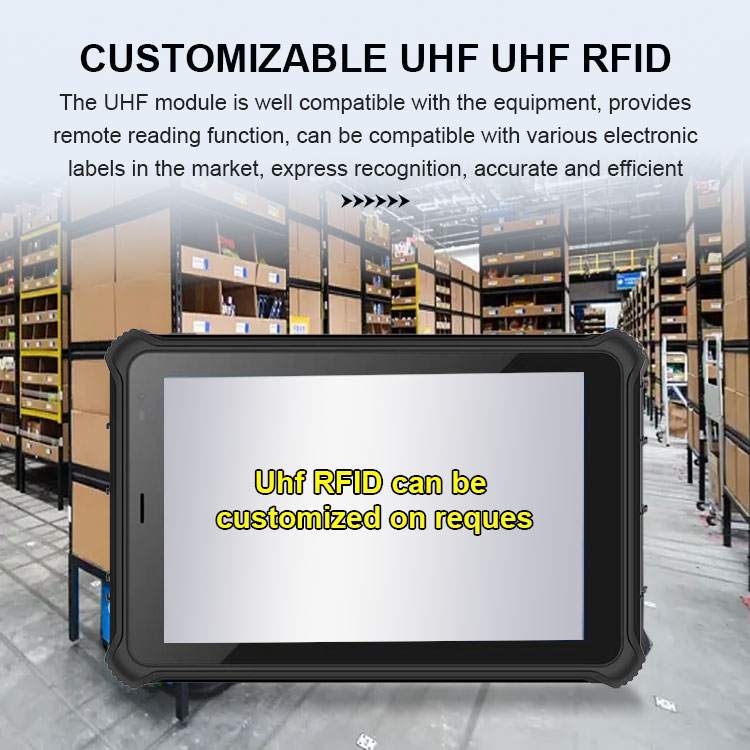

Optional UHF HF ultra-high frequency remote reading
Optional GPS module
Wifi and QR code scanning

Download as pdf whatsapp email

Product Detail

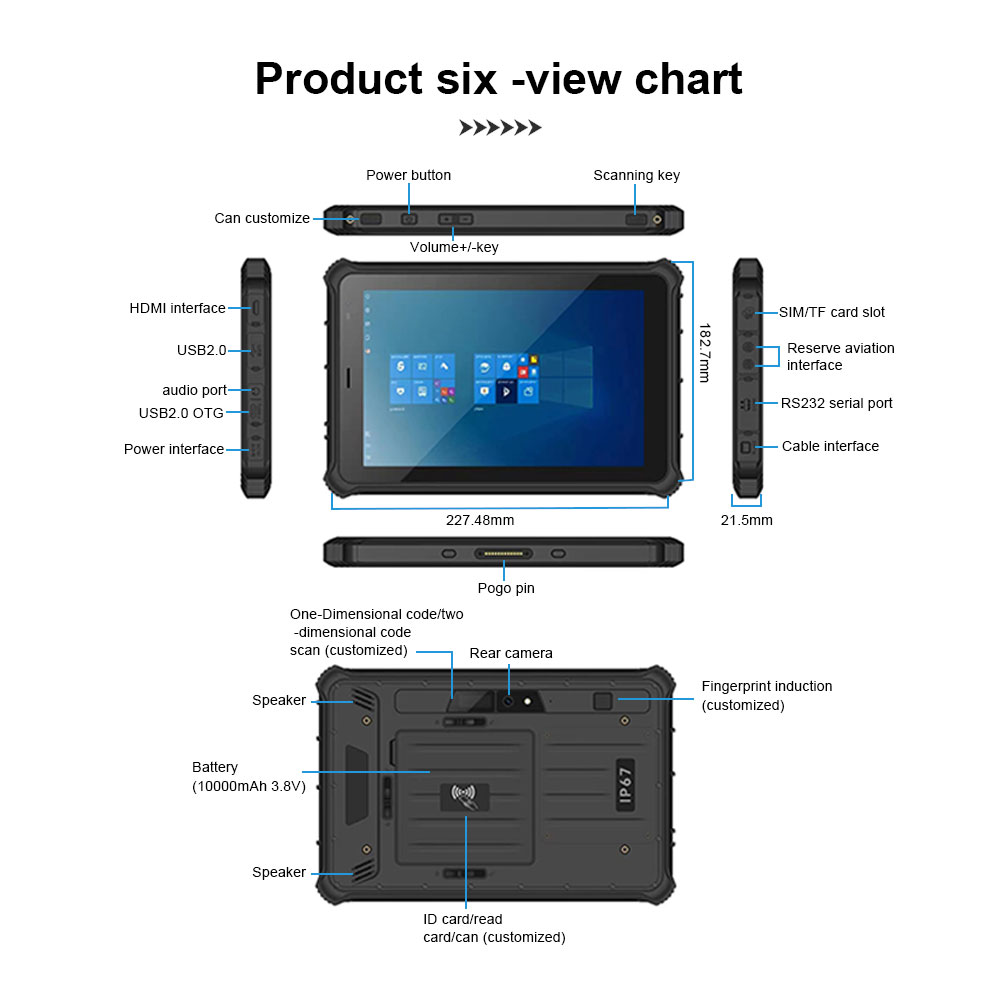

Dimensional Drawings

Parameter

Product Tags

product presentation:

The COMPT Rugged Tablet PC is equipped with multiple ports such as USB, DC, SIM, TF, RJ45 and RS232 to fulfill various connectivity needs.

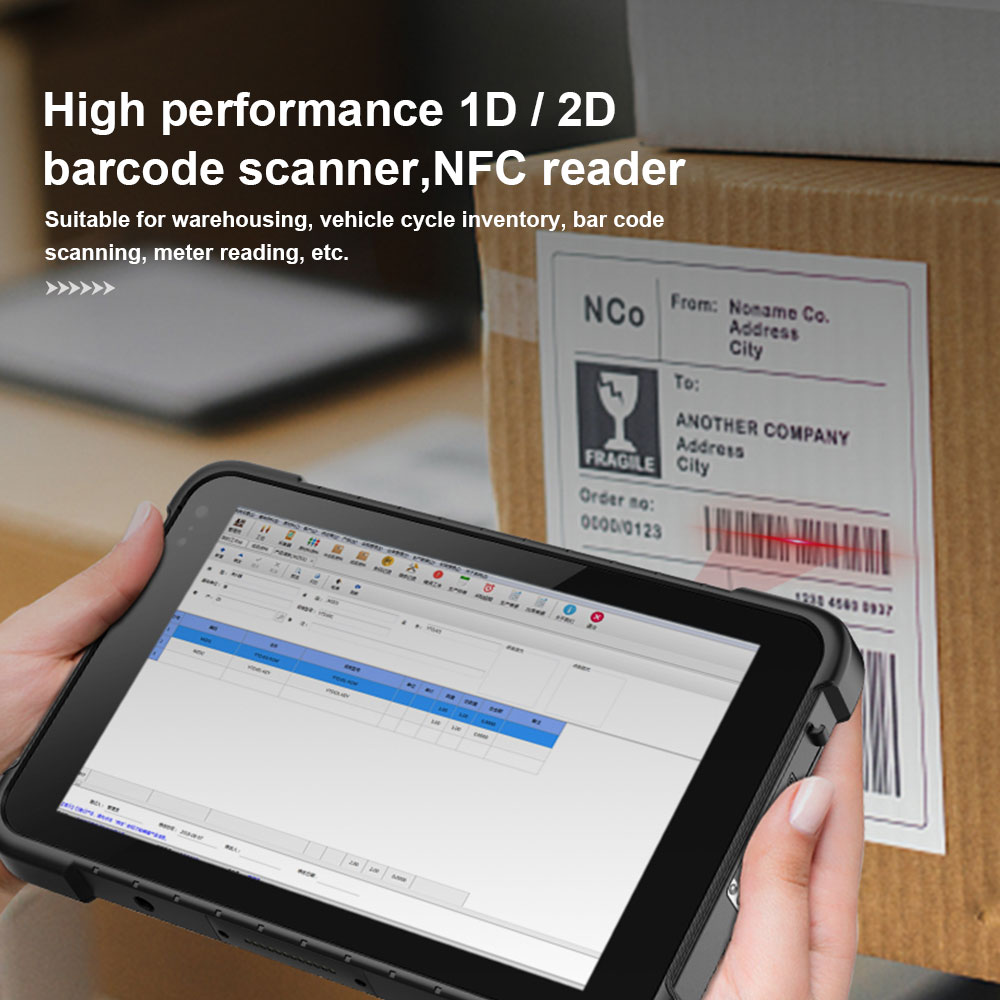

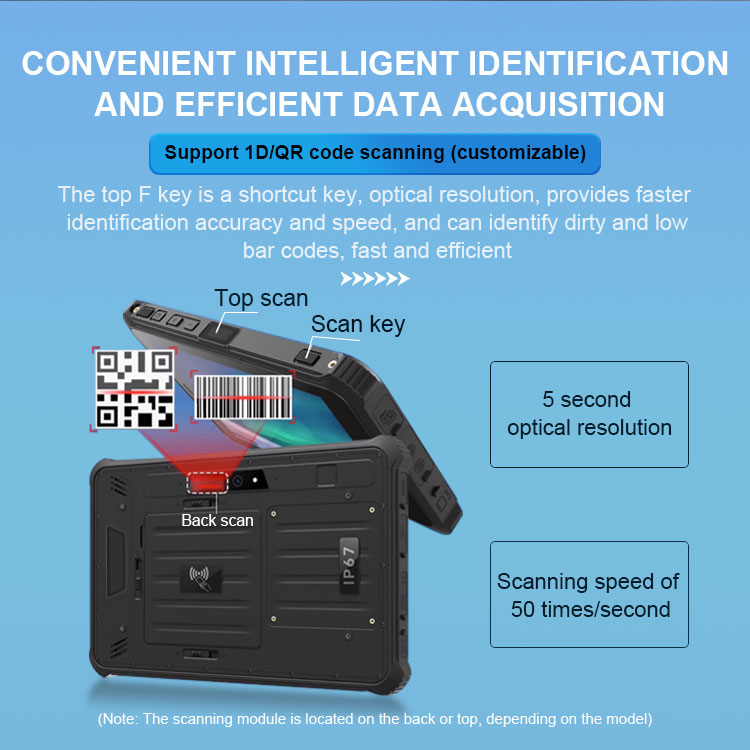

Optional 2D scanning head, fingerprint, online/offline ID, HF, LF, UHF, etc. are available.

Product Presentation:

This Rugged Tablet PC undergoes rigorous durability testing to ensure stability and reliability even in harsh environments. Its combination of lightweight and ruggedness makes it suitable for use in demanding work scenarios such as warehousing, logistics, and field surveys. It is also waterproof, dustproof and drop-proof to withstand various impacts and challenges.
In addition, the Rugged Tablet PC also has a built-in Barcode Generator, which can easily generate various barcodes to facilitate data collection and processing.

Whether in quality control, logistics and distribution or inventory management scenarios, the Rugged Tablet PC provides users with convenient tools and accurate data. 800*1280 high-definition screen provides a clear and detailed image display, whether it is to view forms, pictures or read documents, which provides users with an excellent visual experience.

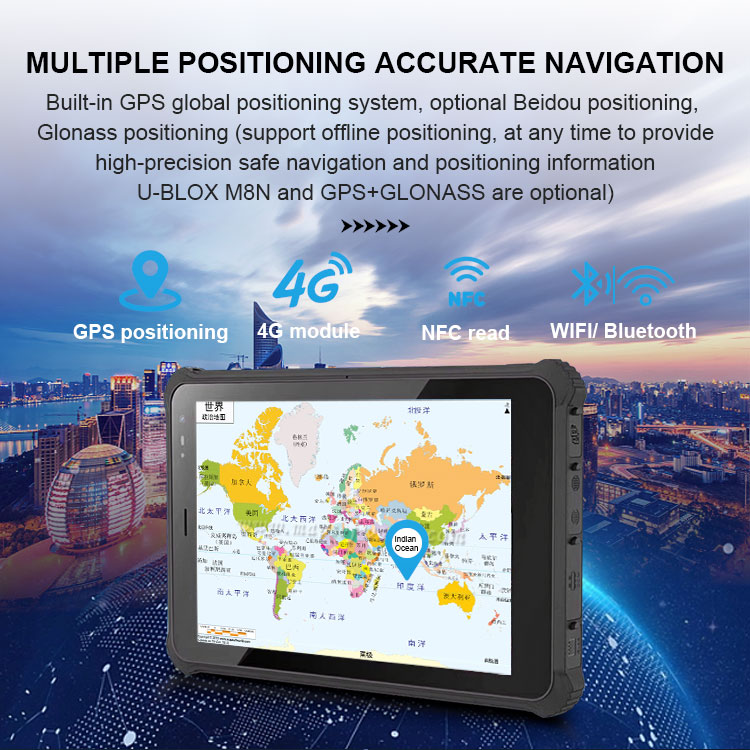

The built-in GPS positioning system can help users accurately navigate and locate, especially suitable for outdoor surveying, geographic information collection and other work.

Product View:

In addition, the design of multiple ports further enhances the flexibility and expandability of Rugged Tablet PC. It supports USB ports to connect various external devices and accessories, such as printers and scanners. Additional DC, SIM, TF, RJ45 and RS232 ports fulfill different data transmission and communication needs, enabling users to easily connect to external networks and devices anytime, anywhere. All in all, the Rugged Tablet PC is a powerful, durable and reliable tablet PC. Whether you are working in harsh environments or in applications that require efficient data collection and processing, it can be your best assistant.

Product Parameter:

Spec		Standard	Option
Physical Spec	Dimension	277.48182.7421.5
Physical Spec	Color	Black	Could Customize color
Platform Spec	CPU	Intel cherry trail Z8350，1.44GHZ~1.92GHZ
	RAM	4GB
	ROM	64GB	32GB，128GB
	OS	Windows 10 Home	Pro、IOT
	Battery	10000mAh，3.8v lithium- ion battery，Removable，
		endurance 8h（1080P Video + LCD
		50% Brightness）
	Indicator	*1
	Camera	Front Camera：2MP，
	Camera	Rear Camera：5MP
	2G/3G/4G	LTE FDD: B1/B3/B5/B7/B8/B20； LTE TDD: B38/B40/B41； WCDMA: B1/B5/B8； GSM: B3/B8
	Location	U-Blox M7N GPS、Bei Dou，
	WIFI	WIFI 802.11(a/b/g/n/ac) 2.4G+5.8G
	Bluetooth	Bluetooth 4.0 (BLE) class1 transmission range：10m
	Adapter	5V/3A（DC Port）	5V/3A（CONINVERS）

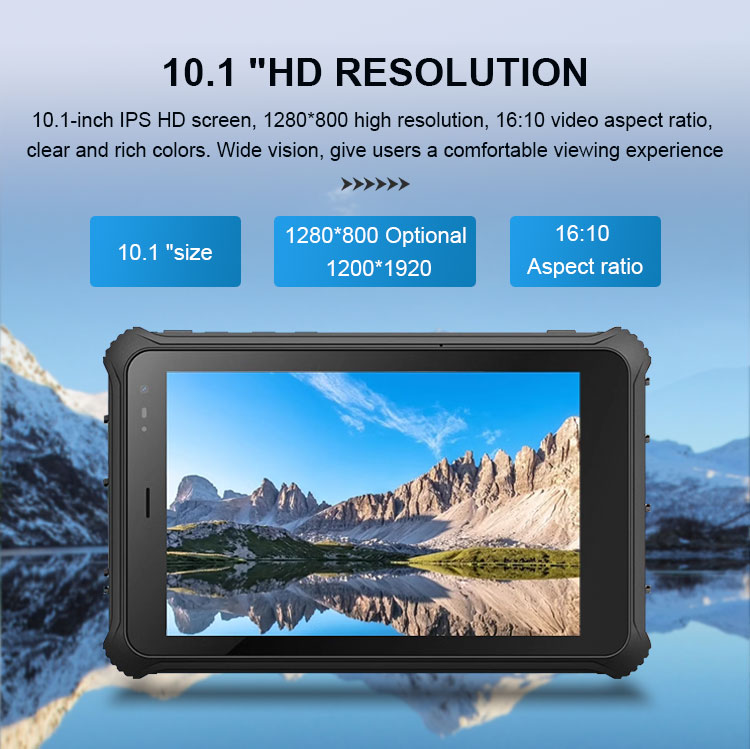

Display	Resolution	800*1280，10.1" IPS LCD，16:10	800cd/㎡（1200*1920）
	Brightness	450cd/㎡	1000cd/㎡（800*1280）
	Touch panel	GT9110P,5 Points Touch/ Max 10Points Touch	Wet hand touch, glove touch Active/passive capacitor pen

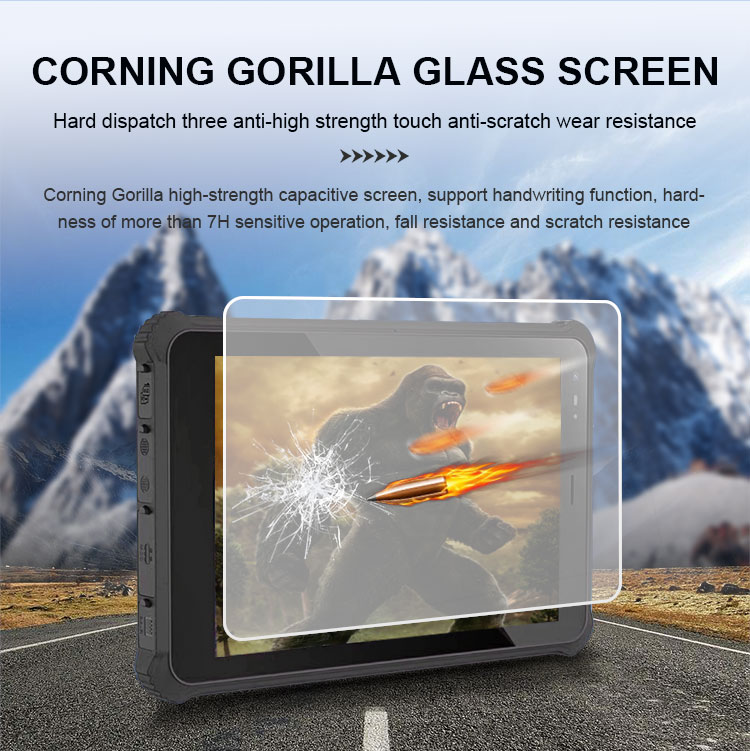

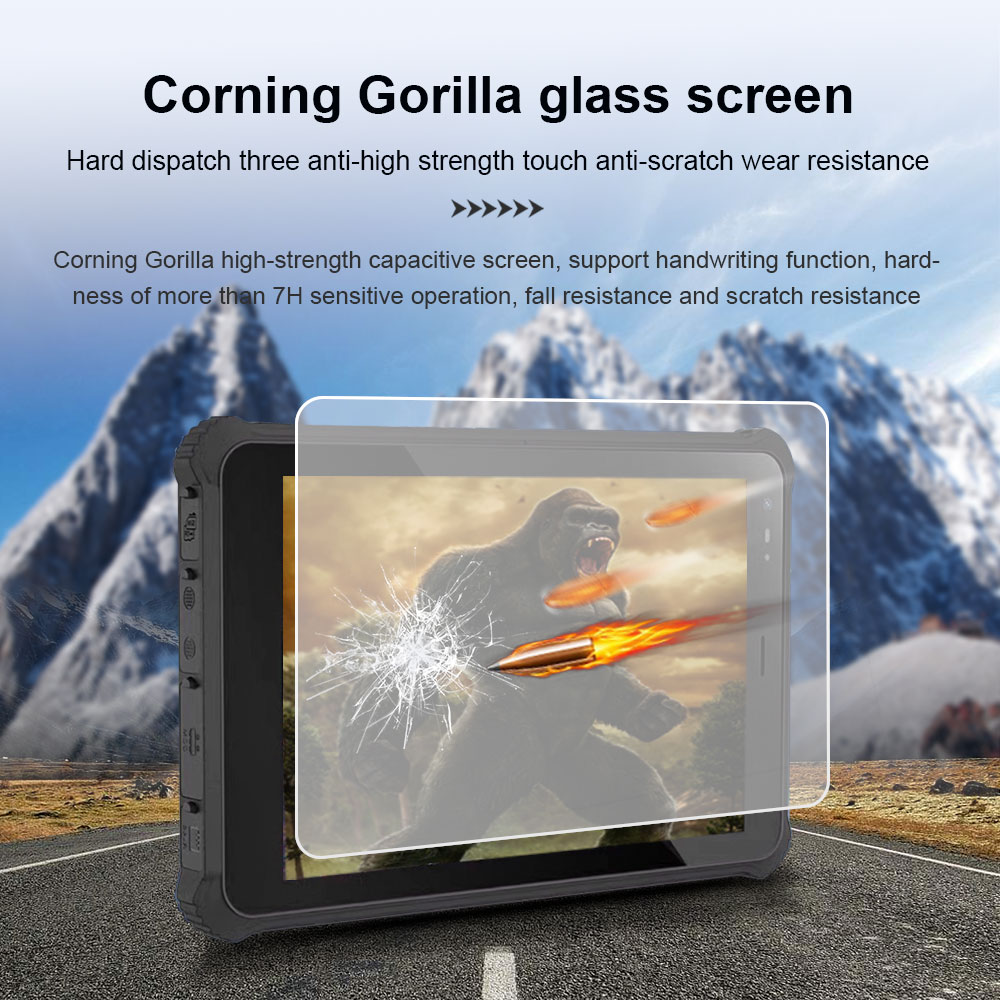

	Glass	Corning Gorilla third generation glass, hardness 7H	AG+AF Coating ，AR Coating
Key	Power	*1
	Volume	*2，Vol+，Vol-
	Self-define key	*2，P-Key、F-Key
Voice	Speaker	*2， 1.2W/8Ω，
	Speaker	IP67 Water proofing；
	Receiver	*1，IP67 Water proofing
	MIC	*2，MIC，IP67 Water proofing

Product Install:

Product Solution:

Penny

Web Content Writer

4 years of experience

This article is edited by Penny, the website content writer of COMPT, who has 4 years working experience in the industrial PCs industry and often discusses with colleagues in R&D, marketing and production departments about the professional knowledge and application of industrial controllers, and has a deep understanding of the industry and products.

Please feel free to contact me to discuss more about industrial controllers. zhaopei@gdcompt.com

Previous: 21.5 inch J4125 Wall-mounted industrial panel PC

Next: 8 Inch 10″ Industrial Rugged Android 10 Tablet PC With GPS

Physical Spec	Dimension	*277.48182.7421.5*
Physical Spec	Color	Black	Could Customize color
Platform Spec	CPU	Intel cherry trail Z8350，1.44GHZ~1.92GHZ
	RAM	4GB
	ROM	64GB	32GB，128GB
	OS	Windows 10 Home	Pro、IOT
	Battery	10000mAh，3.8v lithium- ion battery，Removable，
		endurance 8h（1080P Video + LCD
		50% Brightness）
	Indicator	*1
	Camera	Front Camera：2MP，
	Camera	Rear Camera：5MP
	2G/3G/4G	LTE FDD: B1/B3/B5/B7/B8/B20； LTE TDD: B38/B40/B41； WCDMA: B1/B5/B8； GSM: B3/B8
	Location	U-Blox M7N GPS、Bei Dou，
	WIFI	WIFI 802.11(a/b/g/n/ac) 2.4G+5.8G
	Bluetooth	Bluetooth 4.0 (BLE) class1 transmission range：10m
	Adapter	5V/3A（DC Port）	5V/3A（CONINVERS）
Display	Resolution	800*1280，10.1″ IPS LCD，16:10	800cd/㎡（1200*1920）
	Brightness	450cd/㎡	1000cd/㎡（800*1280）
	Touch panel	GT9110P,5 Points Touch/ Max 10Points Touch	Wet hand touch, glove touch Active/passive capacitor pen
	Glass	Corning Gorilla third generation glass, hardness 7H	AG+AF Coating ，AR Coating
Key	Power	*1
	Volume	*2，Vol+，Vol-
	Self-define key	*2，P-Key、F-Key
Voice	Speaker	*2， 1.2W/8Ω，
	Speaker	IP67 Water proofing；
	Receiver	*1，IP67 Water proofing
	MIC	*2，MIC，IP67 Water proofing
Port	USB1	*1，Type-C USB2.0 Support OTG
	USB2	*1，Type-A USB2.0
	Ethernet	*1，RJ45， 100Mbps
	RS232	*1,3pin
	DC	*1，DC 5V/3A,
	HDMI	*1，Mini HDMI
	Earphone	*1，3.5mm Standard earphone
	CONINVERS	*2，	RS232/USB/DC5V/CAN BUS
	Pogo Pin	*1，,1pin USB+ Charging
	SIM	*1，Standard Micro SIM Slot
	TF	*1，Max Support 256GB
Sensors	G-Sensor	OK

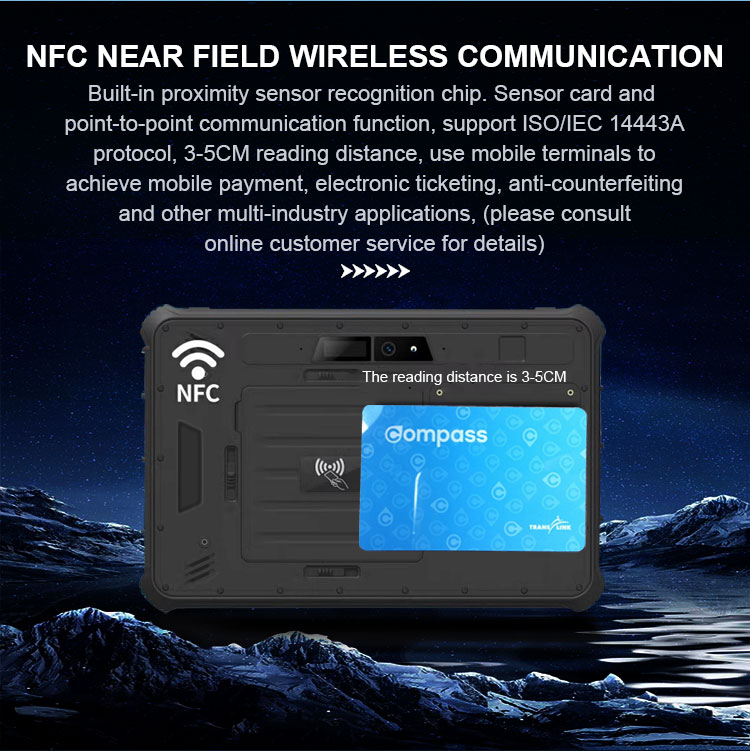

Extension Module	NFC	/	13.56MHZ
	NFC	/	Support:14443A/14443B/15693
	HF RFID	/	13.56MHZ
	HF RFID	/	Support:14443A/14443B/15693
	UHF RFID	/	PR9200，Read distance：1.5M-3M:
	UHF RFID	/	Read distance 2：5M-8M
	ID	/	Standard 2th Generation
	Fingerprint	/	1: ordinary industrial fingerprint
			2: Fingerprint authentication by the Ministry of Public Security
			3: FBI certified fingerprint
	1D Scanner	/	Zebra SE655
	2D Scanner	/	Zebra SE2707
Reliability	IP Protection Level	IP67
	Drop test	1.2M，Cement floor
	Working temperature	-20℃~60℃
	Storage temperature	-30℃~70℃
Certification	CE	OK
	RHOS2.0	OK
	IEC62133	OK
	Air and sea survey report	OK
	IP67	OK
	GMS	OK
	MSDS	Ok
	UN38.3	Ok

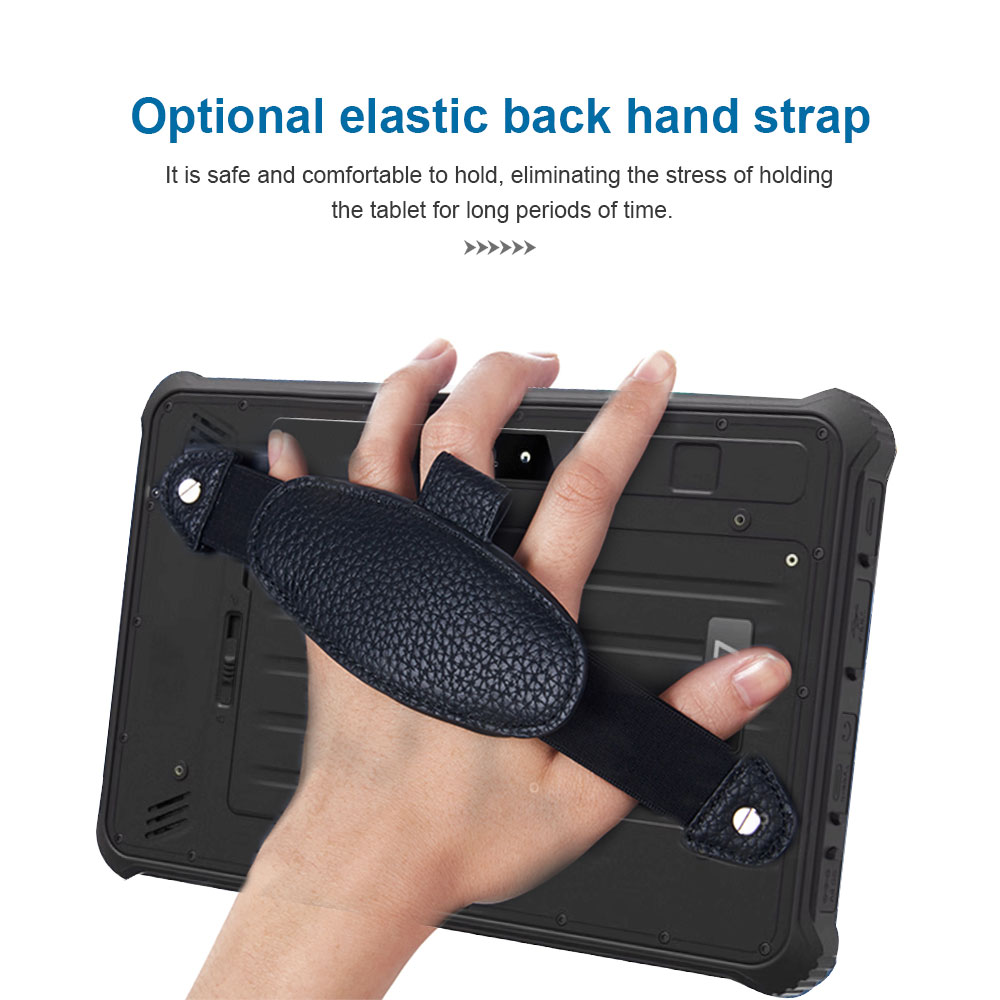

Accessory	Hand strap	/	Option
	Mounted bracket	/	Option
	Standby Battery	/	Option
	Docking	/	Option
	Type-C Cable	/	Option
	OTG Cable	/	Option
