Industrial Touchscreen Panel Pc Outdoor Used On Board Ship Marine Display

Short Description:

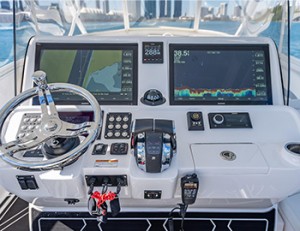

■ The COMPT industrial touchscreen panel pc is a high-performance computer device designed for outdoor and marine use, which is equipped with many unique features and functions. Essential for outdoor work, it has excellent resistance to sunlight interference, allowing users to read the display clearly in bright, harsh sunlight, ensuring visibility and operability in outdoor environments.

Our strong R&D team comprises 20 engineering staff, including technical drawing, hardware support, and construction design, who come from top-notch companies in their respective industries.


Product Detail

Product Tags

Products Video

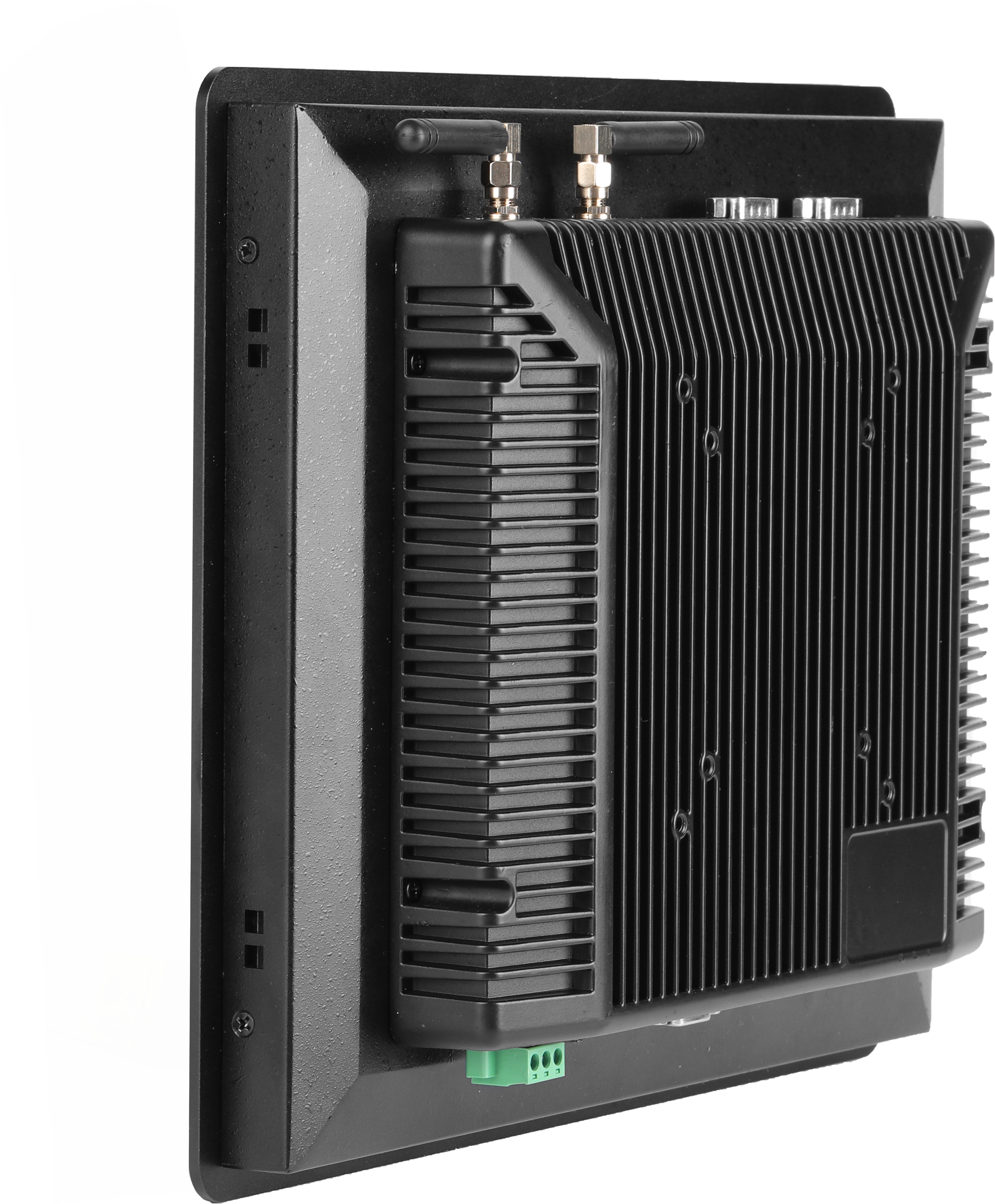

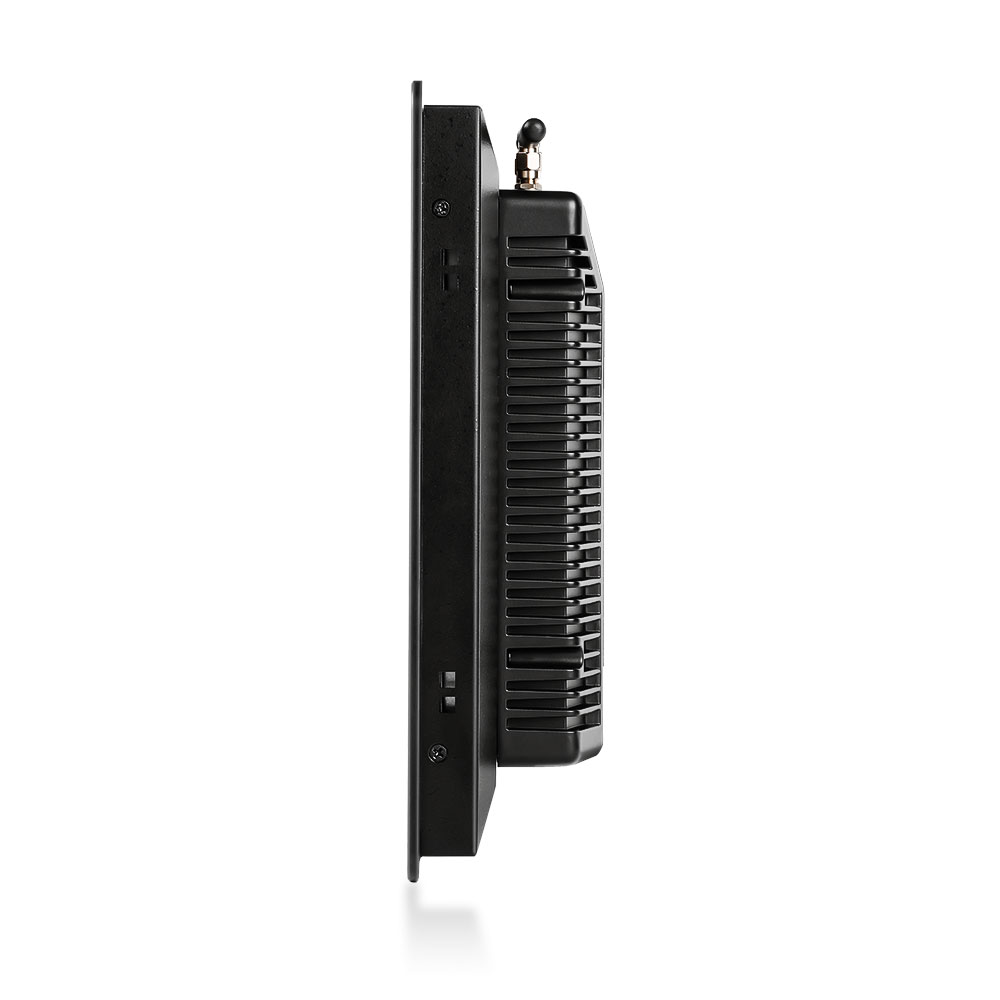

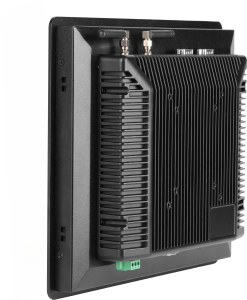

This video shows the product in 360 degrees.

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

Product Information:

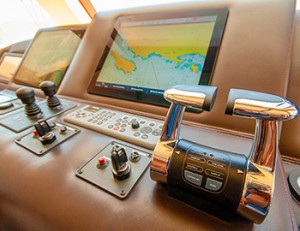

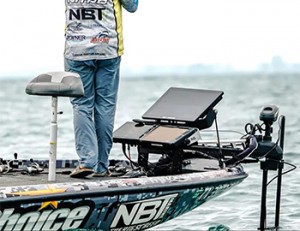

The COMP Tindustrial touchscreen panel pc also features wet hand touch and gloved hand touch, allowing users to easily operate and control the device even in wet marine environments or when gloves are required.

The high quality materials and robust design of this product ensure its stability and durability in harsh outdoor environments and marine environments. Its waterproof and dustproof features also allow it to work reliably in wet environments, providing users with greater flexibility and convenience.

Product Solution:

In addition to special scenarios such as outdoor and marine, INDUSTRIAL TOUCHSCREEN PANEL PCs are also suitable for many other scenarios, such as factory floor production line monitoring, logistics and warehousing management, mining and oil field operations, machinery and equipment control, medical equipment use, and smart city and smart building applications.

1. In factory workshop production line monitoring, industrial touch panel PC can be used to monitor production process, display real-time data, perform equipment control and quality inspection and other tasks, which improves production efficiency and quality management.

2. In logistics and warehouse management, it can assist in real-time monitoring of inventory, managing the order shipping process, and improving operational efficiency and accuracy.

3. In mining and oilfield operations, these devices can be used to monitor and control mining and drilling equipment to ensure safe production and effective resource extraction.

4. Industrial touch screen panel computers also play an important role in the control of machinery and equipment, and can be used to control and monitor a variety of construction machinery, automated production equipment and robotic systems.

5. In the use of medical equipment, these computers can be applied to medical image display, operating theatre control, patient information management and many other aspects, to ensure the reliability and safety of the medical environment.

6. In the field of intelligent cities and intelligent buildings, industrial touchscreen panel PCs can be used in intelligent traffic systems, building automation control, environmental monitoring and security management, etc., which provides strong technical support for the intelligent development of cities and buildings.

The industrial touchscreen panel pc has a wide range of application prospects in many industry fields such as factories, logistics, mining, medical care, smart cities, etc. With its stable performance and durable characteristics, it can play an important role in various harsh environments and special scenarios.

SOLUTIONS
SOLUTIONS
SOLUTIONS
SOLUTIONS1
SOLUTIONS
SOLUTIONS
AI in Manufacturing
Medical equipment

Product Parameter:

Name Industrial Touchscreen Panel Pc
Display Screen Size 10.4 inch
Screen Resolution 1024*768
Luminous 350 cd/m2
Color Quantitis 16.7M
Contrast 1000:1
Visual Range 85/85/85/85(Typ.)(CR≥10)
Display Size 212.3 (w) × 159.5 (h) mm
Touch parameter Reaction Type Electric capacity reaction
Lifetime More than 50 miliion times
Surface Hardness >7H
Effective Touch Strength  45g
Glass Type Chemical reinforced perspex
Luminousness >85%
Hardware MAINBOARD MODEL J4125
CPU Integrated Intel®Celeron J4125 2.0GHz quad-core
GPU Integrated Intel®UHD Graphics  600 core card
Memory 4G(maxmum 16GB)
Harddisk 64G solid state disk(128G replacement available)
Operate system Default Windows 10(Windows 11/Linux/Ubuntu replacement available)
Audio ALC888/ALC662 6 channels Hi-Fi Audio controller/Supporting MIC-in/Line-out
Network Integrated giga network card
Wifi Internal wifi antenna,supporting wireless connect

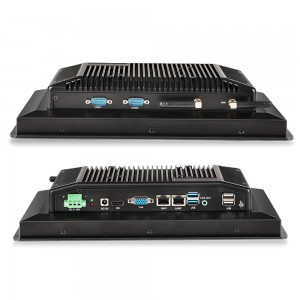

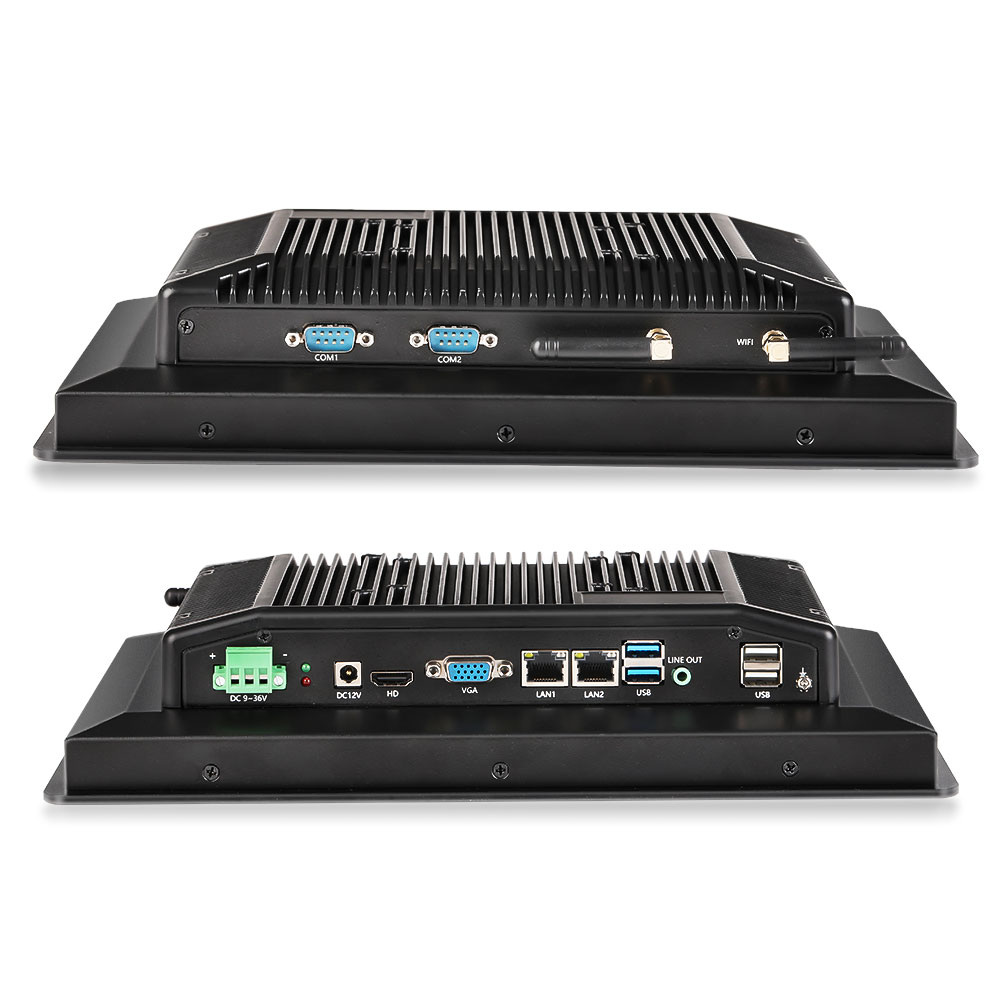

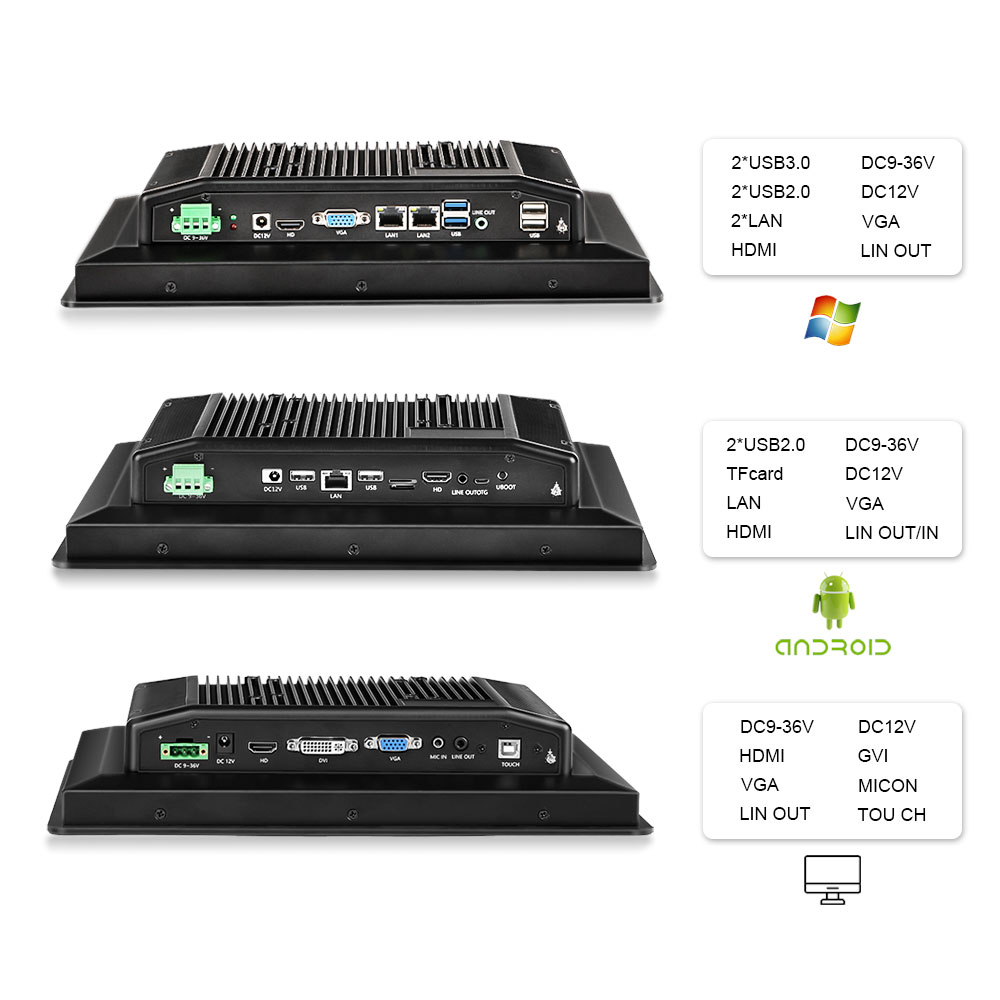

Interfaces DC Port 1 1*DC12V/5525 socket
DC Port 2 1*DC9V-36V/5.08mm phonix 4 pin
USB 2*USB3.0,1*USB 2.0
Serial-Interface RS232 0*COM(upgrade able)
Ethernet 2*RJ45 giga ethernet
VGA 1*VGA
HDMI 1*HDMI OUT
WIFI 1*WIFI antenna
Bluetooth 1*Bluetooch antenna
Audio imput & output 1*earphone & MIC two-in-one
Parameter Material CNC aluminum oxgenated drawing craft for the front surface frame
Color Black
Power adapter AC 100-240V  50/60Hz CCC certificated、CE certificated
Power dissipation ≈20W
Power output DC12V / 5A
Other parameter Backlight lifetime 50000h
Temperature Working:-10°~60°;storage-20°~70°
Install Embedded snap-fit
Guarantee Whole computer free for maintain in 1 year
Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain
Packing list N.W. 2.5KG
Product size(not in cluding brackt) 283*225.2*61mm

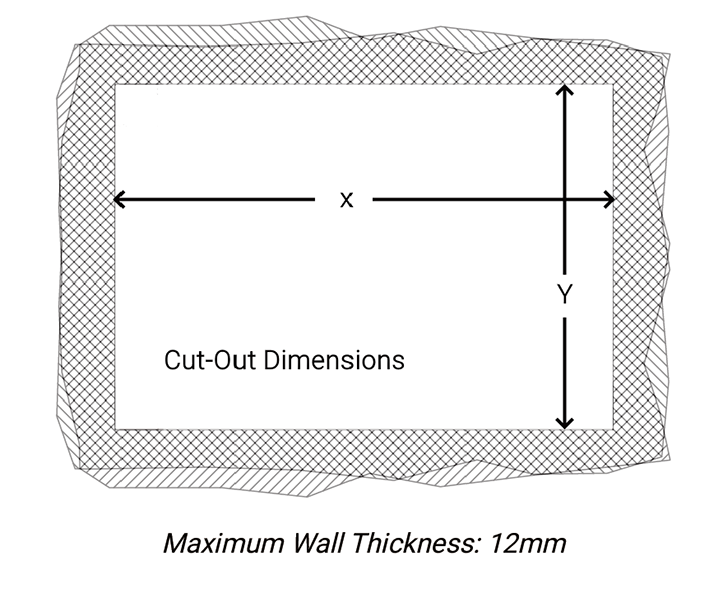

Range for embedded trepanning 270*212.5mm
Carton size 371*310*125mm
Power adapter Available for purchase
Power line Available for purchase
Parts for install Embedded snap-fit * 4,PM4x30 screw * 4



Engineering Dimention Drawing:

Penny

Web Content Writer

4 years of experience

This article is edited by Penny, the website content writer of COMPT, who has 4 years working experience in the industrial PCs industry and often discusses with colleagues in R&D, marketing and production departments about the professional knowledge and application of industrial controllers, and has a deep understanding of the industry and products.

Please feel free to contact me to discuss more about industrial controllers. zhaopei@gdcompt.com
