Industrial Touch Screen Monitor | 23.8″ Touchscreen Monitors – COMPT

Short Description:

  • Name: 23.8″ Industrial Touch Screen Monitor
  • Screen Size:23.8″
  • Resolution:1920*1080
  • Brightness:350 cd/m2
  • Colour:16.7M
  • Ratio:1000:1
  • Visual Angle:85/85/80/80 (Typ.)(CR≥10)
  • Display Area:527.04(W) *296.46(H)mm

Product Detail

Product Tags

Idustrial Monitor Introduce:

Specifically designed for demanding environments, COMPT's Industrial Touch Screen Monitor combines a high-definition image display, true colour and precise 10-finger electrofusion touch functionality in a rugged metal casing to ensure durability. Each Industrial Touch Screen Monitor features industrial-grade components for long-term continuous use in high-intensity production environments.

Available with capacitive or resistive interfaces, our Industrial Touch Screen Monitors feature industry-grade LED LCDs with wide temperature ranges and high IP ratings.The IP65-rated panels combine high-brightness LCD technology with an all-in-one computer system for a variety of industrial, medical, kiosk, and other applications.

All displays are rigorously tested to withstand long-term vibration and shock, are water and dust resistant, and are suitable for VESA or panel mounting. The high-brightness displays excel in industrial automation, healthcare, finance, education, entertainment, home automation, retail, and transportation, and allow for gloved operation for maximum design freedom.

Professional-grade displays range in size from 7 to 23.8 inches and are designed for sustained use in demanding applications with a variety of mounting options for easy integration into a variety of environments and a wide range of configuration options.

Products Interface:

Our Embedded Industrial Monitor is more suitable for various industrial environments in terms of precision, durability and applicability. The touch type is capacitive touch, which can be used with a finger or a capacitive pen. Capacitive touch supports more than 50 million clicks, light transmittance: light transmittance is higher than 87%, and the glass type is chemically strengthened Plexiglas.

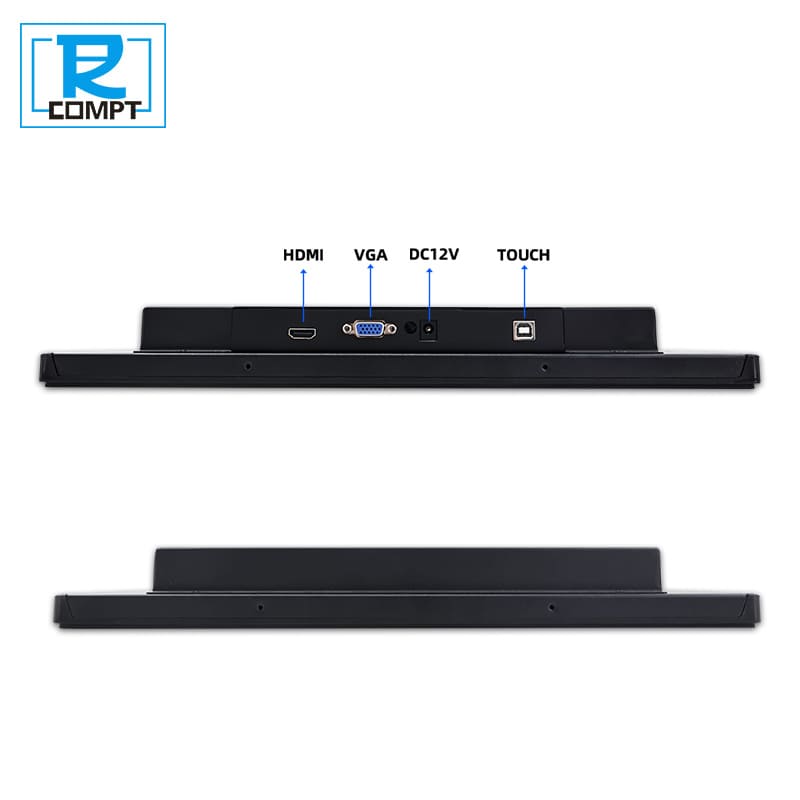

I/O interface  DC 1 1*DC12V/5521 standard socket
DC 2 1* Wide voltage power supply 9~36V industrial terminal (optional)
VGA 1*VGA IN
HDMI 1*HDMI IN
Touch interface 1*USB-B interface



Installation Mode:

  • Embedded
  • esigned with front panels and mounting brackets suitable for embedded installation, the device can be embedded into cabinets, consoles or other equipment to achieve seamless integration with the overall environment. Suitable for industrial consoles, outdoor billboards and other application scenarios that require aesthetics and integrated design.
embedded
Wall-mounted
  • Wall-mounted
  • Choose a suitable wall or bracket according to the installation environment. With the VESA standard mounting holes on the back, the unit can be easily mounted on the wall. Suitable for applications where space is limited or where fixed installation is required, such as public information displays and intelligent traffic systems. Be sure to install securely and make the necessary wiring connections and commissioning.
  • Desktop
  • Use the special bracket to place the Industrial All-in-One PC on the workbench or on the ground. Adjust the height and angle of the stand so that the display achieves the best viewing effect. Ensure the stand is stable and make necessary wiring connections and debugging. This mounting method is easy to operate and maintain, and is suitable for industrial automation control, laboratories and other environments that require frequent operation.
desktop
Cantilever
  • Cantilever
  • Use special mounting accessories to fix the Industrial All-in-One on a wall or stand. With the cantilever mount, the unit can be flexibly adjusted in angle and position, providing greater ease of operation and range of viewing angles. It is suitable for places that require flexible operation and adjustment, such as medical equipment and monitoring centres.

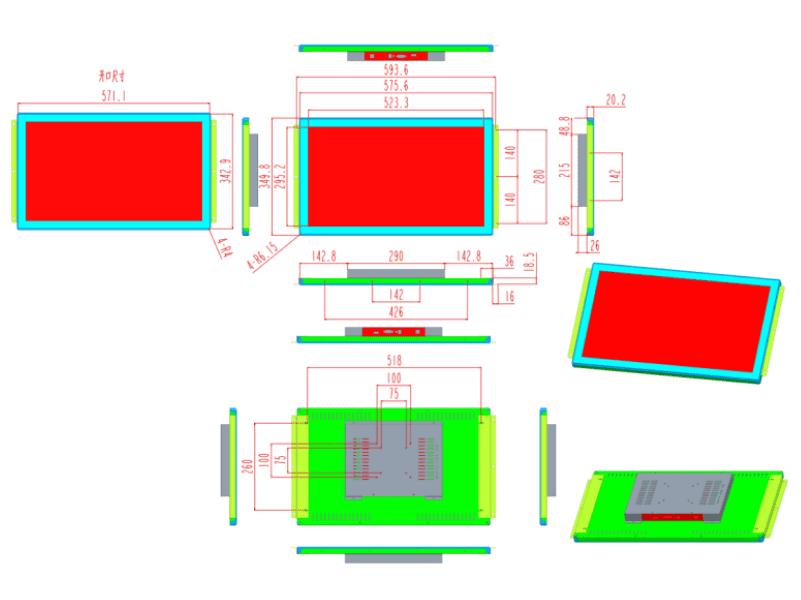

Engineering Dimention Drawing:

https://www.gdcompt.com/industrial-touch-screen-monitor-23-8-inch-industrial-touchscreen-monitors-compt-product/

COMPT's INDUSTRIAL TOUCH SCREEN MONITORS are widely used in all types of industrial and commercial environments, from the factory floor to cloud-based data monitoring, providing a comprehensive solution to help organisations achieve real-time monitoring and data collection for preventive maintenance. For example, some customers have solved factory lighting glare problems and improved work efficiency with headless HMIs equipped with high-brightness displays and HDMI enablement.

COMPT adheres to the service tenet of "product quality first, customer satisfaction first", devotes itself to strictly controlling product quality and appearance design, and continuously improves product quality and customer satisfaction. The company establishes and implements continuous improvement of quality control and after-sales service system, and strictly follows 1S09001 quality system and 1S0140001 environmental management system. By continuously improving product quality and after-sales service, the company has won the trust and recognition of our customers. In addition to mainland China, the products have been exported to Germany, the United States, India, the Middle East, Brazil, Chile and other major countries and regions.
