Industrial Touch Screen Flat Panel Pc Windows 10

Short Description:

COMPT Industrial Panel PC Windows 10 is an innovative product that combines high performance and portability. It is very stable and can support 7*24H uninterrupted operation. It adopts advanced Windows 10 operating system, equipped with responsive touch screen, and a variety of mounting options, including embedded, wall-mounted, desktop, and cantilevered, to meet various installation needs.

For 9 years, we have provided one-stop customization solutions in the intelligent computer industry and have successfully executed thousands of remarkable cases across the globe since our establishment in 2014.

Download as pdf whatsapp email

Product Detail

J4125

RK3288

Product Tags

Products Video

This video shows the product in 360 degrees.

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

Product Information：

COMPT industrial panel PCs also support a variety of interfaces and extensions, including USB, DC, RJ45, audio interface, HDMI, CAN, RS485, GPIO, etc., which can be easily connected to a variety of peripheral devices. Whether in the field of industrial automation, smart city construction, transportation, healthcare or agriculture, Industrial panel PC Windows 10 is able to provide excellent performance and stable operation.
The smart operating system of Android 7.1 or Android 11 or Android 12 can also be selected to bring users a smoother and more stable experience. And the rich interfaces and expansion functions can meet diversified application scenarios while satisfying the basic needs. With high-strength industrial-grade LCD panel, it can resist harsh environmental conditions and frequent use to ensure long-term stable operation.

https://www.gdcompt.com/industrial-touch-screen-flat-panel-pc-windows-10-product/

https://www.gdcompt.com/android-industrial-flat-panel-touch-screen-pc-21-5-inch-product/

In industrial production, information interaction, data transmission and other aspects, industrial panel PC Windows 10 can perform well. The touch screen design allows users to easily realize interactive operation without additional peripherals, which improves work efficiency. The wide application of Industrial panel PC Windows 10 makes it an important part of the industrial intelligence field.
Whether as a data acquisition, monitoring and control center, or as an information display and interactive interaction terminal, Industrial panel PC Windows 10 is able to show its unique value. Reliable performance and stable operation make it an indispensable intelligent device in the industrial field.

Product Solution:

Product Superiority:

Industrial aesthetic design
Streamlined appearance design
Independent research and development independent mold opening
Stable performance and low power consumption
Front panel waterproof design
Flat panel up to IP65 waterproof standard
GB2423 anti-vibration standard
Added shock-proof EVA material

Recessed cabinet installation
3mm tightly fitted to the embedded cabinet
Fully enclosed dust-proof design
Greatly improve the service life of the fuselage
Aluminum alloy body
Aluminum alloy die-casting integrated forming
EMC/EMI Anti-interference standard Anti-electromagnetic interference

Parameter Parameter:

Name	X86 All-in-One Computer	Industrial Touch Screen Flat Panel Pc Windows 10
Display	Screen Size	10.1 inch
	Screen Resolution	1280*800
	Luminous	350 cd/m2
	Color Quantitis	16.7M
	Contrast	1000:1
	Visual Range	85/85/85/85(Typ.)(CR≥10)
	Display Size	217 (W) × 135.6 (H)mm
Touch parameter	Reaction Type	Electric capacity reaction
	Lifetime	More than 50 miliion times
	Surface Hardness	＞7H
	Effective Touch Strength	45g
	Glass Type	Chemical reinforced perspex
	Luminousness	＞85%
Hardware	MAINBOARD MODEL	J4125
	CPU	Integrated Intel®Celeron J4125 2.0GHz quad-core
	GPU	Integrated Intel®UHD Graphics 600 core card
	Memory	4G（maxmum 16GB）
	Harddisk	64G solid state disk（128G replacement available）
	Operate system	Default Windows 10（Windows 11/Linux/Ubuntu replacement available）
	Audio	ALC888/ALC662 6 channels Hi-Fi Audio controller/Supporting MIC-in/Line-out
	Network	Integrated giga network card
	Wifi	Internal wifi antenna,supporting wireless connect
Interfaces	DC Port 1	1*DC12V/5525 socket
	DC Port 2	1*DC9V-36V/5.08mm phonix 4 pin
	USB	2USB3.0，1USB 2.0
	Serial-Interface RS232	0*COM（upgrade able）
	Ethernet	2*RJ45 giga ethernet
	VGA	1*VGA
	HDMI	1*HDMI OUT
	WIFI	1*WIFI antenna
	Bluetooth	1*Bluetooch antenna
	Audio imput & output	1*earphone & MIC two-in-one
Parameter	Material	CNC aluminum oxgenated drawing craft for the front surface frame
	Color	Black
	Power adapter	AC 100-240V 50/60Hz CCC certificated、CE certificated
	Power dissipation	≈20W
	Power output	DC12V / 5A
Other parameter	Backlight lifetime	50000h
	Temperature	Working：-10°~60°；storage-20°~70°
	Install	Embedded snap-fit
	Guarantee	Whole computer free for maintain in 1 year
	Maintenance terms	Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain
Packing list	N.W.	2KG
	Product size（not in cluding brackt）	277195.654mm
	Range for embedded trepanning	263*182mm
	Carton size	362280.5125mm
	Power adapter	Available for purchase
	Power line	Available for purchase
	Parts for install	Embedded snap-fit * 4，PM4x30 screw * 4

Engineering Dimention Drawing:

In conclusion, with its advanced Android 7.1 or Android 11, Android 12 operating system, multiple installation methods, rich interfaces and expansion functions, as well as reliable performance and stable operation, Industrial Tablet PC Windows 10 has become the leading work in the field of industrial intelligent devices, injecting new intelligent power for industrial production and operation.

Penny

Web Content Writer

4 years of experience

This article is edited by Penny, the website content writer of COMPT, who has 4 years working experience in the industrial PCs industry and often discusses with colleagues in R&D, marketing and production departments about the professional knowledge and application of industrial controllers, and has a deep understanding of the industry and products.

Please feel free to contact me to discuss more about industrial controllers. zhaopei@gdcompt.com

Previous: 10 Inch Industrial Panel Touch Screen Pc Flush Mount

Next: Industrial HMI Panel Pc High Gloss Sunlight Readable

Interfaces	DC Port 1	1*DC12V/5525 socket
	DC Port 2	1*DC9V-36V/5.08mm phonix 4 pin
	USB	2USB3.0，1USB 2.0
	Serial-Interface RS232	0*COM（upgrade able）
	Ethernet	2*RJ45 giga ethernet
	VGA	1*VGA
	HDMI	1*HDMI OUT
	WIFI	1*WIFI antenna
	Bluetooth	1*Bluetooch antenna
	Audio imput & output	1*earphone & MIC two-in-one

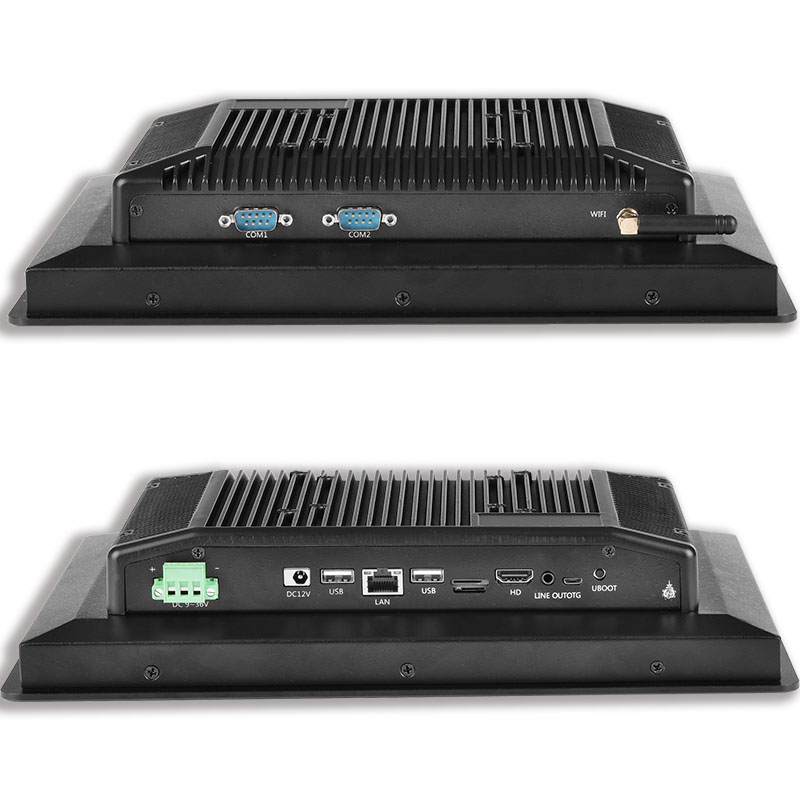

Interfaces	MAINBOARD MODEL	RK3288
	DC Port 1	1*DC12V/5525 socket
	DC Port 2	1*DC9V-36V / 5.08mm phonix 4 pin
	HDMI	1*HDMI
	USB-OTG	1*micro
	USB-HOST	2*USB2.0
	RJ45 Ethernet	1*10M/100M Self-adaptive ethernet
	SD/TF	1*TF datas storage,maximum 128G
	Earphone jack	1*3.5mm Standard
	Serial-Interface RS232	1*COM
	Serial-Interface RS422	Replacement available
	Serial-Interface RS485	Replacement available
	SIM Card	SIM card standard interfaces,customization available
