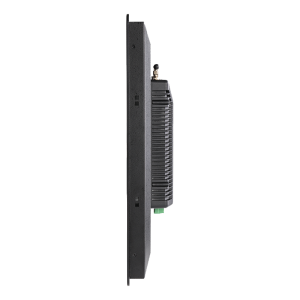

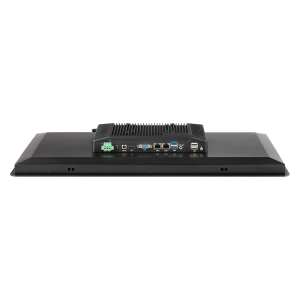

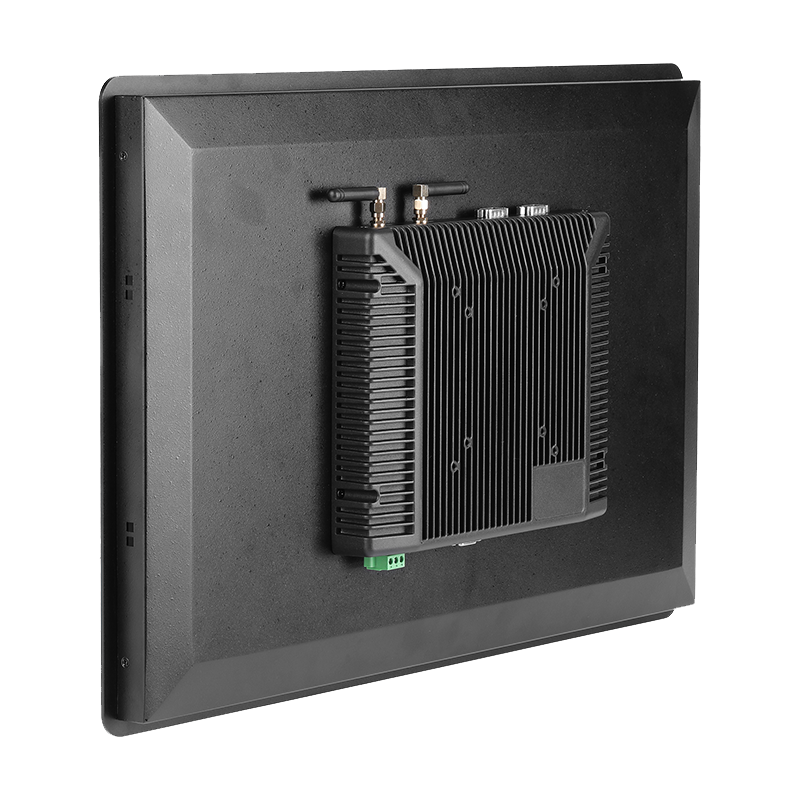

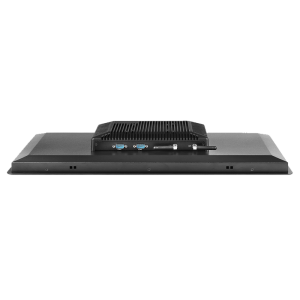

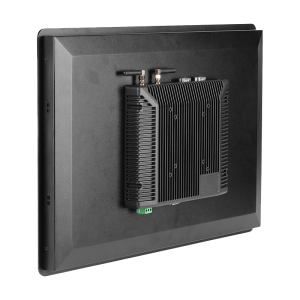

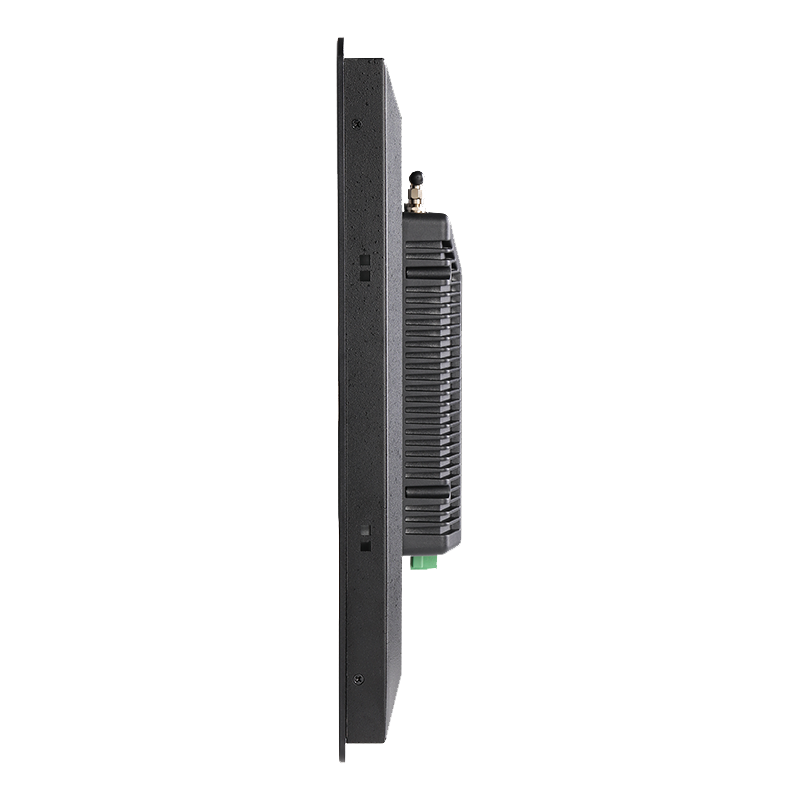

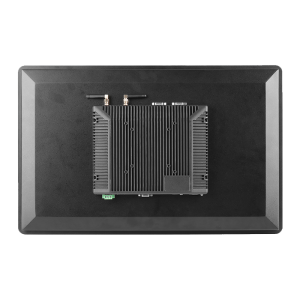

This video shows the product in 360 degrees.
Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.
Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.
The COMPT Industrial Panel Touch screen PC is a high-performance computing device designed for industrial environments, featuring state-of-the-art technology and design concepts designed to meet the need for high reliability and stability in areas such as industrial control, automated production and monitoring systems.
This industrial panel touch screen Pc features the J4125 high-performance processor with powerful computing and processing capabilities to meet the demands of complex industrial applications. The stability and efficient performance of this processor guarantees the reliable operation and fast response of the equipment, providing strong support for industrial automation and control systems.
The product is equipped with a wealth of interfaces and expansion functions, such as USB, HDMI, Ethernet, etc., which can be easily connected to a variety of external devices to meet the data transmission and control needs in different industrial scenarios. The product supports a variety of operating systems, so users can choose the appropriate operating system according to actual needs, or customise specific functions and applications as required. In terms of external design, the product is made of rugged industrial-grade materials with dustproof and waterproof features to adapt to use in harsh environments. The durable housing design protects the equipment from external damage and ensures stable operation for a long time, thus providing a reliable guarantee for industrial production.
Industrial panel touch screen pc can be useful in many industrial application scenarios, such as:
Industrial control systems: for controlling and monitoring production lines, mechanical equipment and industrial production processes. Automated production: for monitoring and operating automated equipment and machines to improve production efficiency and quality.
Surveillance systems: Used to monitor industrial facilities, storage spaces, energy equipment, etc. to ensure safety and operational status.
IoT Application: As the control and data interaction node of IoT devices, it is used to realise interconnection and co-operation between devices. Information Display and Interaction: Used to display production data and process information in the industrial environment, as well as interactive operation and data input with equipment.
Workshop Management: Used for data collection, production scheduling and process monitoring in the production workshop to help optimise the production process. Medical Equipment: Used in medical equipment field for medical image display, operating room control system and other applications.
Transportation: used for traffic signal control, intelligent traffic system monitoring and management. In summary, industrial panel touch screen computer has a wide range of application scenarios in industrial control, automated production, monitoring systems and other fields.
Name | Industrial Panel Touch Screen Pc | |
Display | Screen | 23.6 Inch |
Resolution | 1920*1080 | |
Brightness | 300 cd/m2 | |
Color | 16.7M | |
Contrast | 1000:1 | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | |
Display area | 521.28(W)×293.22(H) mm | |
Touch parameter | Touch Type | Capacitive touch |
Durability | >50 millions times | |
Surface Hardness | >7H | |
Effective Touch Strength | 45g | |
Glass Type | chemically strengthened plexiglass | |
Transmittance | >85% | |
Hardware | Maiboard | J4125 |
CPU | Intel®Celeron J4125 2.0GHz Quad-cores | |
GPU | Intel®UHD Graphics card | |
Memory | 4G(max support 8GB) | |
Harddisk | 64G S.S.D(optional 128G) | |
Operate system | Default Windows 10(Support Linux) | |
Audio | ALC888/ALC662 6-channel high-fidelity audio | |
Network | Realtek RTL8111H Gigabit LAN | |
Wifi | Built-in wifi antenna, support wireless connection | |

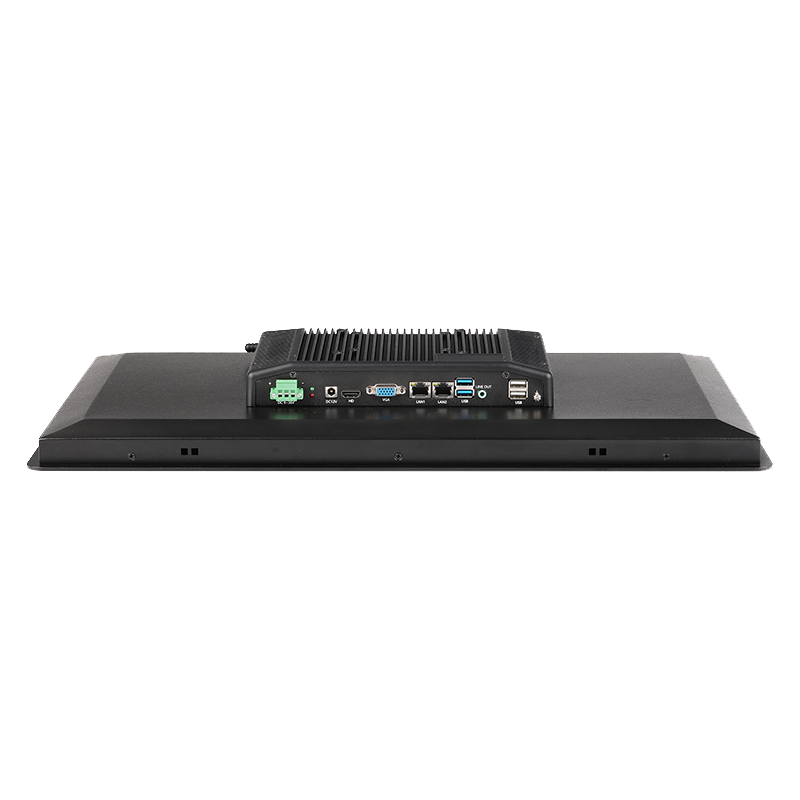

Interface | DC power | 1*DC12V/5525 socket |
USB3.0 | 2*USB3.0 | |
USB2.0 | 2*USB2.0 | |
Ethernet | 2*RJ45 Gigabit Ethernet port | |
Serial-Interface RS232 | 2*COM | |
VGA | 1*VGA IN | |
HDMI | 1*HDMI IN | |
WIFI | 1*WIFI Antena | |
Bluetooth | 1* Bluetooth Antena | |
Audio output | 1* Ear JACK | |
Parameter | Material | Fully Aluminum Alloy enclosure |
Color | Black | |
AC adapter | AC 100-240V 50/60Hz CE certificate | |
Power dissipation | ≤40W | |
Power output | DC12V / 5A | |
Other parameter | Backlight lifetime | 50000h |
Temperature range | Working:-10°~60°;Storage -20°~70° | |
Install mode | Wall Mount /Embedded /Desktop/VESA | |
Guarantee | 1 year |
