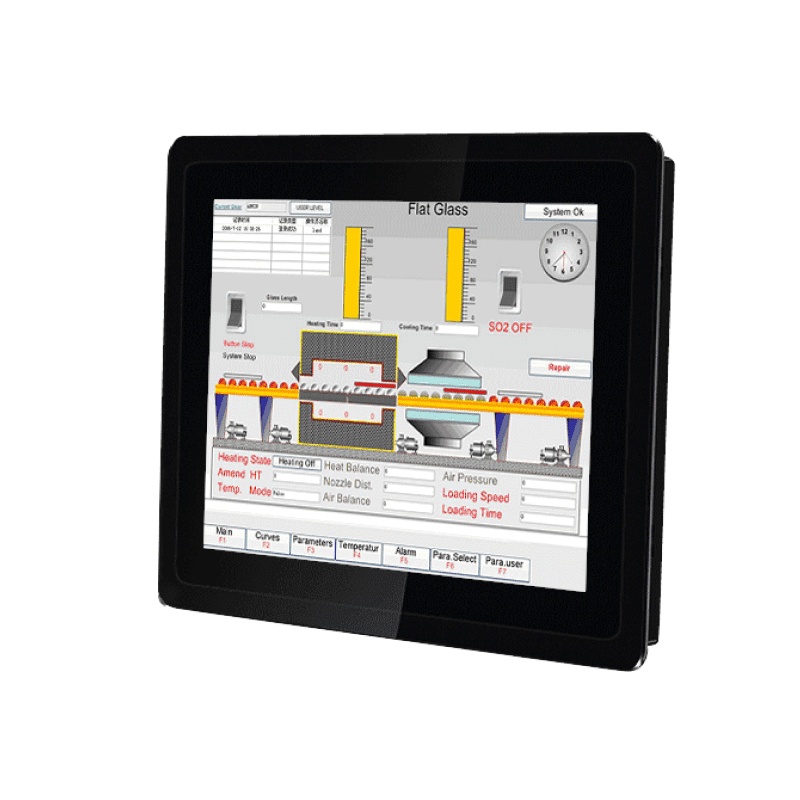

10.1 inch Industrial Monitor Touch Screen with IP65 Water Proof Embedded Monitor
This video shows the product in 360 degrees.
Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.
Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

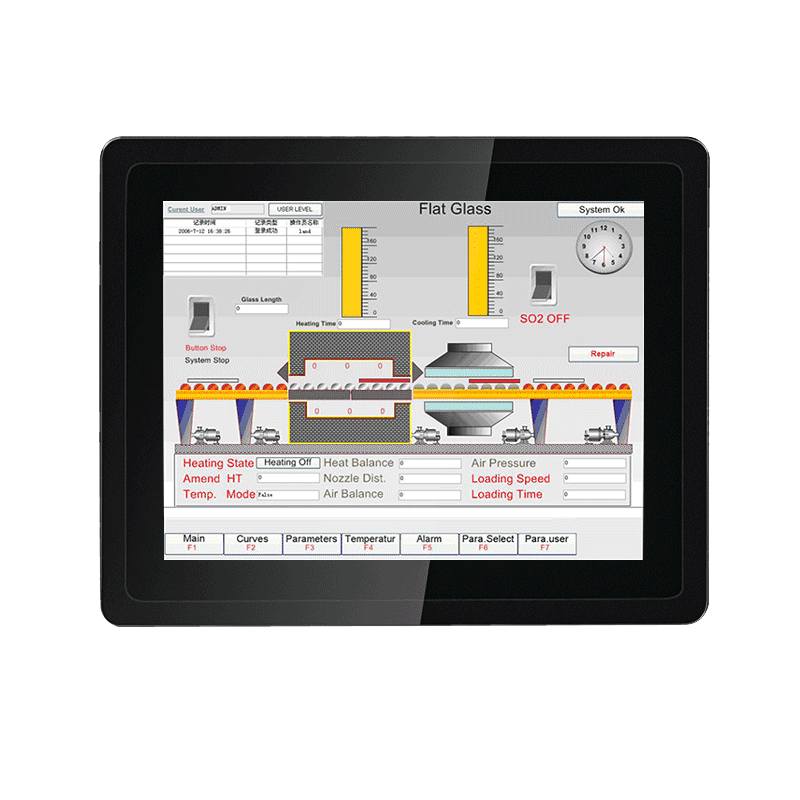

Embedded Industrial Display
COMPT produces Embedded Industrial Display in various sizes ranging from 7, 8, 10.1, 10.4, 11.6, 12, 12.1, 13.3, 15, 15.6, 17, 17.3, 18.5, 19, 21.5, to 23.8 inches. Featuring an industrial-grade LED LCD with a backlight lifetime of 50,000 hours, high IP-rated bezel, and wide temperature support.
COMPT’s industrial monitors are equipped to withstand operation in harsh environments.

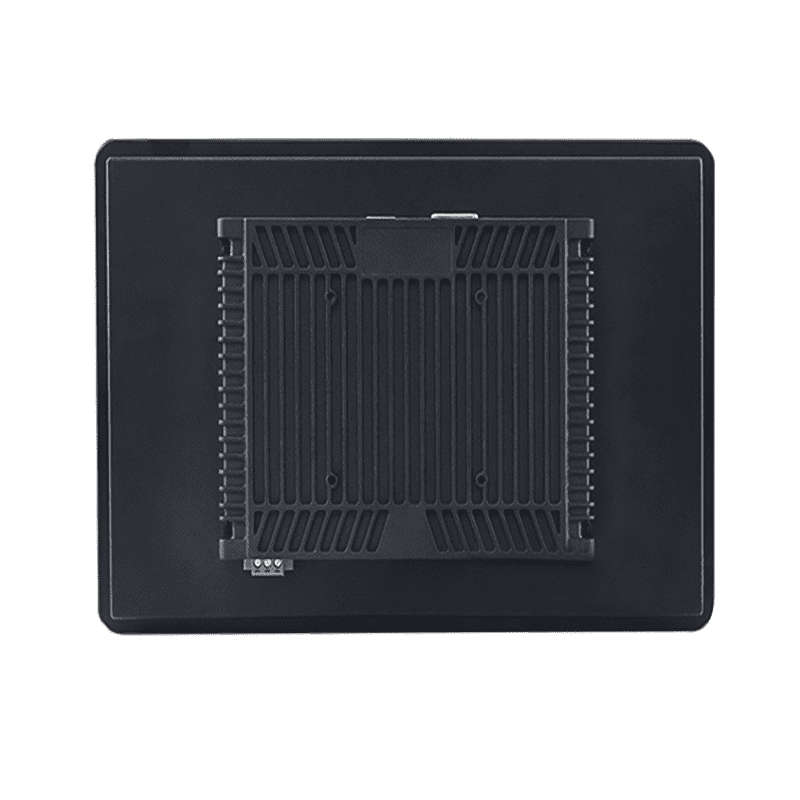

Versatile mounting options (panel, wall, desktop, rIndependent controllers and industrial PCs embedded in machines require an interface for data visualization and processing.
Embedded Industrial Display High Quality Wide Panel
Aluminum Housing with Anti-Corrosion Treatment
Anti-Shock and Vibration Standard according to IEC60068-2-27
Anti-Reflection Protection Glass (Optional)
Wide Range 9 to 36 V DC Input Acceptable
This powerful industrial computer is equipped with impressive specifications, including an Intel Core processor, a high-speed solid-state drive, and multiple I/O interfaces.
These specifications ensure that you can run multiple applications simultaneously and handle complex tasks with ease. It also offers a range of connectivity options, including Wi-Fi, Bluetooth, Ethernet and USB, enabling you to connect to a range of other devices.
- Industrial aesthetic design
- Streamlined appearance design
- Independent research and development independent mold opening
- Stable performance and low power consumption
- Front panel waterproof design
- Flat panel up to IP65 waterproof standard
- GB2423 anti-vibration standard
- Added shock-proof EVA material
- Recessed cabinet installation
- 3mm tightly fitted to the embedded cabinet
- Fully enclosed dust-proof design
- Greatly improve the service life of the fuselage
- Aluminum alloy body
- Aluminum alloy die-casting integrated forming
- EMC/EMI Anti-interference standard Anti-electromagnetic interference
| Display | Screen Size | 10.1 inch Embedded Industrial Display |
| Screen Resolution | 1280*800 | |
| Luminous | 350 cd/m2 | |
| Color Quantitis | 16.7M | |
| Contrast | 1000:1 | |
| Visual Range | 85/85/85/85(Typ.)(CR≥10) | |
| Display Size | 217 (W) × 135.6 (H)mm | |
| Touch parameter | Reaction Type | Electric capacity reaction |
| Lifetime | More than 50 miliion times | |
| Surface Hardness | ＞7H | |
| Effective Touch Strength | 45g | |
| Glass Type | More than 50 miliion times | |
| Luminousness | ＞85% | |
| Parameter | Power suplier mode | 12V/5A external power adapter / industral interface |
| Power specs | 100-240V，50-60HZ | |
| Imput voltage | 9-36V/12V | |
| Anti-static | Contact discharge 4KV-air discharge 8KV（customization available≥16KV） | |
| Rate of work | ≤8W | |
| Vibration proof | GB242 standard | |
| Anti-interference | EMC|EMI anti-electromagnetic interference | |
| Protection | Front panel IP65 dustproof waterproof | |
| Color of shell | Black | |
| Install mode | Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type | |
| Environment temperature | <80%,Condesation forbidden | |
| Working temperature | Working：-10°~60°；Storage：-20°~70° | |
| Language menu | Chinese、English、Gemman、French、Korean、Spanish、 Italia、Russia |
|
| Install mode | Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type | |
| Guarantee | Whole computer free for maintain in 1 year | |
| Maintenance terms | Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain | |

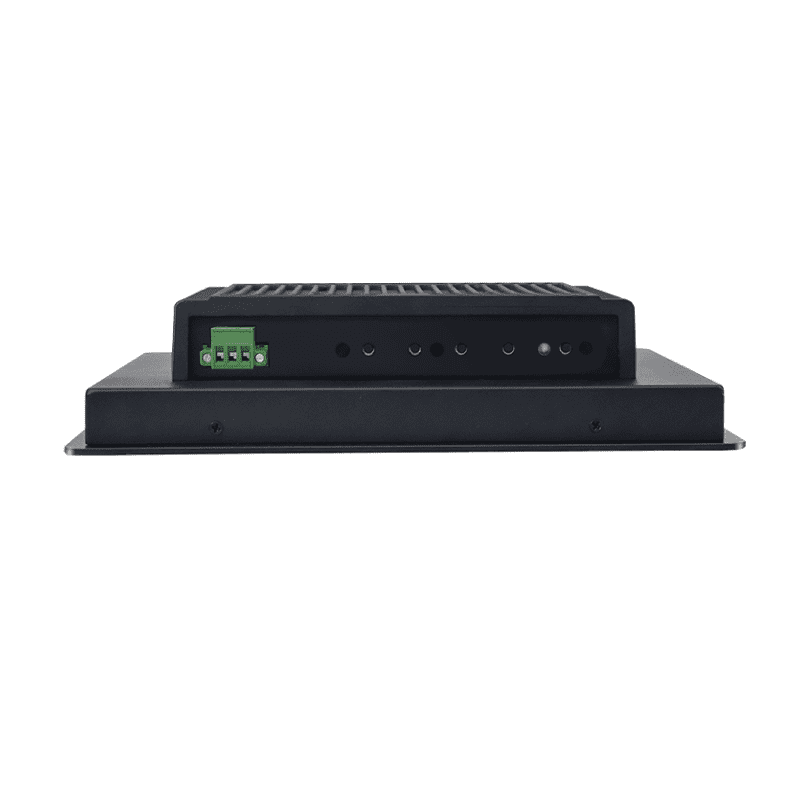

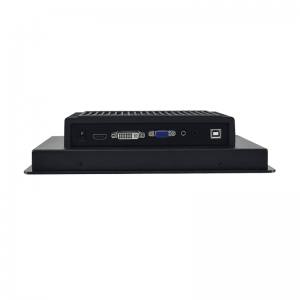

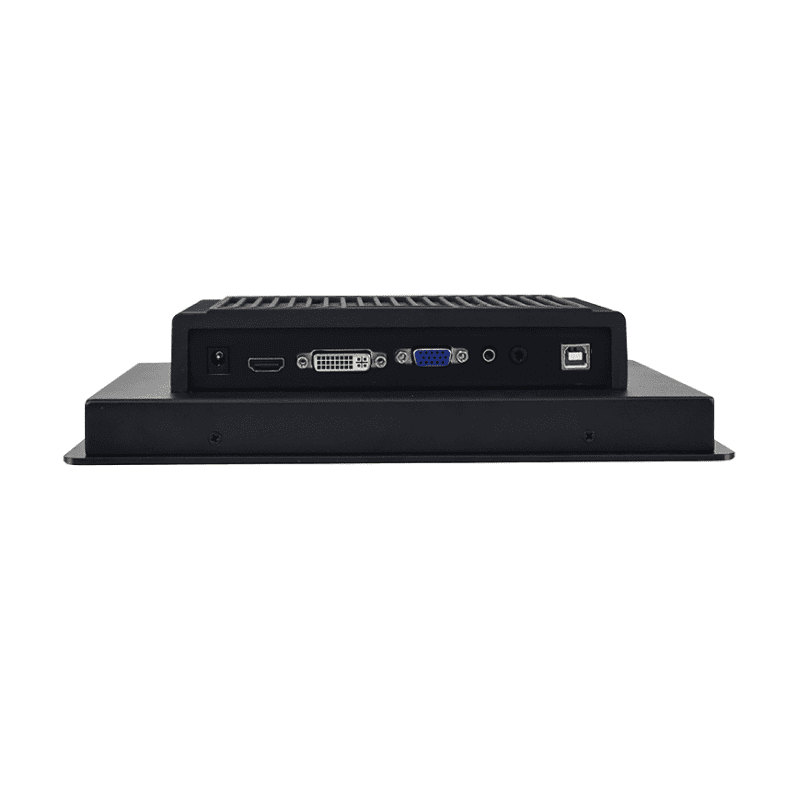

| I/O interface parameter | DC port 1 | 1*DC12V/5525 socket |
| DC port 2 | 1*DC9V-36V/5.08mm phoneix 4 pin | |
| Touch function | 1*USB-B external interface | |
| VGA | 1*VGA IN | |
| HDMI | 1*HDMI IN | |
| DVI | 1*DVI IN | |
| PC AUDIO | 1*PC AUDIO | |
| EARPHONE | 1*earphone | |
| Packing list | N.W. | 2KG |

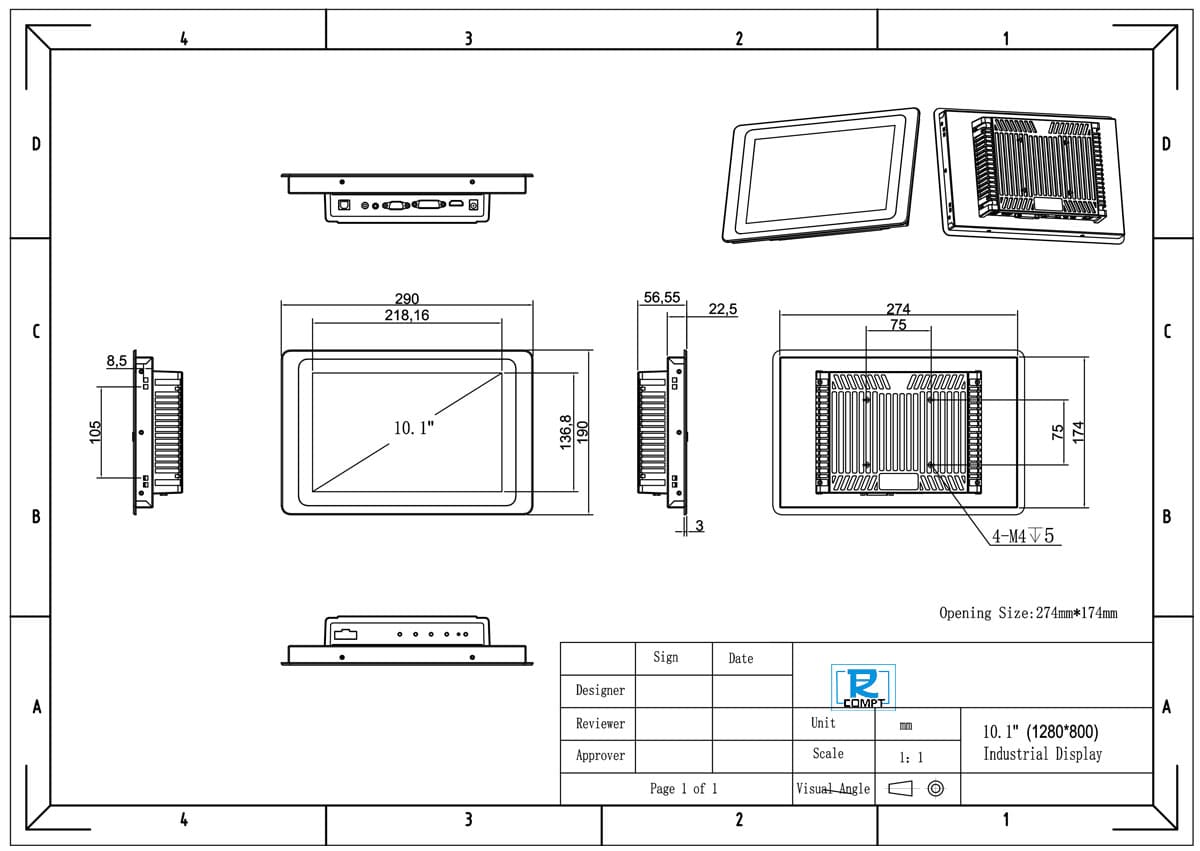

| Product size | 277*195.6*54mm | |
| Range for embedded trepanning | 263*182mm | |
| Carton size | 362*280.5*125mm | |
| Power adapter | Available for purchase | |
| Power line | Available for purchase | |
| Parts for install | Embedded snap-fit * 4，PM4x30 screw * 4 |
Application Scenarios:
COMPT Embedded Industrial Display is suitable for a variety of outdoor environments, such as industrial automation manufacturing, intelligent agriculture, warehousing and logistics, bus station, transportation, IoT equipment, medical equipment, etc. In these scenarios, displays need to face challenges such as direct sunlight and complex ambient light, while COMPT displays can remain clearly visible even under strong sunlight due to their high brightness characteristics.
1.Industrial automation: for monitoring and control of control systems, machine vision and automated production lines.
2.Intelligent manufacturing: integrated into intelligent factory system to realize equipment status monitoring, production plan display and other functions.
3.Internet of Things (IoT) devices: used as display and control interface of IoT terminal devices for remote monitoring and data acquisition.
4.Transportation: Applied to navigation systems and information displays for vehicles, ships and aircraft, providing real-time navigation and warning information.
5.Medical devices: Used for patient monitoring, surgical navigation and image display of medical devices to ensure medical safety and efficiency.
Of course, the application scenarios are not limited to these, here are just some examples.
COMPT's Embedded Industrial Display is widely used in industrial applications due to its excellent performance and reliability. We are committed to providing customized solutions to meet the needs of different industries. Whether it is industrial automation or information display in public places, it can bring users a great visual experience with excellent performance.
Embedded Industrial Display most impressive features is the built-in waterproof design, making it resistant to dust, water, and other environmental elements, which is crucial in harsh industrial environments. Plus, its rugged design means it can withstand accidental shocks and jolts in industrial workplaces.
Embedded Industrial Display compact all-in-one design means it is easy to install and takes up much less space than traditional industrial computer systems. This is critical in locations where space is at a premium.
Choosing COMPT is choosing quality and trust.
Penny
Web Content Writer
4 years of experience
This article is edited by Penny, the website content writer of COMPT, who has 4 years working experience in the industrial PCs industry and often discusses with colleagues in R&D, marketing and production departments about the professional knowledge and application of industrial controllers, and has a deep understanding of the industry and products.
Please feel free to contact me to discuss more about industrial controllers. zhaopei@gdcompt.com
| Display | Screen size | 10.4inches |
| Resolution | 1024*768 | |
| Brightness | 300 cd/m2 | |
| Colour | 16.7M | |
| Ratio | 1000:1 | |
| visual Angle | 88/88/88/88 (Typ.)(CR≥10) | |
| Display area | 210.4(W)×157.8(H) mm | |
| Touch Feature |
Type | Capactive |
| Touch life | ＞50 million | |
| Surface hardness | ＞7H | |
| Touch strength | 45g | |
| Glass type | Chemically enhanced plexiglass | |
| VLT | above 85% | |
| Feature | Power adapter | 12V/4A external power adapter |
| Power supply | 100-240V，50-60HZ | |
| VAC | DC/12V | |
| ESD | 4KV-8KV | |
| Power consume | ≤15W | |
| Anti-vibration | GB242 standard | |
| Anti-interference | EMC|EMI | |
| Water proof Dust proof | Surface IP65 | |
| Colour | Black | |
| Temp | Function：-10-60℃，storage：-20-70℃ | |
| Humidity | ≤95% | |
| language menu | Chinese, English, German, French, Korean, Spanish, Italian, Russian |
|
| Installation | Embedded/Wallmounted/Foldable stand/Cantilever mounting | |
| Warranty | 12 month | |
| Maintenance | Post | |
| I/O | DC 1 | 1*DC12V/5521 |
| DC 2 | 1*DC9V-36V/5.08mm（Optional） | |
| Touch interface | 1*USB-B | |
| VGA | 1*VGA IN | |
| HDMI | 1*HDMI IN | |
| DVI | 1*DVI IN | |
| PC AUDIO | 1*PC AUDIO | |
| EARPHONE | 1*3.5MM | |
| Packing list | N.W. | 1.8KG |
| G.W. | 2.9KG | |
| Dimension | 269.4*216.4*59mm | |
| installation frame size | 253*200mm | |
| Carton dimension | 371*310*125 | |
| Power cable | 1*Power cable1.2M | |
| Power adapter | 1*Power adapter1.2M | |
| QC Certificate | 1*QC certificate | |
| Warranty | 1*Warranty |
| Display | Screen size | 11.6inches |
| Resolution | 1920*1080 | |
| Brightness | 280 cd/m2 | |
| Colour | 16.7M | |
| Ratio | 1000:1 | |
| visual Angle | 89/89/89/89(Typ.)(CR≥10) | |
| Display area | 256.32(W)×144.18(H) mm | |
| Touch Feature |
Type | Capactive |
| Touch life | ＞50 million | |
| Surface hardness | ＞7H | |
| Touch strength | 45g | |
| Glass type | Chemically enhanced plexiglass | |
| VLT | above 85% | |
| Feature | Power adapter | 12V/4A external power adapter |
| Power supply | 100-240V，50-60HZ | |
| VAC | DC/12V | |
| ESD | 4KV-8KV | |
| Power consume | ≤15W | |
| Anti-vibration | GB242 standard | |
| Anti-interference | EMC|EMI | |
| Water proof Dust proof | Surface IP65 | |
| Colour | Black | |
| Temp | Function：-10-60℃，storage：-20-70℃ | |
| Humidity | ≤95% | |
| language menu | Chinese, English, German, French, Korean, Spanish, Italian, Russian |
|
| Installation | Embedded/Wallmounted/Foldable stand/Cantilever mounting | |
| Warranty | 12 month | |
| Maintenance | Post | |
| I/O | DC 1 | 1*DC12V/5521 |
| DC 2 | 1*DC9V-36V/5.08mm（Optional） | |
| Touch interface | 1*USB-B | |
| VGA | 1*VGA IN | |
| HDMI | 1*HDMI IN | |
| DVI | 1*DVI IN | |
| PC AUDIO | 1*PC AUDIO | |
| EARPHONE | 1*3.5MM | |
| Packing list | N.W. | 1.9KG |
| G.W. | 3KG | |
| Dimension | 325.5*211.9*59mm | |
| installation frame size | 308*195mm | |
| Carton dimension | 436*310*125 | |
| Power cable | 1*Power cable1.2M | |
| Power adapter | 1*Power adapter1.2M | |
| QC Certificate | 1*QC certificate | |
| Warranty | 1*Warranty |
| Display | Screen size | 12inches |
| Resolution | 1024*768 | |
| Brightness | 500 cd/m2 | |
| Colour | 16.7M | |
| Ratio | 1200:1 | |
| visual Angle | 85/85/85/85(Typ.)(CR≥10) | |
| Display area | 245.76(W)×184.32(H) mm | |
| Touch Feature |
Type | Capactive |
| Touch life | ＞50 million | |
| Surface hardness | ＞7H | |
| Touch strength | 45g | |
| Glass type | Chemically enhanced plexiglass | |
| VLT | above 85% | |
| Feature | Power adapter | 12V/4A external power adapter |
| Power supply | 100-240V，50-60HZ | |
| VAC | DC/12V | |
| ESD | 4KV-8KV | |
| Power consume | ≤15W | |
| Anti-vibration | GB242 standard | |
| Anti-interference | EMC|EMI | |
| Water proof Dust proof | Surface IP65 | |
| Colour | Black | |
| Temp | Function：-10-60℃，storage：-20-70℃ | |
| Humidity | ≤95% | |
| language menu | Chinese, English, German, French, Korean, Spanish, Italian, Russian |
|
| Installation | Embedded/Wallmounted/Foldable stand/Cantilever mounting | |
| Warranty | 12 month | |
| Maintenance | Post | |
| I/O | DC 1 | 1*DC12V/5521 |
| DC 2 | 1*DC9V-36V/5.08mm（Optional） | |
| Touch interface | 1*USB-B | |
| VGA | 1*VGA IN | |
| HDMI | 1*HDMI IN | |
| DVI | 1*DVI IN | |
| PC AUDIO | 1*PC AUDIO | |
| EARPHONE | 1*3.5MM | |
| Packing list | N.W. | 3.25KG |
| G.W. | 4.4KG | |
| Dimension | 317*252*62mm | |
| installation frame size | 301*236mm | |
| Carton dimension | 396*345*125 | |
| Power cable | 1*Power cable1.2M | |
| Power adapter | 1*Power adapter1.2M | |
| QC Certificate | 1*QC certificate | |
| Warranty | 1*Warranty |
| Display | Screen size | 12.1inches |
| Resolution | 1280*800 | |
| Brightness | 300 cd/m2 | |
| Colour | 16.7M | |
| Ratio | 1000:1 | |
| visual Angle | 85/85/80/80 (Typ.)(CR≥10) | |
| Display area | 261.12(W)×163.2(H) mm | |
| Touch Feature |
Type | Capactive |
| Touch life | ＞50 million | |
| Surface hardness | ＞7H | |
| Touch strength | 45g | |
| Glass type | Chemically enhanced plexiglass | |
| VLT | above 85% | |
| Feature | Power adapter | 12V/4A external power adapter |
| Power supply | 100-240V，50-60HZ | |
| VAC | DC/12V | |
| ESD | 4KV-8KV | |
| Power consume | ≤15W | |
| Anti-vibration | GB242 standard | |
| Anti-interference | EMC|EMI | |
| Water proof Dust proof | Surface IP65 | |
| Colour | Black | |
| Temp | Function：-10-60℃，storage：-20-70℃ | |
| Humidity | ≤95% | |
| language menu | Chinese, English, German, French, Korean, Spanish, Italian, Russian |
|
| Installation | Embedded/Wallmounted/Foldable stand/Cantilever mounting | |
| Warranty | 12 month | |
| Maintenance | Post | |
| I/O | DC 1 | 1*DC12V/5521 |
| DC 2 | 1*DC9V-36V/5.08mm（Optional） | |
| Touch interface | 1*USB-B | |
| VGA | 1*VGA IN | |
| HDMI | 1*HDMI IN | |
| DVI | 1*DVI IN | |
| PC AUDIO | 1*PC AUDIO | |
| EARPHONE | 1*3.5MM | |
| Packing list | N.W. | 2.95KG |
| G.W. | 4.1KG | |
| Dimension | 322*224.5*59mm | |
| installation frame size | 306*208.5mm | |
| Carton dimension | 396*345*125 | |
| Power cable | 1*Power cable1.2M | |
| Power adapter | 1*Power adapter1.2M | |
| QC Certificate | 1*QC certificate | |
| Warranty | 1*Warranty |
| Display | Screen size | 13.3inches |
| Resolution | 1920*1080 | |
| Brightness | 300 cd/m2 | |
| Colour | 16.7M | |
| Ratio | 800:1 | |
| visual Angle | 85/85/85/85 (Typ.)(CR≥10) | |
| Display area | 293.76(W)×165.24(H) mm | |
| Touch Feature |
Type | Capactive |
| Touch life | ＞50 million | |
| Surface hardness | ＞7H | |
| Touch strength | 45g | |
| Glass type | Chemically enhanced plexiglass | |
| VLT | above 85% | |
| Feature | Power adapter | 12V/4A external power adapter |
| Power supply | 100-240V，50-60HZ | |
| VAC | DC/12V | |
| ESD | 4KV-8KV | |
| Power consume | ≤15W | |
| Anti-vibration | GB242 standard | |
| Anti-interference | EMC|EMI | |
| Water proof Dust proof | Surface IP65 | |
| Colour | Black | |
| Temp | Function：-10-60℃，storage：-20-70℃ | |
| Humidity | ≤95% | |
| language menu | Chinese, English, German, French, Korean, Spanish, Italian, Russian |
|
| Installation | Embedded/Wallmounted/Foldable stand/Cantilever mounting | |
| Warranty | 12 month | |
| Maintenance | Post | |
| I/O | DC 1 | 1*DC12V/5521 |
| DC 2 | 1*DC9V-36V/5.08mm（Optional） | |
| Touch interface | 1*USB-B | |
| VGA | 1*VGA IN | |
| HDMI | 1*HDMI IN | |
| DVI | 1*DVI IN | |
| PC AUDIO | 1*PC AUDIO | |
| EARPHONE | 1*3.5MM | |
| Packing list | N.W. | 2.75KG |
| G.W. | 3.85KG | |
| Dimension | 363*241*59mm | |
| installation frame size | 347*225mm | |
| Carton dimension | 436*310*125 | |
| Power cable | 1*Power cable1.2M | |
| Power adapter | 1*Power adapter1.2M | |
| QC Certificate | 1*QC certificate | |
| Warranty | 1*Warranty |
Products categories
-
10 points capacitive industrial pc with 12.1 in...
-
10.1 inch industrial thouchscreen display with ...
-
10.4 inch Industrial android pc with fanless in...
-
12 inch j4125 Industrial embedded computers wit...
-
11.6 inch Industrial pc with 1920*1080 screen r...
-
15.6 inch wall mounted android industrial panel...
-
Industrial Monitor Industrial Control Machine W...
-
21.5 inch Industrial monitors touch screens wit...
-
Phone
-
E-mail
-
Whatsapp
