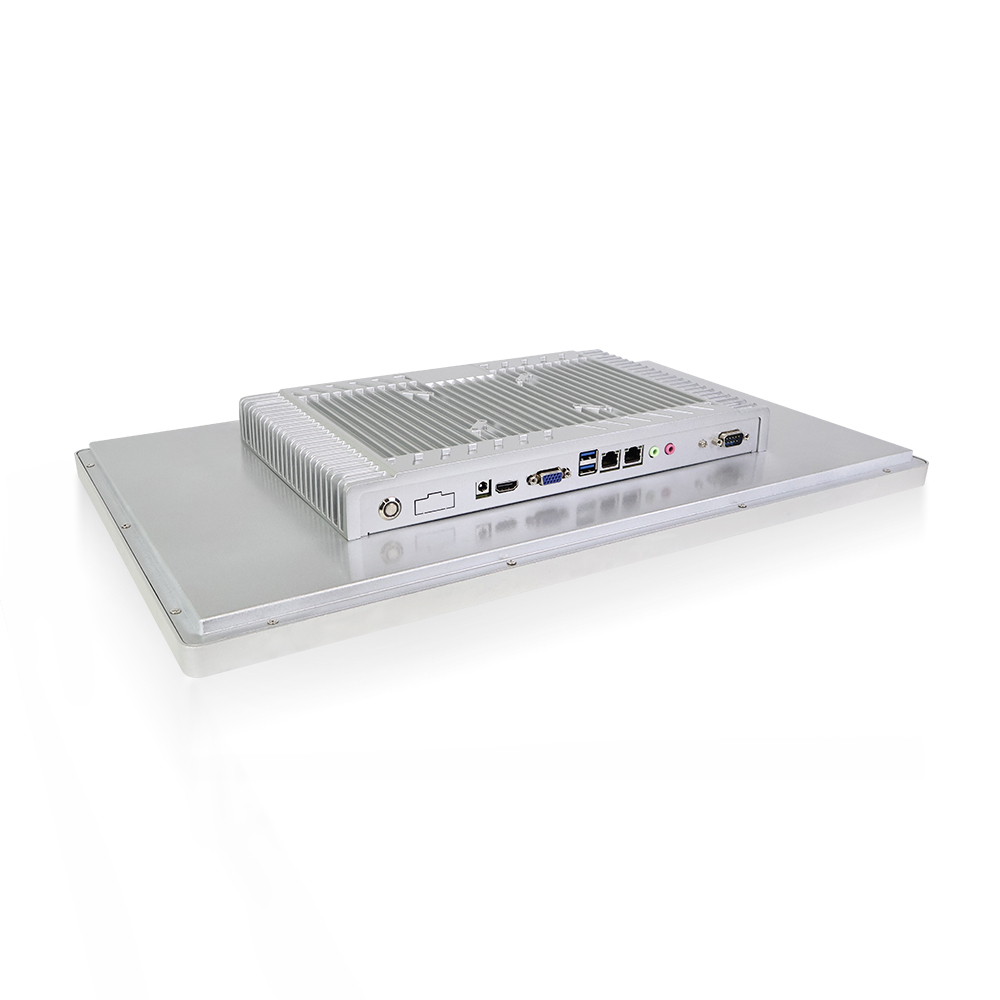

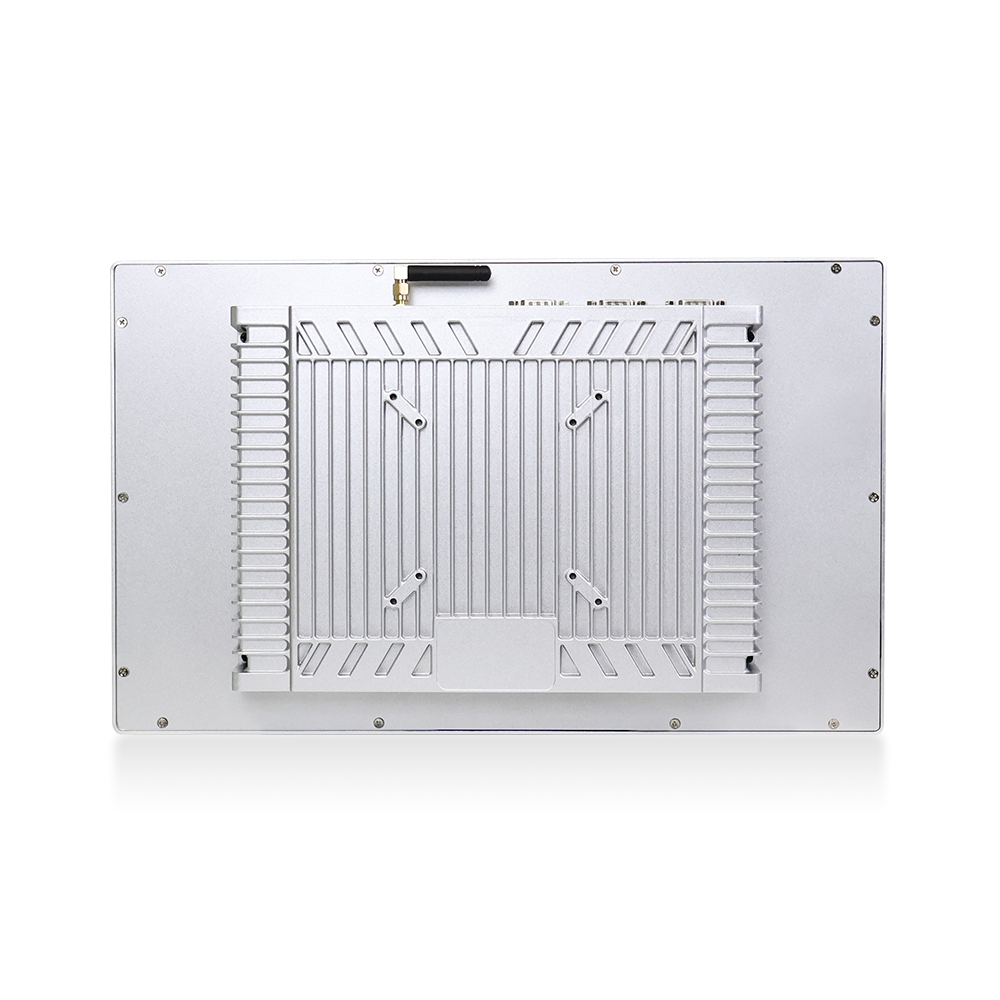

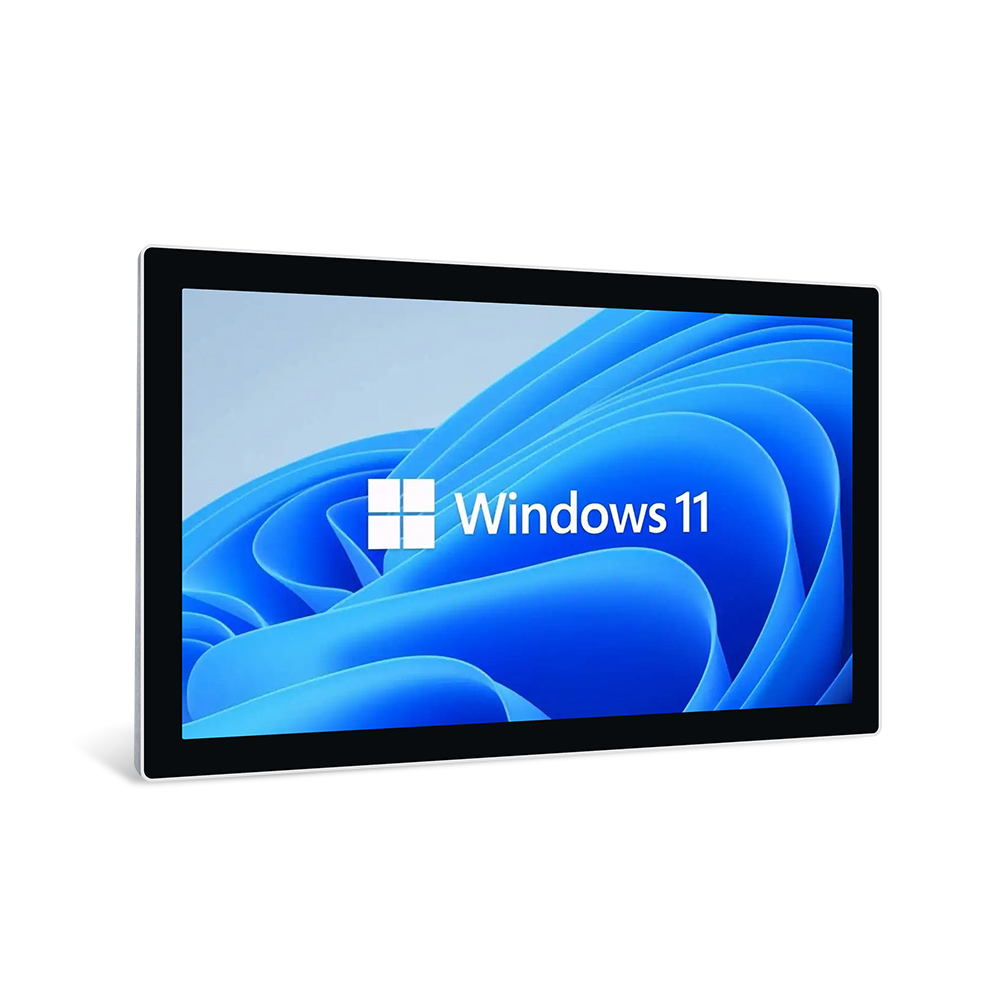

Industrial Panel Pc Android/Linux/Windows 10 Manufacturers | COMPT

Short Description:

Name:  wall-mounted industrial panel pc

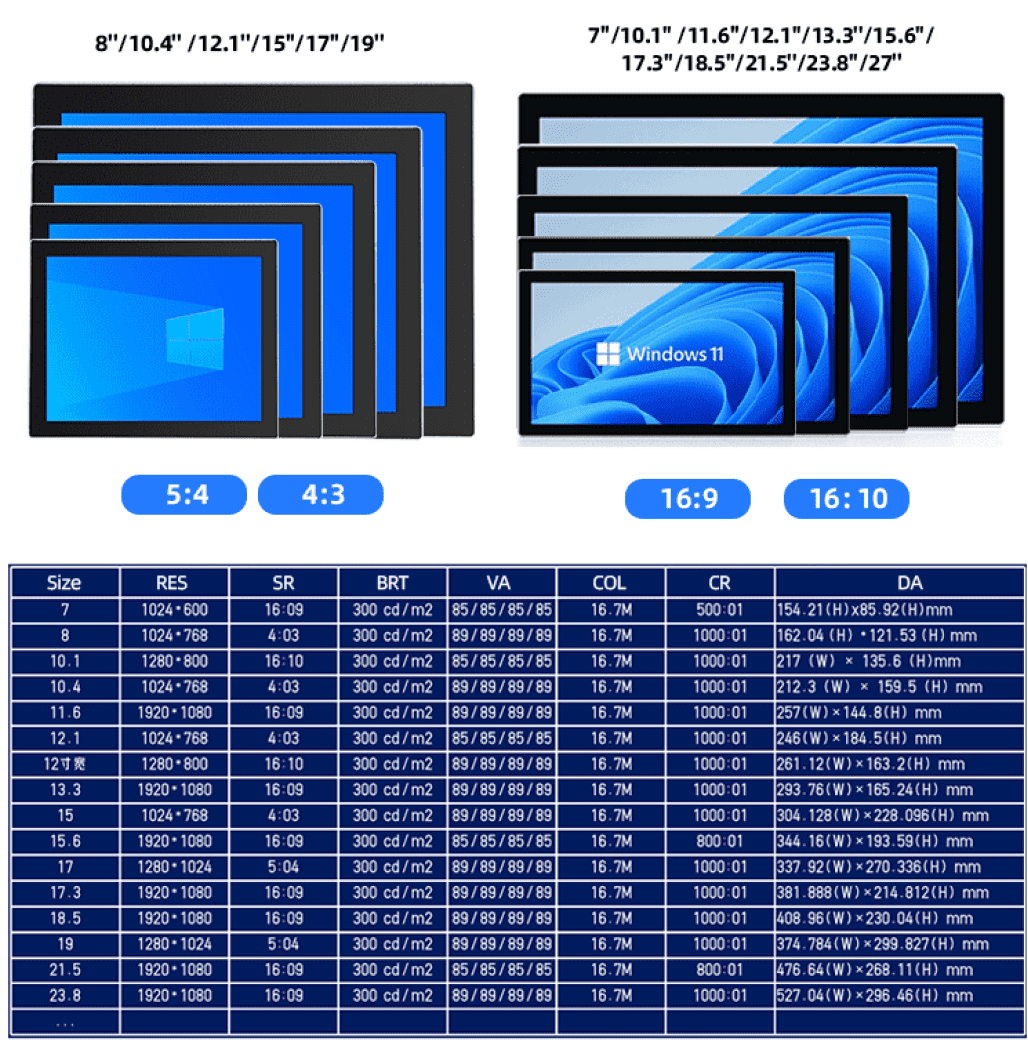

Size: 10.1″ 10.4″ 11.6″ 12.1″ 13.3″ 15″ 15.6″ 17″ 18.5″ 19″ 21.5″ 23.8″ 27″

Resolution Ratio: 1024*768 1024*600 1280*800 1920*1080

Aspect Ratio: 4:3  5:4  16:9  16:10

System: Linux Windows 10 11

Installation mode: wall-mounted installation




Download as pdf whatsapp email

Product Detail

Size

System

Product Tags

Product Presentation：

COMPT wall-mounted industrial panel pc, available in a wide range of size options, are designed with anti-surge/anti-static/anti-vibration/anti-interference.
With its stable performance, it excels in industrial applications. Available in 4:3, 4:5, 16:10, 16:9 and other size ranges: 7" 8" 10.1" 10.4" 11.6" 12.1" 13.3" 15" 15.6" 17" 18.5" 19" 21.5" 23.8" 27". They are designed to meet a wide range of industrial automation applications.

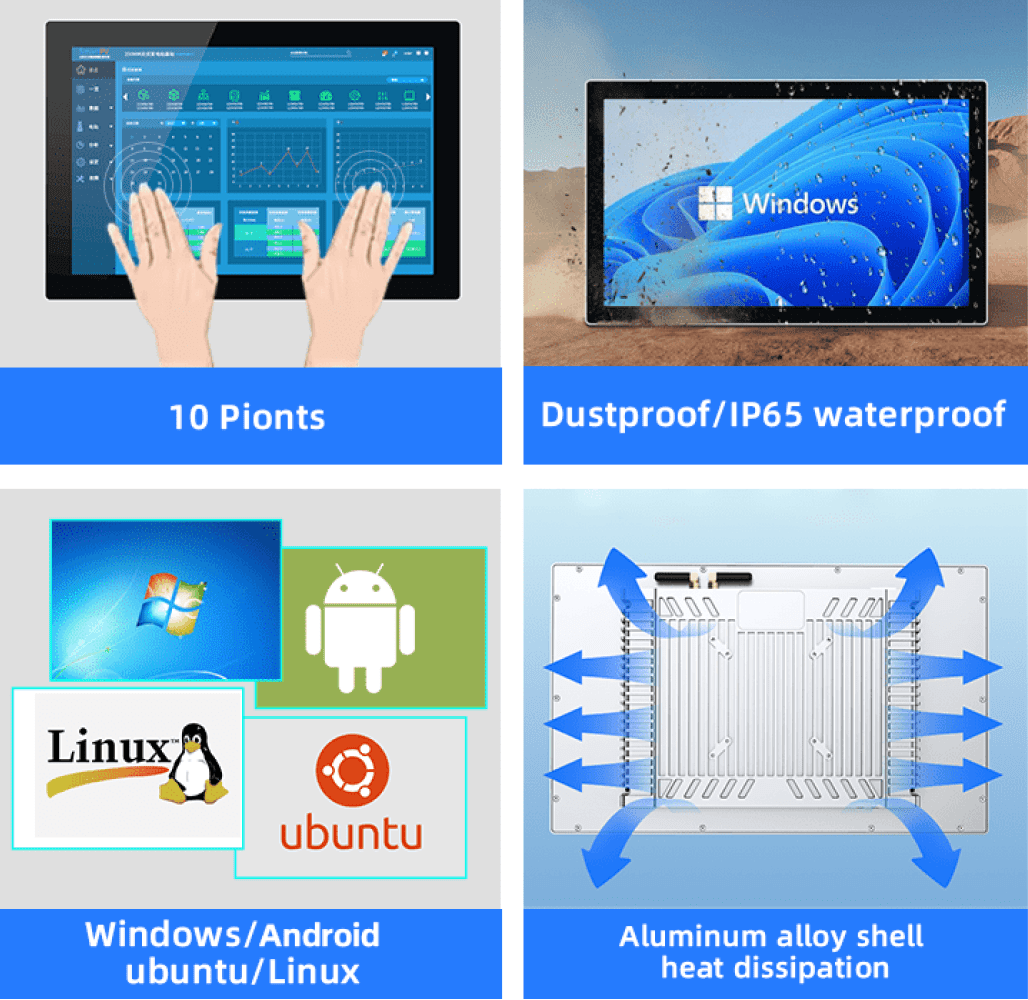

All series products are made of aluminium alloy, with excellent heat dissipation and rust resistance, and the front panel can reach IP65 waterproof and dustproof.

Unpacking Video：

Data Sheet:



Motherboard Parameter Screen parameter
   CPU

 J1800/J1900/J4125/J6412/i3/i5/i7/RK3288

/RK3399/RK3566/RK3568/RK3588...

  Screen type  Industrial grade LCD screen
   RAM  2G/4G/8G/16G..  Viewing Angle  Full viewing Angle/Wide viewing Angle/super wide Angle
   ROM  16G/32G/64G/128G/256G/512G/1T/2T..  Screen brightness 250~1000cd/m2(Customizable)
   System  Windows/Android/Linux/Kylin/Harmony os...  Refresh frequency  60Hz
  Graphic card   integrated graphics card   Response speed <0.5s
   Network  Gigabit network card Impact resistance  10g acceleration, 11ms cycle
   BT  T4.0/BT5.0/BT5.2/BT5.3/BT5.4...  Ratio  3000:1/1000:1
   Impact resistance 10g acceleration, 11ms period  Backlight type LED

Touch parameter     Other parameters
   Touch type  Capacitive touch/resistive touch/Infrared touch/non-touch...  Power input  DC12V/5A external power adapter
  Input Capacitance screen (finger/pen), resistance screen (fingertip/stylus) AC100-240V 50/60Hz
  Surface hardness Capacitive screen (Mohs hardness 7H), resistance screen (Mohs hardness 3H)   Body material Aluminum alloy/sheet metal
  Touch life can withstand ≥ 100 million clicks Fuselage color   Black/silver/grey/white...
       VESA hole  75mm*75mm/100mm*100mm

  Performance parameter
  Normal power   ≤60W  Operating temperature  -10℃~60℃
  Working humidity  10%~90%(non-condensation) Anti-interference level  ESD/EMC electromagnetic anti-interference standard
   Storage temperature  -20℃~70℃  Vibration resistance  5~19Hz/1.0mm amplitude, 19~200Hz/1.0g acceleration

Industrial Panel PCs Solution:

Automated production line:

As the control terminal on the production line, it is responsible for monitoring the operation status of the production equipment, receiving and sending control commands, and so on.

Data Acquisition and Monitoring:

Applied to environmental monitoring, intelligent manufacturing, intelligent transport and other fields, real-time data acquisition, processing and display of various types of data.

Human-computer interaction interface:

As the operation interface of industrial equipment, it provides an intuitive operation interface and rich function options, which is convenient for users to operate and maintain.

https://www.gdcompt.com/solution_catalog/automatic-production-line/

Industrial Automation

The series of products developed and produced by the company are widely used in industrial control field, automated intelligent manufacturing, transportation, warehousing and logistics, banks, hospitals, public buildings and venues, intelligent libraries and other industries and places.

Traffic Terminal Equipment

The series of products developed and produced by the company are widely used in industrial control field, automated intelligent manufacturing, transportation, warehousing and logistics, banks, hospitals, public buildings and venues, intelligent libraries and other industries and places.

https://www.gdcompt.com/solution/traffic-terminal-equipment/
https://www.gdcompt.com/solution_catalog/intelligent-healthcare/

Medical Equipment

The series of products developed and produced by the company are widely used in industrial control field, automated intelligent manufacturing, transportation, warehousing and logistics, banks, hospitals, public buildings and venues, intelligent libraries and other industries and places.

Navigation

The series of products developed and produced by the company are widely used in industrial control field, automated intelligent manufacturing, transportation, warehousing and logistics, banks, hospitals, public buildings and venues, intelligent libraries and other industries and places.

https://www.gdcompt.com/solution/navigation/
https://www.gdcompt.com/solutions/

Aerospace

The series of products developed and produced by the company are widely used in industrial control field, automated intelligent manufacturing, transportation, warehousing and logistics, banks, hospitals, public buildings and venues, intelligent libraries and other industries and places.

Smart Cities

The series of products developed and produced by the company are widely used in industrial control field, automated intelligent manufacturing, transportation, warehousing and logistics, banks, hospitals, public buildings and venues, intelligent libraries and other industries and places.

https://www.gdcompt.com/solution/smart-cities/
https://www.gdcompt.com/solutions/

Electricity

The series of products developed and produced by the company are widely used in industrial control field, automated intelligent manufacturing, transportation, warehousing and logistics, banks, hospitals, public buildings and venues, intelligent libraries and other industries and places.

New Energy

The series of products developed and produced by the company are widely used in industrial control field, automated intelligent manufacturing, transportation, warehousing and logistics, banks, hospitals, public buildings and venues, intelligent libraries and other industries and places.

https://www.gdcompt.com/solutions/
