industrial panel pc 17 inch industrial touch panel pc

Short Description:

Product Name: industrial panel pc

Product Model: CPT-170P-KBC2K01

Product Size: 17 inch

CPU: J1900

resolution : 1280*1024

aspect ratio: 5:4

Luminous: 250 cd/m2

Product size: 418*350*66mm


Product Detail

Interfaces

Product Tags

Products Video

This video shows the product in 360 degrees.

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

Product Information:

COMPT's 17" Industrial Panel PC is a high performance device designed for industrial environments. The appearance of the classic black design, the shell is rugged and durable, adapt to a variety of harsh industrial environments. Adopting capacitive touch technology, high touch sensitivity, more convenient and smooth operation. 1920 * 1080 high definition resolution, equipped with J1900 processor, excellent performance, to meet the needs of a variety of industrial applications. This industrial tablet PC has a variety of unique features and advantages.

Product superiority:

  • Industrial aesthetic design
  • Streamlined appearance design
  • Independent research and development independent mold opening
  • Stable performance and low power consumption
  • Front panel waterproof design
  • Flat panel up to IP65 waterproof standard
  • GB2423 anti-vibration standard
  • Added shock-proof EVA material
  • Recessed cabinet installation
  • 3mm tightly fitted to the embedded cabinet
  • Fully enclosed dust-proof design
  • Greatly improve the service life of the fuselage
  • Aluminum alloy body
  • Aluminum alloy die-casting integrated forming
  • EMC/EMI Anti-interference standard Anti-electromagnetic interference

Firstly, its strict industrial-grade design gives it strong anti-interference ability and stable performance, enabling it to operate stably for a long time in harsh environments. Its dustproof and waterproof design allows it to be used reliably in a variety of industrial scenarios such as factory floors, warehousing and logistics. Its high and low temperature resistance makes it suitable for industrial applications in various temperature environments.

In addition, the customisable design can adjust the interface and functions according to customer needs to meet the needs of various specific industrial scenarios. Industrial tablet PC has a wide range of applications in industrial automation control, intelligent manufacturing, IoT devices and other fields. In the factory floor, it can be used as an industrial control terminal for production monitoring, equipment status display, etc.; in the field of logistics and warehousing, it can be used for information collection, inventory management, etc.; in the field of intelligent manufacturing, it can be networked with equipment to achieve remote monitoring and management. Its stable and reliable performance and flexible customisation features provide powerful technical support for the industrial field.

Parameter information:

Display Screen Size 17 inch
Screen Resolution 1280*1024
Luminous 250 cd/m2
Color Quantitis 16.7M
Contrast 1000:1
Visual Range 89/89/89/89 (Typ.)(CR≥10)
Display Size 337.92(W)×270.336(H) mm
Touch parameter Reaction Type Electric capacity reaction
Lifetime More than 50 million times
Surface Hardness >7H
Effective Touch Strength  45g
Glass Type Chemical reinforced perspex
Luminousness >85%

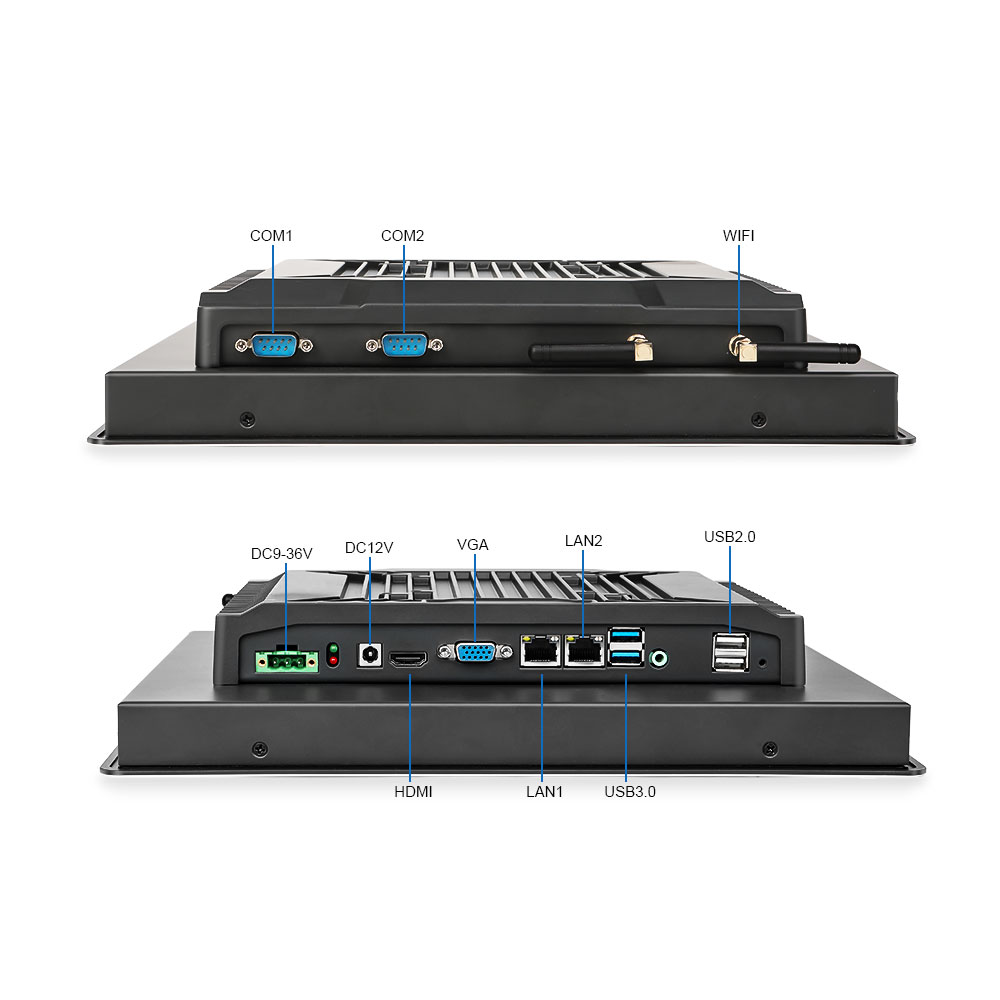

Interfaces DC Port 1 1*DC12V/5525 socket
DC Port 2 1*DC9V-36V/5.08mm phonix 4 pin
USB 2*USB3.0,1*USB 2.0
Serial-Interface RS232 0*COM(upgrade able)
Ethernet 2*RJ45 giga ethernet
VGA 1*VGA
HDMI 1*HDMI OUT
WIFI 1*WIFI antenna
Bluetooth 1*Bluetooch antenna
Audio imput 1* earphone Interfaces
Audio output 1*MIC Interfaces
Parameter Material CNC aluminum oxgenated drawing craft for the front surface frame
Color Black
Power adapter AC 100-240V  50/60Hz CCC certificated、CE certificated
Power dissipation ≈20W
Power output DC12V / 5A
Other parameter Backlight lifetime 50000h
Temperature Working:-10°~60°;storage-20°~70°
Install Embedded snap-fit
Guarantee Whole computer free for maintain in 1 year
Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain

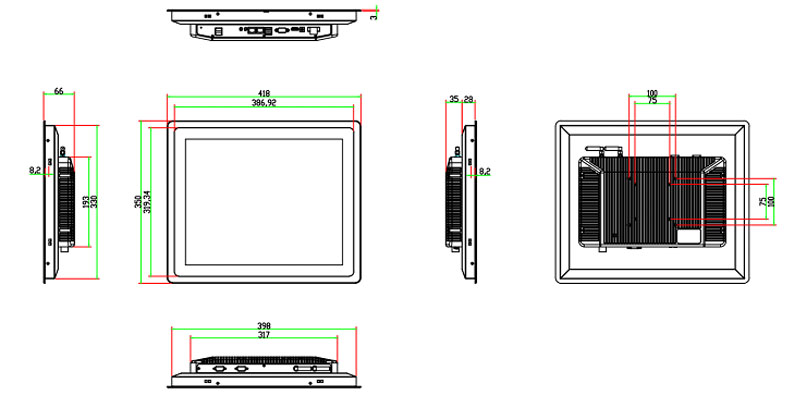

Engineering Dimention Drawing:

https://www.gdcompt.com/17-inch/

In short, with its stable and high-performance features, as well as flexible and diverse application scenarios for customisation, this 17 inch industrial tablet PC will become an ideal choice for the industrial field, providing high-quality solutions for industrial automation upgrading, intelligent manufacturing development and other fields.

Penny

Web Content Writer

4 years of experience

This article is edited by Penny, the website content writer of COMPT, who has 4 years working experience in the industrial PCs industry and often discusses with colleagues in R&D, marketing and production departments about the professional knowledge and application of industrial controllers, and has a deep understanding of the industry and products.

Please feel free to contact me to discuss more about industrial controllers. zhaopei@gdcompt.com
