18.5 inch industrial panel touchscreen Display with Screen Resolution 1920*1080

Short Description:

18.5 inch industrial panel touchscreen Display with Screen Resolution 1920*1080, which provides operators with reliable, precise and safe control and monitoring by being installed in machines, equipment and vehicles. It can be operated through a touch screen or other input devices to achieve multiple functions such as data collection, control adjustment, and information display. It is widely used in industrial automation, intelligent manufacturing, logistics transportation, medical care and other fields.


  • Model: CPT-185MXBC3
  • Screen Size: 18.5 inch
  • Screen Resolution: 1920*1080
  • Luminous: 250 cd/m2
  • Product Detail

    Product Tags

    Industrial Tablet Android Video:

    Industrial panel pc touch screen

    This video shows the product in 360 degrees.
    Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.
    Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

    Features of  industrial panel pc touch screen:

    Industrial panel computer touch screen has many outstanding features. First of all, its shell is generally made of metal materials and industrialized design, which can adapt to the harsh environment of the industrial site and can withstand various vibrations, shocks and various temperatures. Secondly, the main components of the device, such as the motherboard, memory, and hard disk, have also been specially designed to ensure the stability and reliability of the device without any failure during long-term operation. Finally, the industrial panel computer touch screen also supports asynchronous, synchronous I/O, Ethernet and other interfaces, which can be easily connected with other devices to achieve seamless connection and collaborative work.

    In addition, industrial panel computer touch screens also have a wide range of applications. For example, in the smart manufacturing industry, it can help companies improve production efficiency and quality, reduce costs and energy consumption; in the logistics and transportation industry, it can realize the tracking of items, vehicles, and logistics information management; It can help doctors and nurses better manage and maintain medical equipment, and improve the quality and efficiency of medical services. It can be seen that the industrial panel computer touch screen plays a vital role in modern industrial production and daily life, and its application prospects are still broad.

    industrial panel pc touch screen
    industrial panel pc touch screen

    Hardware Configuration information:

    Display Screen Size 18.5 inch
    Screen Resolution 1920*1080
    Luminous 250 cd/m2
    Color Quantitis 16.7M
    Contrast 1000:1
    Visual Range 89/89/89/89 (Typ.)(CR≥10)
    Display Size 408.96(W)×230.04(H) mm
    Touch parameter Reaction Type Electric capacity reaction
    Lifetime More than 50 miliion times
    Surface Hardness >7H
    Effective Touch Strength 45g
    Glass Type More than 50 miliion times
    Luminousness >85%
    Parameter Power suplier mode 12V/5A external power adapter / industral interface
    Power specs 100-240V,50-60HZ
    Imput voltage 9-36V/12V
    Anti-static Contact discharge 4KV-air discharge 8KV(customization available≥16KV)
    Rate of work ≤18W
    Vibration proof GB242 standard
    Anti-interference EMC|EMI anti-electromagnetic interference
    Protection Front panel IP65 dustproof waterproof
    Color of shell Black
    Install mode Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type
    Environment temperature <80%,Condesation forbidden
    Working temperature Working:-10 ~ 60 °C;Storage -20 ~ 70 °C
    Language menu Chinese、English、Gemman、French、Korean、Spanish、Italia、Russia
    Guarantee Whole computer free for maintain in 1 year
    Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain

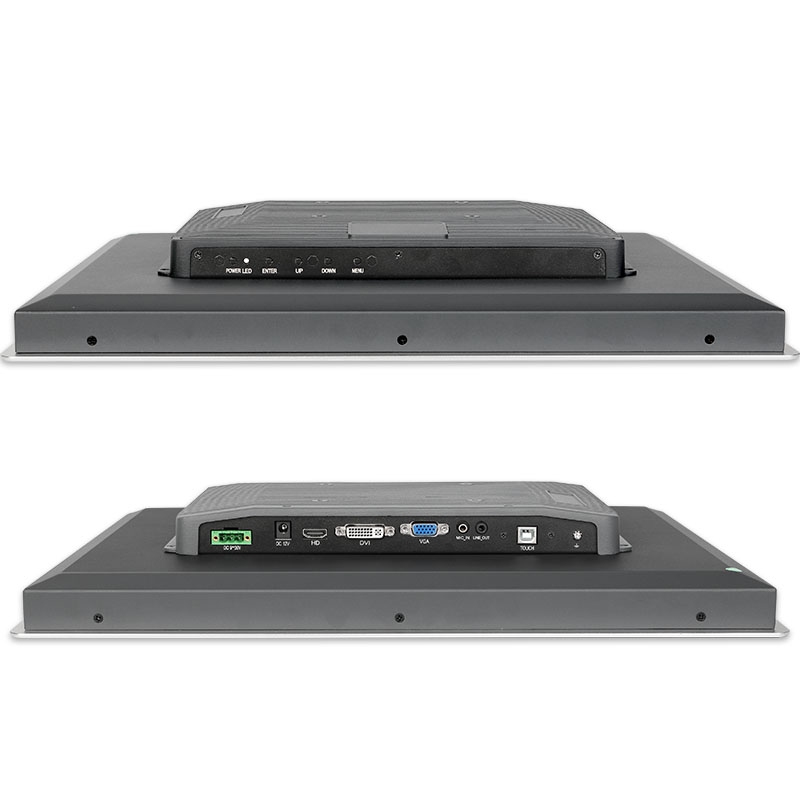

    I/O interface parameter DC port 1 1*DC12V/5525 socket
    DC port 2 1*DC9V-36V/5.08mm phoneix 3 pin
    Touch function 1*USB-B external interface
    VGA 1*VGA IN
    HDMI 1*HDMI IN
    DVI 1*DVI IN
    PC AUDIO 1*PC AUDIO
    EARPHONE 1*earphone
    Packing list N.W. 5KG
    Product size 488*308*66mm
    Range for embedded trepanning 470*290mm
    Carton size 573*393*125mm
    Power adapter Optional
    Power line Optional
    Parts for install Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain

    Industrial panel pc touch screen solution:

    Industrial computer in AGV Forklift solutions
    Industrial computers in Intelligent Transportation solutions
    Industrial Android All-in-One Solution in Smart Home Robotics
    Industrial android panel cp in cnc machine Solutionr
    industrial computer Heavy Industry Equipment Solution
    Industrial computers in intelligent security solutions
    https://www.gdcompt.com/solution/smart-agriculture-solution/
    Hospital self-service inquiry and payment equipment

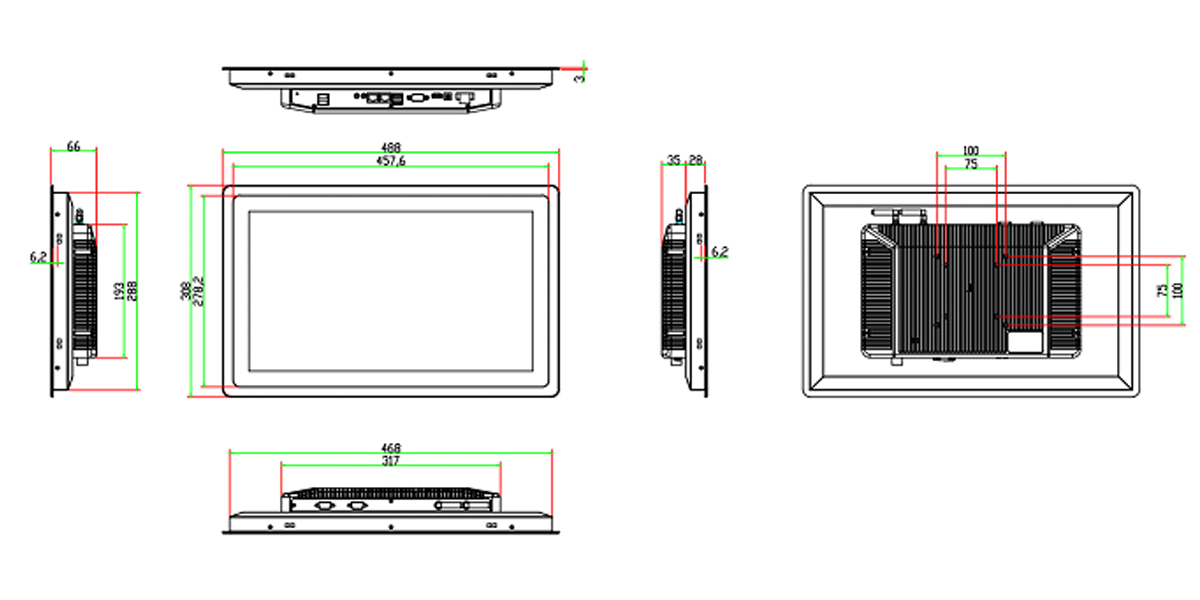

    Industrial panel pc touch screen Engineering dimention drawing:

    industrial panel pc touch screen
