Industrial Mini PCs
An industrial mini PC by COMPT is a small form factor PC engineered around NUC, Mini-ITX and proprietary small form factor motherboards. Our fanless mini PC hardware features cutting edge industrial enclosure designs and innovative passive cooling technology. Engineered to fit into tight spaces, an industrial mini PC is reliable and tough. We offer Intel and AMD processor options and plentiful I/O to meet your requirements.


Product Detail

Product Tags

Products Video

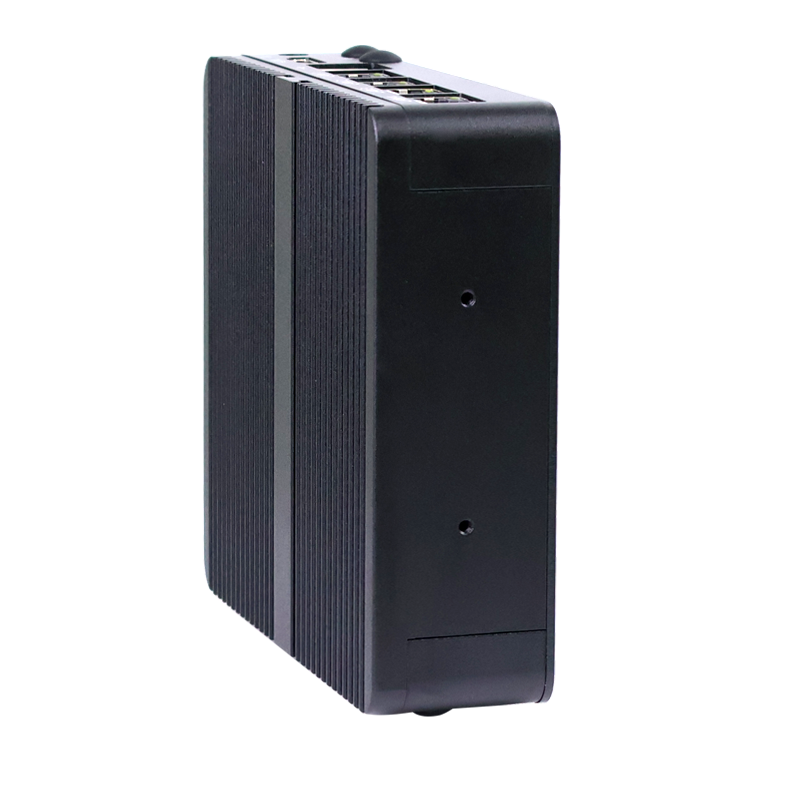

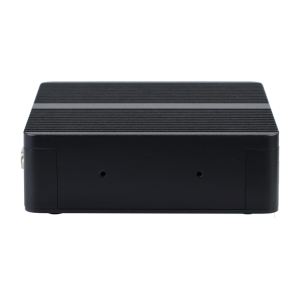

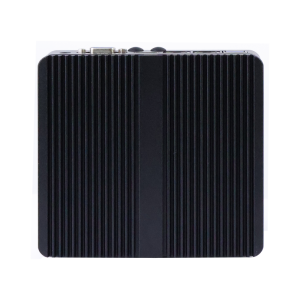

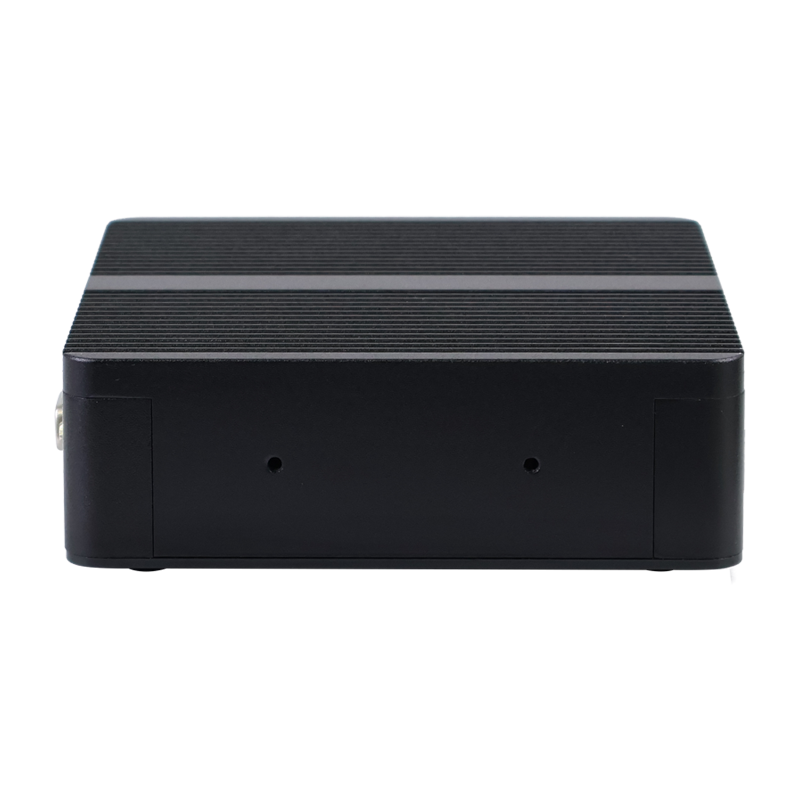

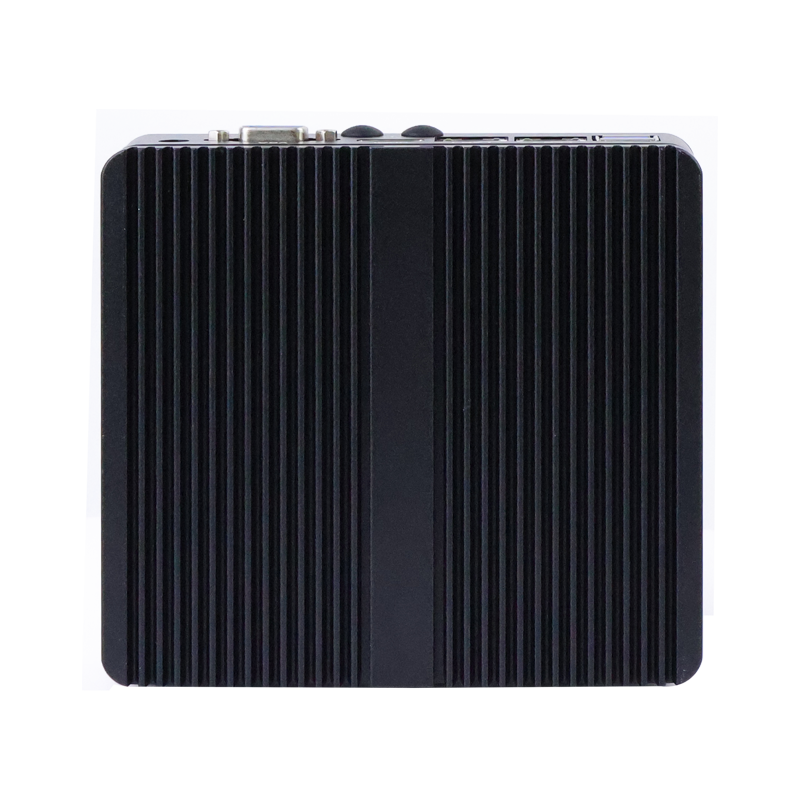

This video shows the product in 360 degrees.

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

Industrial Mini PCs Solutions:

IPC computer is a kind of computer specially applied to various industrial automation control fields, which belongs to embedded real-time control system. It has the characteristics of miniaturization, low power consumption, high temperature and shock resistance, and high stability.
The application scenario of industrial control machine computer is very wide, such as industrial automation, robot control, intelligent medical, education industry, military control and other fields. In industrial automation, IPC computers can be used in industrial robots, power control systems, intelligent manufacturing and other projects; in intelligent medical care, they can be used in medical image processing, medical equipment control and other projects; in the military, they can be used in security communications, radar control and so on.
In general, the industrial computer computer is a very wide application, in the industry has an important position of the computer. Its characteristics are high stability, miniaturization, low power consumption, etc., the applicable scenarios are very diverse. In the future, the scope of application of industrial control machine computer will continue to expand, bringing new opportunities and challenges to all walks of life.

  • Fully enclosed fanless design
  • Support for multiple cpus
  • Dual network port/dual serial port /6USB
  • Supports VGA+HDMI dual display ports
  • Inside Mini-PCIe ,WIFI/4G module expandable,very useful

COMPT industrial control mainframe function description.
1, fanless cooling: industrial control host fully enclosed fanless design, in line with the requirements of silent industrial scenarios

2, rich interface: industrial control host integrated with a Mini PCIEQ expansion slot, external W-Fi module, easy to achieve wireless network connection, get rid of network cable bondage.

3, anti-corrosion, dust and impact resistance: industrial control host shell using industrial aluminum structure, wear-resistant anti-corrosion. Stop oxidation
Wide temperature design and stable operation: industrial control host with all-weather all-year-round stable operation capability, tailored for industry. -20°C-60C wide temperature working range, 60C high temperature operation 4 normal and stable, -20°C low temperature is still fearless normal boot.
4、No fan coolingLow poweroperation
Fully enclosed fanless design, in line with the requirements of silent industrial scenes.
5, interface-rich industrial and expansion , integrated with a MiniPCIE expansion slot, external Wi-Fi module can easily achieve wireless network connection, get rid of the network cable bondage.
6、Wide temperature designstable operation
With year-round all-weather uninterrupted stable operation capacity tailored for industry. -20 ° C ~ 60 ° C wide temperature working range, 60 ° C high temperature operation is normal and stable 20 C low temperature is still fearless normal boot.

Product superiority:

Parameter information:

univers parameter
Model CPTC4H/CPTC4J/CPTC4K
Size/material 136*127*40mm
characteristic Completely enclosed without fan
material All aluminum body/black
configuration parameter
CPU Intel ® Celeron ® processor N2840

(Dual-core dual-thread/main frequency 2.16GHz/ Rui frequency 2.58GHz)

Intel ® Celeron ® Processor J1900

(Four core four threads/main frequency 2.0GHz/ Rui frequency 2.42GHz)

Intel ® Celeron ® Processor J4125

(Four core four threads/main frequency 2.0GHz/ Rui frequency 2.70GHz)

Memory 2G/4G/8G
Storage 32G/64G/128G/256G/512G solid state disk

*An additional 2.5-inch mechanical hard drive is supported

Internet Realtek RTL8111F Gigabit network adapter, supports network wake up /PXE
System Win7/Win10/Linux
Interface LAN*2/interface*2/USB*6/HDMI*1/VGA*1/audio interface*1

*2* interface(Optional 2*RS485)

WiFi(Optional) Optional WIFI
4G(Optional) Optional 4G
Power input Standard 12V DC interface, outer diameter 5.5mm, inner diameter 2.5mm
Power adapter AC-DC 12V power adapter is standard
enviromental parameter
Worker temperature -20 ~ 70℃
Storage temperature -30 ~ 80℃
Working humidity 5% ~ 95%humidity,no condensation
Other parameter
Dissipation model Fanless disspation design,passive dissipation
Open model Switch active,support power activation
Resetting function Support hardware resetting function(256级,0~255 second)

Install model

Embedded、desk bracket

Packing list

1*whole machine / 1*12V 4A power adapter

Engineering dimention drawing:

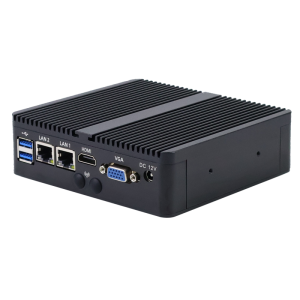

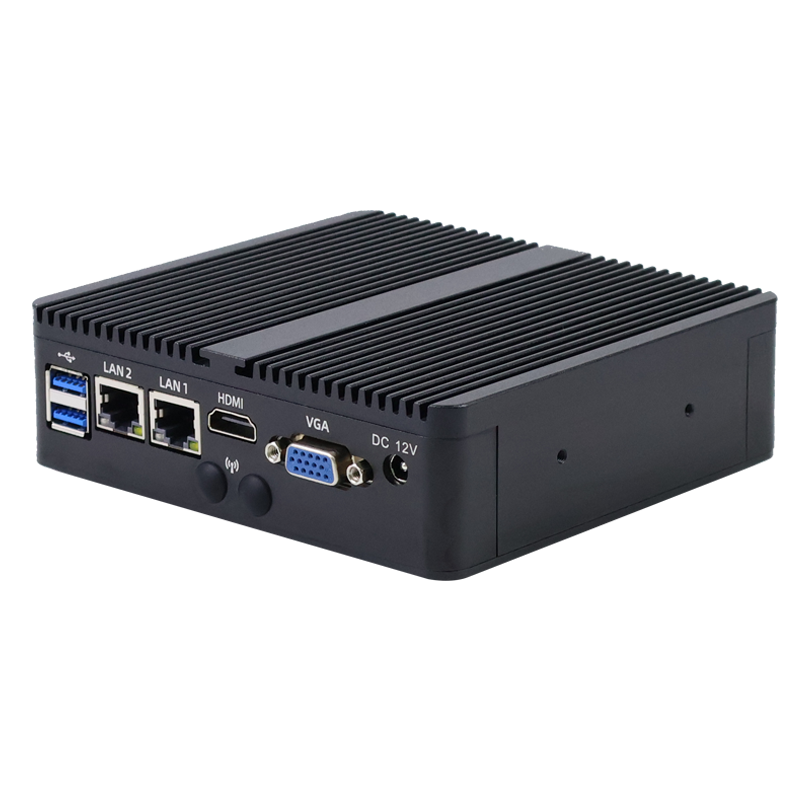

Product Interface:
