Industrial HMI Panel Pc High Gloss Sunlight Readable

Short Description:

■ COMPT self-developed production and sales of industrial HMI panel PC is a high-performance device designed for industrial control and monitoring. It is made of industrial-grade components and materials, featuring ruggedness, stability and reliability, and is able to adapt to harsh industrial environments.

■ Our strong R&D team comprises 20 engineering staff, including technical drawing, hardware support, and construction design, who come from top-notch companies in their respective industries.

■ 7″ to 32″ displays, up to 1600 nits

■ Projected capacitive, resistive, or no-touch

■ IP65 front panel protection

■ Intel Atom, Pentium, Core series options

■ PCI / PCIe expansion

■ -10°C to 60°C operating temperature

Download as pdf whatsapp email

Product Detail

Product Tags

Products Video

This video shows the product in 360 degrees.

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

Product Information：

1.Product Features
Designed to meet industrial standards, industrial hmi panel pc can play an important role in factory automation, equipment monitoring, data acquisition, etc. equipped with a powerful processor and high-capacity memory, industrial hmi panel pc runs smoothly and can support multitasking and high-performance applications.

https://www.gdcompt.com/industrial-hmi-panel-pc-high-gloss-sunlight-readable-product/

2. Support customised interfaces

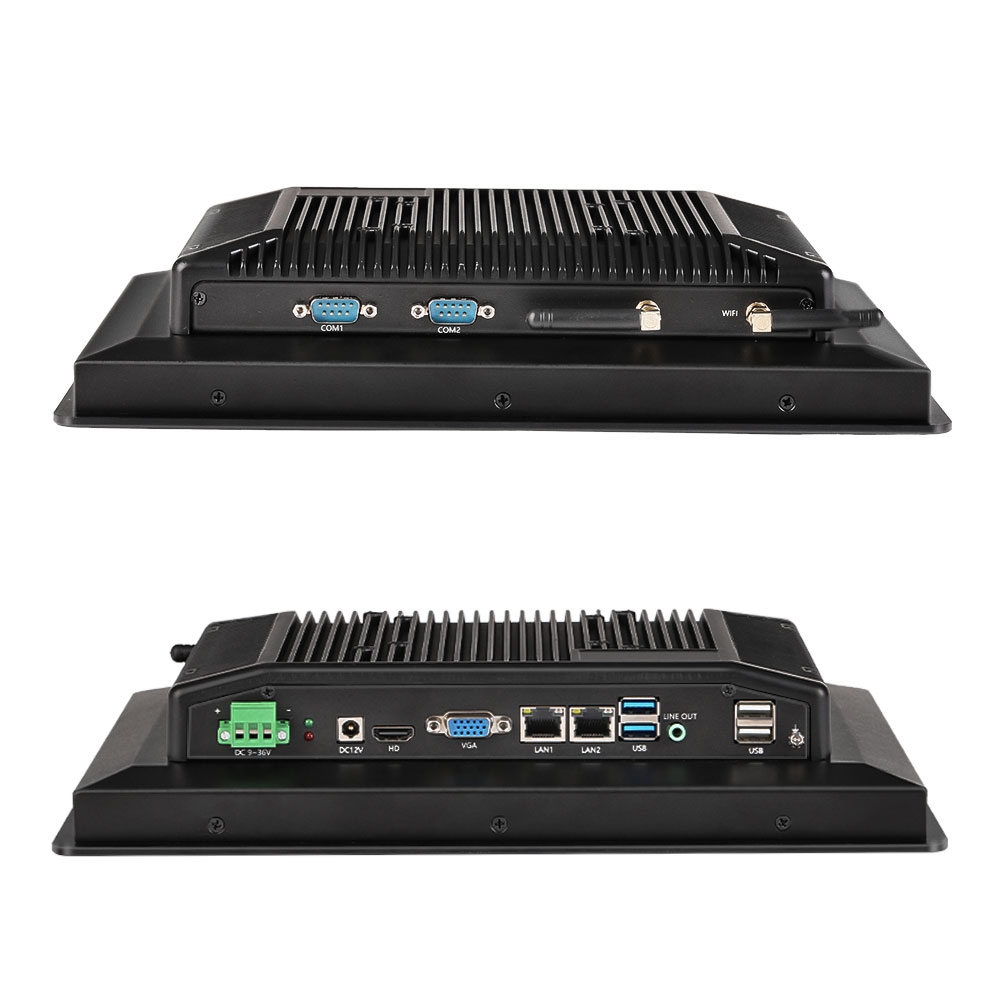

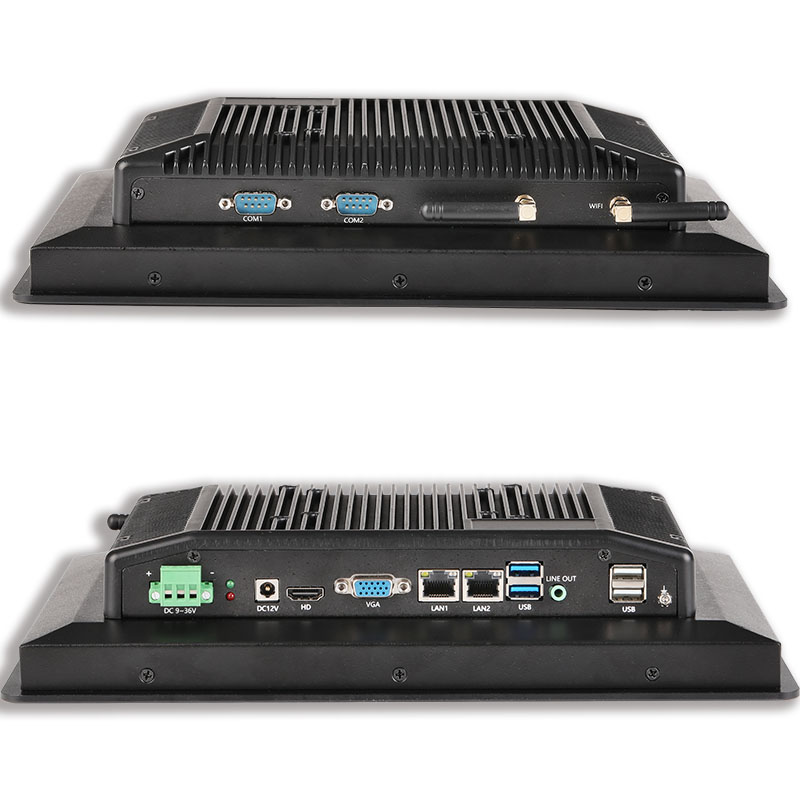

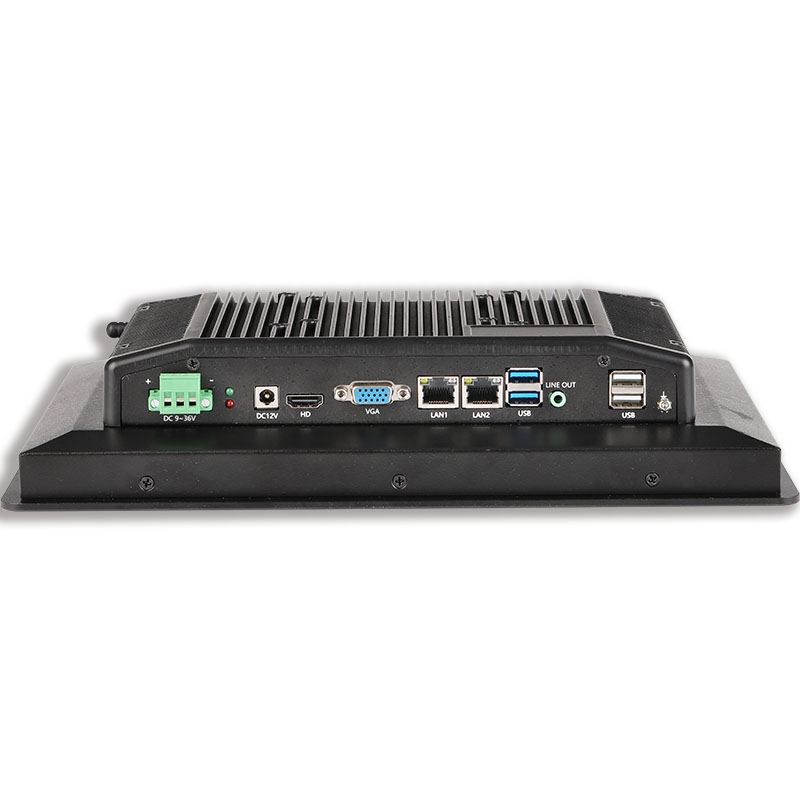

The industrial hmi panel pc also has a wealth of interfaces and expansion features, including multiple USB ports, Ethernet ports, serial ports, VGA, HDMI, etc., which can be quickly connected and integrated with a variety of industrial equipment and external devices to meet the needs of diverse industrial applications. The high-resolution LCD display and touch screen technology make the operation interface clear, simple and intuitive. Users can achieve fast and flexible operation through the touch screen to improve work efficiency.

3.Support multiple installation methods
The industrial hmi panel pc also supports a variety of installation methods, including wall-mounted, desktop, embedded, etc., which can meet the installation needs of different scenarios. The industrial HMI panel PC has good anti-interference and stability, and can run stably for a long time to ensure the continuity and reliability of industrial production. It also has remote monitoring and management functions, can achieve remote control and data transmission, to help users understand the real-time status of equipment and production, improve production management efficiency.

4. industrial hmi panel pc advantages
As a key device for industrial control and monitoring, industrial HMI panel PC has powerful performance and stable and reliable characteristics, which is applicable to various industrial scenarios and provides important support and guarantee for industrial production. Its advanced technology and multifunctional characteristics make it one of the indispensable devices in the field of industrial intelligence.

Product Solution：

Industrial HMI Tablet PCs are widely used in industrial fields such as factory automation, intelligent manufacturing, equipment monitoring, data acquisition, energy management and so on. Specifically, they can play a role in the following scenarios:
1. Automated production line control: used to monitor and control various equipments on the production line to achieve automated production.
2. Process control system: Used to monitor and control various parameters in the industrial production process to ensure production quality and efficiency.
3. Equipment Monitoring and Maintenance: Used to monitor the operating status, temperature, vibration and other parameters of the equipment, to detect problems in advance and carry out preventive maintenance.
4. Energy management system: for monitoring and controlling energy consumption, optimising the production process and reducing energy consumption.
5. Data collection and analysis: Used to collect real-time data and conduct analysis to help enterprises make decisions and optimise the production process.
6. Remote monitoring and management: support for remote monitoring and control, so that users can monitor equipment and production anywhere, anytime, improve management efficiency.
In short, industrial HMI tablet PCs play an important role in the process of industrial automation and informatisation, providing technical support and guarantee for industrial production.

Parameter Information:

Name	X86 All-in-One Computer	industrial hmi panel pc
Display	Screen Size	10.1 inch
	Screen Resolution	1280*800
	Luminous	350 cd/m2
	Color Quantitis	16.7M
	Contrast	1000:1
	Visual Range	85/85/85/85(Typ.)(CR≥10)
	Display Size	217 (W) × 135.6 (H)mm
Touch parameter	Reaction Type	Electric capacity reaction
	Lifetime	More than 50 miliion times
	Surface Hardness	＞7H
	Effective Touch Strength	45g
	Glass Type	Chemical reinforced perspex
	Luminousness	＞85%
Hardware	MAINBOARD MODEL	J4125
	CPU	Integrated Intel®Celeron J4125 2.0GHz quad-core
	GPU	Integrated Intel®UHD Graphics 600 core card
	Memory	4G（maxmum 16GB）
	Harddisk	64G solid state disk（128G replacement available）
	Operate system	Default Windows 10（Windows 11/Linux/Ubuntu replacement available）
	Audio	ALC888/ALC662 6 channels Hi-Fi Audio controller/Supporting MIC-in/Line-out
	Network	Integrated giga network card
	Wifi	Internal wifi antenna,supporting wireless connect
Interfaces	DC Port 1	1*DC12V/5525 socket
	DC Port 2	1*DC9V-36V/5.08mm phonix 4 pin
	USB	2USB3.0，1USB 2.0
	Serial-Interface RS232	0*COM（upgrade able）
	Ethernet	2*RJ45 giga ethernet
	VGA	1*VGA
	HDMI	1*HDMI OUT
	WIFI	1*WIFI antenna
	Bluetooth	1*Bluetooch antenna
	Audio imput & output	1*earphone & MIC two-in-one
Parameter	Material	CNC aluminum oxgenated drawing craft for the front surface frame
	Color	Black
	Power adapter	AC 100-240V 50/60Hz CCC certificated、CE certificated
	Power dissipation	≈20W
	Power output	DC12V / 5A
Other parameter	Backlight lifetime	50000h
	Temperature	Working：-10°~60°；storage-20°~70°
	Install	Embedded snap-fit
	Guarantee	Whole computer free for maintain in 1 year
	Maintenance terms	Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain

Engineering Dimention Drawing:
