19 inch industrial displayer with ip65 Screen Resolution 1280*1024

Short Description:

COMPT industrial displayer are an essential part of modern manufacturing and automation processes. They offer a wide range of advantages over traditional displays, especially in terms of durability, reliability and versatility. One of the main advantages of industrial displays is their ability to meet stringent requirements such as protection class, vandal resistance requirements and high resolution requirements.


  • Model: CPT-190MXBC3
  • Screen Size: 19 inch
  • Screen Resolution: 1280*1024
  • Luminous: 250 cd/m2
  • Product Detail

    Product Tags

    Industrial Tablet Android Video:

    COMPT industrial displayer with an IP 65 rating resist dust, water and grease, while vandal-resistant monitors can withstand physical shock and keep workers safe. High-resolution displays provide clearer, more detailed images, improving management and monitoring of production processes.
    Compt industrial displays can offer a range of advantages depending on their specific design and application. For example, wireless industrial displayer provide real-time data transmission and monitoring, improving the safety and efficiency of industrial processes.

    industrial displayer information:

    COMPT industrial displayer with an IP 65 rating resist dust, water and grease, while vandal-resistant monitors can withstand physical shock and keep workers safe. High-resolution displays provide clearer, more detailed images, improving management and monitoring of production processes.
    Compt industrial displays can offer a range of advantages depending on their specific design and application. For example, wireless industrial displayer provide real-time data transmission and monitoring, improving the safety and efficiency of industrial processes. Outdoor readable displays are also available and are waterproof, anti-glare and high brightness, making them suitable for use in direct sunlight or other bright conditions. Industrial touch screens are another popular option, featuring a sensitive touch panel for accurate and flexible control. Capacitive touchscreens, in particular, can provide precise, fast and responsive control, making them ideal for a range of industrial applications.

    industrial displayer
    industrial displayer

    Hardware Configuration information:

    Display Screen Size 19 inch
    Screen Resolution 1280*1024
    Luminous 250 cd/m2
    Color Quantitis 16.7M
    Contrast 1000:1
    Visual Range 89/89/89/89 (Typ.)(CR≥10)
    Display Size 374.784(W)×299.827(H) mm
    Touch parameter Reaction Type Electric capacity reaction
    Lifetime More than 50 miliion times
    Surface Hardness >7H
    Effective Touch Strength 45g
    Glass Type More than 50 miliion times
    Luminousness >85%
    Parameter Power suplier mode 12V/5A external power adapter / industral interface
    Power specs 100-240V,50-60HZ
    Imput voltage 9-36V/12V
    Anti-static Contact discharge 4KV-air discharge 8KV(customization available≥16KV)
    Rate of work ≤18W
    Vibration proof GB242 standard
    Anti-interference EMC|EMI anti-electromagnetic interference
    Protection Front panel IP65 dustproof waterproof
    Color of shell Black
    Install mode Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type
    Environment temperature <80%,Condesation forbidden
    Working temperature Working:-10 ~ 60 °C;Storage -20 ~ 70 °C
    Language menu Chinese、English、Gemman、French、Korean、Spanish、Italia、Russia
    Guarantee Whole computer free for maintain in 1 year
    Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain

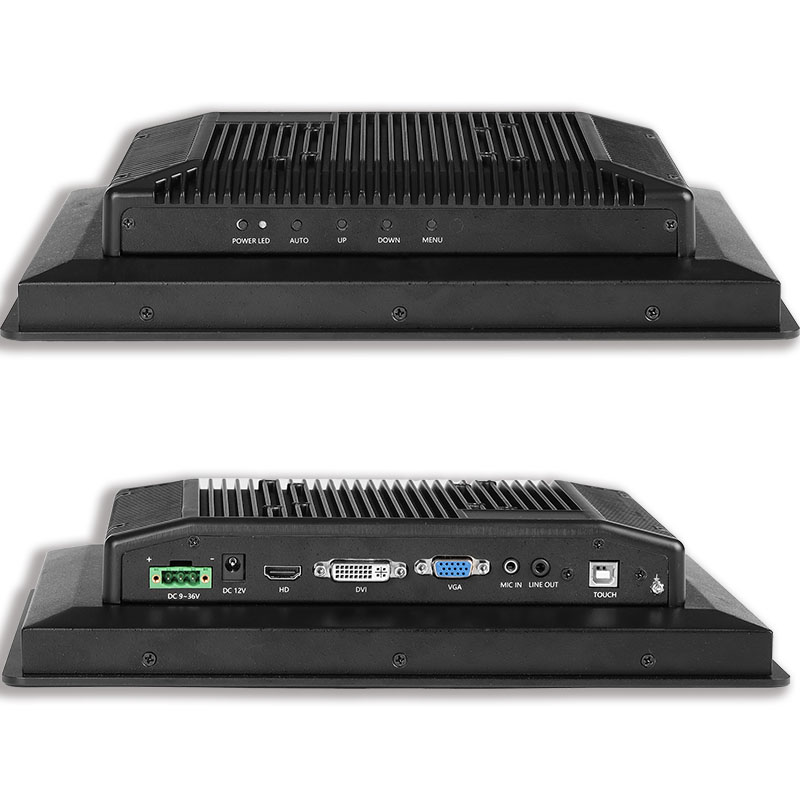

    I/O interface parameter DC port 1 1*DC12V/5525 socket
    DC port 2 1*DC9V-36V/5.08mm phoneix 3 pin
    Touch function 1*USB-B external interface
    VGA 1*VGA IN
    HDMI 1*HDMI IN
    DVI 1*DVI IN
    PC AUDIO 1*PC AUDIO
    EARPHONE 1*earphone
    Packing list N.W. 5KG
    Product size 457*381*64mm
    Range for embedded trepanning 439*363mm
    Carton size 542*466*125mm
    Power adapter Optional
    Power line Optional
    Parts for install Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain



    Industrial displayer solution:

    Industrial computer in AGV Forklift solutions
    Industrial computers in Intelligent Transportation solutions
    Industrial Android All-in-One Solution in Smart Home Robotics
    Industrial android panel cp in cnc machine Solutionr
    industrial computer Heavy Industry Equipment Solution
    Industrial computers in intelligent security solutions
    https://www.gdcompt.com/solution/smart-agriculture-solution/
    Hospital self-service inquiry and payment equipment

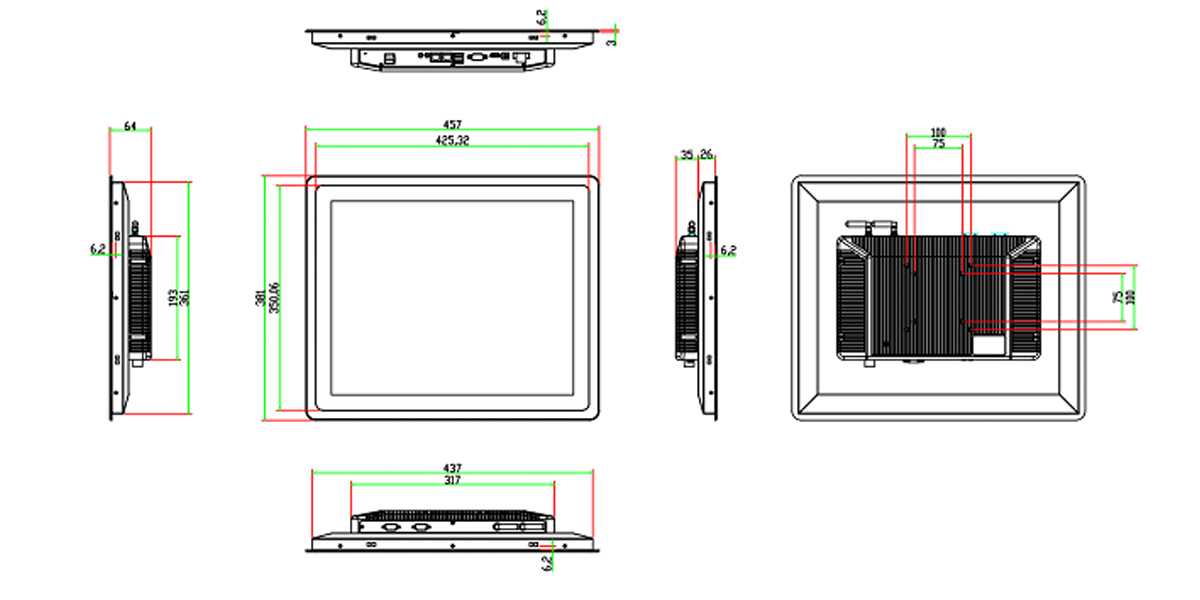

    Industrial displayer Engineering dimention drawing:

    industrial displayer
