Touchscreen Android PC is the representative of the next generation mobile industrial PC. From the concept product of tablet computer proposed by Microsoft,the industrial touch computer is a PC that does not need a flip, has no keyboard, is small enough to fit into a woman's handbag, but has complete functions.
Compared with the notebook computer, in addition to all its functions, it also supports handwriting input or voice input,and has better mobility and portability.
The industrial touch computer runs WindowsXP operating system with a detachable keyboard and can run applications under Windows system.Panel computers can also be used as a supplement to desktop PCs, adding handwriting and voice input functions to the latter. In short, people will use PC more frequently in a new way.
1. Simple installation and maintenance
2. Most of the front panels are made of aluminum magnesium alloy by die casting, which can reach IP65 protection level, durable and durable
3. The industrial tablet computer integrates the host computer, LCD display and touch screen. It has the characteristics of durability and high-performance computing ability, which can effectively improve the productivity and production quality

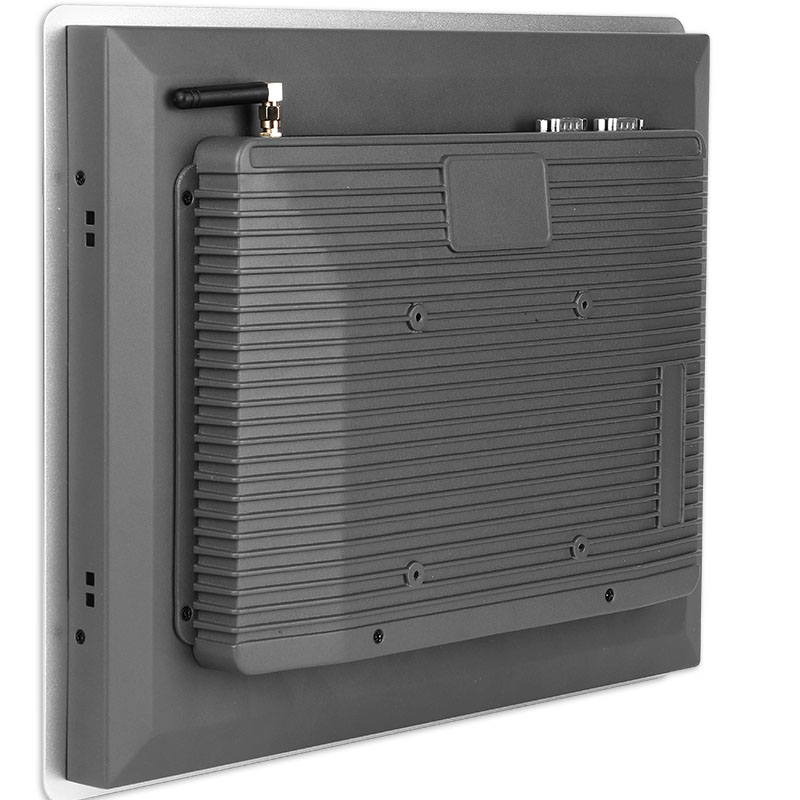

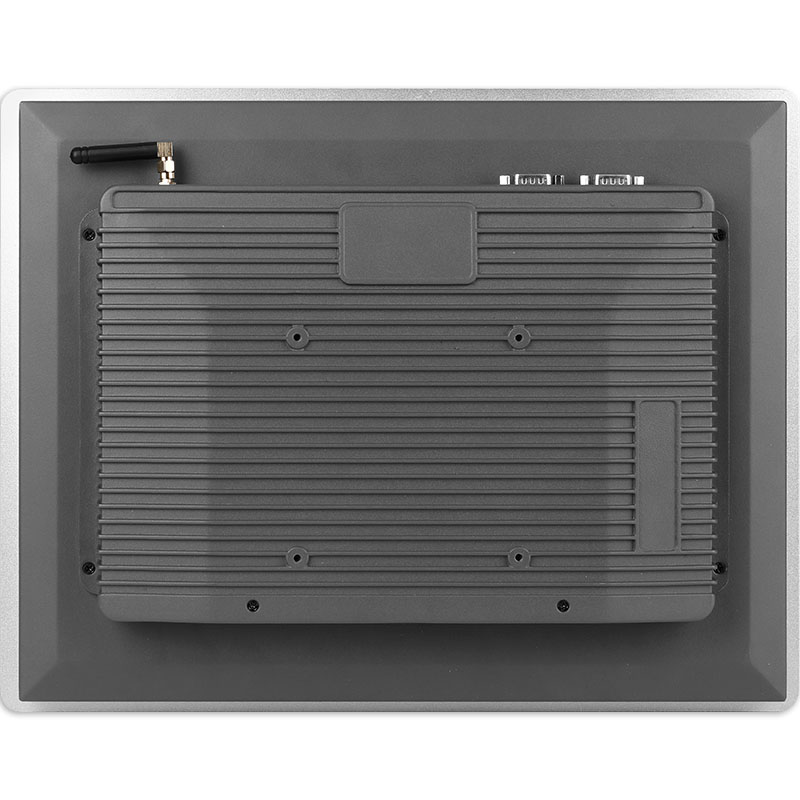

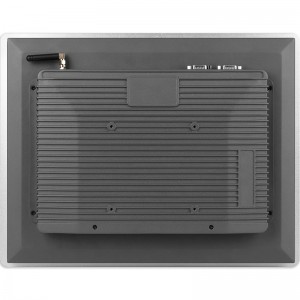

4. The industrial tablet computer adopts fan free design and uses a large area of threaded aluminum block for heat dissipation, with low power consumption and low noise.
5. Industrial tablet computers are mostly industry-specific specifications, not standardized products, so they are not available. At the same time, the product must be logged in/registered to meet the requirements of the customer on the working environment, such as wide temperature and wide pressure, high and low temperature resistance, waterproof and dustproof, anti electromagnetic interference, earthquake resistance, etc
Display | Screen Size | 15 inch |
Screen Resolution | 1024*768 | |
Luminous | 350 cd/m2 | |
Color Quantitis | 16.7M | |
Contrast | 1000:1 | |
Visual Range | 89/89/89/89 (Typ.)(CR≥10) | |
Display Size | 304.128(W)×228.096(H) mm | |
Touch Parameter | Reaction Type | Electric capacity reaction |
Lifetime | More than 50 miliion times | |
Surface Hardness | >7H | |
Effective Touch Strength | 45g | |
Glass Type | Chemical reinforced perspex | |
Luminousness | >85% | |
Hardware | MAINBOARD MODEL | RK3288 |
CPU | RK3288 Cortex-A17 quad-core 1.8GHz | |
GPU | Mali-T764 quad-core | |
Memory | 2G | |
Harddisk | 16G | |
Operate system | Android 7.1 | |
3G Module | replacement available | |
4G Module | replacement available | |
WIFI | 2.4G | |
Bluetooth | BT4.0 | |
GPS | replacement available | |
MIC | replacement available | |
RTC | Supporting | |
Awaken through network | Supporting | |
Startup & Shutdown | Supporting | |
System upgrade | Supporting hardware TF/USB upgrade | |

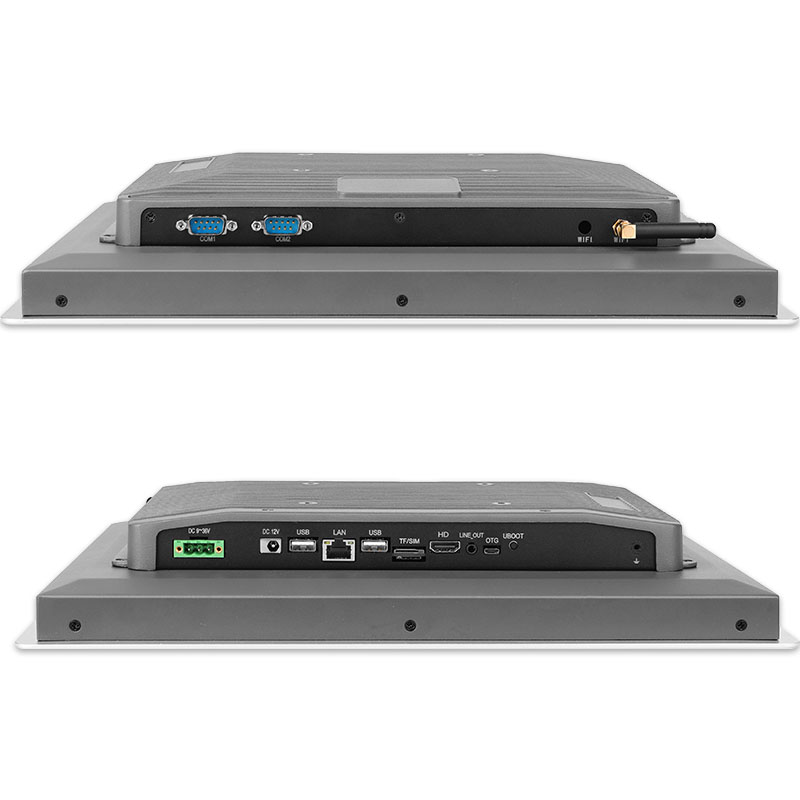

Interfaces | MAINBOARD MODEL | RK3288 |
DC Port 1 | 1*DC12V/5525 socket | |
DC Port 2 | 1*DC9V-36V / 5.08mm phonix 4 pin | |
HDMI | 1*HDMI | |
USB-OTG | 1*Mirco | |
USB-HOST | 2*USB2.0 | |
RJ45 Ethernet | 1*10M/100M Self-adaptive ethernet | |
SD/TF | 1*TF datas storage,maximum 128G | |
Earphone jack | 1*3.5mm Standard | |
Serial-Interface RS232 | 1*COM | |
Serial-Interface RS422 | Replacement available | |
Serial-Interface RS485 | Replacement available | |
SIM Card | SIM card standard interfaces,customization available | |
Parameter | Material | Sand blasting oxygenated aluminum craft for the front surface frame |
Color | Black | |
Power adapter | AC 100-240V 50/60Hz CCC certificated、CE certificated | |
Power dissipation | ≤15W | |
Power output | DC12V / 5A | |
Other Parameter | Backlight lifetime | 50000h |
Temperature | Working:-10°~60°;storage-20°~70° | |
Install mode | Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type | |
Guarantee | Whole computer free for maintain in 1 year | |
Maintenance terms | Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain | |
Packing List | N.W. | 4KG |

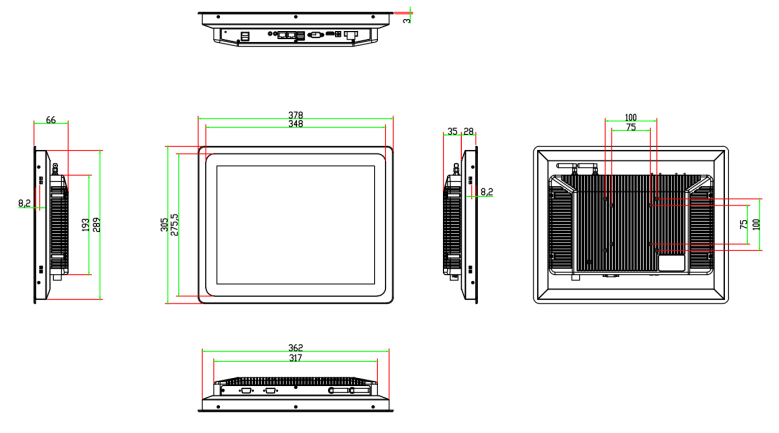

Product size(not in cluding brackt) | 378*305*66mm | |
Range for embedded trepanning | 364*291mm | |
Carton size | 463*390*125mm | |
Power adapter | Available for purchase | |
Power line | Available for purchase | |
Parts for install | Embedded snap-fit * 4,PM4x30 screw * 4 |
