Fully enclosed 12 inch industrial computer all in one

Short Description:

Industrial computer all-in-one aluminum alloy structure, no fan fully closed design scheme, the whole machine low power consumption, compact appearance, is specially designed for a variety of environment and industrial products, can ensure a long time stable work in harsh environment.

Model:CPT-120P1BC2
Screen Size：12 inch
Screen Resolution:1024*768
Product size:317*252*62mm

Download as pdf whatsapp email

Product Detail

PRODUCT INTRODUCTION

Product Tags

Products Video

This video shows the product in 360 degrees.

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

Product description

In the whole machine, we pay more attention to its reliability, environmental adaptability, real-time performance, scalability, EMC compatibility and other performance. The configuration uses Intel Celeron J4125 quad-core 2.0 GHz (maximum Rui frequency 2.4G) CPU to carry windows10 system. With a variety of high-definition display interfaces, meet the needs of a variety of application interfaces, provide a variety of work efficiency, widely used in industrial control, military, communications, power, network and other high-end automation fields.

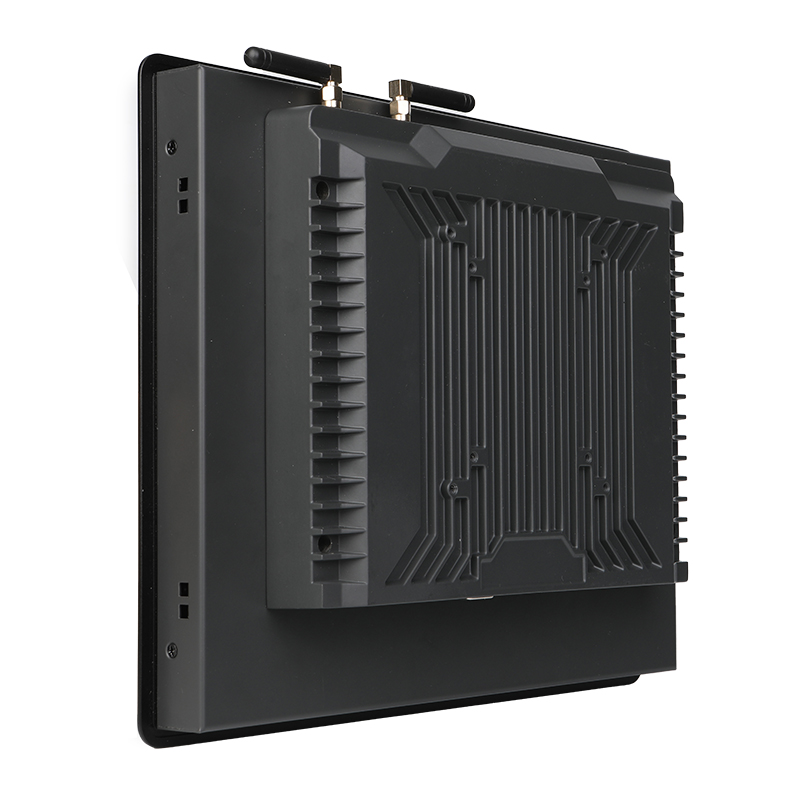

Fully enclosed industrial computer all in one3

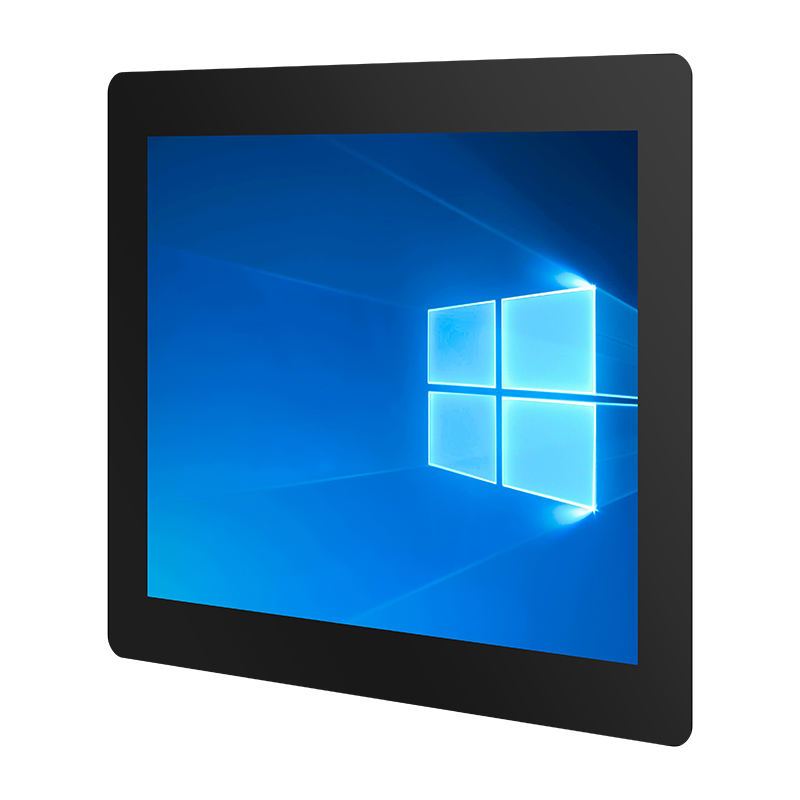

Fully enclosed industrial computer all in one2

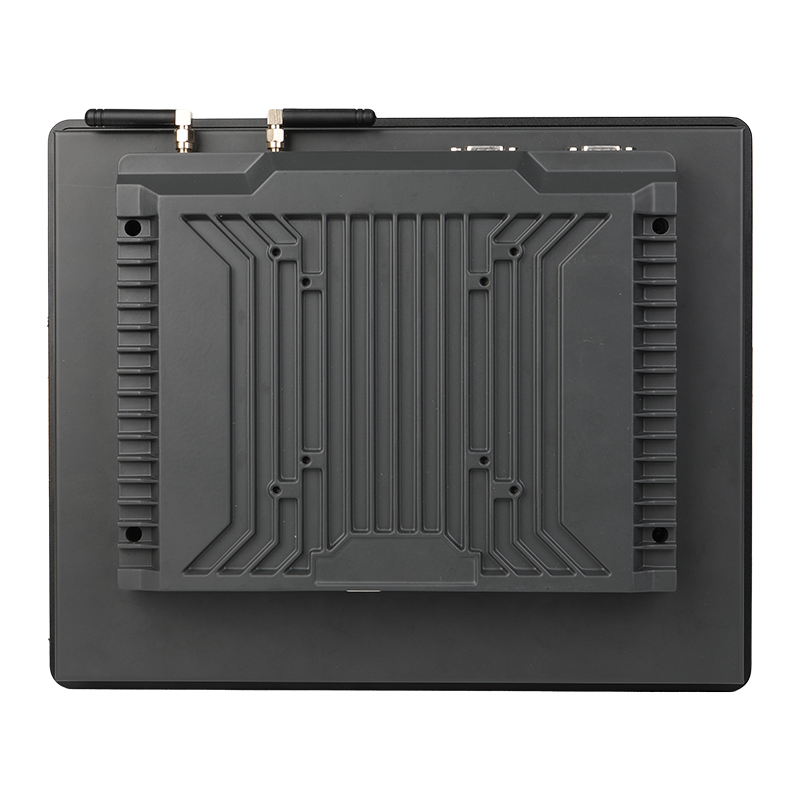

Fully enclosed industrial computer all in one4

Intel Celeron J4125 quad-core processor.
Capacitive touch screen, more intuitive operation, more fun, not easy to touch high durability, and compatible with resistive touch.
The whole machine is shockproof and anti-vibration standard up to GB2423, easily cope with transportation/industrial/Marine operating environment.
Fire-proof, explosion-proof, moisture-proof, PCB using green substrate design and production (FR4).
Anti-static, ESD: contact 4KV, air 8KV; Anti - interference EMI/EMC standard, lightning protection, anti - magnetic design.
Power management chip, wide voltage: Supports 12V to 36V power input anti-fall industrial interface.

Monitors information:

Monitors	Screen	12 inch
	Resolution Ratio	1024*768
	Brightness	400 cd/m2
	Color	16.7M
	Contrast Ratio	1000:1
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
	Screen Scale	246(W)×184.5(H) mm

Parameter information：

Touch Parameter	Reaction Type	Electric capacity reaction
	Lifetime	More than 50 miliion times
	Surface Hardness	>7H
	Effective Touch Strength	45g
	Glass Type	Chemical reinforced perspex
	Luminousness	>85%
Hardware	Mainboard	J4125
	CPU	Integrated Intel®Celeron J4125 2.0GHz quad-core
	GPU	Integrated Intel®UHD Graphics 600 core card
	Memory	4G（highest 16GB）
	Harddisk	64G solid state disk（128G replacement available）
	Operate system	default Windows 10（Windows 11/Linux/Ubuntu replacement available）
	Audio	ALC888/ALC662 6 channels Hi-Fi audio controller/supporting MIC-in/Line-out
	Network	Integrated giga network card
	Wifi	Internal wifi antenna,supporting wireless connect

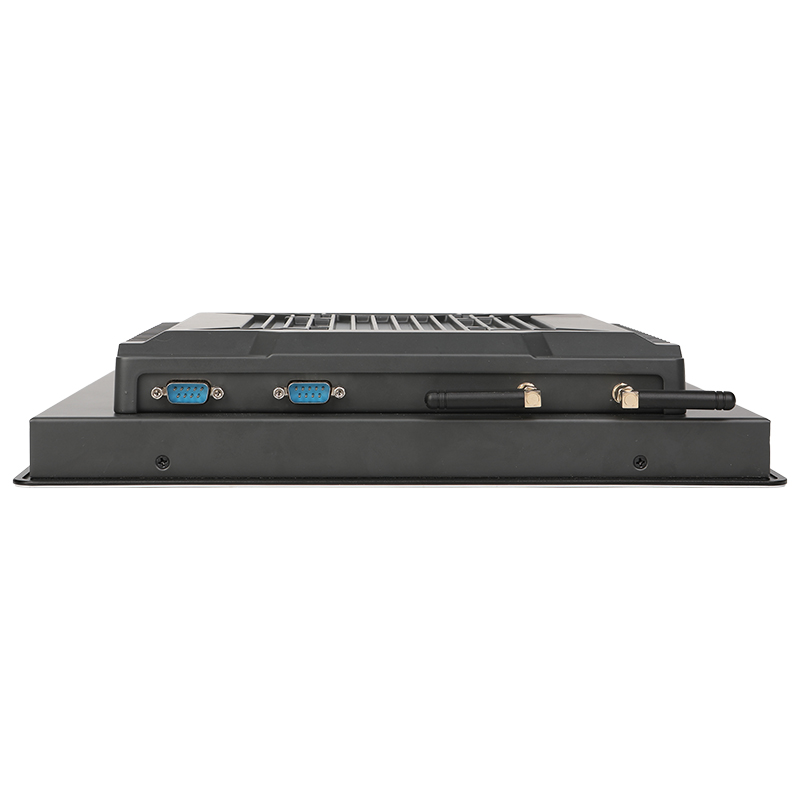

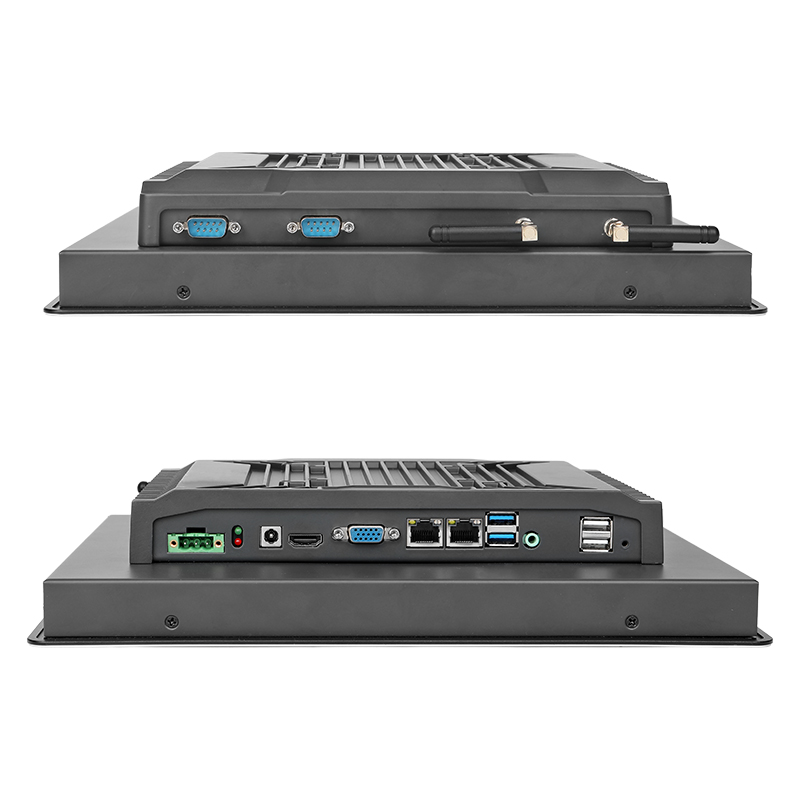

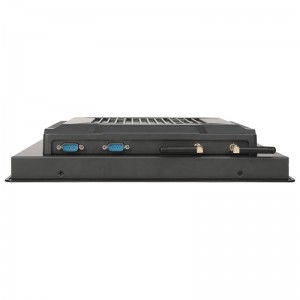

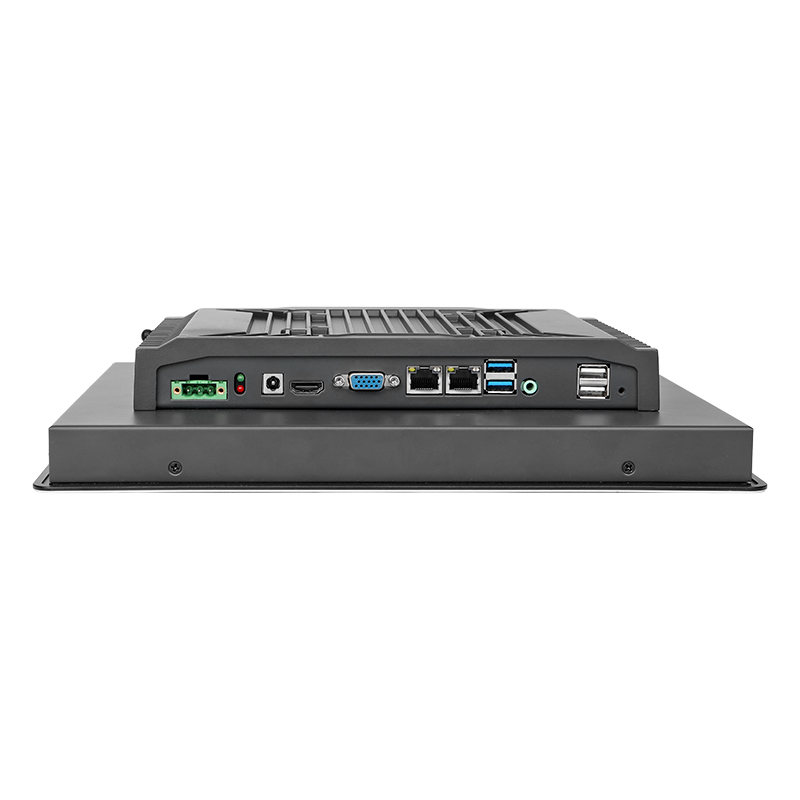

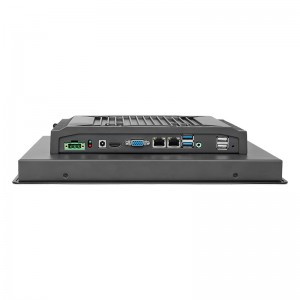

Interfaces	DC Port 1	1*DC12V/5525 socket
	DC Port 2	1*DC9V-36V/5.08mm phonix 4 pin
	USB	2USB3.0，2USB 2.0
	Serial-Interface RS232	2*COM
	Ethernet	2*RJ45 giga ethernet
	VGA	1*VGA IN
	HDMI	1*HDMI IN
	WIFI	1*WIFI antenna
	Bluetooth	1*Bluetooch antenna
	Audio imput & output	1*earphone & MIC two-in-one
Parameter	Material	CNC aluminum oxgenated drawing craft for the front surface frame
	Color	Black
	Power adapter	AC 100-240V 50/60Hz CCC certificated、CE certificated
	Power disspation	≤12W
	Power output	DC12V / 5A
Other parameter	Backlight lifetime	50000h
	Temperature	Working：-10°~60°；storage-20°~70°
	Install	Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type
	Guarantee	Whole computer free for maintain in 1 year
	Maintenance terms	Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain
Packing list	N.W.	3.5KG
	Product size（not in cluding brackt）	31725262mm
	Range for embedded trepanning	303*238mm
	Carton size	402337125mm
	Power adapter	Available for purchase
	Power line	Available for purchase
	Parts for install	Embedded snap-fit * 4，PM4x30 screw * 4

Supports a variety of installation methods.

Can meet your personalized installation requirements:

Snap Embedded.
Wall Bracket.
Desktop.

Cantilever.
Boom Type.

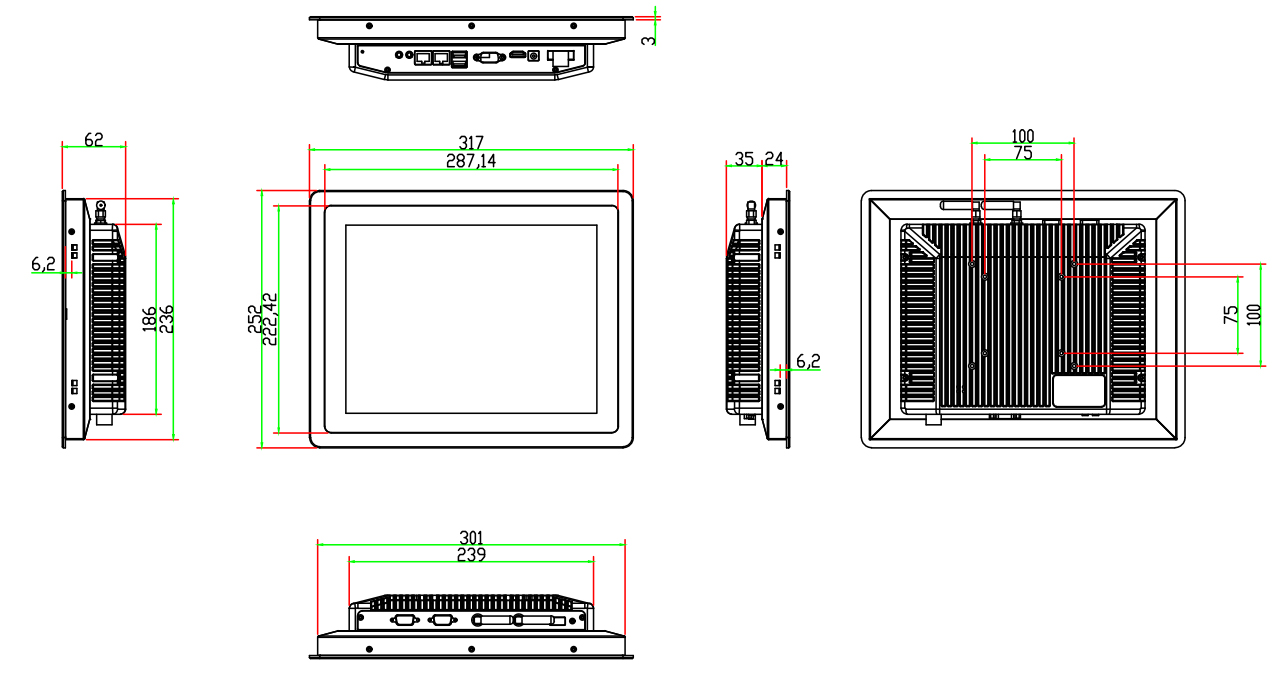

Engineering dimention drawing:
