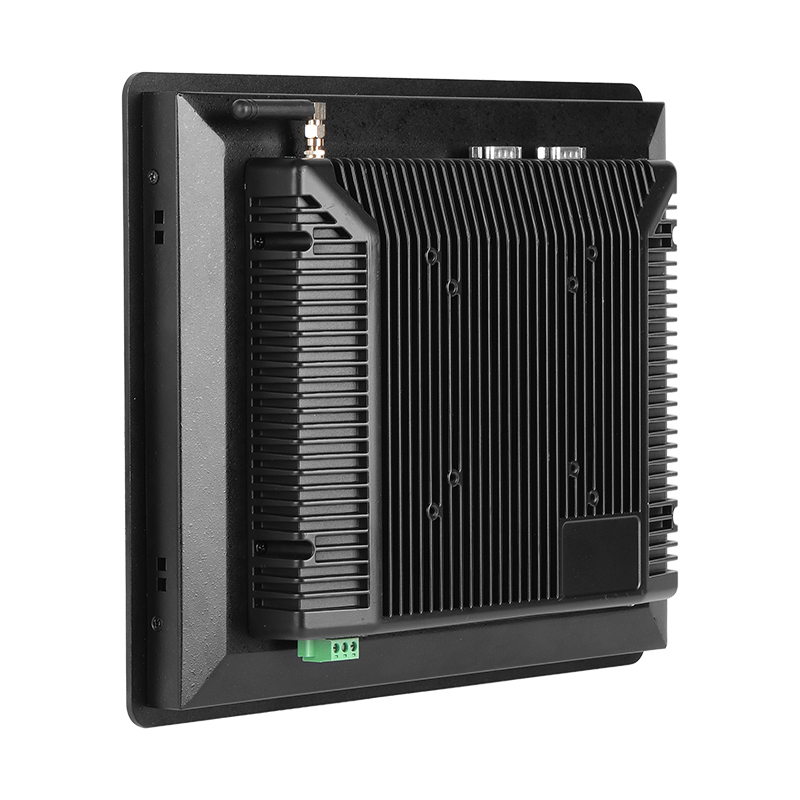

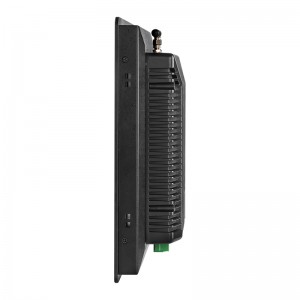

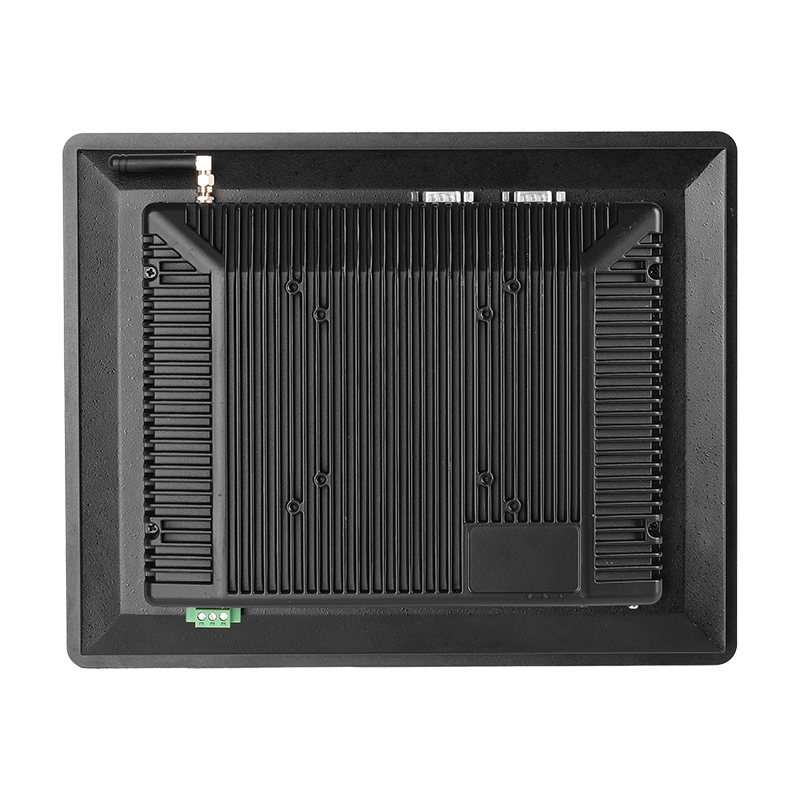

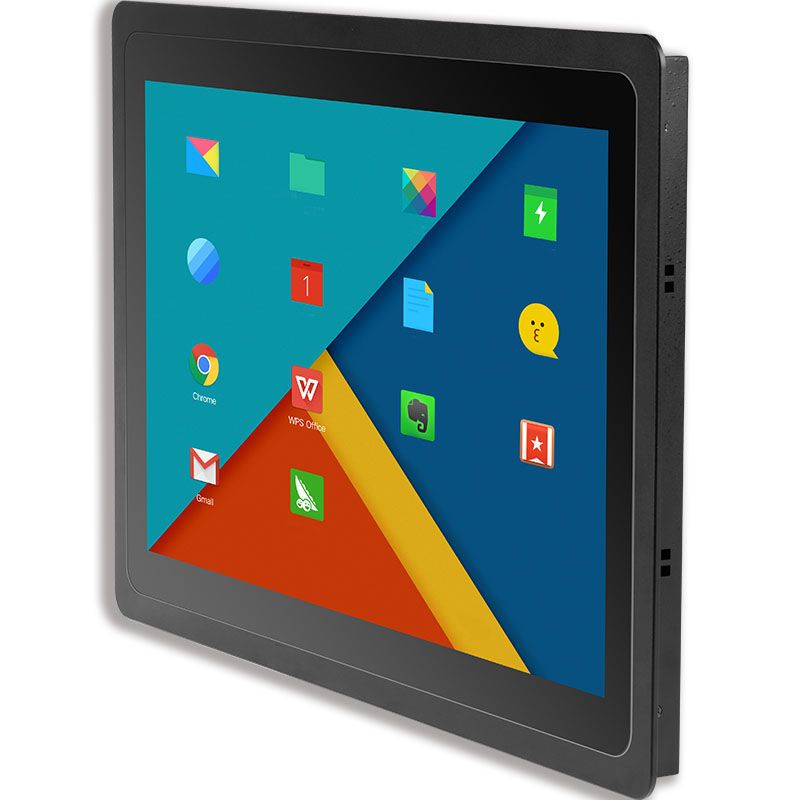

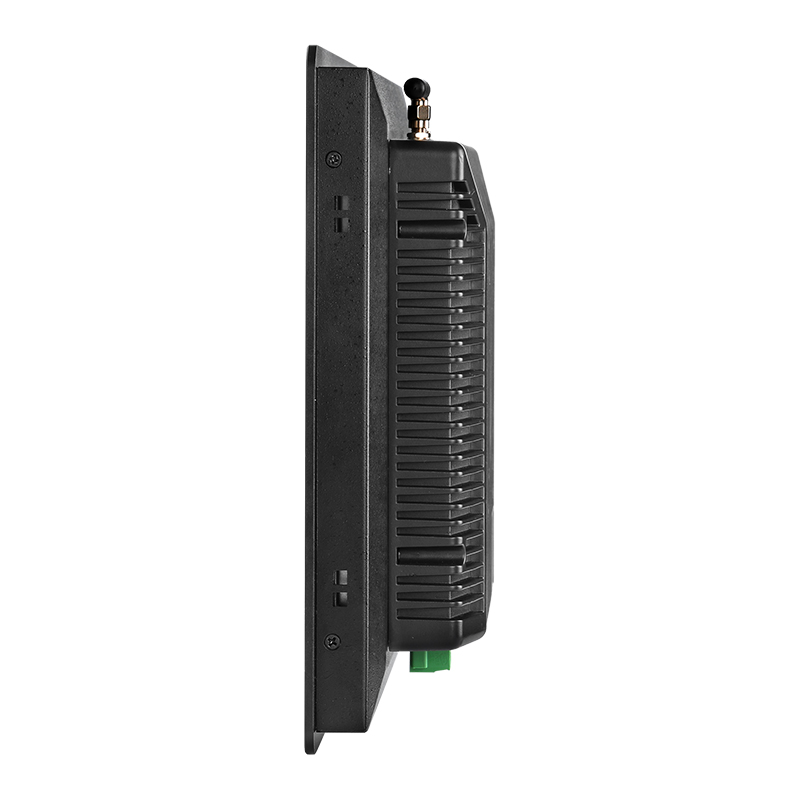

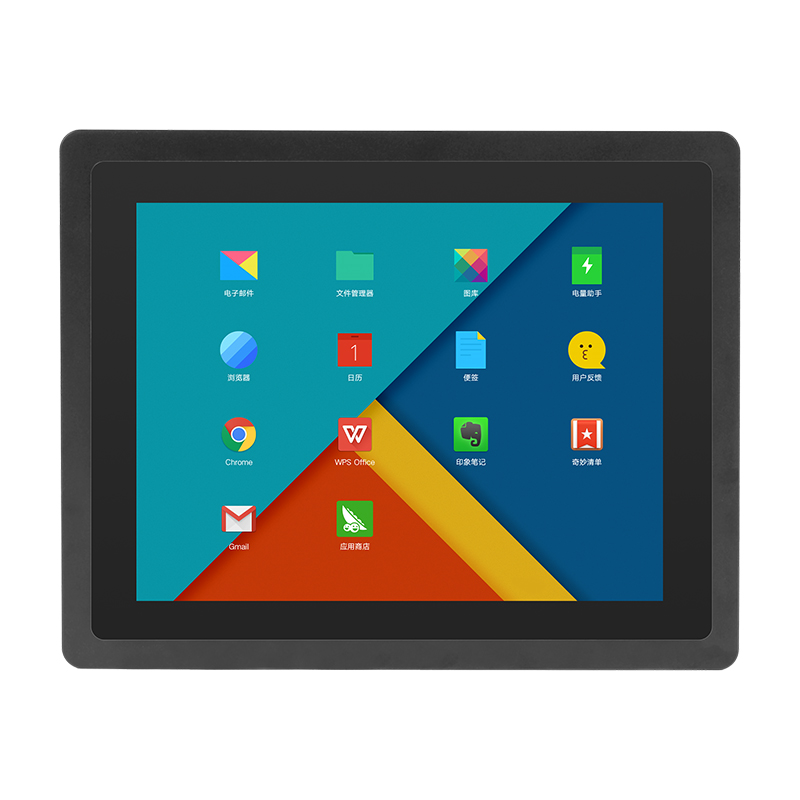

Fast cooling12.1 inch Industrial Android panel pc
This video shows the product in 360 degrees.
Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.
Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.
Industrial Android panel pc with a variety of high-definition display interface, to meet the field needs of a variety of application interface, to provide a variety of work efficiency, widely used in industrial control, military, communications, electric power, network and other high-end automation fields.
- Adopts the Rui Xin Micro RK3288 Cortex-A17 quad-core 64-bit CPU.
- Capacitive touch screen, more intuitive operation, more fun, not easy to touch high durability, and compatible with resistive touch.
- Standard Android9.0 system, support system customization, can provide system call interface API reference code, support secondary development.
- High-performance GPU, Mali-T764 GPU, supporting HDMI4K output.

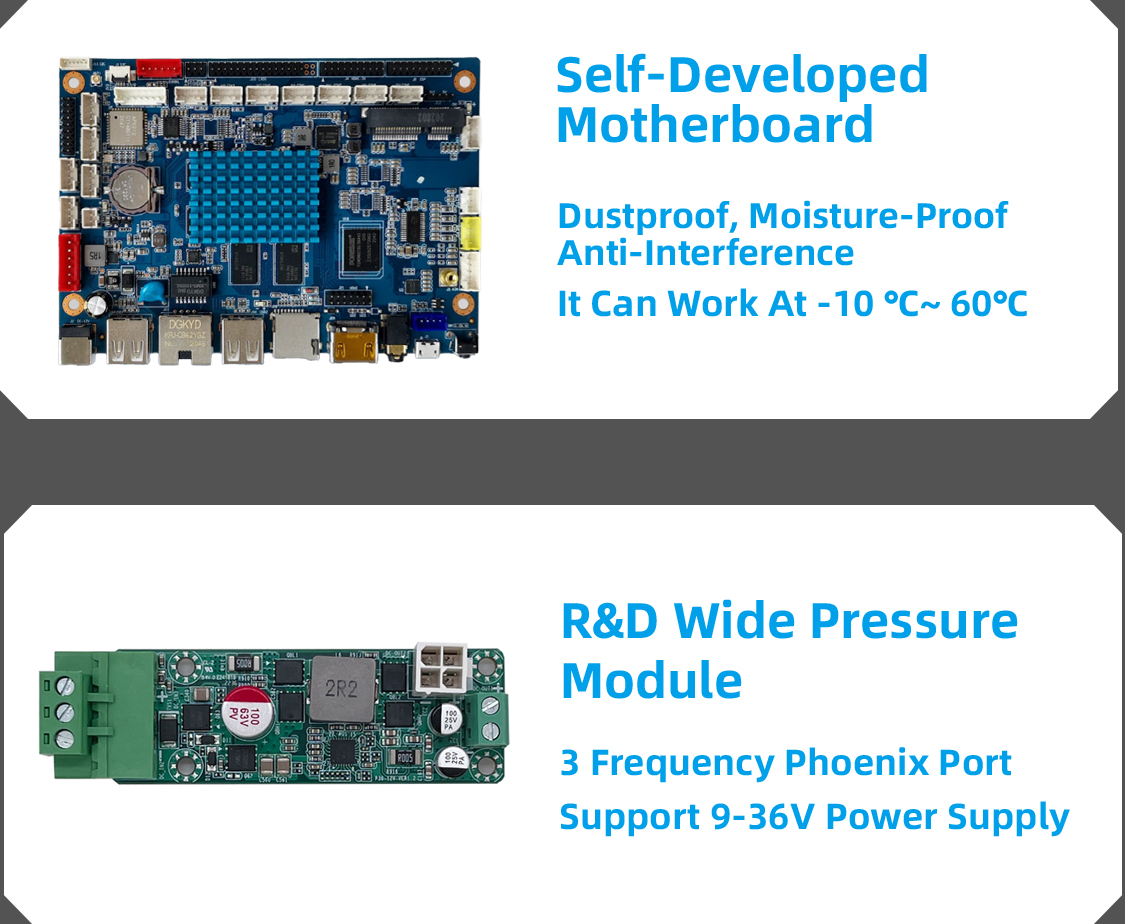

- Protected grade boards ensure electromagnetic compatibility and oxidation resistance of PCBS.
- The use of first-line brand chips, as well as high-quality components and exquisite patch technology, to ensure that the product performance is more stable and reliable.
| Display | Screen Size | 12.1 inch | ||
| Screen Resolution | 1280*800 | |||
| Luminous | 300 cd/m2 | |||
| Color Quantitis | 16.2M | |||
| Contrast | 1000:1 | |||
| Visual Range | 85/85/85/85 (Typ.)(CR≥10) | |||
| Display Size | 262.4(W)×162.4(H) mm | |||
| Touch Parameter | Reaction Type | Electric capacity reaction | ||
| Lifetime | More than 50 miliion times | |||
| Surface Hardness | ＞7H | |||
| Effective Touch Strength | 45g | |||
| Glass Type | Chemical reinforced perspex | |||
| Luminousness | ＞85% | |||
| Hardware | MAINBOARD MODEL | RK3288 |
| CPU | RK3288 Cortex-A17 quad-core 1.8GHz | |
| GPU | Mali-T764 4 core | |
| Memory | 2G (4G replacement available) | |
| Harddisk | 16G (highest to 128G replacement available) | |
| Operate system | Android 7.1 | |
| 3G Module | Replacement available | |
| 4G Module | Replacement available | |
| WIFI | 2.4G | |
| Bluetooth | BT4.0 | |
| GPS | Replacement available | |
| MIC | Replacement available | |
| RTC | Supporting | |
| Awaken through network | Supporting | |
| Startup & Shutdown | Supporting | |
| System upgrade | Supporting hardware TF/USB upgrade | |

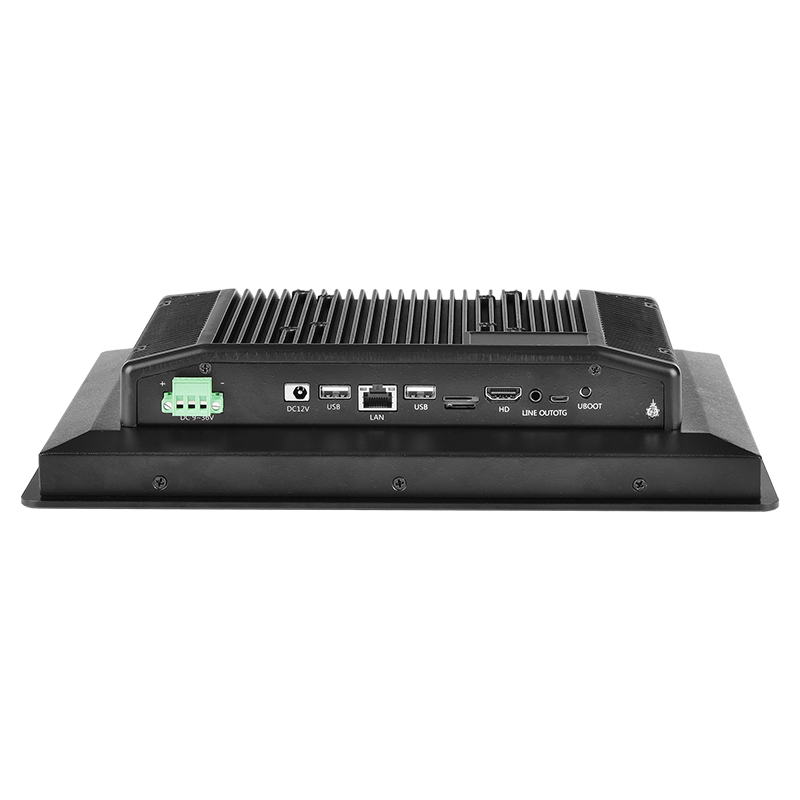

| Interfaces | MAINBOARD MODEL | RK3288 |
| DC Port 1 | 1*DC12V / 5525 socket | |
| DC Port 2 | 1*DC9V-36V / 5.08mm phonix 4 pin | |
| HDMI | 1*HDMI | |
| USB-OTG | 1*Mirco | |
| USB-HOST | 2*USB2.0 | |
| RJ45 Ethernet | 1*10M/100M Self-adaptive ethernet | |
| SD/TF | 1*TF card slot,supporting up to 128G | |
| Earphone jack | 1*3.5mm Standard | |

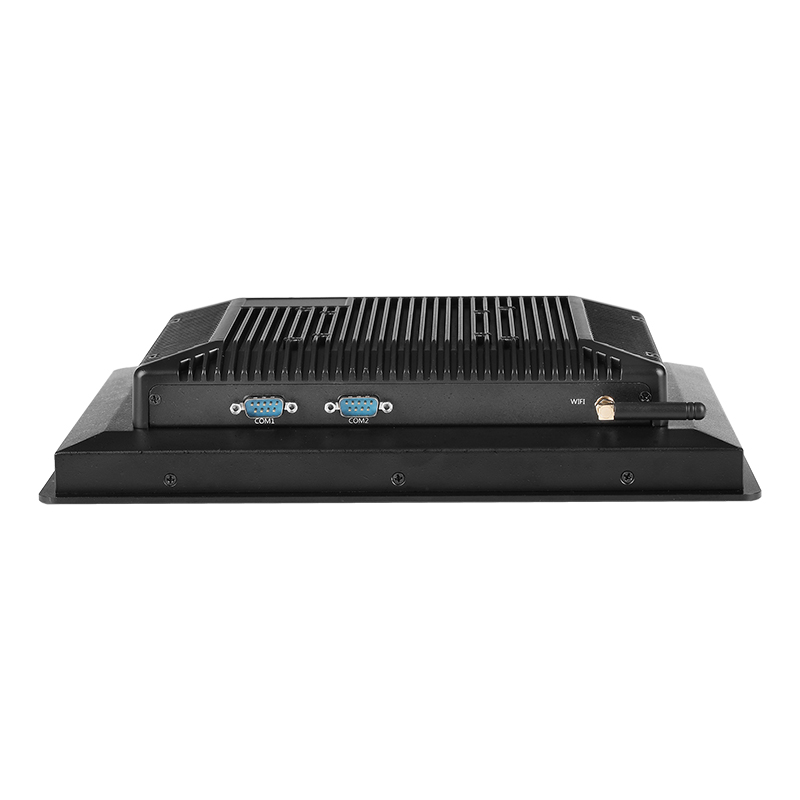

| Serial-Interface RS232 | 2*COM | |
| Serial-Interface RS422 | Optional | |
| Serial-Interface RS485 | Optional | |
| SIM Card | SIM card standard interfaces,customization available | |
| Parameter | Material | Sand blasting oxygenated aluminium front surface frame |
| Color | black | |

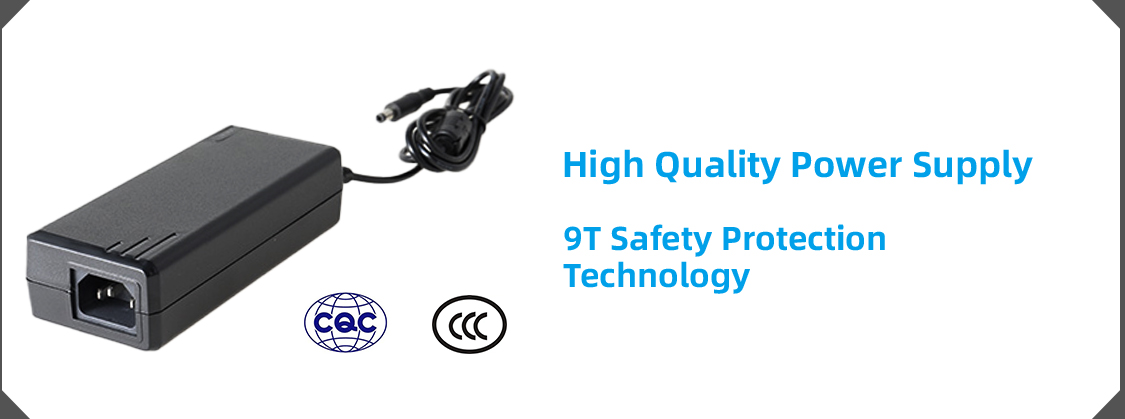

| Power adapter | AC 100-240V 50/60Hz CCC certificated、CE certificated | |
| Power dissipation | ≤12W | |
| Power output | DC12V / 5A |
- Snap Embedded.
- Wall Bracket.
- Desktop.
- Cantilever.
- Boom Type.
Manufacturing: Industrial Android panel PCs can be used for production line monitoring and data collection, helping to monitor production processes, optimize capacity, and provide real-time feedback and data analysis.
Logistics and Warehousing: Panel PCs can be used for logistics and warehouse management systems, which can help track and manage the flow of goods, inventory management and order processing.
Energy and Utilities: Panel PCs can be used for energy management systems, utility monitoring and automation control, helping to realize the efficient use of energy and the safe operation of facilities.
Intelligent Transportation: Panel PCs can be used for traffic signal control systems, parking management and public transportation operation monitoring, playing an important role in urban transportation.
Healthcare: Panel PCs can be used in medical devices and healthcare information systems to help healthcare professionals diagnose, monitor conditions and provide personalized healthcare services.
Industrial Android panel PCs are flexible, scalable and adaptable for a variety of industrial and commercial scenarios, providing efficient solutions and a good user experience.

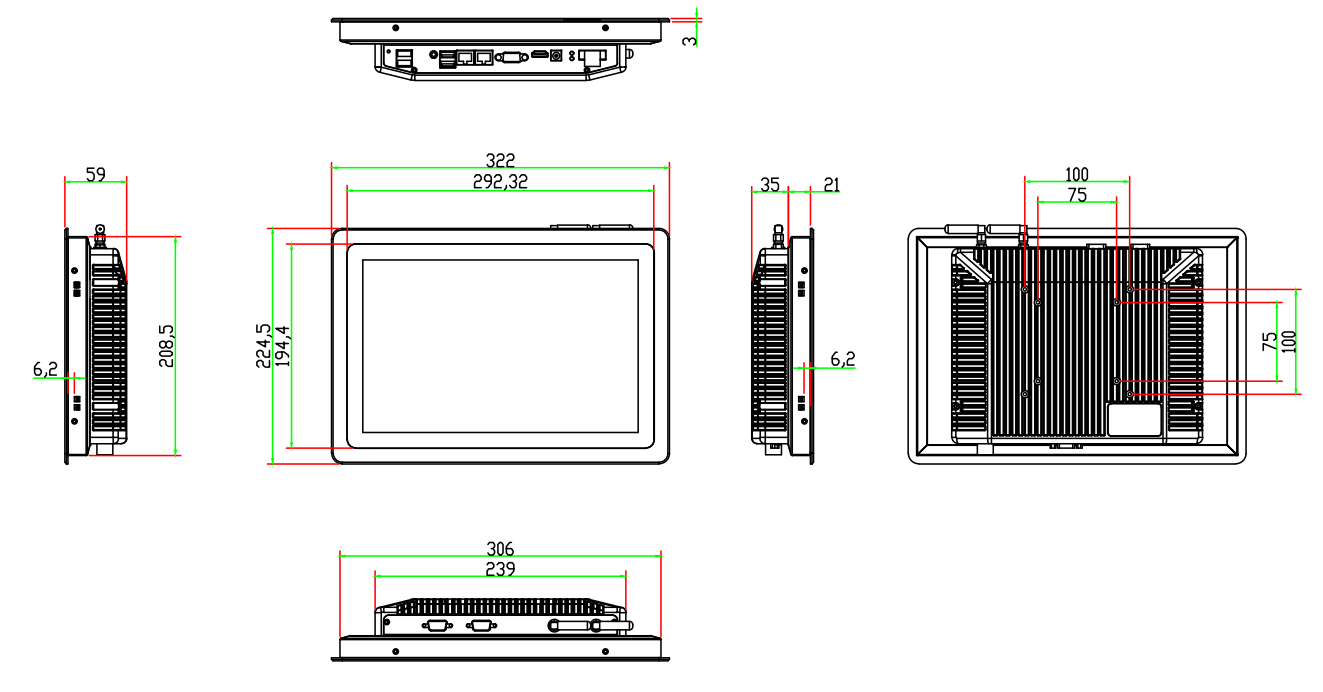

The weight of the machine is 3.5KG, the size of the product is 322*224.5*59mm, the size of the embedded hole is 308*210.5mm, and the size of the carton is 407*310*125mm. The power adapter and power cord are optional. The installation is made of the embedded fastener *4pcs and the PM4x30 screws *4pcs.
-
