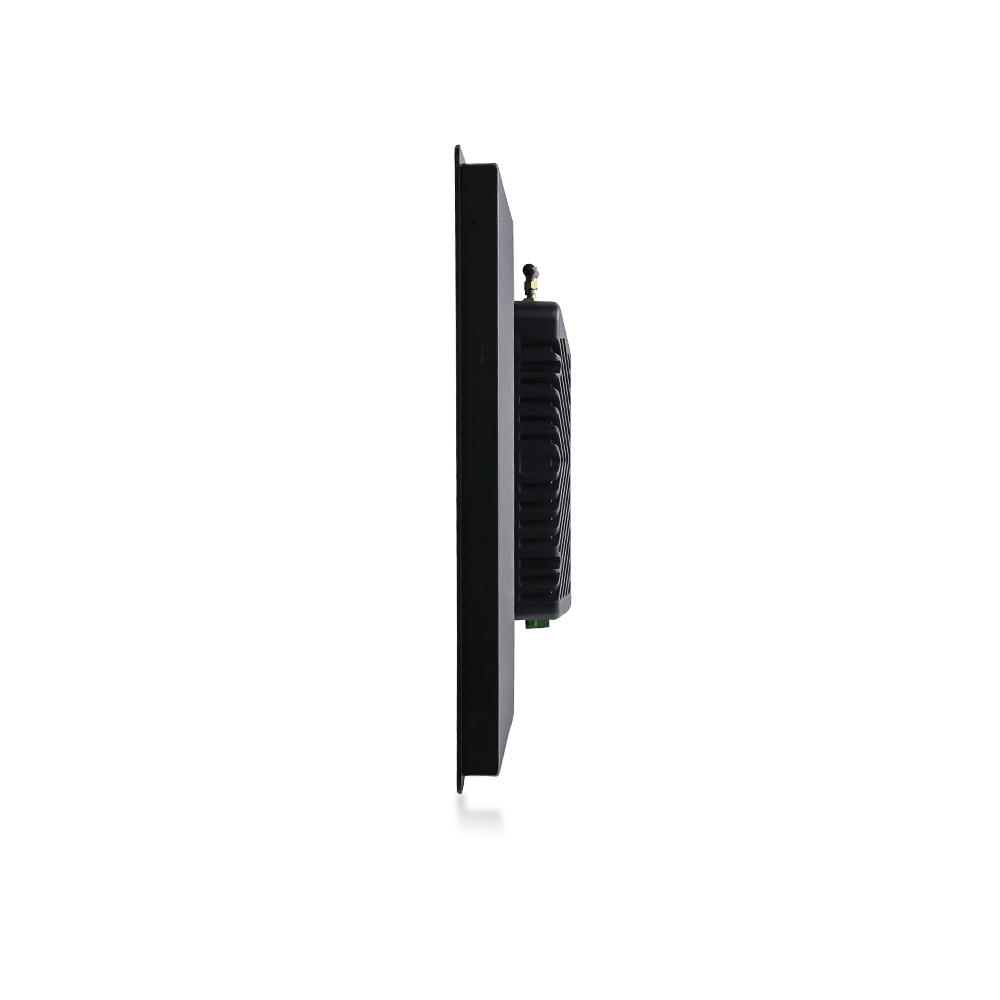

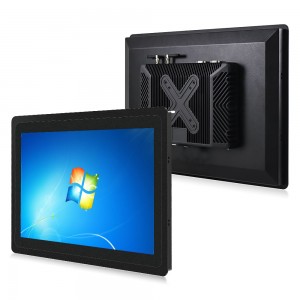

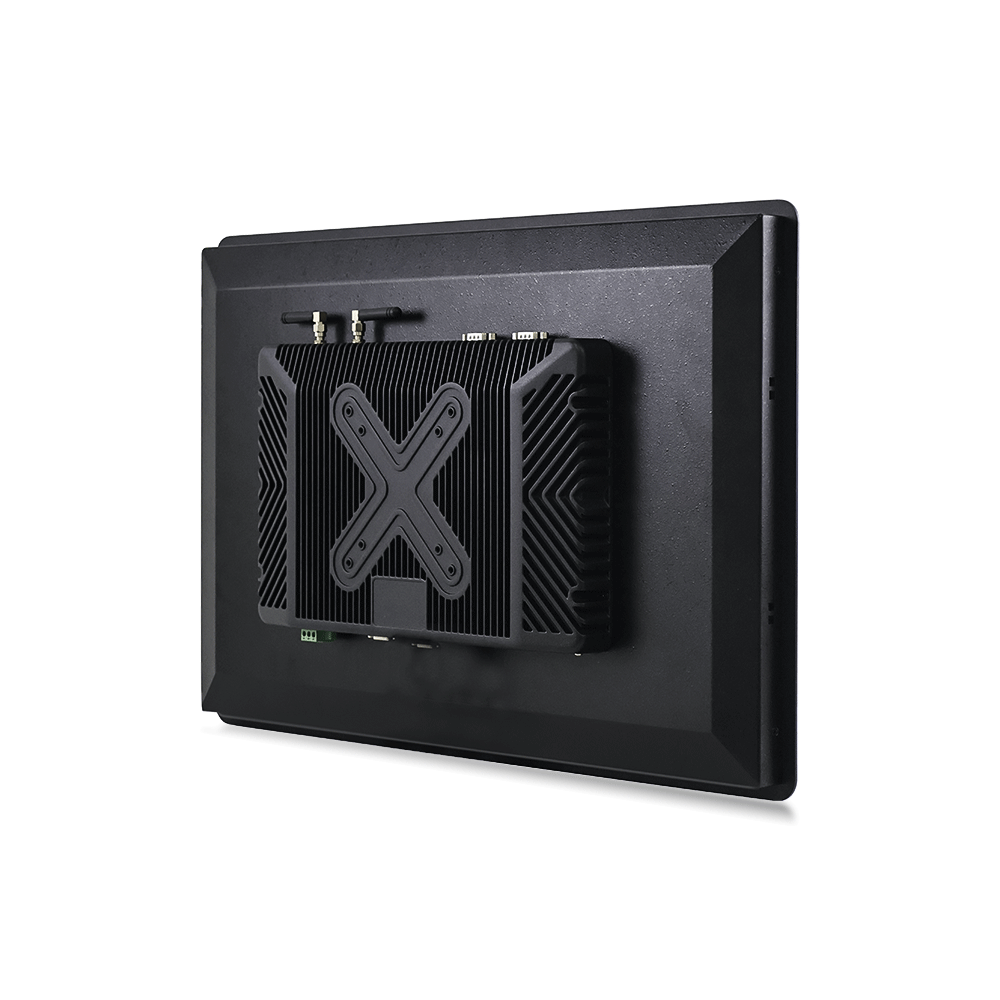

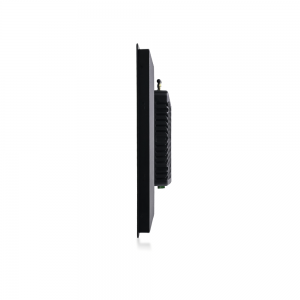

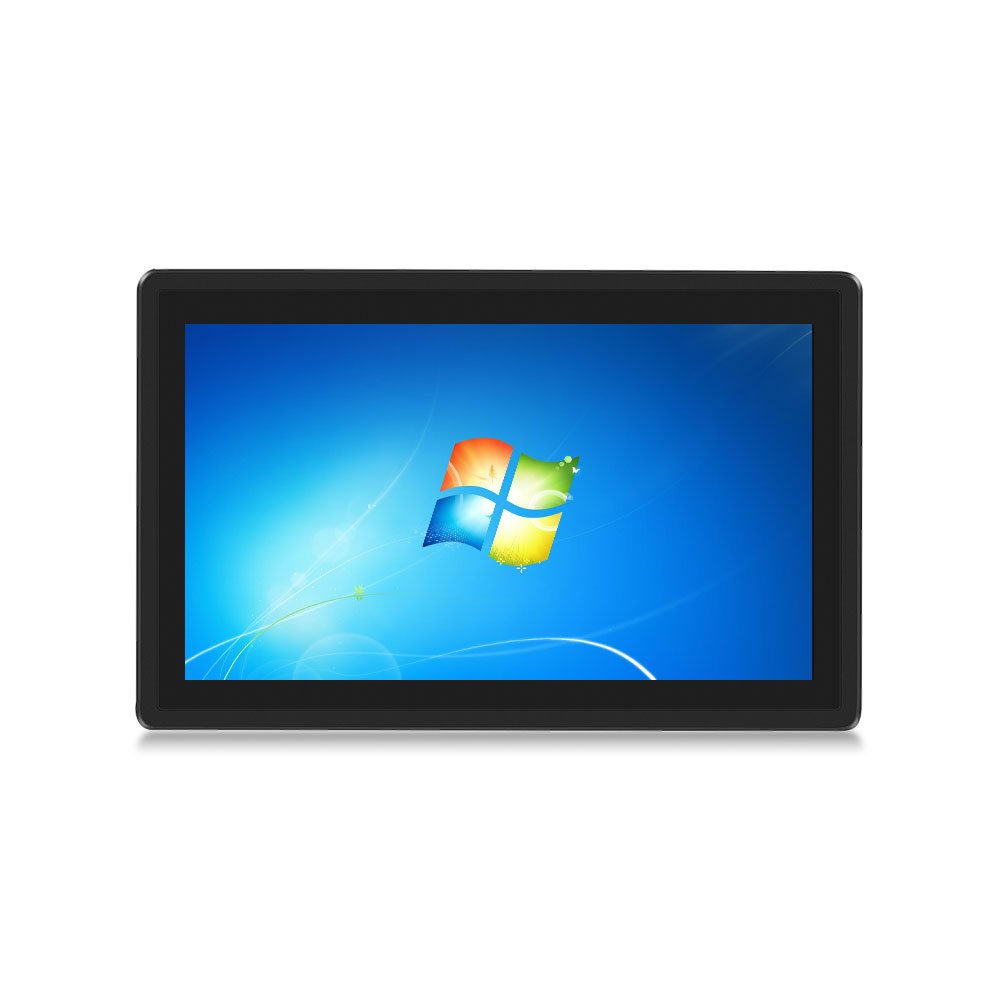

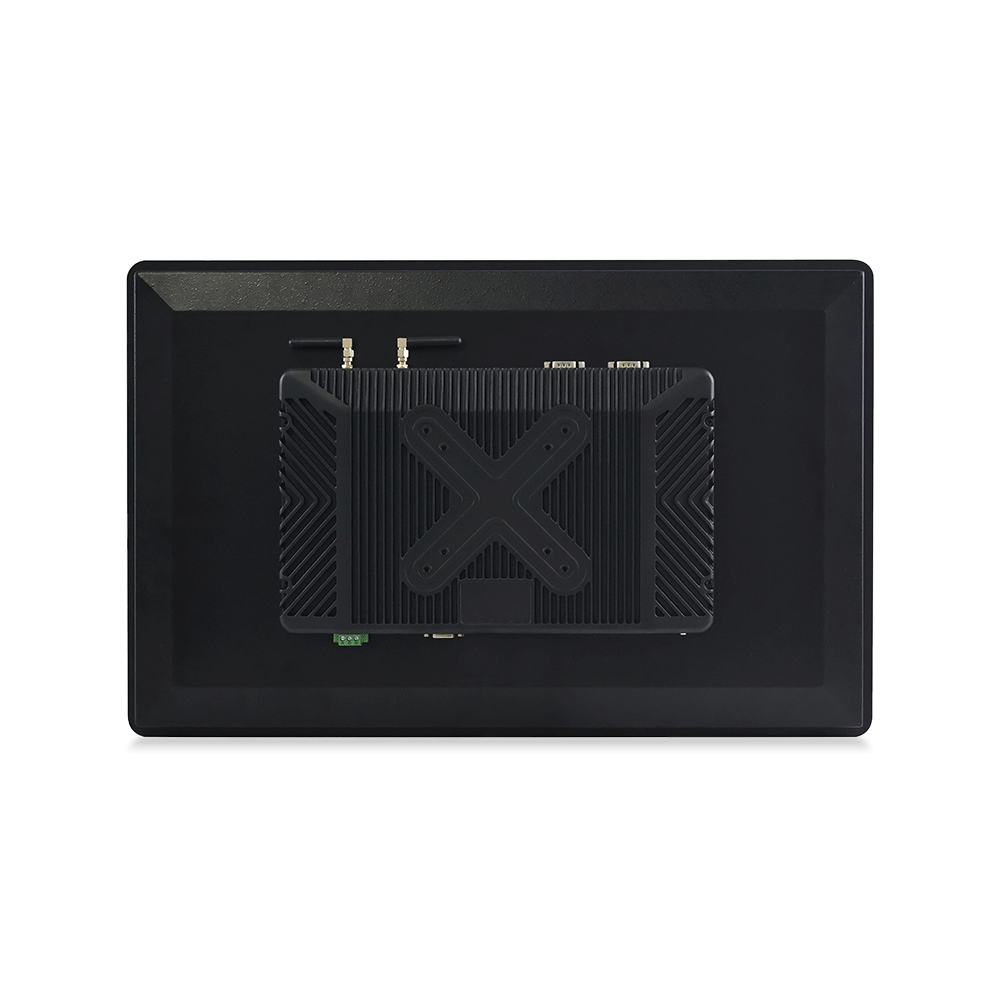

Fanless Industrial Front Touch Panel PC Computer Windows 10
This video shows the product in 360 degrees.
Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.
Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.
As a front panel PC computer product, it has a wide range of features and functions that make it excel in industrial applications. Made of aluminium alloy, the product is capable of adapting to harsh industrial environments with features such as fast heat dissipation and IP65-rated dust and water resistance. It can operate stably in both factory floor and outdoor environments.
In addition, the product has a variety of installation methods, such as embedded, wall-mounted, desktop and cantilever, to meet different installation needs. It supports a variety of customised screen sizes ranging from 10.1 inches to 21.5 inches, which can meet the needs of different users.
The fanless industrial front Panel Pc Computer touch all-in-one not only has an outstanding design, but also excels in performance. It can achieve 7*24 hours of continuous operation, providing users with a stable and reliable industrial-grade computer experience. In addition, the product supports customisation, such as special design and adjustment for size, software, screen, temperature, water resistance, uninterruptible power supply system requirements, etc.; it can be customised according to the user's actual needs to meet different application scenarios.
| Display | Screen Size | 21.5 inch |
| Screen Resolution | 1920*1080 | |
| Luminous | 250 cd/m2 | |
| Color Quantitis | 16.7M | |
| Contrast | 1000:1 | |
| Visual Range | 85/85/85/85 (Typ.)(CR≥10) | |

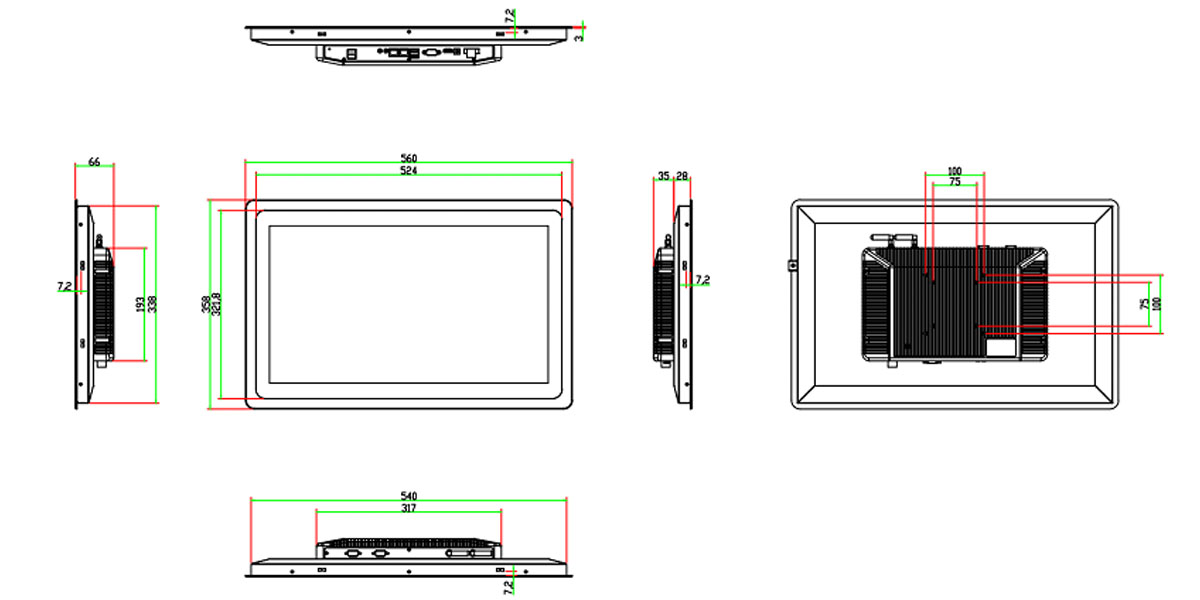

| Display Size | 476.64(W)×268.11(H) mm | |
| Touch parameter | Reaction Type | Electric capacity reaction |
| Lifetime | More than 50 million times | |
| Surface Hardness | ＞7H | |
| Effective Touch Strength | 45g | |
| Glass Type | Chemical reinforced perspex | |
| Luminousness | ＞85% | |
| Hardware | MAINBOARD MODEL | J4125 |
| CPU | Integrated Intel®Celeron J4125 2.0GHz quad-core | |
| GPU | Integrated Intel®UHD Graphics 600 core card | |
| Memory | 4G（maximum 16GB） | |
| Harddisk | 64G solid state disk（128G replacement available） | |
| Operate system | Default Windows 10（Windows 11/Linux/Ubuntu replacement available） | |
| Audio | ALC888/ALC662 6 channels Hi-Fi Audio controller/Supporting MIC-in/Line-out | |
| Network | Integrated giga network card | |
| Wifi | Internal wifi antenna,supporting wireless connect | |

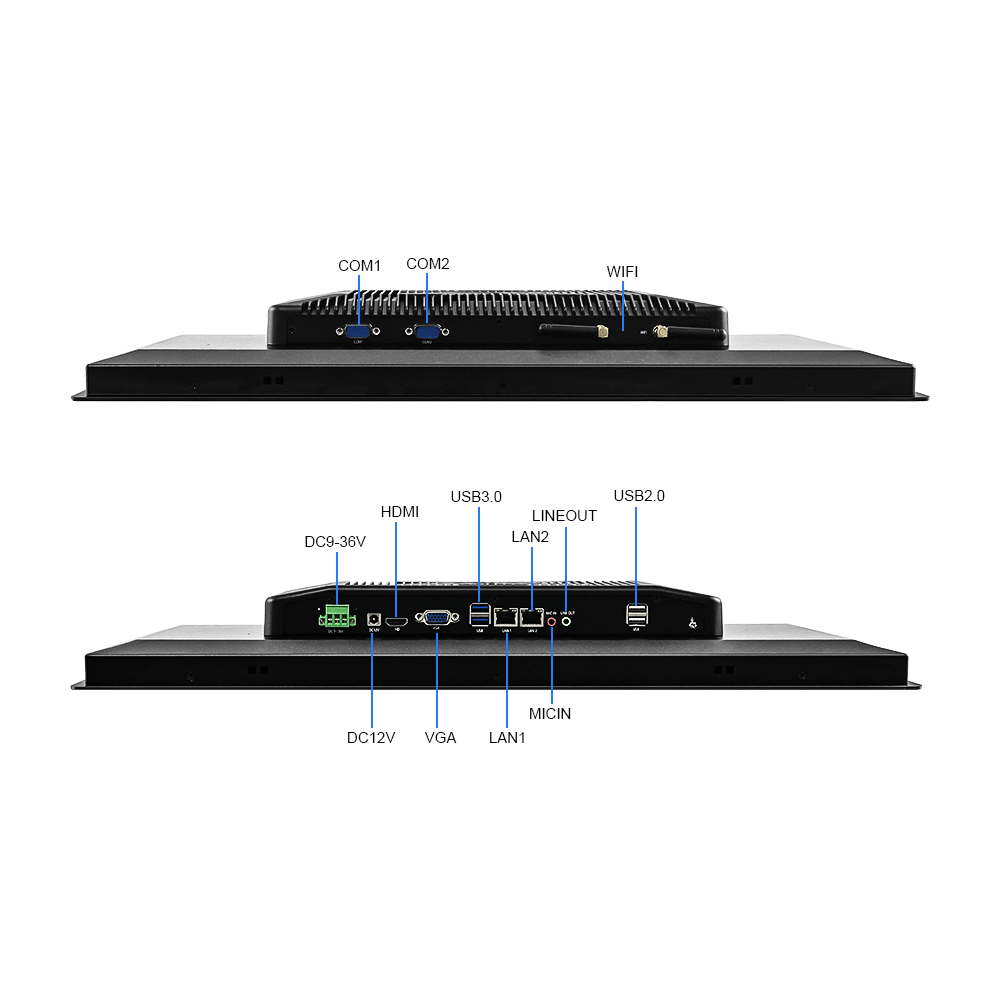

| Interfaces | DC Port 1 | 1*DC12V/5525 socket |
| DC Port 2 | 1*DC9V-36V/5.08mm phonix 4 pin | |
| USB | 2*USB3.0，1*USB 2.0 | |
| Serial-Interface RS232 | 0*COM（upgrade able） | |
| Ethernet | 2*RJ45 giga ethernet | |
| VGA | 1*VGA | |
| HDMI | 1*HDMI OUT | |
| WIFI | 1*WIFI antenna | |
| Bluetooth | 1*Bluetooch antenna | |
| Audio imput | 1* earphone Interfaces | |
| Audio output | 1*MIC Interfaces | |
| Parameter | Material | CNC aluminum oxgenated drawing craft for the front surface frame |
| Color | Black | |
| Power adapter | AC 100-240V 50/60Hz CCC certificated、CE certificated | |
| Power dissipation | ≈20W | |
| Power output | DC12V / 5A | |
| Other parameter | Backlight lifetime | 50000h |
| Temperature | Working：-10°~60°；storage-20°~70° | |
| Install | Embedded snap-fit | |
| Guarantee | Whole computer free for maintain in 1 year | |
| Maintenance terms | Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain |
To ensure stable displays in vibrating environments, our industrial monitors are designed to withstand shock. Whether in applications such as transportation, marine, military equipment, etc., our products are able to withstand vibration and shock and maintain a stable display.
We use high quality aluminium alloy material to ensure that our industrial monitors have excellent durability and heat dissipation performance. This not only allows our products to operate stably for long periods of time in the working environment, but also effectively protects the electronic components inside the display.
As our customer, you can also enjoy our custom design service. We can provide you with individual industrial display solutions according to your specific needs and requirements. Whether it is the design, interface options or configuration of special functions, we can meet your needs.
When you choose our industrial monitors, you will get excellent display, durable quality, reliable performance, and a full range of after-sales services. We are committed to providing our customers with the best industrial display solutions, exceeding your expectations, and becoming a trusted partner for long-term cooperation. If you have any questions or need more information, please feel free to contact us.
To ensure stable displays in vibrating environments, our industrial monitors are designed to withstand shock. Whether in applications such as transportation, marine, military equipment, etc., our products are able to withstand vibration and shock and maintain a stable display.
We use high quality aluminium alloy material to ensure that our industrial monitors have excellent durability and heat dissipation performance. This not only allows our products to operate stably for long periods of time in the working environment, but also effectively protects the electronic components inside the display.
As our customer, you can also enjoy our custom design service. We can provide you with individual industrial display solutions according to your specific needs and requirements. Whether it is the design, interface options or configuration of special functions, we can meet your needs.
When you choose our industrial monitors, you will get excellent display, durable quality, reliable performance, and a full range of after-sales services. We are committed to providing our customers with the best industrial display solutions, exceeding your expectations, and becoming a trusted partner for long-term cooperation. If you have any questions or need more information, please feel free to contact us.
