Factory Custom Production 15.6 inch J4125 All In One Computer For Win 10 Capacitive Industrial Computers

Short Description:

Designed for industrial environments, this all in one computer can withstand challenging conditions. Its sturdy construction ensures durability, while the fanless design minimizes dust buildup and reduces the risk of component failure. The computer has a wide operating temperature range for reliable operation even in extreme temperatures, making it ideal for use in factories, warehouses, and other demanding industrial environments.


Product Detail

Parameter

Product Tags

Products Video

This video shows the product in 360 degrees.

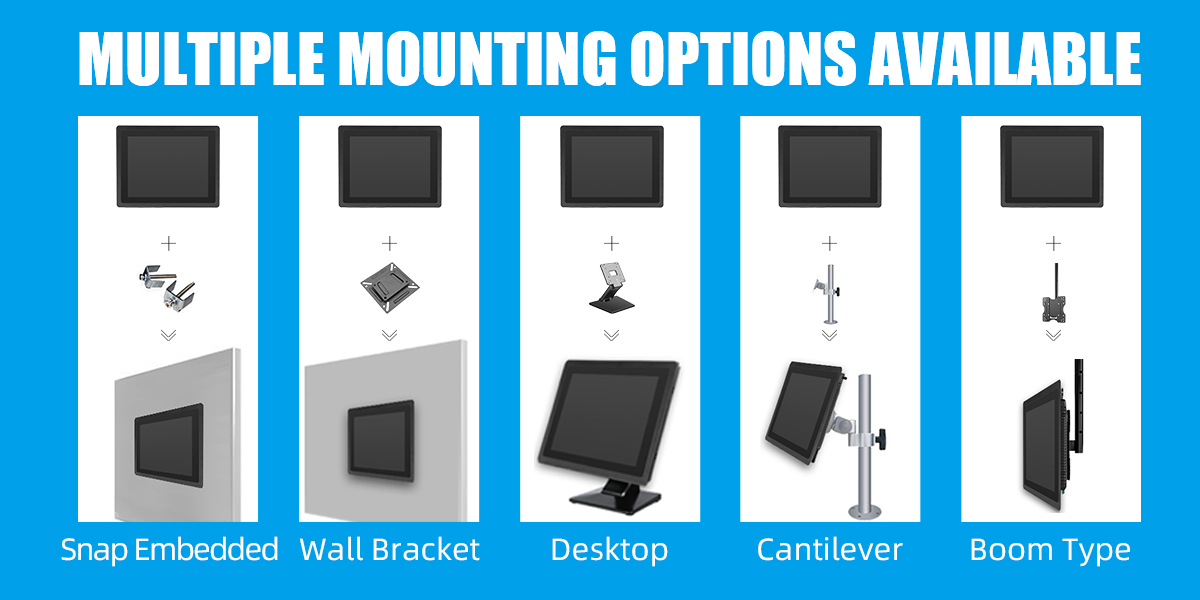

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

All In One Computer Solutions:

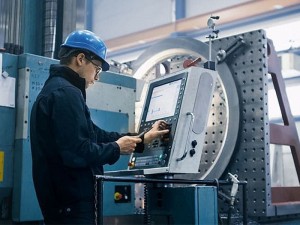

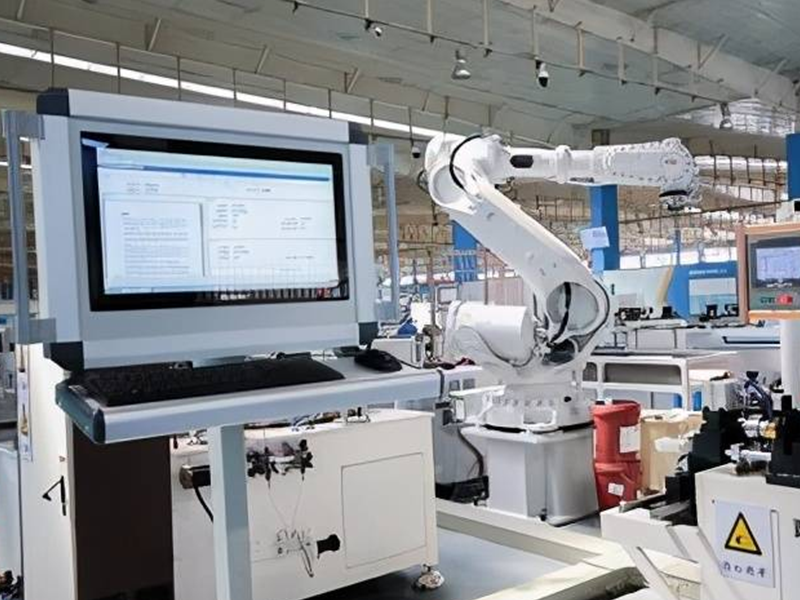

1. Industrial control: This industrial PC is suitable for various control systems such as automatic production line control and robot control. Due to its high reliability and durability, it can perform excellent stability in high-risk and harsh environments.All In One Computer

2. Intelligent Internet of Things: As a high-performance industrial computer, it can connect to various devices and embedded systems in the network, improve data processing and management capabilities, and facilitate rapid and efficient work in the field of intelligent Internet of Things .

3. Office PC: This industrial PC has a high-resolution screen and excellent performance, and can be used to complete different office applications, such as data processing and file management, etc. In addition, it can also provide higher security and stability.

4. Intelligent security: As the core computer of the intelligent security system, this industrial PC can connect sensors and equipment, and provide various functions such as monitoring, detection and alarm.

5. Visual inspection: With a high-resolution screen and excellent performance, this industrial PC can be used as a visual inspection device to complete multiple inspection applications and obtain accurate results.

6. 3D printer control: The industrial computer is connected to various 3D printers, and as the control core, it can improve the performance and precision of the 3D printer and make your printing effect more excellent.

7. Medical equipment: Computers with high performance can play an important role in various medical equipment, such as electronic medical record management, medical imaging, etc.

8. Public transportation: Industrial PCs can be used in public transportation management systems, such as taxi management, bus GPS positioning, etc. Provide better public transport services to the public by improving operational management efficiency.

9. Power equipment: As the core component of the power equipment management system, this industrial PC can improve the efficiency of power grid monitoring, substation management, etc., and further promote the digital transformation of the power industry.

10. Smart home: As the core computer of the smart home system, the industrial PC can connect various smart devices to achieve intelligent linkage control and help users realize the dream of smart home life.

SOLUTIONS
SOLUTIONS
SOLUTIONS
SOLUTIONS1
SOLUTIONS
SOLUTIONS
AI in Manufacturing

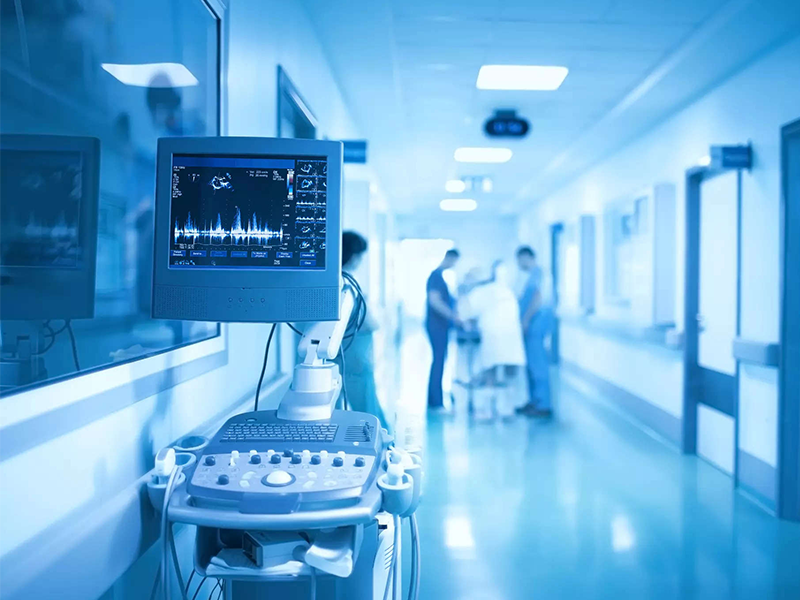

Medical equipment

All In One Computer Superiority:

  • Industrial aesthetic design
  • Streamlined appearance design
  • Independent research and development independent mold opening
  • Stable performance and low power consumption
  • Front panel waterproof design
  • Flat panel up to IP65 waterproof standard
  • GB2423 anti-vibration standard
  • Added shock-proof EVA material
  • Recessed cabinet installation
  • 3mm tightly fitted to the embedded cabinet
  • Fully enclosed dust-proof design
  • Greatly improve the service life of the fuselage
  • Aluminum alloy body
  • Aluminum alloy die-casting integrated forming
  • EMC/EMI Anti-interference standard Anti-electromagnetic interference

Parameter Information:

Display Screen Size 15.6 inch
Screen Resolution 1920*1080
Luminous 300 cd/m2
Color Quantitis 16.7M
Contrast 800:1
Visual Range 85/85/85/85 (Typ.)(CR≥10)
Display Size 344.16(W)×193.59(H) mm
Touch parameter Reaction Type Electric capacity reaction
Lifetime More than 50 million times
Surface Hardness >7H
Effective Touch Strength 45g
Glass Type Chemical reinforced perspex
Luminousness >85%
Hardware MAINBOARD MODEL J4125
CPU Integrated Intel®Celeron J4125 2.0GHz quad-core
GPU Integrated Intel®UHD Graphics  600 core card
Memory 4G(maximum 16GB)
Harddisk 64G solid state disk(128G replacement available)
Operate system Default Windows 10(Windows 11/Linux/Ubuntu replacement available)
Audio ALC888/ALC662 6 channels Hi-Fi Audio controller/Supporting MIC-in/Line-out
Network Integrated giga network card
Wifi Internal wifi antenna,supporting wireless connect

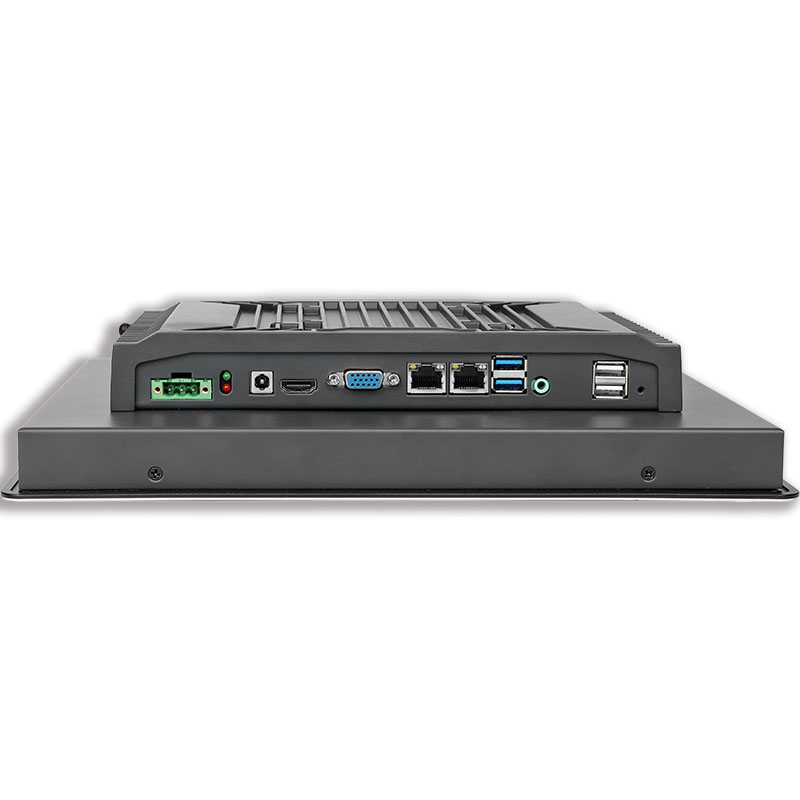

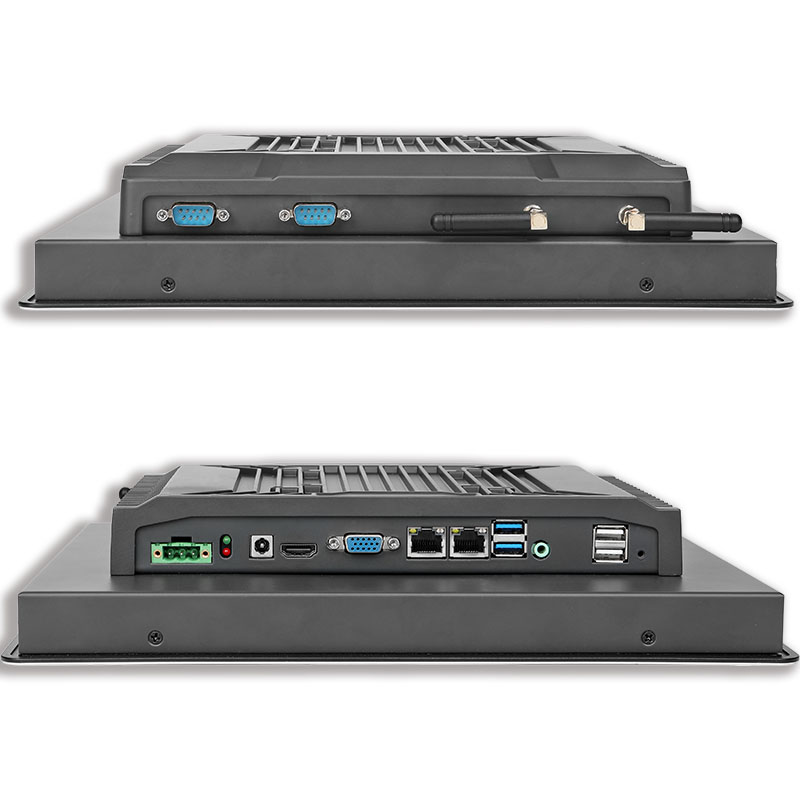

Interfaces DC Port 1 1*DC12V/5525 socket
DC Port 2 1*DC9V-36V/5.08mm phonix 4 pin
USB 2*USB3.0,1*USB 2.0

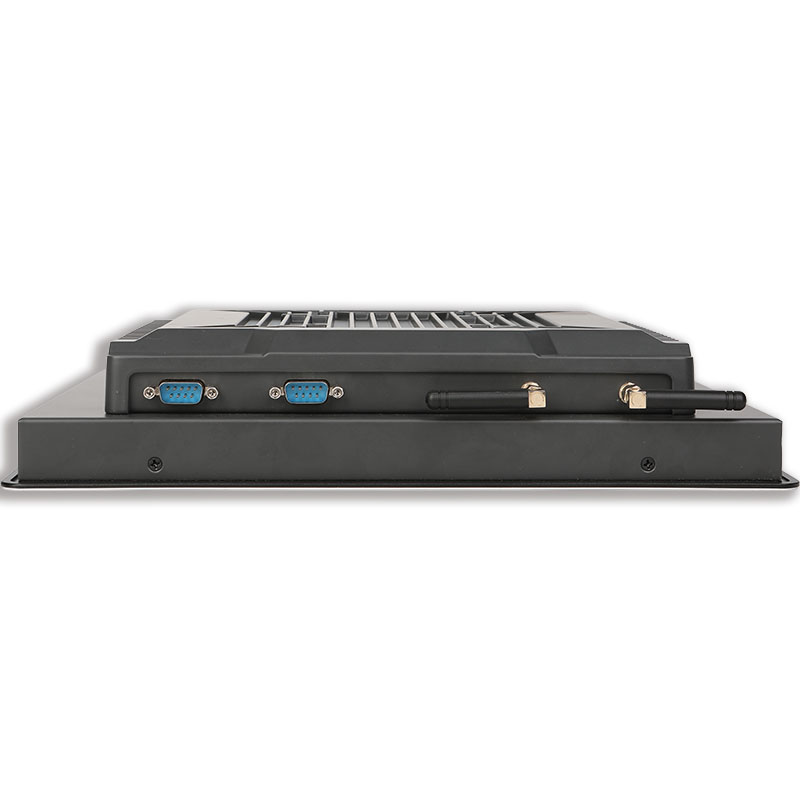

Serial-Interface RS232 0*COM(upgrade able)
Ethernet 2*RJ45 giga ethernet
VGA 1*VGA
HDMI 1*HDMI OUT
WIFI 1*WIFI antenna
Bluetooth 1*Bluetooch antenna
Audio imput 1* earphone Interfaces
Audio output 1*MIC Interfaces
Parameter Material CNC aluminum oxgenated drawing craft for the front surface frame
Color Black
Power adapter AC 100-240V  50/60Hz CCC certificated、CE certificated
Power dissipation ≈20W
Power output DC12V / 5A
Other parameter Backlight lifetime 50000h
Temperature Working:-10°~60°;storage-20°~70°
Install Embedded snap-fit
Guarantee Whole computer free for maintain in 1 year
Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain
Packing list N.W. 4.5KG
Product size(not in cluding brackt) 414*270*60.5mm
Range for embedded trepanning 396*252mm
Carton size 500*355*125mm
Power adapter Available for purchase
Power line Available for purchase
Parts for install Embedded snap-fit * 4,PM4x30 screw * 4

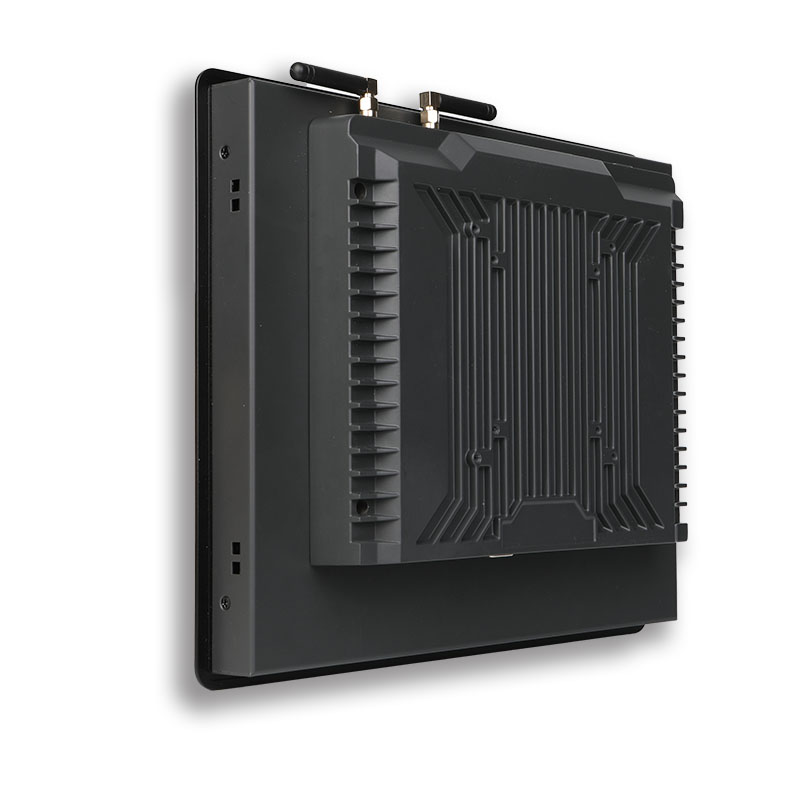

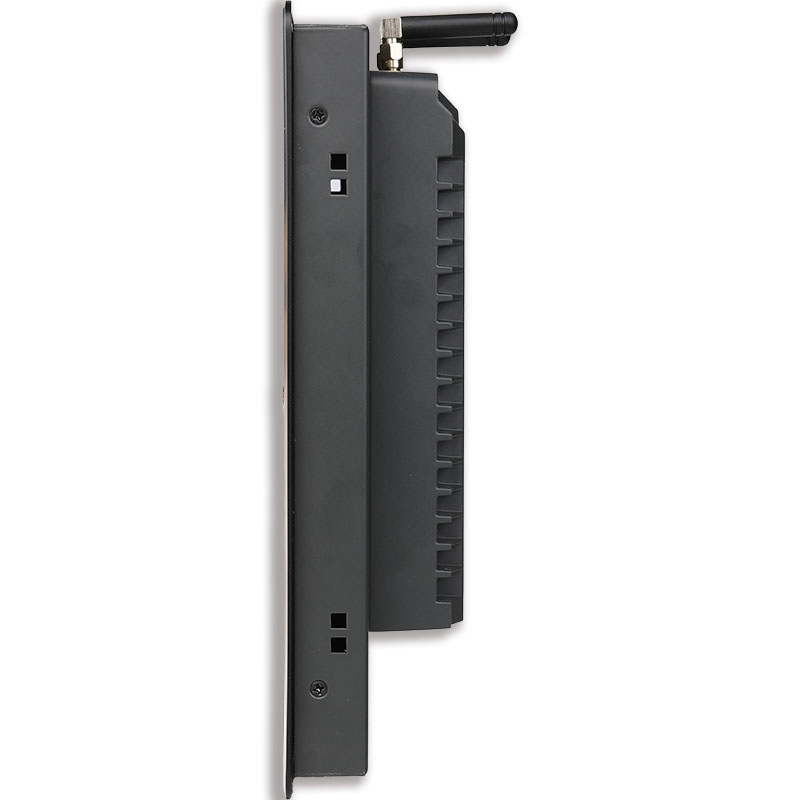

Factory Custom Production All In One Computer
Industrial pc
Industrial pc
Industrial pc

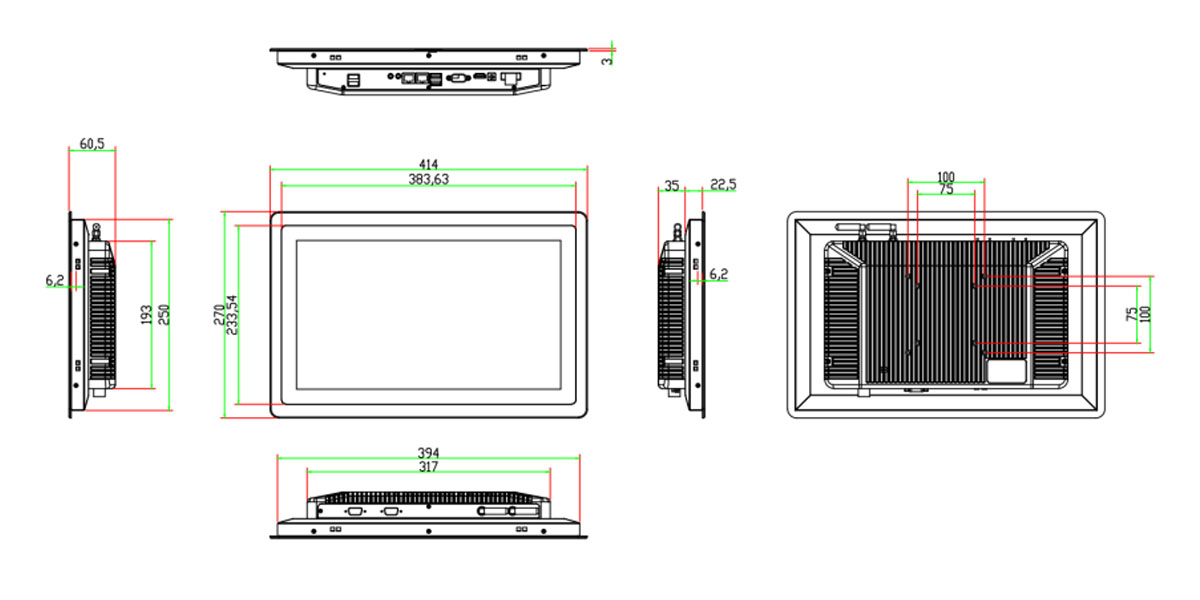

Engineering dimention drawing:

Factory Custom Production All In One Computer15.6

Penny

Web Content Writer

4 years of experience

This article is edited by Penny, the website content writer of COMPT, who has 4 years working experience in the industrial PCs industry and often discusses with colleagues in R&D, marketing and production departments about the professional knowledge and application of industrial controllers, and has a deep understanding of the industry and products.

Please feel free to contact me to discuss more about industrial controllers. zhaopei@gdcompt.com
