Customized 7-inch Embedded Capacitive Touch Android all-in-one PCs

Short Description:

  • 7 inch capacitive touch screen
  • Embedded installation (optional)
  • Resolution 1024 * 768
  • RK3568
  • 2G+16G
  • 1 * RS485
  • Bandwidth pressure

Product Detail

Parameter

Product Tags

Panel PCs Video Display:

Features of  Industrial embedded computers:

Today I will introduce you to COMPT's customized style - embedded industrial Android all-in-one machine. This 7-inch Android all-in-one device features a black exterior design, equipped with a capacitive touch screen, supports a bright temperature display, and has a 1024 * 768 resolution, showcasing clear visual effects. Our embedded industrial Android all-in-one machine is equipped with a powerful RK3568-2G+16G processor, delivering excellent performance. In addition, it is equipped with an RS485 interface for convenient data transmission and communication. In order to meet the needs of different regions, our products support European 4G networks and can provide faster and more stable network connections.

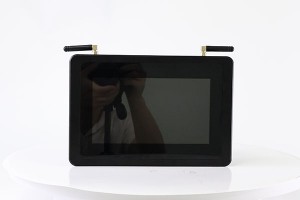

android all in one pc 1

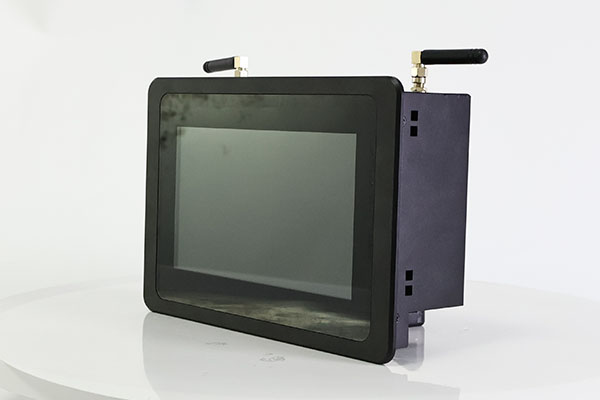

android all in one pc 3

We also provide customized services to customize different functions and configurations according to your needs, making the products more suitable for your special needs. Whether you are using it in industrial automation, intelligent device control, commercial display, or other fields, our embedded industrial Android all-in-one machine can provide you with reliable solutions.

Whether indoors or outdoors, it can adapt to various complex environments and maintain stable operation.

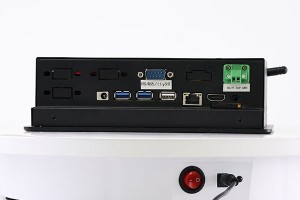

android all in one pc 5

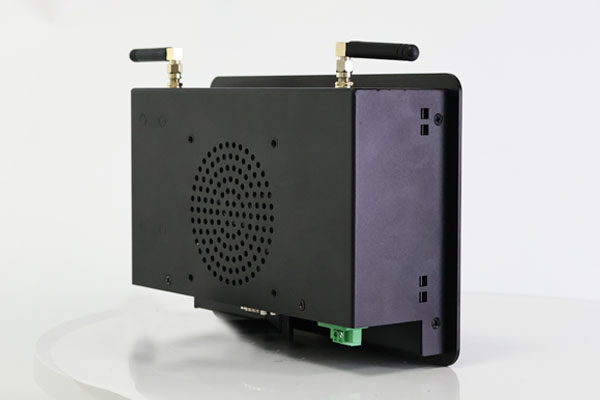

android all in one pc 6

Hardware Configuration information:

Name Android industrial Panel PC
Display Screen Size 7 inch
Screen Resolution 1024*600
Luminous 350 cd/m2
Color Quantitis 16.7M
Contrast 1000:1
Visual Range 85/85/85/85(Typ.)(CR≥10)
Touch Parameter Reaction Type  Capacitive touch
Lifetime >50 million times
Surface Hardness >7H
Effective Touch Strength  45g
Glass Type Chemical reinforced perspex
Luminousness >85%
Hardware MAINBOARD MODEL RK3568
CPU Quad-core Cortex-A55 up to 2.0GHz
GPU Mali-G52 GPU
Memory 2G
Harddisk 16G
Operate system Android 11
3G Module optional
4G Module Included
WIFI 2.4G
Bluetooth BT4.2
GPS optional
MIC optional
RTC Supporting
Wake on lane  Supporting
Timer switch Supporting
System upgrade Supporting hardware TF/USB upgrade
Interfaces MAINBOARD MODEL RK3568
DC Port 1 1*DC12V/5525 socket
DC Port 2 1*DC9V-36V / 5.08mm phoenix 3 pin INCLUDE
HDMI 1*HDMI
USB-OTG 1*USB3.0
USB-HOST 1*USB2.0
RJ45 Ethernet 1*10M/100M/1000M Self-adaptive ethernet
SD/TF 1*TF datas storage,maximum 128G
Earphone jack 1*3.5mm Standard
Serial-Interface RS232 0*COM
Serial-Interface RS422 optional
Serial-Interface RS485 1*RS485
SIM Card SIM card slot external



Industrial embedded Solution:

https://www.gdcompt.com/solution/
Industrial computer in AGV Forklift solutions
Industrial android panel cp in cnc machine Solutionr
Delivery Locker
Industrial computers in Intelligent Transportation solutions
Industrial computers in intelligent security solutions
HMI
Industrial Android All-in-One Solution in Smart Home Robotics
https://www.gdcompt.com/solution/smart-agriculture-solution/
industrial computer Heavy Industry Equipment Solution
1
Hospital self-service inquiry and payment equipment

Embedded industrial Android all-in-one machines are widely used in various fields, and the following are some common application scenarios:

1. Industrial automation: The embedded industrial Android all-in-one machine can be used in industrial control systems to monitor and control the operating status of equipment in real-time, improving production efficiency and automation level.

2. Intelligent device control: The embedded industrial Android all-in-one machine can be connected to intelligent devices, such as smart homes and smart parking lot systems, and can control the operation and monitoring of various devices through touch screen interfaces.

3. Commercial display: Embedded industrial Android all-in-one machines can be used as terminal devices for commercial display, displaying product information, advertising, navigation, etc., to attract customers and provide a better user experience.

4. Transportation: Embedded industrial Android all-in-one machines can be embedded into transportation vehicles, such as buses, taxis, etc., for advertising, navigation, and passenger information display inside the vehicle.

5. Medical equipment: The embedded industrial Android all-in-one machine can be used for medical devices, such as medical instruments, nursing beds, etc., providing functions such as user interface, data display, and remote monitoring.

6. Financial field: Embedded industrial Android all-in-one machines can be used for financial devices such as self-service banks and payment terminals, providing convenient self-service and transaction functions.

In summary, the embedded industrial Android all-in-one machine has a wide range of application fields, and its stability and highly customized characteristics make it an ideal choice for various industries.

If you are interested in our embedded industrial Android all-in-one machine, we are happy to provide you with more detailed information. Please feel free to contact our sales team and thank you for choosing our product.

Penny

Web Content Writer

4 years of experience

This article is edited by Penny, the website content writer of COMPT, who has 4 years working experience in the industrial PCs industry and often discusses with colleagues in R&D, marketing and production departments about the professional knowledge and application of industrial controllers, and has a deep understanding of the industry and products.

Please feel free to contact me to discuss more about industrial controllers. zhaopei@gdcompt.com


  • Previous:
  • Next:

  • Name Android industrial Panel PC
    Display Screen Size 7 inch
    Screen Resolution 1024*600
    Luminous 350 cd/m2
    Color Quantitis 16.7M
    Contrast 1000:1
    Visual Range 85/85/85/85(Typ.)(CR≥10)
    Touch Parameter Reaction Type  Capacitive touch
    Lifetime >50 million times
    Surface Hardness >7H
    Effective Touch Strength 45g
    Glass Type Chemical reinforced perspex
    Luminousness >85%
    Hardware MAINBOARD MODEL RK3568
    CPU Quad-core Cortex-A55 up to 2.0GHz
    GPU Mali-G52 GPU
    Memory 2G
    Harddisk 16G
    Operate system Android 11
    3G Module optional
    4G Module Included
    WIFI 2.4G
    Bluetooth BT4.2
    GPS optional
    MIC optional
    RTC Supporting
    Wake on lane Supporting
    Timer switch Supporting
    System upgrade Supporting hardware TF/USB upgrade
    Interfaces MAINBOARD MODEL RK3568
    DC Port 1 1*DC12V/5525 socket
    DC Port 2 1*DC9V-36V / 5.08mm phoenix 3 pin INCLUDE
    HDMI 1*HDMI
    USB-OTG 1*USB3.0
    USB-HOST 1*USB2.0
    RJ45 Ethernet 1*10M/100M/1000M Self-adaptive ethernet
    SD/TF 1*TF datas storage,maximum 128G
    Earphone jack 1*3.5mm Standard
    Serial-Interface RS232 0*COM
    Serial-Interface RS422 optional
    Serial-Interface RS485 1*RS485
    SIM Card SIM card slot external
    Parameter Material Sand blasting oxygenated aluminum craft for the front surface frame
    Color Black
    Power adapter AC 100-240V  50/60Hz  CCC certificated、CE certificated
    Power dissipation ≤10W
    Power output DC12V / 5A
    Other Parameter Backlight lifetime 50000h
    Temperature Working:-10°~60°;Storage-20°~70°
    Install mode Embedded snap-fit
    Guarantee 1 year
    Packing List N.W. 1.7KG
    Power adapter OPTIONAL
    Power line optional
    Parts for install Embedded snap-fit * 4,PM4x30 screw * 4
