10.1 inch J4125 fanless industrial panel computer with All in one touch embedded pc

Short Description:

10.1 inch J4125 fanless industrial panel computer with All in one touch embedded pc, packing all the power of a personal computer into a sleek, compact design. This device is the perfect solution for anyone who wants a complete computing machine that takes up less space, increases productivity, and provides a great user experience.

The All in One Computer Touch Panel PC also features a range of connectivity options including Wi-Fi, Bluetooth and USB ports. It also comes with a webcam and built-in microphone, perfect for video conferencing and video calling. The device provides high-quality video and audio output, making it ideal for both personal and professional use.


Product Detail

Product Tags

Products Video

All in one computer touch panel pc industrial with fanless embedded

This video shows the product in 360 degrees.

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

Product feature:

One of the essential characteristics of this product is its powerful performance. The device runs on a high-performance processor, ensuring users have a seamless computing experience. It features an Intel i5 or i7 processor for incredible speed and efficiency. It enables users to run applications, juggle multiple programs, and browse the Internet with ease, all while maintaining high levels of performance and speed.

The device comes with a spacious hard drive that ensures the user has enough storage space for all the files and documents. Hard drives are usually 1TB or larger, which is more than enough to store a variety of files. Users can store movies, music, documents, and even install multiple application software without worrying about insufficient storage space.

The device also comes with ample memory, which boosts its performance. RAM is usually 8GB or more, giving users enough room to run multiple programs simultaneously. It ensures that users do not experience lag while multitasking, and that the system does not hang or crash.

All in one computer touch panel pc
All in one computer

Product superiority:

  • Industrial aesthetic design
  • Streamlined appearance design
  • Independent research and development independent mold opening
  • Stable performance and low power consumption
  • Front panel waterproof design
  • Flat panel up to IP65 waterproof standard
  • GB2423 anti-vibration standard
  • Added shock-proof EVA material
  • Recessed cabinet installation
  • 3mm tightly fitted to the embedded cabinet
  • Fully enclosed dust-proof design
  • Greatly improve the service life of the fuselage
  • Aluminum alloy body
  • Aluminum alloy die-casting integrated forming
  • EMC/EMI Anti-interference standard Anti-electromagnetic interference

Solution:

Industrial computers in Intelligent Transportation solutions
Industrial Android All-in-One Solution in Smart Home Robotics
Touch computer solutions in intelligent agriculture
Industrial computers in intelligent security solutions
Power cabinet-1
Industrial android panel cp in cnc machine Solution

Parameter information:

Display Screen Size 10.1 inch
Screen Resolution 1280*800
Luminous 350 cd/m2
Color Quantitis 16.7M
Contrast 1000:1
Visual Range 85/85/85/85(Typ.)(CR≥10)
Display Size 217 (W) × 135.6 (H)mm
Touch parameter Reaction Type Electric capacity reaction
Lifetime More than 50 miliion times
Surface Hardness >7H
Effective Touch Strength 45g
Glass Type Chemical reinforced perspex
Luminousness >85%
Hardware MAINBOARD MODEL J4125
CPU Integrated Intel®Celeron J4125 2.0GHz quad-core
GPU Integrated Intel®UHD Graphics  600 core card
Memory 4G(maxmum 16GB)
Harddisk 64G solid state disk(128G replacement available)
Operate system Default Windows 10(Windows 11/Linux/Ubuntu replacement available)
Audio ALC888/ALC662 6 channels Hi-Fi Audio controller/Supporting MIC-in/Line-out
Network Integrated giga network card
Wifi Internal wifi antenna,supporting wireless connect

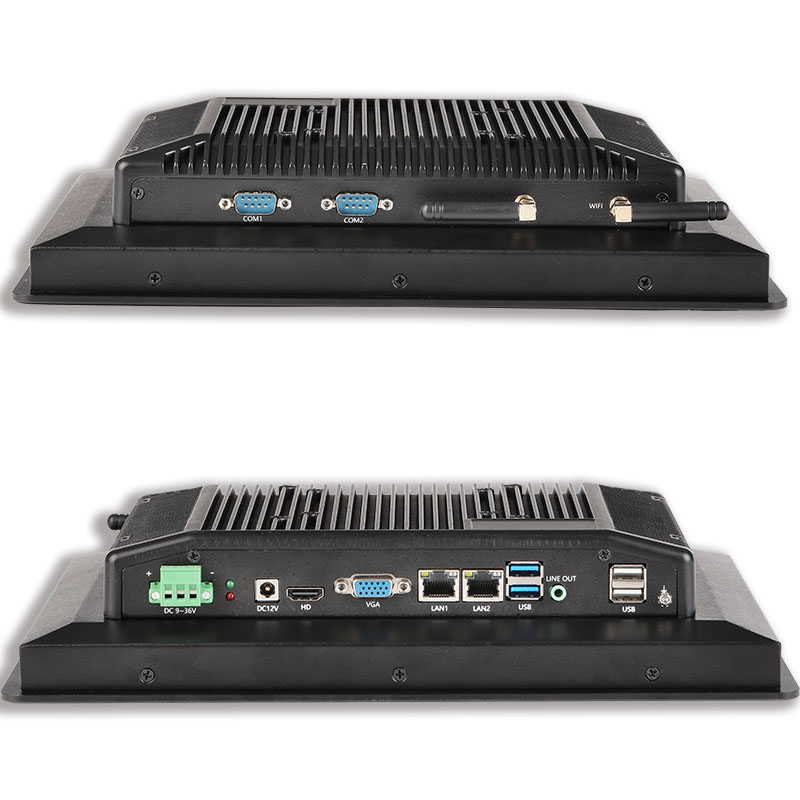

Interfaces DC Port 1 1*DC12V/5525 socket
DC Port 2 1*DC9V-36V/5.08mm phonix 4 pin
USB 2*USB3.0,1*USB 2.0
Serial-Interface RS232 0*COM(upgrade able)
Ethernet 2*RJ45 giga ethernet
VGA 1*VGA
HDMI 1*HDMI OUT
WIFI 1*WIFI antenna
Bluetooth 1*Bluetooch antenna
Audio imput & output 1*earphone & MIC two-in-one
Parameter Material CNC aluminum oxgenated drawing craft for the front surface frame
Color Black
Power adapter AC 100-240V  50/60Hz CCC certificated、CE certificated
Power dissipation ≈20W
Power output DC12V / 5A
Other parameter Backlight lifetime 50000h
Temperature Working:-10°~60°;storage-20°~70°
Install Embedded snap-fit
Guarantee Whole computer free for maintain in 1 year
Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain
Packing list N.W. 2KG
Product size(not in cluding brackt) 277*195.6*54mm
Range for embedded trepanning 263*182mm
Carton size 362*280.5*125mm
Power adapter Available for purchase
Power line Available for purchase
Parts for install Embedded snap-fit * 4,PM4x30 screw * 4
