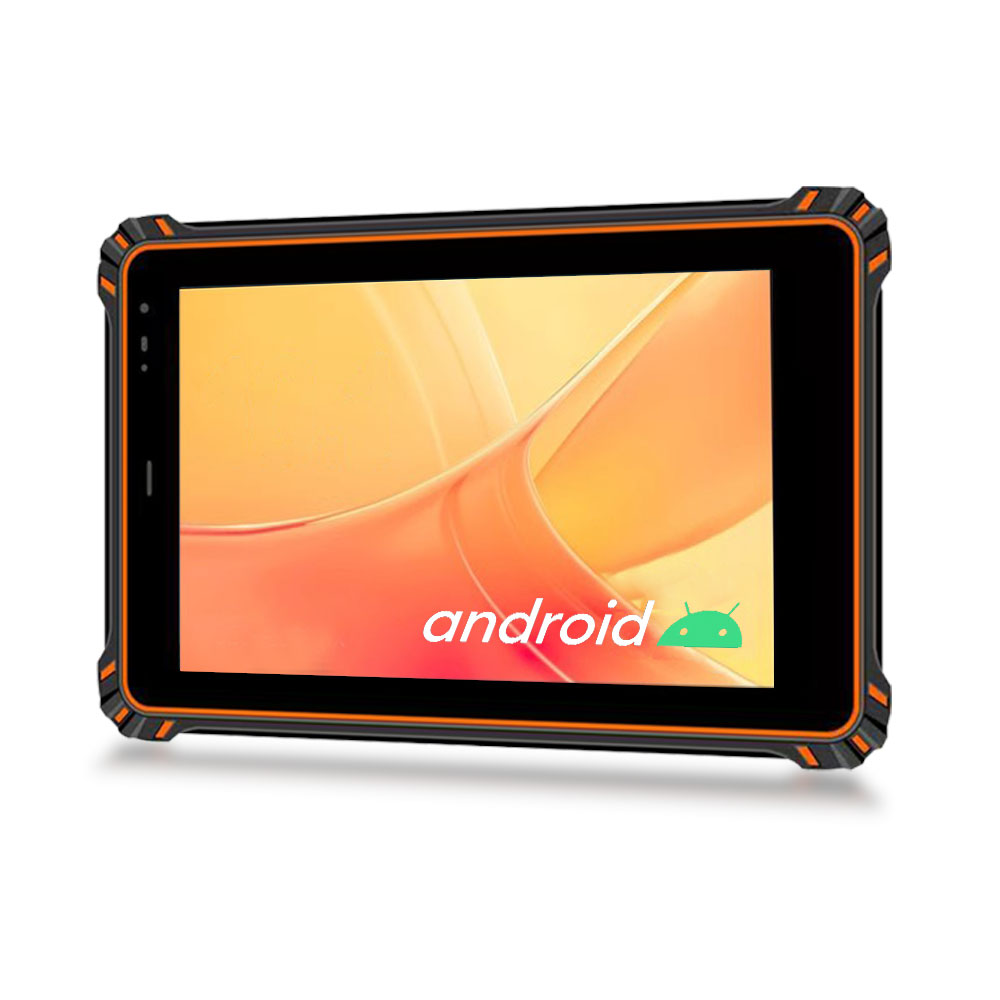

8 Inch 10″ Industrial Rugged Android 10 Tablet PC With GPS
Video Presentation:
The COMPT Rugged Android PC is equipped multiple ports such as USB, DC, SIM, TF,RJ45 and RS232 to fulfill various connectivity needs.
Optional 2D scanning head, fingerprint,online/offline ID, HF, LF, UHF, etc. are available.

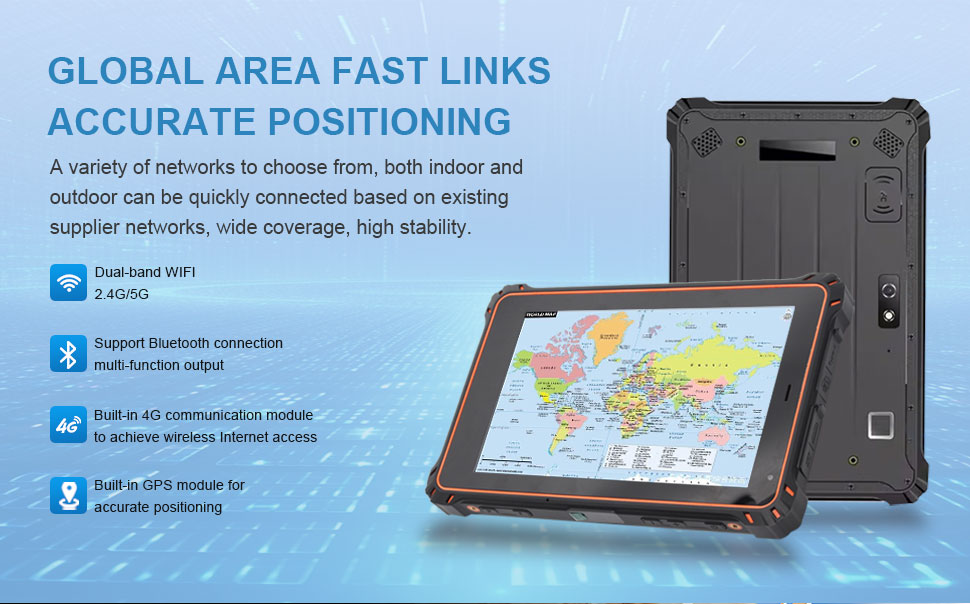

COMPT's tablet PC is equipped with a powerful GPS function to ensure that your location is accurate and reliable.
Whether you are working outdoors or navigating indoors, you can easily find your destination.
In addition, the built-in WiFi module enables you to stay connected to the internet anytime, anywhere, so you can enjoy fast and stable internet whether you're working in a warehouse, factory or outdoors.
To meet your diverse needs, a special QR code scanning function is provided, allowing you to easily decode, scan and manage all QR code information. This facilitates the swift execution of workflows.
The tablet is IP67 rated water and dust resistant, protecting your device from liquids and particles. You can count on its durability and reliability no matter how harsh the environment you are working in.
With the support of 4G network, you can easily communicate online, transfer data and monitor remotely.
The fingerprint capture feature ensures the security of your device and provides additional protection. You can rest easy when it comes to the security of confidential documents and sensitive information.

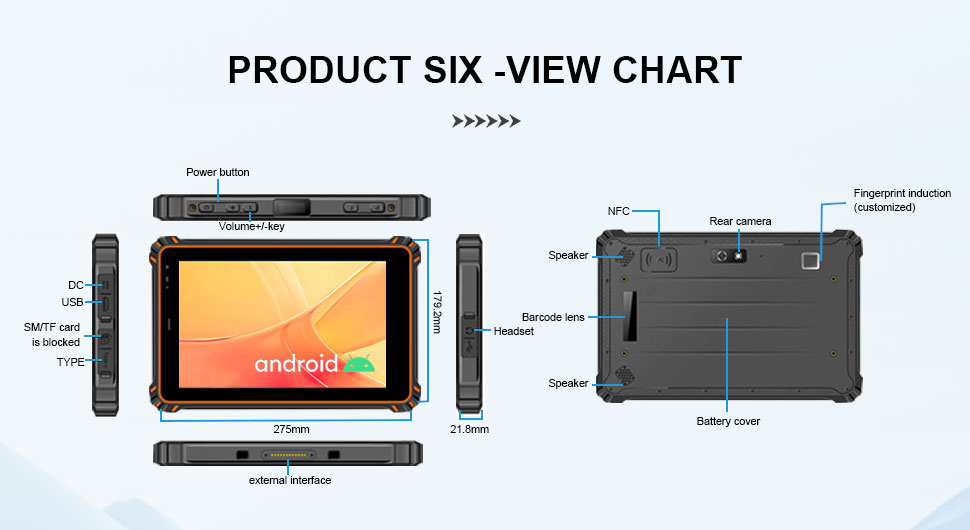

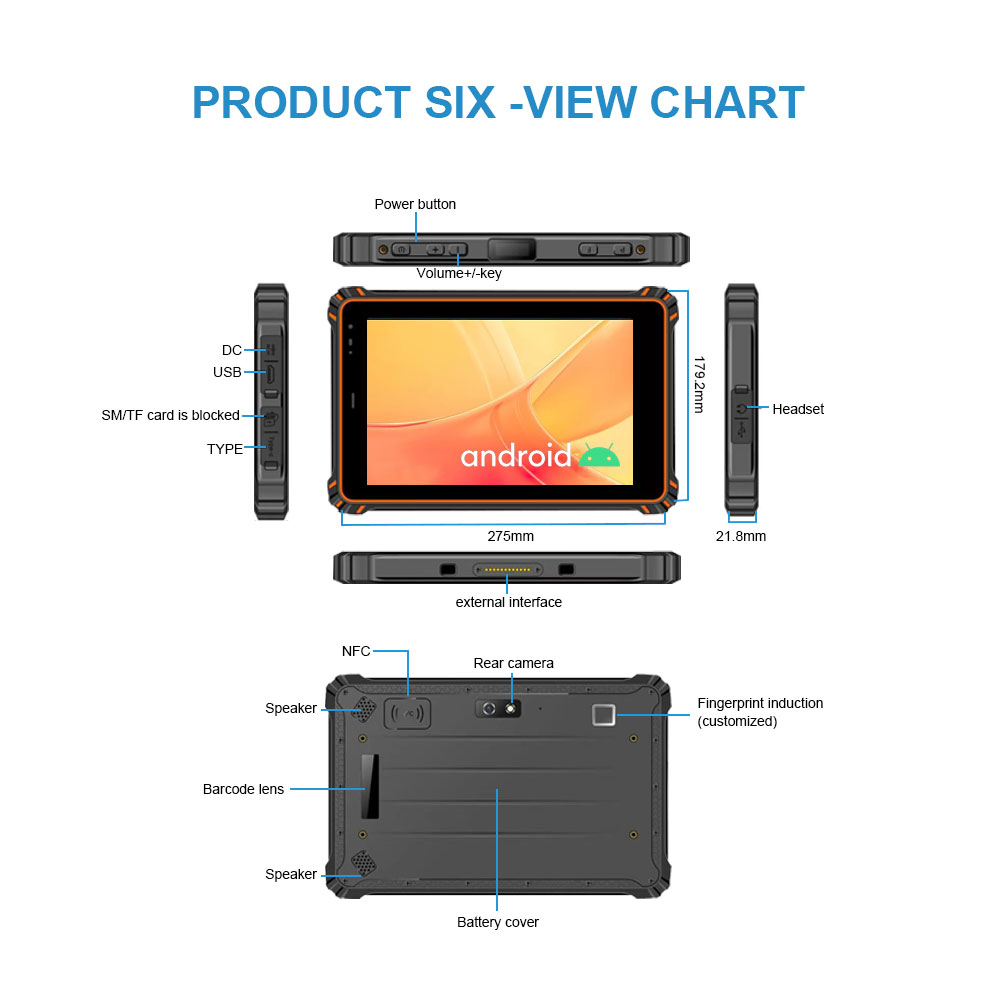

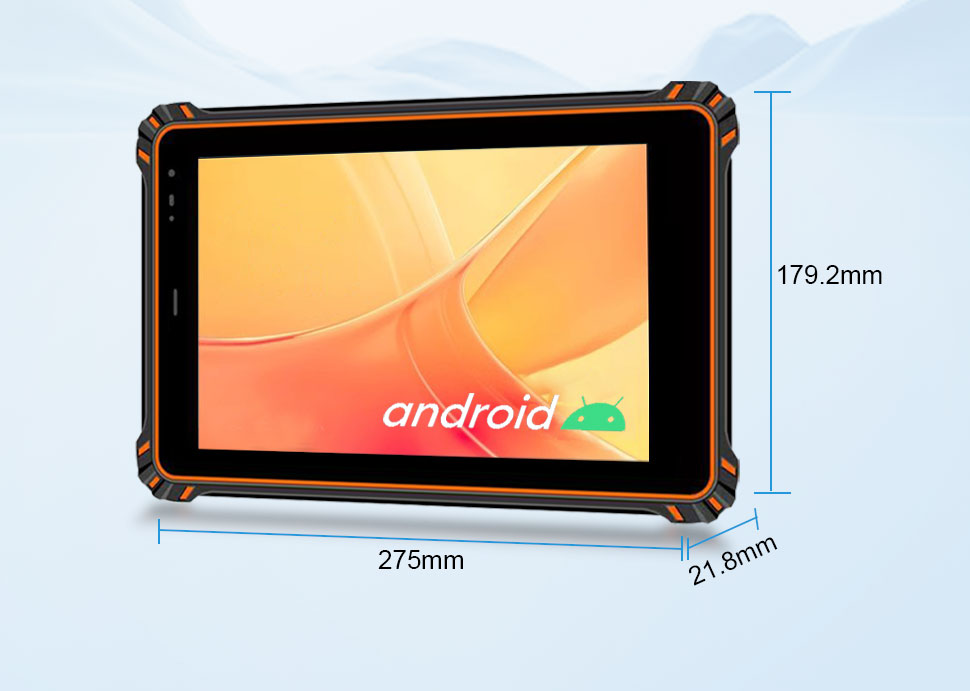

| Physical Spec | Dimension | 226*145*21.8mm | |
| Color | Black | Could Customize color | |
| Platform Spec | CPU | MTK6771，Octa-core，2.0GHZ | |
| RAM | 4GB | 8GB | |
| ROM | 64GB | 128GB | |
| OS | Android 10 with GMS | ||
| Battery | 10000mAh，3.8v lithium- ion battery，endurance 10h（1080P Video + LCD 50% Brightness） | ||
| Indicator | 1：the power ≤10%, the red light blinks. When the adapter is inserted, the red light is steady on for charging 2:10% power ≤90%, insert the adapter red light steady on charging 3: power > 90%, plug the adapter green light steady on charging |
||
| Camera | Front Camera：5MP， Rear Camera：13MP with Auto Focus 1A Flashlight GSM: B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 |
||
| 2G/3G/4G | TD-SCDMA: B38/B39/B40/B41 | ||
| CDMA2000 LTE-FDD: | |||
| B1/B2/B3/B4/B5/B7/B8/B28A/ | |||
| LTE-TDD: B38/B39/B40/B41 | |||
| Location | GPS、Bei Dou，Galileo、GLONASS | Option U-BLOX M8N、 | |
| WIFI | WIFI 802.11(a/b/g/n/ac) | ||
| 2.4G+5.8G | |||
| Bluetooth | Bluetooth 4.2 (BLE) class1 | ||
| transmission range：10m | |||
| Adapter | 5V/3A（DC Port） | 5V/3A（CONINVERS） |
Penny
Web Content Writer
4 years of experience
This article is edited by Penny, the website content writer of COMPT, who has 4 years working experience in the industrial PCs industry and often discusses with colleagues in R&D, marketing and production departments about the professional knowledge and application of industrial controllers, and has a deep understanding of the industry and products.
Please feel free to contact me to discuss more about industrial controllers. zhaopei@gdcompt.com
| Physical Spec | Dimension | 226*145*21.8mm | |
| Color | Black | Could Customize color | |
| Platform Spec | CPU | MTK6771，Octa-core，2.0GHZ | |
| RAM | 4GB | 8GB | |
| ROM | 64GB | 128GB | |
| OS | Android 10 with GMS | ||
| Battery | 10000mAh，3.8v lithium- ion battery，endurance 10h（1080P Video + LCD 50% Brightness） | ||
| Indicator | 1：the power ≤10%, the red light blinks. When the adapter is inserted, the red light is steady on for charging 2:10% power ≤90%, insert the adapter red light steady on charging 3: power > 90%, plug the adapter green light steady on charging |
||
| Camera | Front Camera：5MP， Rear Camera：13MP with Auto Focus 1A Flashlight GSM: B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 |
||
| 2G/3G/4G | TD-SCDMA: B38/B39/B40/B41 | ||
| CDMA2000 LTE-FDD: | |||
| B1/B2/B3/B4/B5/B7/B8/B28A/ | |||
| LTE-TDD: B38/B39/B40/B41 | |||
| Location | GPS、Bei Dou，Galileo、GLONASS | Option U-BLOX M8N、 | |
| WIFI | WIFI 802.11(a/b/g/n/ac) | ||
| 2.4G+5.8G | |||
| Bluetooth | Bluetooth 4.2 (BLE) class1 | ||
| transmission range：10m | |||
| Adapter | 5V/3A（DC Port） | 5V/3A（CONINVERS） |
| Display | Resolution | 800*1280，8 寸IPS LCD，16:10 | 800cd/㎡（1200*1920） |
| Brightness | 350cd/㎡ | 1000cd/㎡（800*1280） | |
| Touch panel | GT9110P,5 Points Touch/ Max 10Points Touch | Wet hand touch, glove touch Active/passive capacitor pen | |
| Glass | Corning Gorilla third generation | AG+AF Coating ， | |
| glass, hardness 7H | AR Coating | ||
| Key | Power | *1 | |
| Volume | *2，Vol+，Vol- | ||
| Self-define | *2，P-Key、F-Key | ||
| Voice | Speaker | *2， 1.2W/8Ω， | |
| IP67 Water proofing； | |||
| Receiver | *1，IP67 Water proofing | ||
| MIC | *1，MIC，IP67 Water proofing | ||
| Port | USB1 | *1，Type-C USB2.0 Support OTG | |
| USB2 | *1，Type-A USB2.0 | ||
| DC | *1，DC 5V/3A, | ||
| HDMI | *1，Mini HDMI | ||
| Earphone | *1，3.5mm Standard earphone | ||
| Pogo Pin | *1，,1pin USB+ Charging | ||
| SIM 卡 | *1，Standard Micro SIM Slot | ||
| TF 卡 | *1，Max Support 256GB | ||
| Sensors | G-Sensor | OK | |
| Gyro-Sensor | OK | ||
| Compass | OK | ||
| Light-Sensor | OK | ||
| P-Sensor | OK |
| Extension Module | NFC | 13.56MHZ | |
| Support:14443A/14443B/15693 | |||
| 13.56MHZ | |||
| HF RFID | / | Support:14443A/14443B/15693 | |
| UHF RFID | / | PR9200，Read distance：1.5M-3M: | |
| Read distance 2：5M-8M | |||
| ID | / | Standard 2th Generation 1: ordinary industrial fingerprint 2: Fingerprint authentication by the Ministry of Public Security 3: FBI certified fingerprint |
|
| Fingerprint | / | ||
| 1D Scanner | / | Zebra SE655 | |
| 2D Scanner | / | Zebra SE4710 | |
| Reliability | IP Protection Level | IP67 | |
| Drop test | 1.2M，Cement floor | ||
| Working temperature | -10℃~50℃ | ||
| Storage temperature | -30℃~70℃ | ||
| Certification | CE | OK | |
| RHOS2.0 | OK | ||
| IEC62133 | OK | ||
| Air and sea survey report | OK | ||
| IP67 | OK | ||
| GMS | OK | ||
| MSDS | Ok | ||
| UN38.3 | Ok | ||

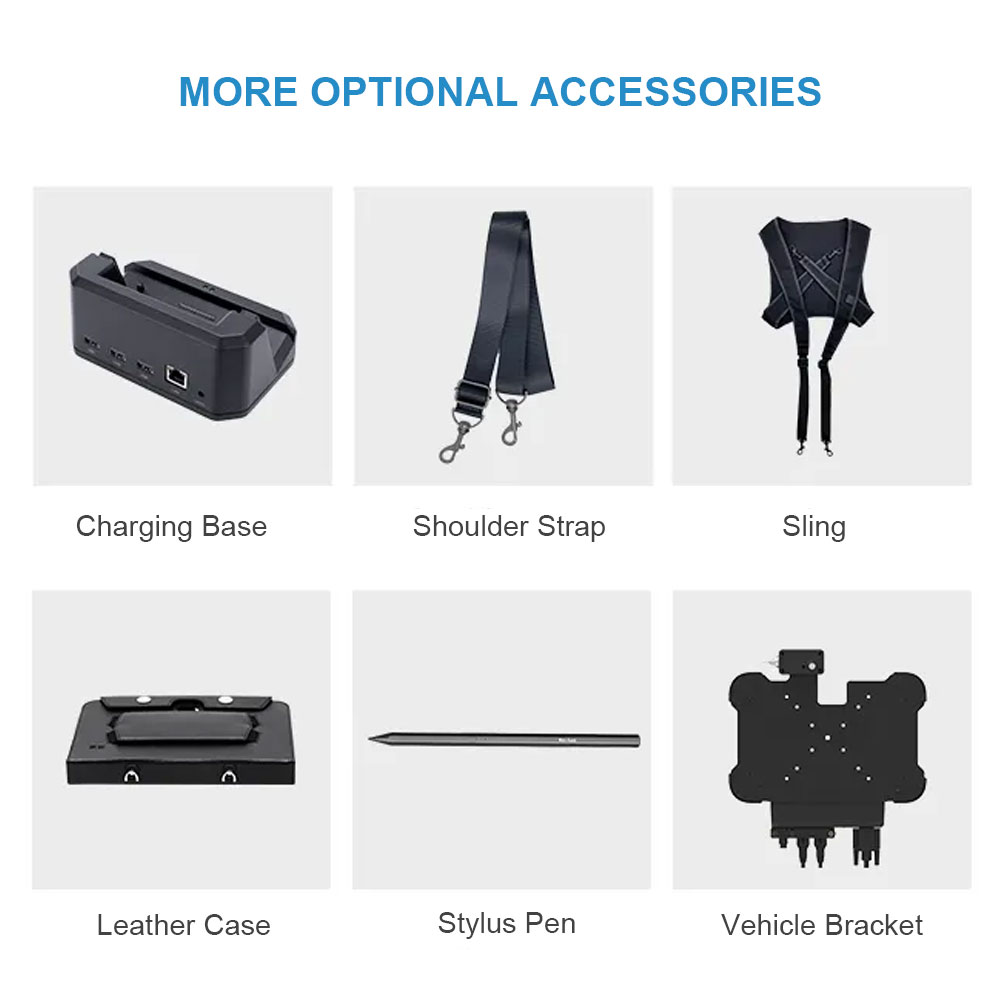

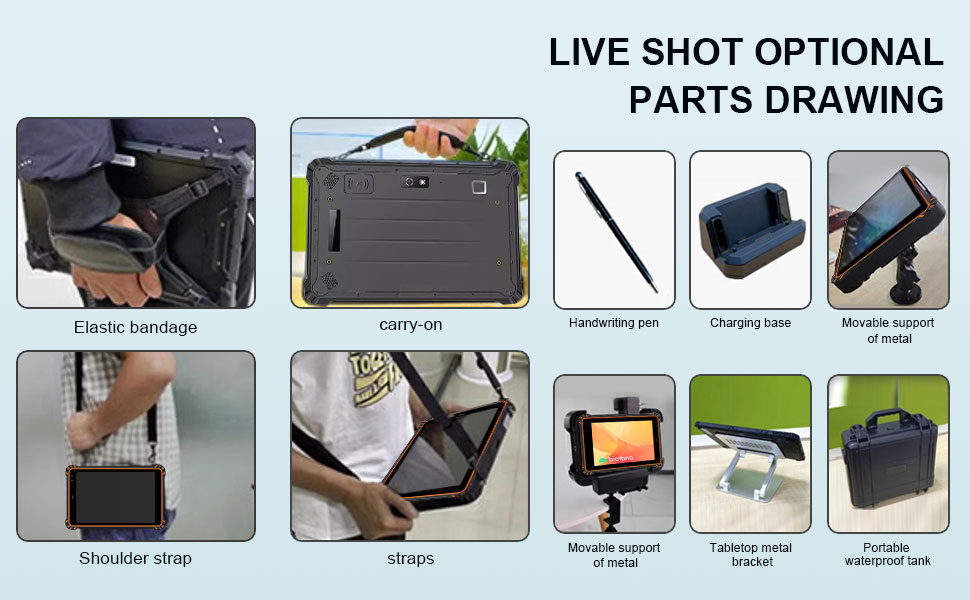

| Accessory | Hand strap | / | Option |
| mounted bracket | / | Option | |
| Standby Battery | / | Option | |
| Docking | / | Option | |
| Type-C Cable | / | Option | |
| OTG Cable | / | Option |
-
