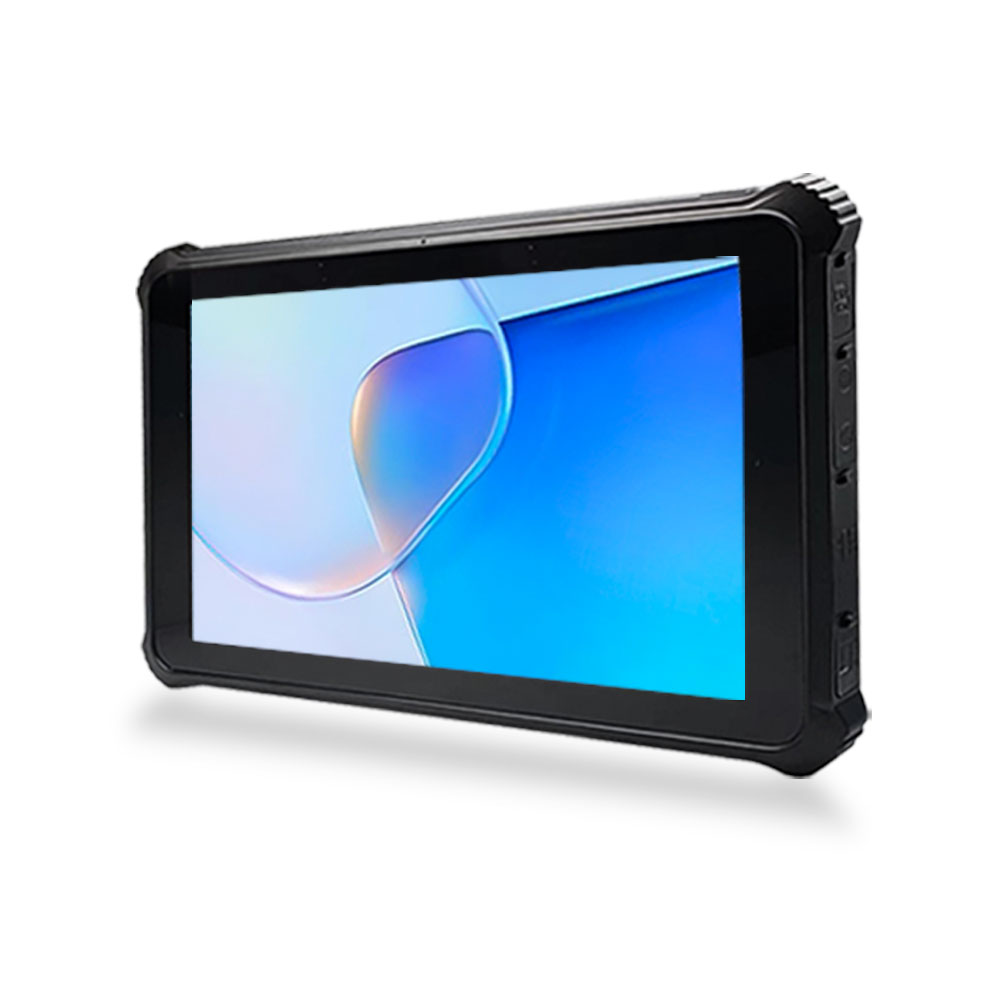

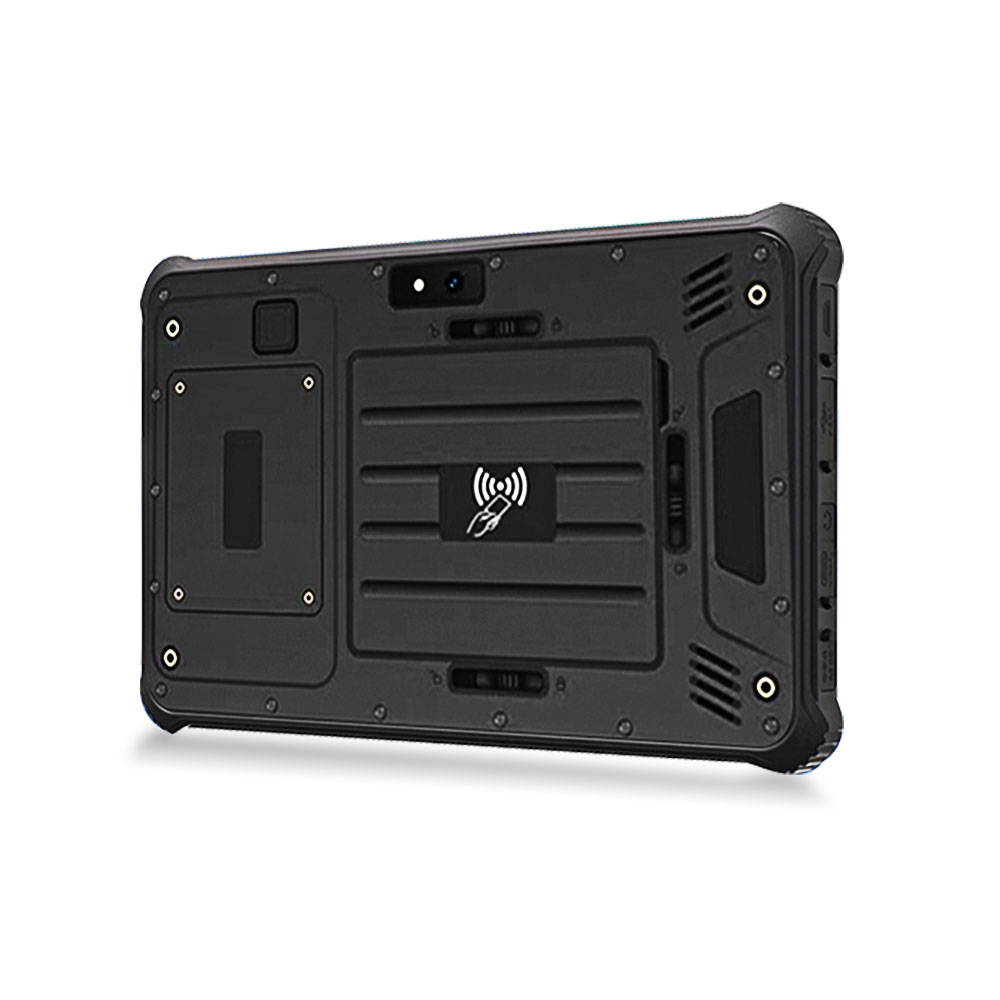

8″ Android 10 Fanless Rugged Tablet With GPS Wifi UHF and QR Code Scanning
COMPT Introducing the Fanless Rugged Tablet - the perfect companion for industrial use. Featuring an 8" high-resolution display, this Android 10 tablet is built to withstand the toughest environments. With its fanless design, it operates quietly and efficiently, ensuring reliable performance even in rugged conditions.
Equipped with GPS functionality, this tablet enables precise location tracking, making it ideal for outdoor applications. Stay connected wherever you go with built-in Wi-Fi, allowing for seamless internet connectivity.
The UHF and QR code scanning capabilities of this tablet further enhance its versatility, enabling quick and accurate data capture.Designed with industry professionals in mind, this rugged tablet is built to withstand shock, vibration, and extreme temperatures. Its durable construction ensures that it can withstand the demands of industrial environments.

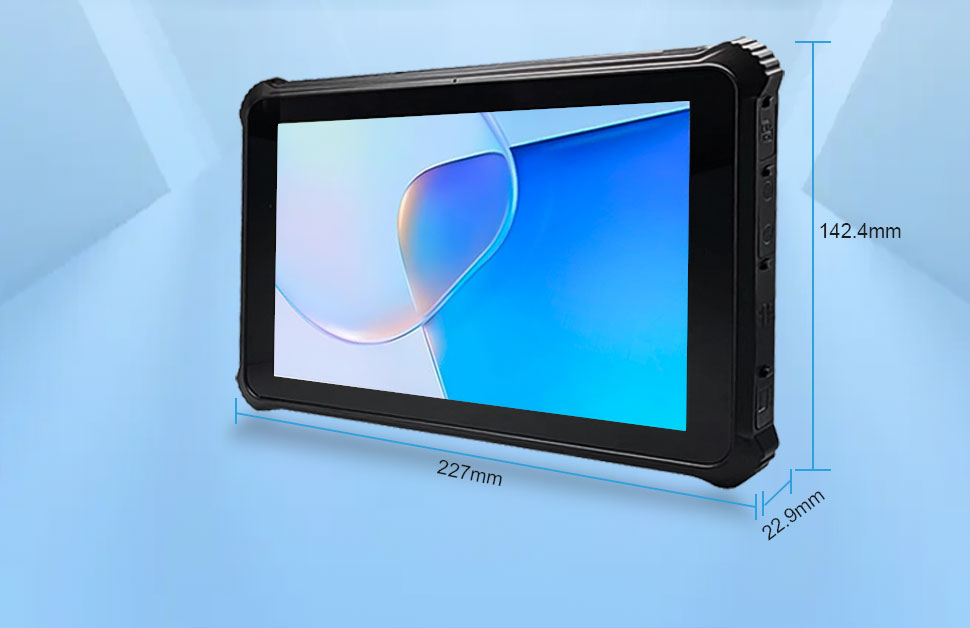

| Physical Spec | Dimension | 226*145*21.8mm | |
| Color | Black | Could Customize color | |
| Platform Spec | CPU | MTK6771，Octa-core，2.0GHZ | |
| RAM | 4GB | 6GB | |
| ROM | 64GB | 128GB | |
| OS | Android 10 with GMS 8500mAh，3.8v lithium- ion battery，Removable，endurance 8h（1080P Video + LCD 50% Brightness） | ||
| Battery | |||
| 1：the power ≤10%, the red light blinks. When the adapter is inserted, the red light is steady on for charging 2:10% power ≤90%, insert the adapter red light steady on charging 3: power > 90%, plug the adapter green light steady on charging |
|||
| Indicator | Front Camera：5MP，Rear Camera：13MP with Auto | ||
| Camera | Focus | ||
| 1A Flashlight GSM: B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 | |||
| 2G/3G/4G | TD-SCDMA: B38/B39/B40/B41 | ||
| CDMA2000 LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28A/ LTE-TDD: B38/B39/B40/B41 | |||
| Location | GPS、Bei Dou，Galileo、GLONASS | Option U-BLOX M8N、 | |
| WIFI | WIFI 802.11(a/b/g/n/ac) 2.4G+5.8G | ||
| Bluetooth | Bluetooth 4.2 (BLE) class1 transmission range：10m | ||
| Adapter | 5V/3A（DC Port） | 5V/3A（CONINVERS） | |
| Display | Resolution | 800*1280，8 寸IPS LCD，16:10 | 800cd/㎡（1200*1920） |
| Brightness | 500cd/㎡ | 1000cd/㎡（800*1280） | |
| Touch panel | GT9110P,5 Points Touch/ Max 10Points Touch | Wet hand touch, glove touch Active/passive capacitor pen | |

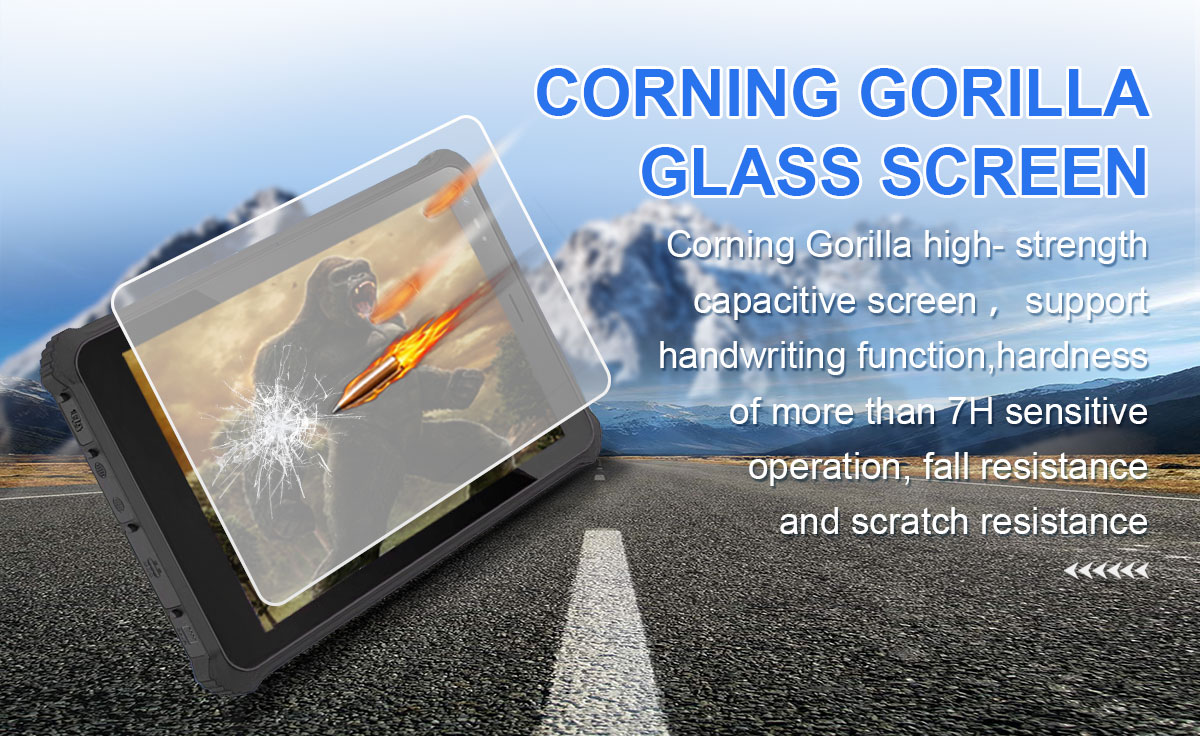

| Glass | Corning Gorilla third generation | AG+AF Coating ， | |
| glass, hardness 7H | AR Coating |
Whether you're working in manufacturing, logistics, or field service, this tablet is engineered to meet your needs.
Experience the power and durability of the Fanless Rugged Tablet. With its advanced features and rugged design, it provides a reliable and efficient solution for industrial applications.
Stay connected, capture data, and navigate with ease - all with one device. Elevate your productivity with this cutting-edge Android 10 tablet. Order your fanless rugged tablet today and conquer any industrial challenge with confidence.
Penny
Web Content Writer
4 years of experience
This article is edited by Penny, the website content writer of COMPT, who has 4 years working experience in the industrial PCs industry and often discusses with colleagues in R&D, marketing and production departments about the professional knowledge and application of industrial controllers, and has a deep understanding of the industry and products.
Please feel free to contact me to discuss more about industrial controllers. zhaopei@gdcompt.com
| Spec | Standard | Option | |
| Physical Spec | Dimension | 226*145*21.8mm | |
| Color | Black | Could Customize color | |
| Platform Spec | CPU | MTK6771，Octa-core，2.0GHZ | |
| RAM | 4GB | 6GB | |
| ROM | 64GB | 128GB | |
| OS | Android 10 with GMS 8500mAh，3.8v lithium- ion battery，Removable，endurance 8h（1080P Video + LCD 50% Brightness） | ||
| Battery | |||
| 1：the power ≤10%, the red light blinks. When the adapter is inserted, the red light is steady on for charging 2:10% power ≤90%, insert the adapter red light steady on charging 3: power > 90%, plug the adapter green light steady on charging |
|||
| Indicator | Front Camera：5MP，Rear Camera：13MP with Auto | ||
| Camera | Focus | ||
| 1A Flashlight GSM: B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 | |||
| 2G/3G/4G | TD-SCDMA: B38/B39/B40/B41 | ||
| CDMA2000 LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28A/ LTE-TDD: B38/B39/B40/B41 | |||
| Location | GPS、Bei Dou，Galileo、GLONASS | Option U-BLOX M8N、 | |
| WIFI | WIFI 802.11(a/b/g/n/ac) 2.4G+5.8G | ||
| Bluetooth | Bluetooth 4.2 (BLE) class1 transmission range：10m | ||
| Adapter | 5V/3A（DC Port） | 5V/3A（CONINVERS） | |
| Display | Resolution | 800*1280，8 寸IPS LCD，16:10 | 800cd/㎡（1200*1920） |
| Brightness | 500cd/㎡ | 1000cd/㎡（800*1280） | |
| Touch panel | GT9110P,5 Points Touch/ Max 10Points Touch | Wet hand touch, glove touch Active/passive capacitor pen | |
| Glass | Corning Gorilla third generation | AG+AF Coating ， | |
| glass, hardness 7H | AR Coating | ||

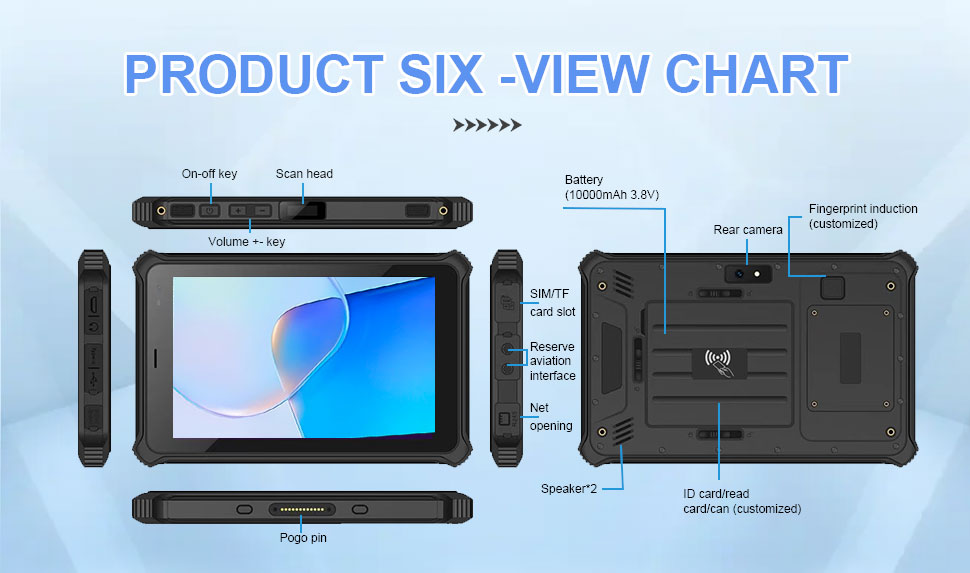

| Key | Power | *1 | |
| Volume | *2，Vol+，Vol- | ||
| Self-define | *2，P-Key、F-Key | ||
| Voice | Speaker | *2， 1.2W/8Ω，IP67 Water proofing； | |
| Receiver | *1，IP67 Water proofing | ||
| MIC | *1，MIC，IP67 Water proofing | ||

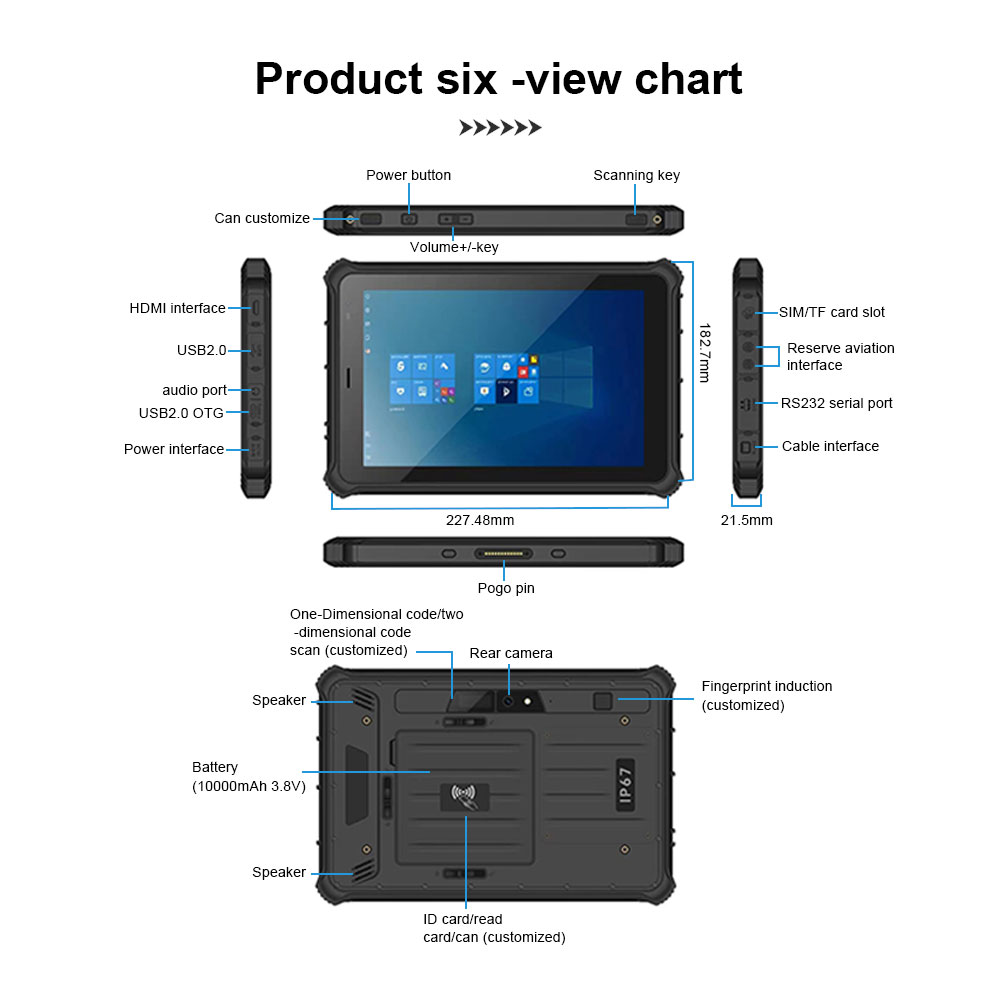

| Port | USB1 | *1，Type-C USB2.0 Support OTG | |
| USB2 | *1，Type-A USB2.0 | ||
| DC | *1，DC 5V/3A, | ||
| HDMI | *1，Mini HDMI | ||
| Earphone | *1，3.5mm Standard earphone | ||
| Pogo Pin | *1，,1pin USB+ Charging | ||
| Ethernet | *1，RJ45， 100Mbps | ||
| CONINVERS | *2， | RS232/USB/DC5V/CAN BUS | |
| SIM | *1，Standard Micro SIM Slot | ||
| TF | *1，Max Support 256GB | ||
| Sensors | G-Sensor | OK | |
| Gyro-Sensor | OK | ||
| Compass | OK | ||
| Light-Sensor | OK | ||
| P-Sensor | OK | ||

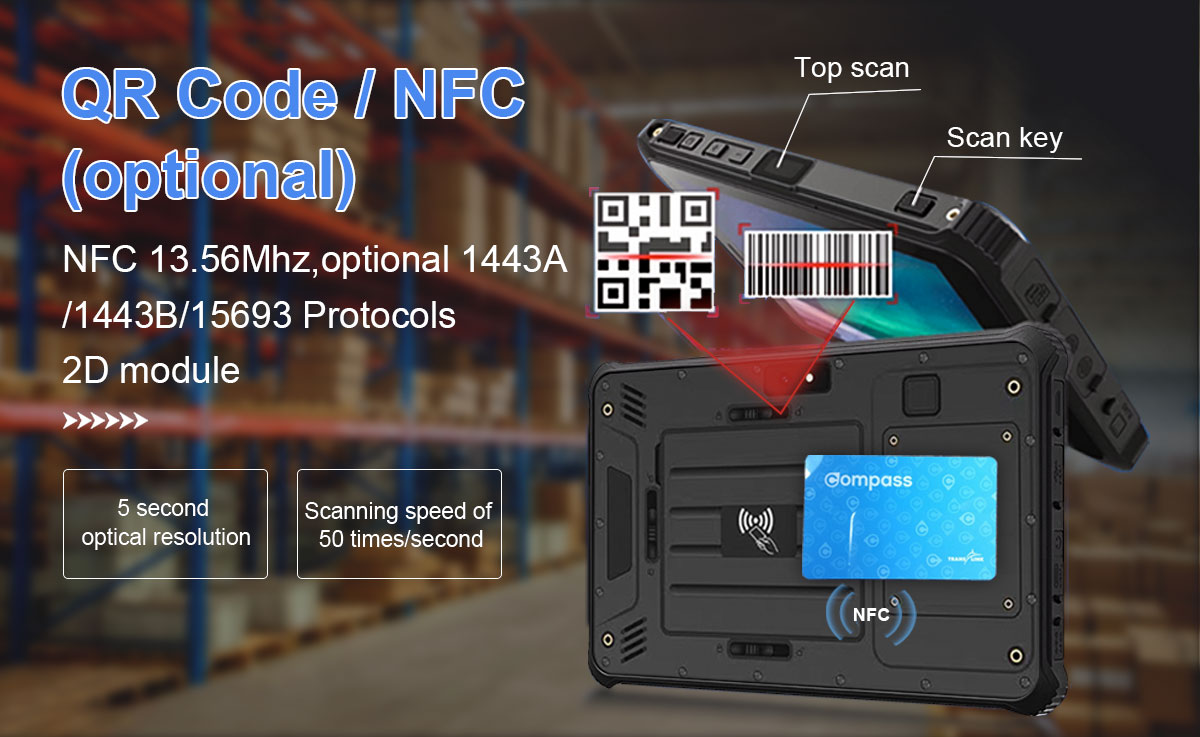

| Extension Module | NFC | 13.56MHZ | |
| Support:14443A/14443B/15693 | |||
| 13.56MHZ | |||
| HF RFID | / | Support:14443A/14443B/15693 | |
| UHF RFID | / | PR9200，Read distance：1.5M-3M: | |
| Read distance 2：5M-8M | |||
| ID | / | Standard 2th Generation | |
| 1: ordinary industrial fingerprint | |||
| 2: Fingerprint authentication by the Ministry of Public Security | |||
| 3: FBI certified fingerprint | |||
| Fingerprint | / | ||
| 1D Scanner | / | Zebra SE655 | |
| 2D Scanner | / | Zebra SE4710 | |

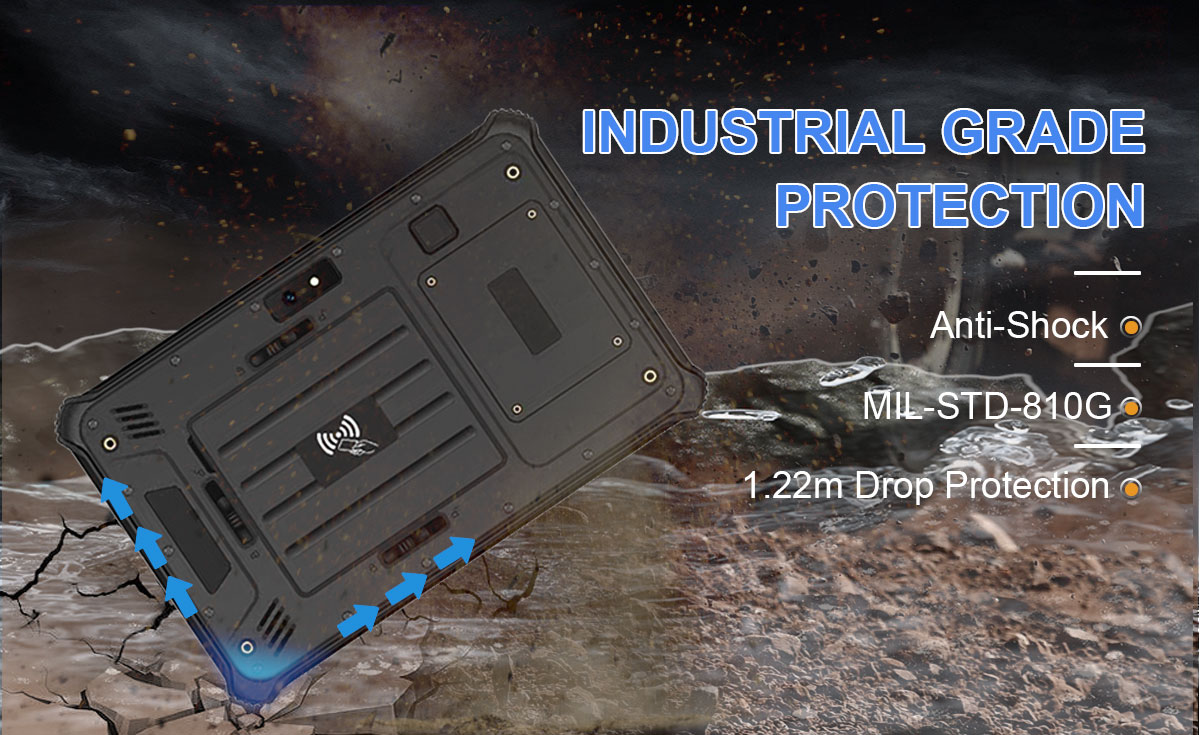

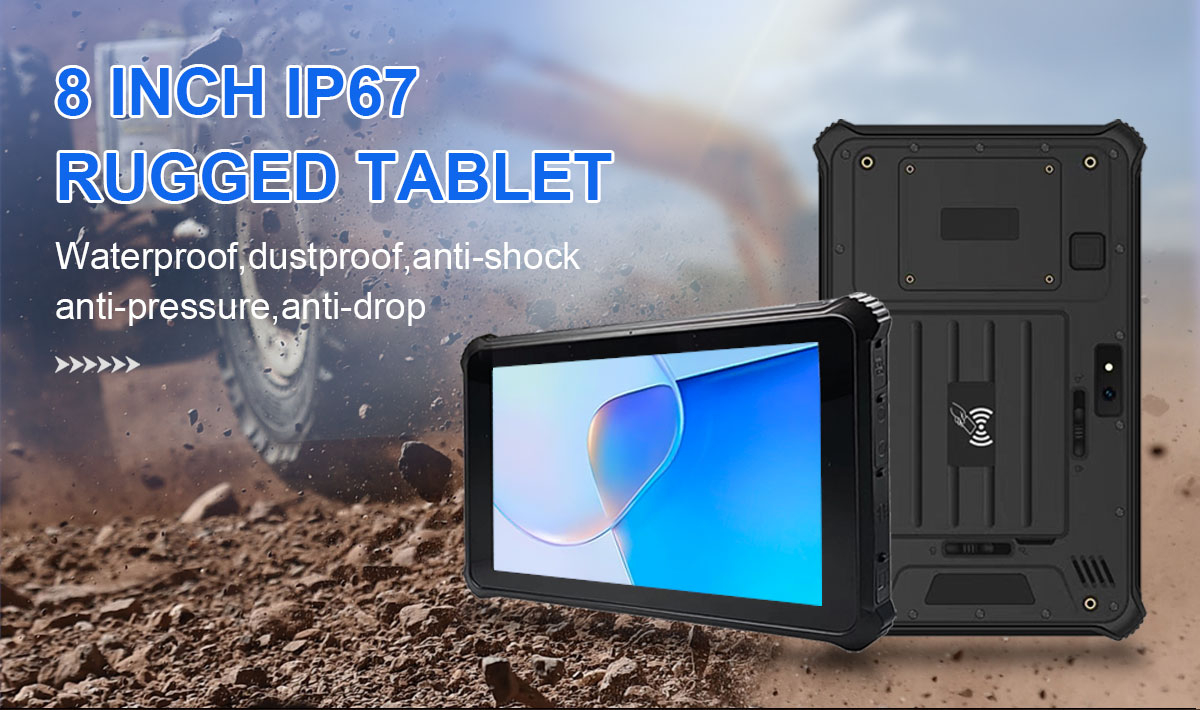

| Reliability | IP Protection Level | IP67 | |
| Drop test | 1.2M，Cement floor | ||
| Working temperature | -10℃~50℃ | ||
| Storage temperature | -30℃~70℃ | ||
| Certification | CE | OK | |
| RHOS2.0 | OK | ||
| IEC62133 | OK | ||
| Air and sea survey report | OK | ||
| IP67 | OK | ||
| GMS | OK | ||
| MSDS | Ok | ||
| UN38.3 | Ok | ||

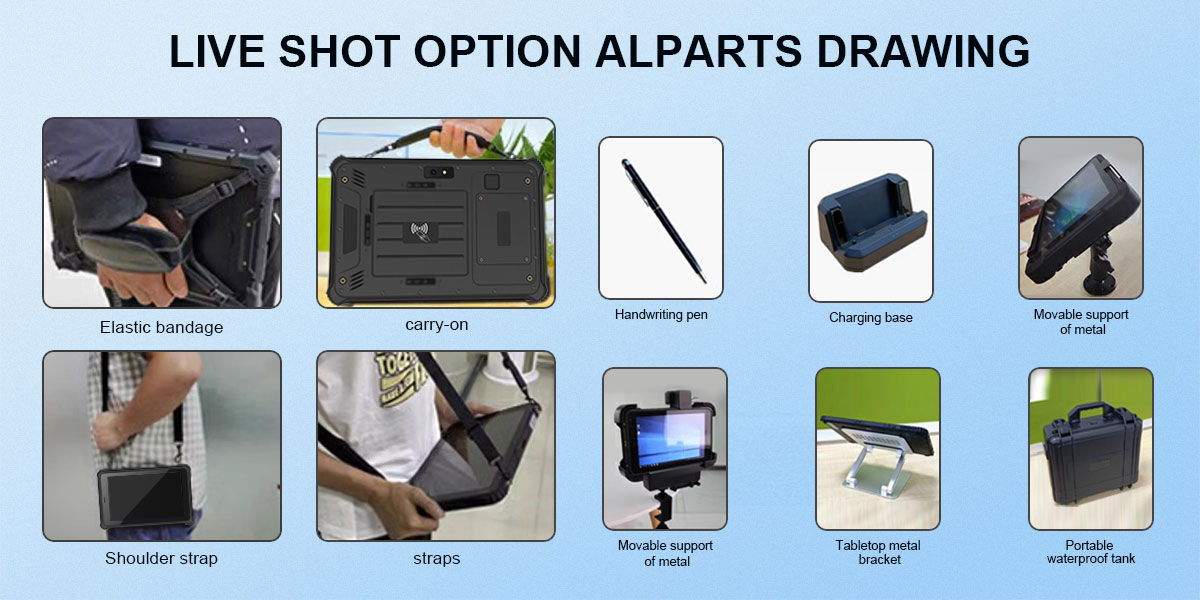

| Accessory | Hand strap | / | Option |
| mounted bracket | / | Option | |
| Standby Battery | / | Option | |
| Docking | / | Option | |
| Type-C Cable | / | Option | |
| OTG Cable | / | Option | |
-
