7*24h stable operation of 12 inch Industrial Android panel AIO

Short Description:

Industrial Android tablet is an industrial Android touch display intelligent terminal specially developed and designed by our company.

Equipped with 12 inches full view LCD screen and capacitive touch screen to form a powerful human-computer interaction system.

The product has a thin appearance, smooth, high overall fit, easy installation, can meet the indoor and semi-outdoor environment use.

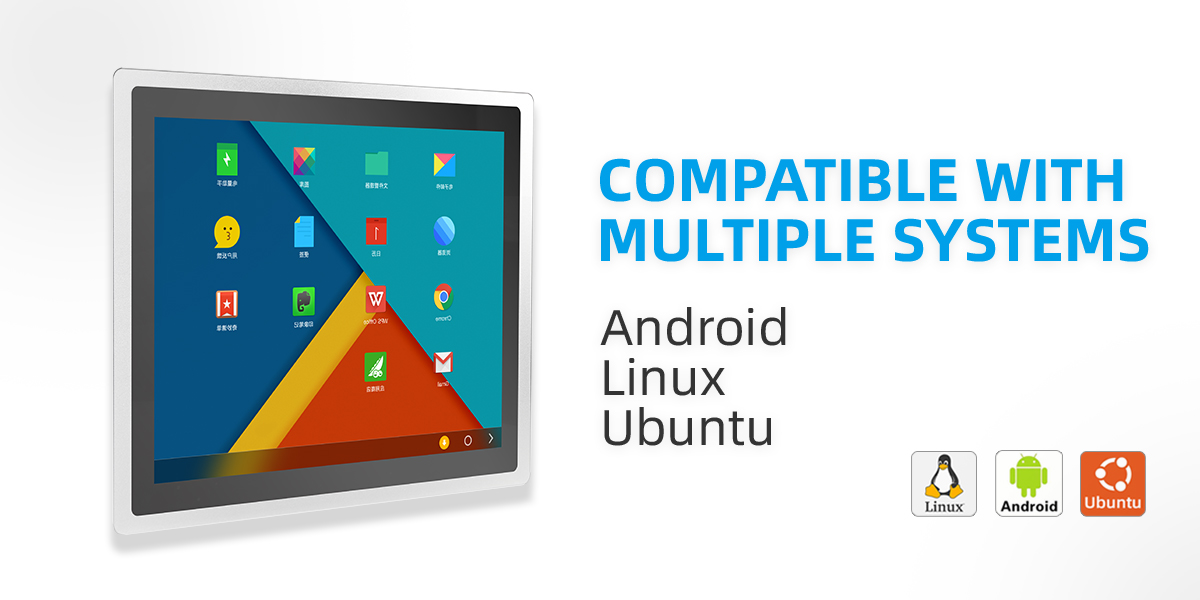

Android or Ubuntu system can be replaced to provide customized solutions, can provide touch screen customization.



  • Model:CPT-120AHSC1-RK3288
  • Screen Size:12 inch
  • Screen Resolution:1024*768
  • Product size:317*258*58mm

Product Detail

PRODUCT INTRODUCTION

Product Tags

Products Video

This video shows the product in 360 degrees.

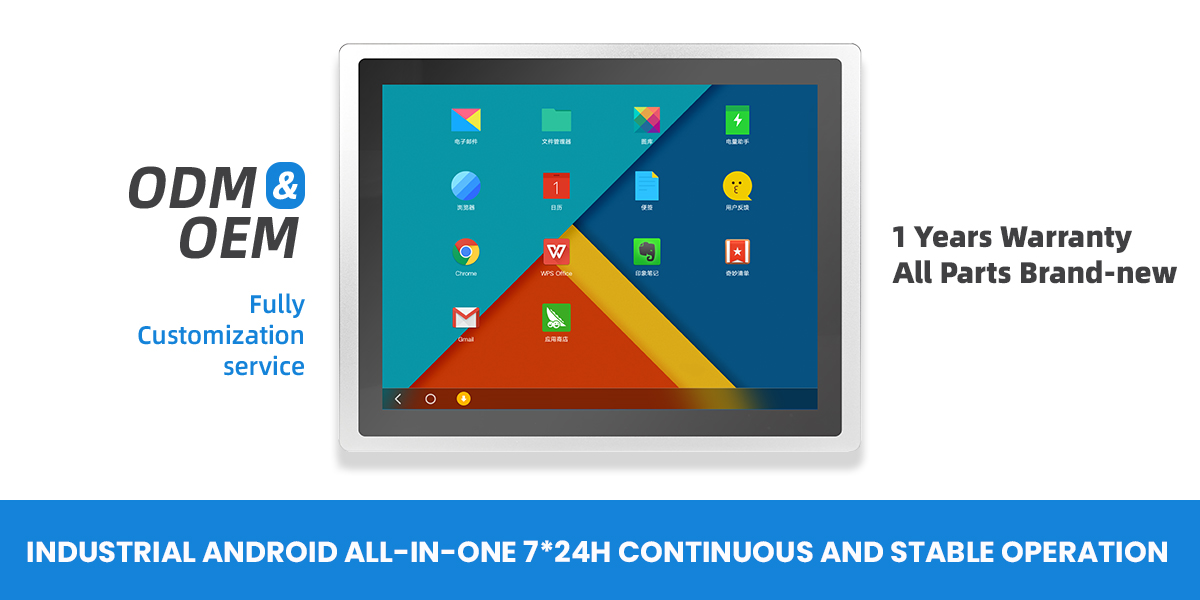

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

Strong hardware and software configuration, more compatible

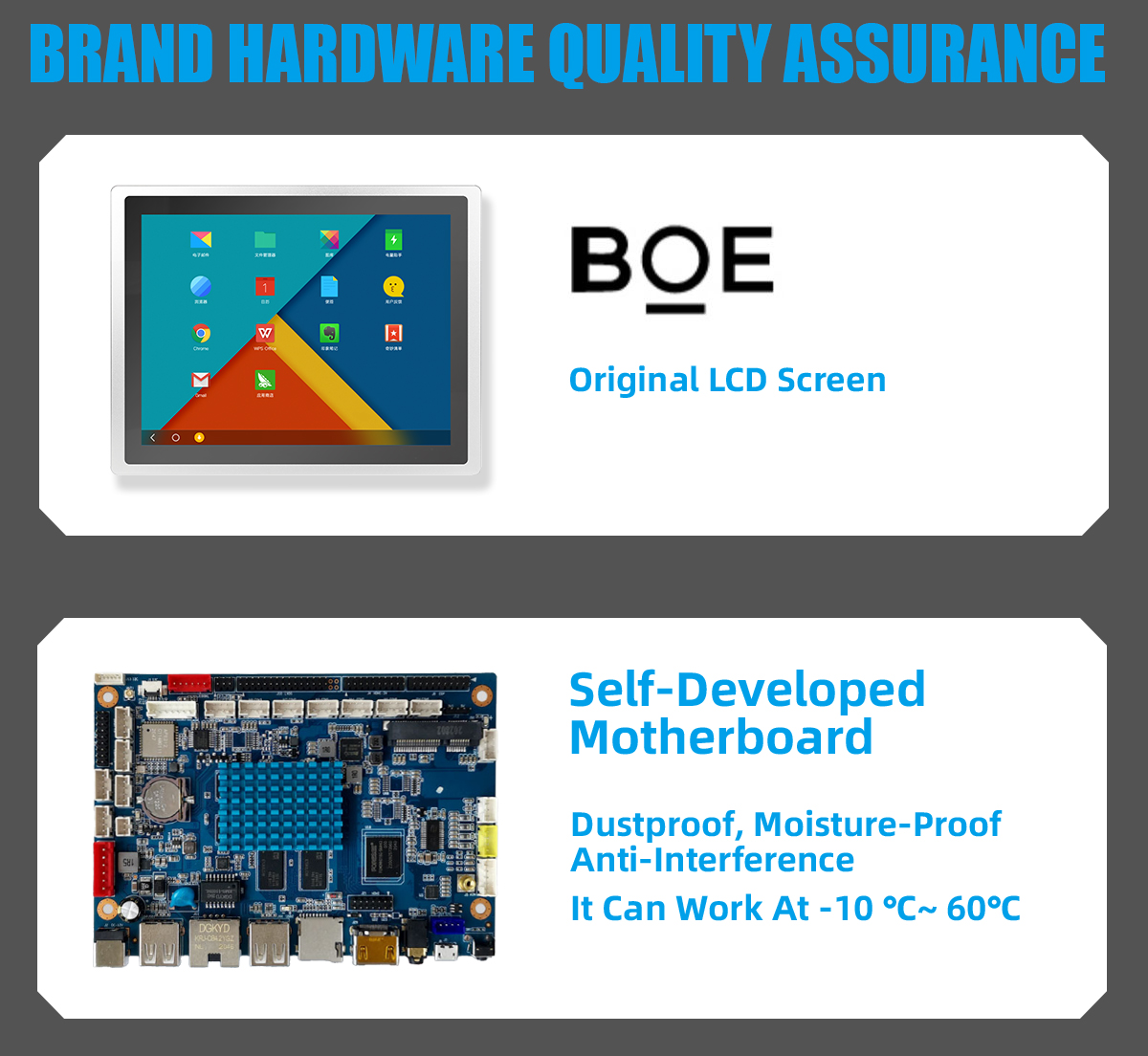

BOE hard disk for industrial control.

Samsung industrial control dedicated memory.

Self-research industrial control motherboard: dust and moisture / anti-interference support -10 ~ 60 degrees wide temperature work.

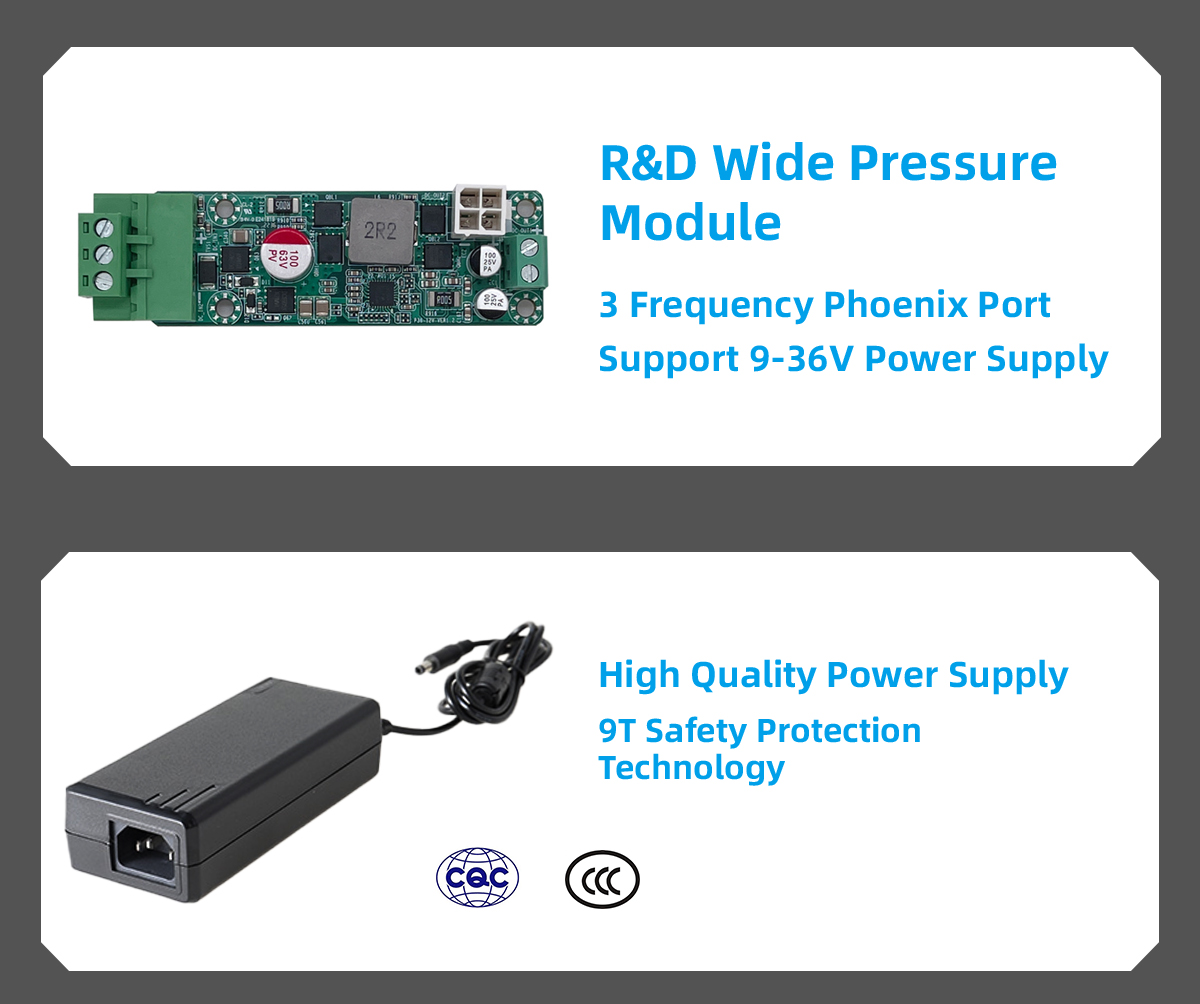

Self-researched wide voltage module: 3Pin Phoenix port support 9-36V power supply.

High-quality power supply: 9T security protection technology.

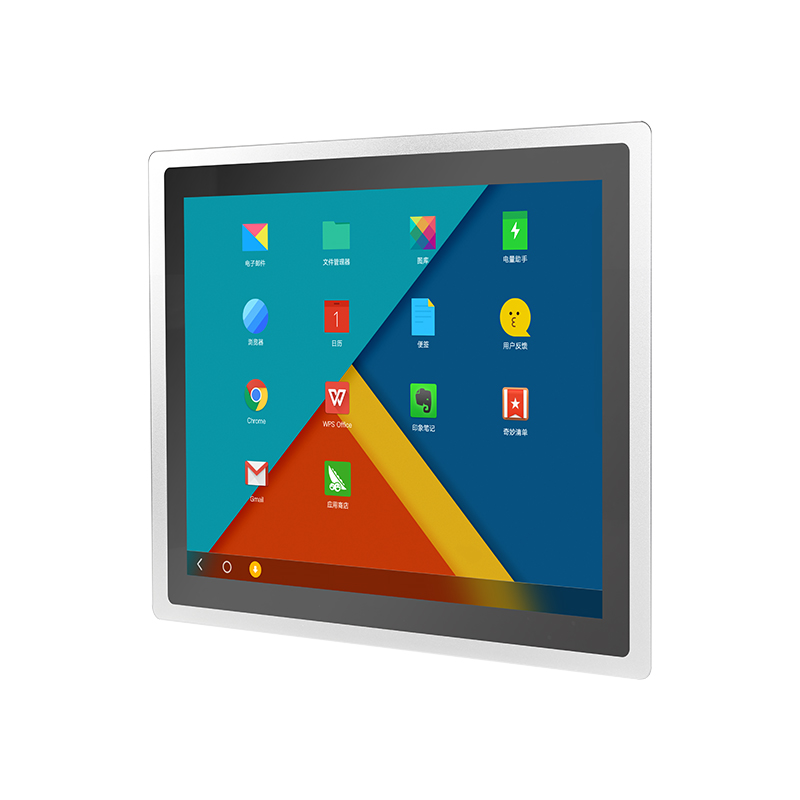

stable operation of 13.3 inch Industrial Android tablet2

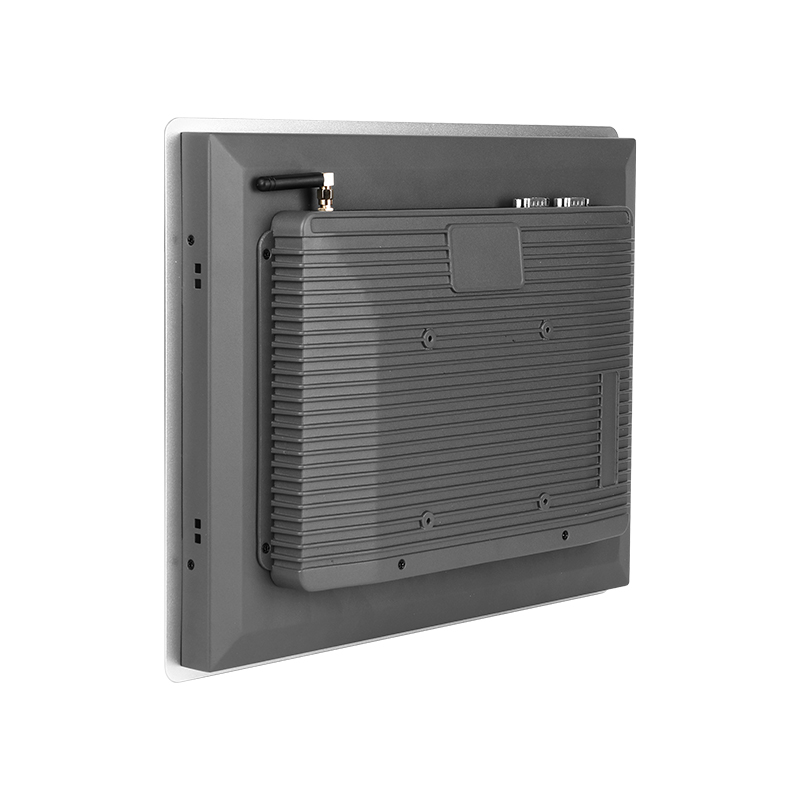

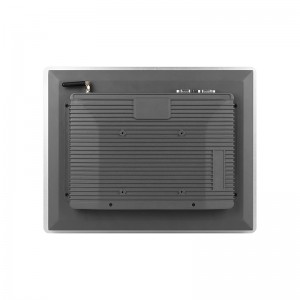

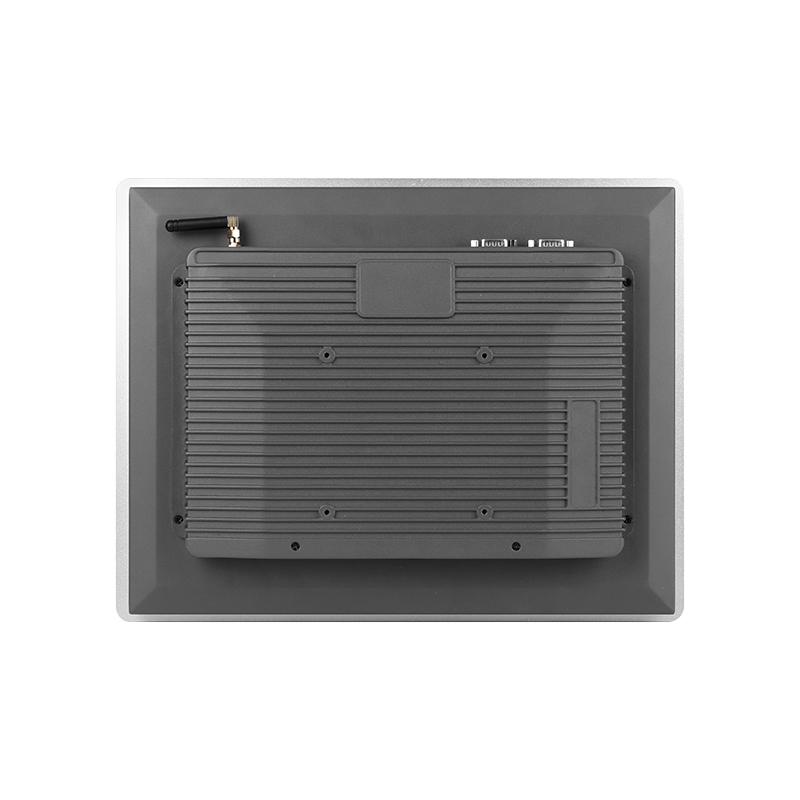

stable operation of 13.3 inch Industrial Android tablet3

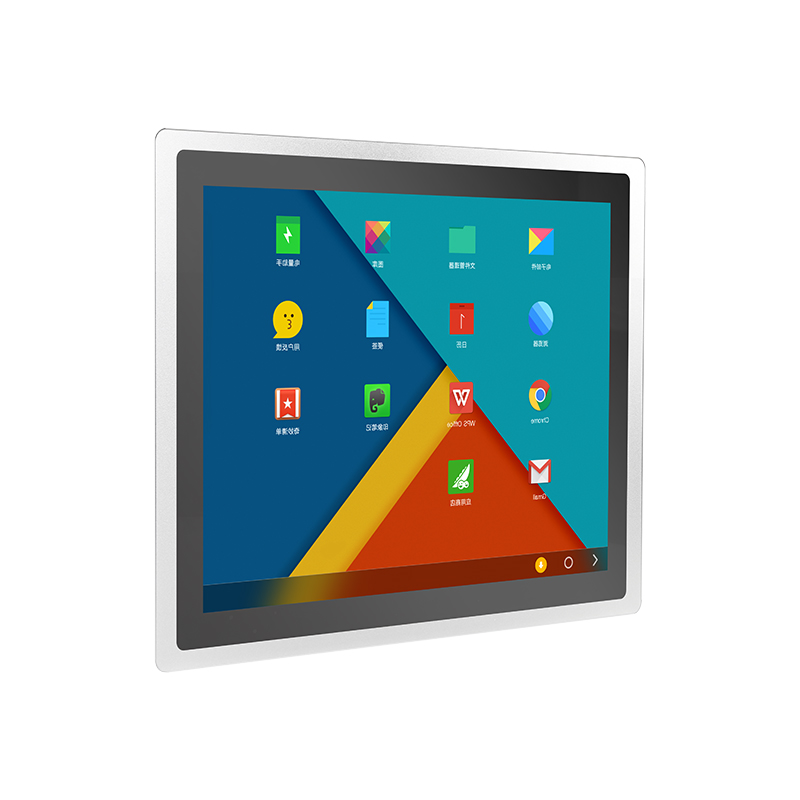

stable operation of 13.3 inch Industrial Android tablet7

Parameter information:

Display Screen Size 12 inch CPT-120AHSC1
Screen Resolution 1024*768
Luminous 400 cd/m2
Color Quantitis 16.2M
Contrast 500:1
Visual Range 89/89/89/89 (Typ.)(CR≥10)
Display Size 246(W)×184.5(H) mm
Touch Parameter Reaction Type Electric capacity reaction
Lifetime More than 50 miliion times
Surface Hardness >7H
Effective Touch Strength  45g
Glass Type Chemical reinforced perspex
Luminousness >85%

Industrial Android tablet parameter information:

Hardware MAINBOARD MODEL RK3288
CPU RK3288 Cortex-A17 quad-core 1.8GHz
GPU Mali-T764 4 core
Memory 2G (4G replacement available)
Harddisk 16G (highest to 128G replacement available)
Operate system Android 7.1
3G Module Replacement available
4G Module Replacement available
WIFI 2.4G
Bluetooth BT4.0
GPS Replacement available
MIC Replacement available
RTC Supporting
Awaken through network Supporting
Startup & Shutdown Supporting
System upgrade Supporting hardware TF/USB upgrade

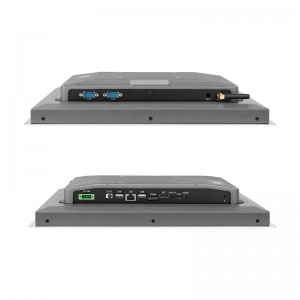

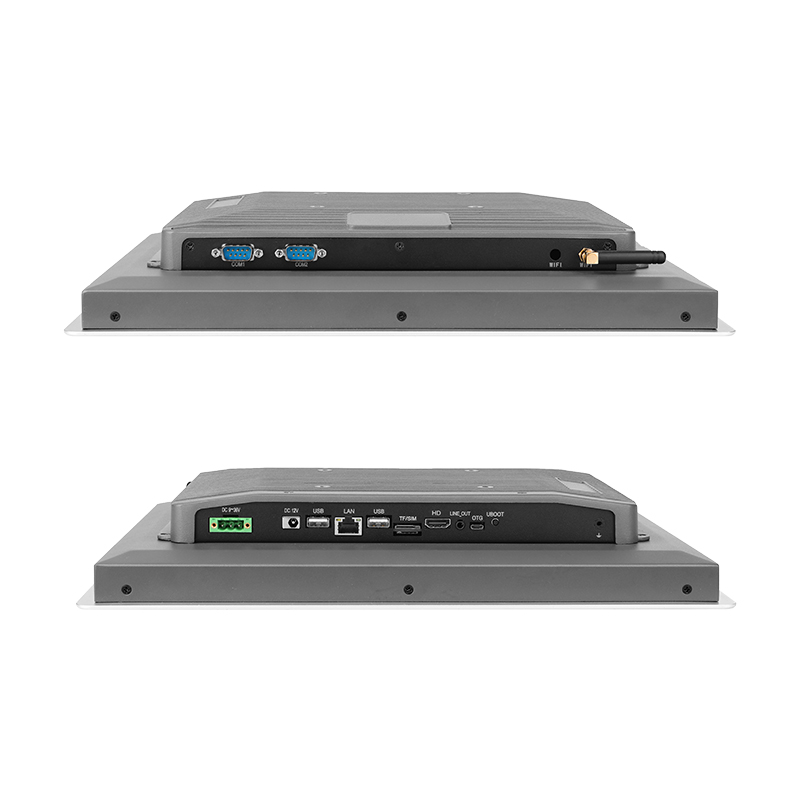

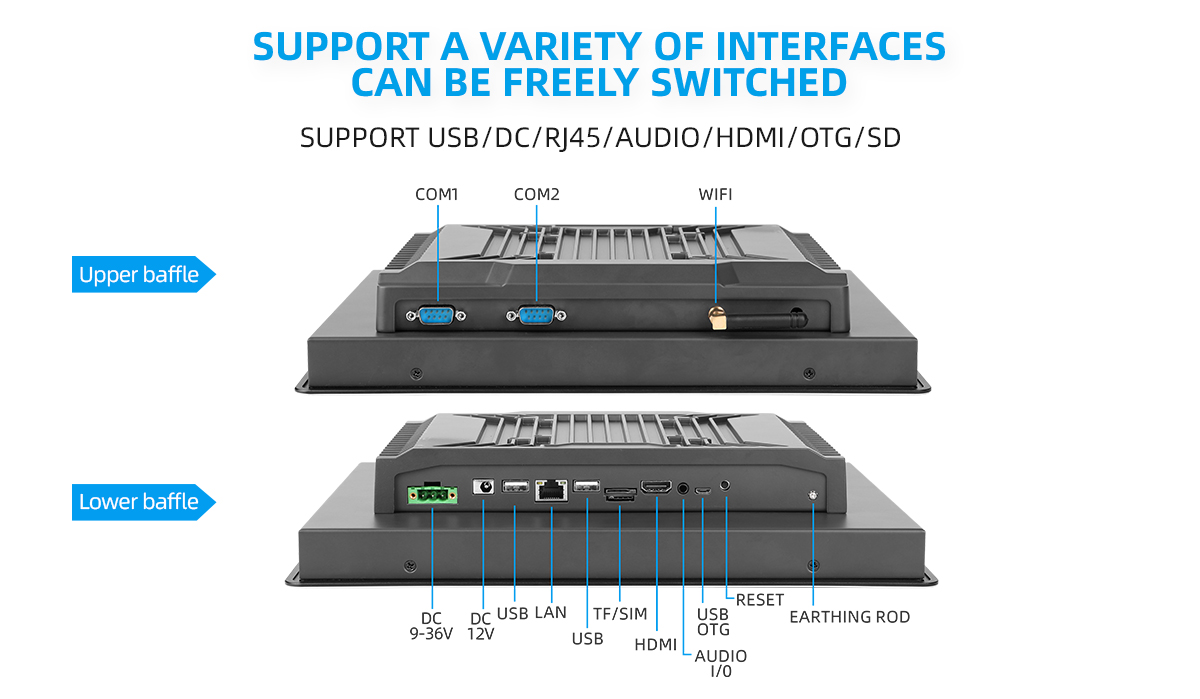

Interfaces MAINBOARD MODEL RK3288
DC Port 1 1*DC12V / 5525 socket
DC Port 2 1*DC9V-36V / 5.08mm phonix 4 pin
HDMI 1*HDMI
USB-OTG 1*Mirco
USB-HOST 2*USB2.0
RJ45 Ethernet 1*10M/100M Self-adaptive ethernet
SD/TF 1*TF card slot,supporting up to 128G
Earphone jack 1*3.5mm Standard
Serial-Interface RS232 2*COM
Serial-Interface RS422 Replacement available
Serial-Interface RS485 Replacement available
SIM Card SIM card standard interfaces,customization available

More Parameter information:

Parameter Material Sand blasting oxygenated aluminum craft for the front surface frame
Color Silver surface frame,the rest is gray
Power adapter AC 100-240V  50/60Hz  CCC certificated、CE certificated
Power dissipation ≤12W
Power output DC12V / 5A
Other Parameter Backlight lifetime 50000h
Temperature Working:-10°~60°;storage-20°~70°
Install mode Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type
Guarantee Whole computer free for maintain in 1 year
Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain
Packing List N.W. 3KG
Product size(not in cluding brackt) 317*258*58mm
Range for embedded trepanning 303.5*247.5mm
Carton size 390*325*115mm
Power adapter Available for purchase
Power line Available for purchase
Parts for install Embedded snap-fit * 4,PM4x30 screw * 4

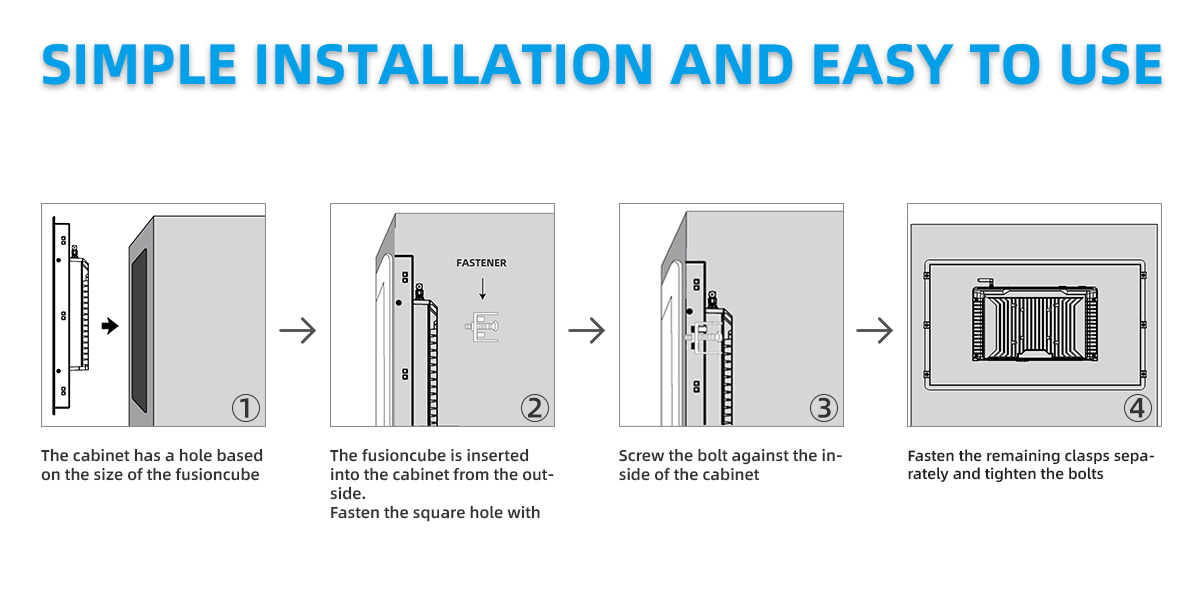

Multiple mounting options available

  • Snap Embedded.
  • Wall Bracket.
  • Desktop.
  • Cantilever.
  • Boom Type.

Precise touch control, more sensitive

  • Sensitive Touch Enhances The Operating Experience.
  • 10-Point CapacitiveTouch Screen.
  • It Supports Gesture Touch At Different Angloswith Sensitive Response And Stable Touch.

Widely used, suitable for a variety of industry equipment

Can be used in industrial equipment, power equipment, new energy charging, medical instruments, industrial handheld devices, security equipment, vending equipment, smart home, government smart terminal, access control system, instruments, robots, 3D printing and other industries, industrial embedded installation design, provide shell frame customization, touch screen can be customized according to demand.
