7″ android wall mount touch screen panel pc with built-in poe and digital i o support

Short Description:

Brand  COMPT
Name wall mount panel pc
Display Screen size 7 inch
Resolution 1024*600
Brightness 350cd/m²
Colour 16.2M
Ratio 500:1
visual Angle 85/85/85/85 (Typ.)(CR≥10)
Display area 154.2144(H)x85.92(V)

Product Detail

Product Tags

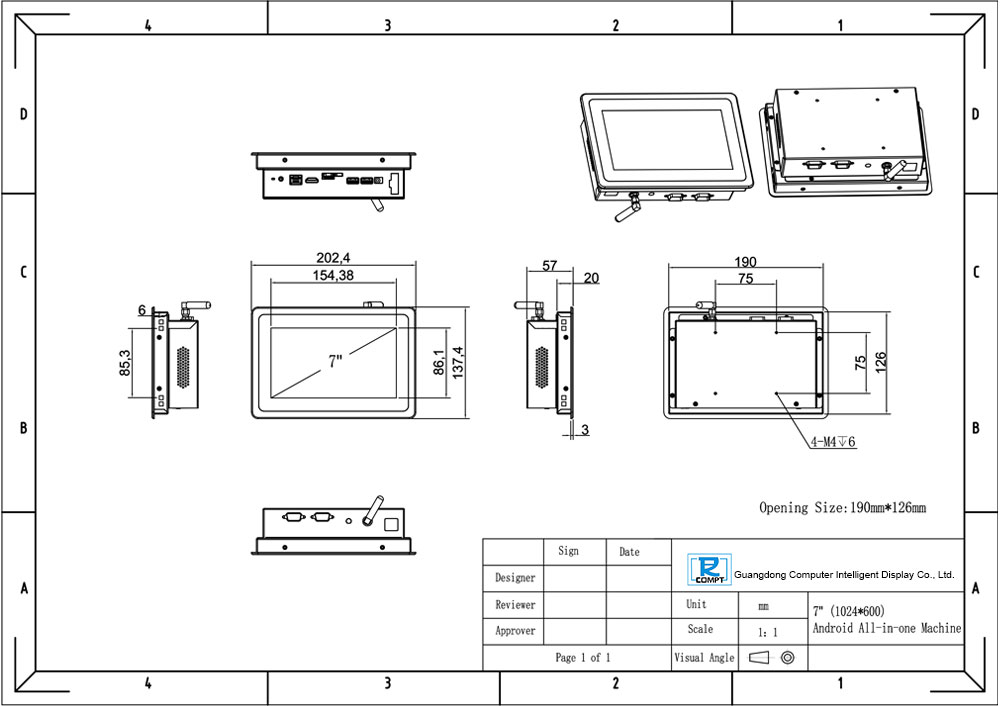

Dimension Drawing:

Product Feature:

1. Industrial-grade design:

Wall Mount Panel PC is made of industrial-grade materials and design to withstand harsh industrial environments such as high temperature, high humidity, vibration and dust. Meanwhile, its rugged casing and shockproof design can effectively protect the internal hardware and ensure stable operation for a long time.

https://www.gdcompt.com/7-android-wall-mount-touch-screen-panel-pc-with-built-in-poe-and-digital-i-o-support-product/

2. High-performance processor:

Built-in high-performance processor and high-capacity storage, Wall Mount Panel PC can easily cope with a variety of complex industrial applications. Whether you are running large-scale software, processing real-time data, or multitasking, you can maintain smooth running speed.

3.Scalability:

These devices often have scalable hardware configurations that can be customised to meet specific application requirements.

4.Compact design:

Wall panel PCs feature a sleek, compact design for environments where space is at a premium.

5.Touchscreen Interface:

Most wall panel PCs feature a touchscreen interface that is intuitive and easy to access.

6.Robust Construction:

These units are constructed with durable materials for reliable operation in harsh industrial environments.

7. Versatile Connectivity:

Wall panel PCs offer a variety of connectivity options such as USB, Ethernet, HDMI, and serial ports for seamless integration with existing industrial systems and peripherals.

8.HD Large Screen Display:

With a large HD screen design, the Wall Mount Panel PC is able to clearly display a variety of industrial data and images. Whether it's equipment operating status, production progress, or fault alarm information, all can be seen at a glance, so that staff can respond quickly.

Product Superiority:

  • Industrial aesthetic design
  • Streamlined appearance design
  • Independent research and development independent mold opening
  • Stable performance and low power consumption
  • Front panel waterproof design
  • Flat panel up to IP65 waterproof standard
  • GB2423 anti-vibration standard
  • Added shock-proof EVA material
  • Recessed cabinet installation
  • 3mm tightly fitted to the embedded cabinet
  • Fully enclosed dust-proof design
  • Greatly improve the service life of the fuselage
  • Aluminum alloy body
  • Aluminum alloy die-casting integrated forming
  • EMC/EMI Anti-interference standard Anti-electromagnetic interference
Name 7 inch AIO Panel PC-Android
Display Screen size 7 inch
Resolution 1024*600
Brightness 350cd/m²
Colour 16.2M
Ratio 500:1
visual Angle 85/85/85/85 (Typ.)(CR≥10)
Display area 154.2144(H)x85.92(V)
Touch
Feature
Type Capactive
Communication mode USB communicate
Touch method Fingure/Capactive pen
Touch life Capactive>50 Milion
luminousness >87%
Surface hardness >7H
Glass type Tamper glass
Hardware
SPEC
Mainboard model RK3568
CPU RK3568, quad-core 64-bit Cortex-A55, frequency up to 2.0GHz
RAM 2G(4G/8G optional)
ROM 16G(128G optional)
System Android 11
WIFI WIFI2.4G(WIFI5.0 optional)
BLE BT-4.1
4G Moldule optional
GPS optional
MIC optional
RTC support
Wake on LAN support
TIMER SWITCH support
System upgrade USB Upgrade
Interface Power1 1*DC12V/5521 standard socket
Power2 1*Wide voltage power supply 9~36V phonix socket(optional)
HDMI 1*HDMI
USB-OTG 1*USB3.0
USB-HOST 1*USB2.0
TF Slot 1*TF Card slot
RJ45 1*1000M
SIM Slot 1*SIM card holder (available with 4G module)
RS232 2*RS232
RS485 1*RS485(optional)
Audio 1*3.5mm
WIFI/BLE Antena 1*WIFI/BLE antena
Feature Material Aluminum Alloy front panel ip65 protection
Colour Silver/Black
Adapter Input AC 100-240V 50/60Hz Passed CCC certification, CE certification
Power input DC12V / 4A
Power consume ≤15W
Backlit life 50000h
Environment temp Working temperature: -10-60℃, storage temperature: -20-70℃
Humidity ≤95% no condensation
installation Wall-mounted/desktop/folding base/cantilever installation
Warranty 1 YEAR



Product Parameters:
