17.3 inch fanless industrial panel mount pc touch screen

Short Description:

17.3

Black

1920*1280

Embedded

Resistor Touch

YS-I7/8565U-16G+512G

PCBA three-proof paint

Active cooling

2*USB Expansion, 2*RS232 Expansion


Product Detail

Interfaces

Product Tags

Products Video

This video shows the product in 360 degrees.

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

Product Information:

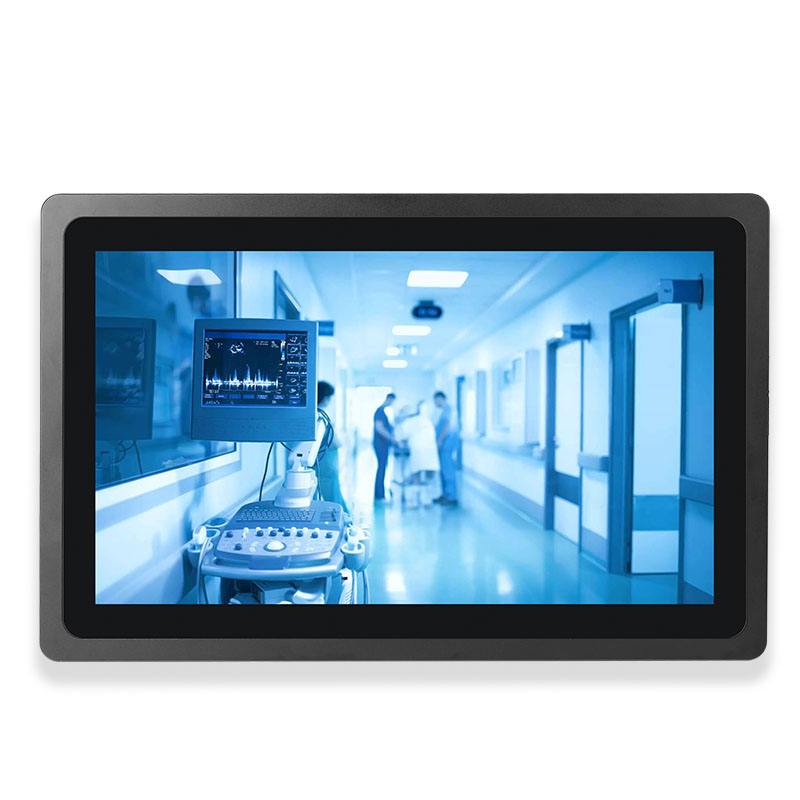

COMPT's new industrial-grade embedded 17.3-inch panel PC, with a deep and atmospheric black exterior design, is equipped with a capacitive touch screen with a resolution of up to 1920*1280 for smooth operation and a clear and delicate display. Equipped with YS-I7/8565U-16G+512G high-performance processor, running more stable and efficient.

In addition, the product also has two USB expansion ports and two RS232 expansion ports to meet a variety of connection requirements. PCBA brush three anti-paint, active heat dissipation design, to ensure that the equipment in a variety of harsh environments can operate stably.

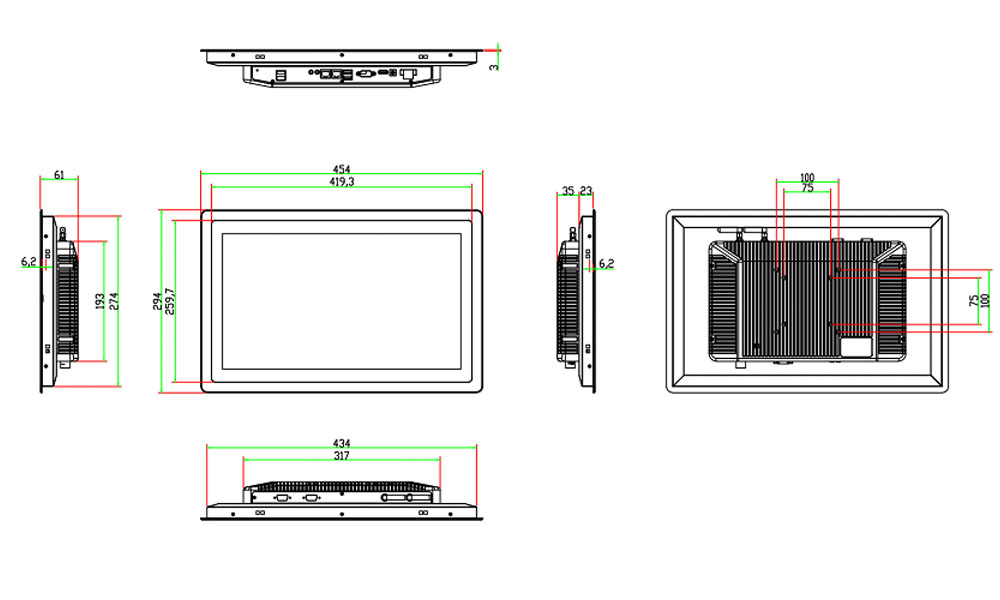

Engineering Dimention Drawing:

https://www.gdcompt.com/17-3-inch-fanless-industrial-panel-mount-pc-touch-screen-product/

Product Superiority:

  • Industrial aesthetic design
  • Streamlined appearance design
  • Independent research and development independent mold opening
  • Stable performance and low power consumption
  • Front panel waterproof design
  • Flat panel up to IP65 waterproof standard
  • GB2423 anti-vibration standard
  • Added shock-proof EVA material
  • Recessed cabinet installation
  • 3mm tightly fitted to the embedded cabinet
  • Fully enclosed dust-proof design
  • Greatly improve the service life of the fuselage
  • Aluminum alloy body
  • Aluminum alloy die-casting integrated forming
  • EMC/EMI Anti-interference standard Anti-electromagnetic interference

Parameter Information:

Display Screen Size 17.3  inch
Screen Resolution 1920*1080
Luminous 250 cd/m2
Color Quantitis 16.7M
Contrast 800:1
Visual Range 85/85/85/85 (Typ.)(CR≥10)
Display Size 381.888(W)×214.812(H) mm
Touch parameter Reaction Type Electric capacity reaction
Lifetime More than 50 million times
Surface Hardness >7H
Effective Touch Strength  45g
Glass Type Chemical reinforced perspex
Luminousness >85%
Hardware MAINBOARD MODEL J4125
CPU Integrated Intel®Celeron J4125 2.0GHz quad-core
GPU Integrated Intel®UHD Graphics  600 core card
Memory 4G(maximum 16GB)
Harddisk 64G solid state disk(128G replacement available)
Operate system Default Windows 10(Windows 11/Linux/Ubuntu replacement available)
Audio ALC888/ALC662 6 channels Hi-Fi Audio controller/Supporting MIC-in/Line-out
Network Integrated giga network card
Wifi Internal wifi antenna,supporting wireless connect
Interfaces DC Port 1 1*DC12V/5525 socket
DC Port 2 1*DC9V-36V/5.08mm phonix 4 pin
USB 2*USB3.0,1*USB 2.0
Serial-Interface RS232 0*COM(upgrade able)
Ethernet 2*RJ45 giga ethernet
VGA 1*VGA
HDMI 1*HDMI OUT
WIFI 1*WIFI antenna
Bluetooth 1*Bluetooch antenna
Audio imput 1* earphone Interfaces
Audio output 1*MIC Interfaces
Parameter Material CNC aluminum oxgenated drawing craft for the front surface frame
Color Black
Power adapter AC 100-240V  50/60Hz CCC certificated、CE certificated
Power dissipation ≈20W
Power output DC12V / 5A
Other parameter Backlight lifetime 50000h
Temperature Working:-10°~60°;storage-20°~70°
Install Embedded snap-fit
Guarantee Whole computer free for maintain in 1 year
Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain
Packing list N.W. 4.5KG
Product size(not in cluding brackt) 454*294*61mm
Range for embedded trepanning 436*276mm
Carton size 539*379*125mm
Power adapter Available for purchase
Power line Available for purchase
Parts for install Embedded snap-fit * 4,PM4x30 screw * 4
SOLUTIONS
SOLUTIONS
SOLUTIONS
SOLUTIONS1
SOLUTIONS
SOLUTIONS
AI in Manufacturing
Medical equipment

The industrial panel PC has a wide range of application prospects in industrial automation, intelligent manufacturing, industrial Internet of Things and other fields. In the field of industrial automation, it can be used as the terminal display of industrial control equipment, connecting all kinds of sensors and controllers through the RS232 expansion port to achieve the monitoring and control of production lines.
In addition, it can also be used in the workshop information management system, connected to barcode scanners, printers and other peripherals through the USB expansion port, to achieve the immediate collection and processing of workshop data. In the field of intelligent manufacturing, 17.3-inch industrial panel PC as the operation interface of the equipment can be used with industrial automation equipment to achieve intelligent production process monitoring and scheduling. Its high-resolution, capacitive touch screen features enable it to play an important role in production line management, parts inspection, product traceability and other aspects of intelligent manufacturing factories.
In addition, since the device has the design of PCBA brushing with three-proof paint and active heat dissipation, it is suitable for harsh industrial environments, such as manufacturing enterprises where there are conditions of high humidity, dust, and vibration. Therefore, 17.3-inch industrial embedded panel PC with its high performance, stability and reliability, will become an indispensable intelligent equipment in the industrial field.
