15.6″Industrial All In One Pc With Integrated Intel®Celeron J4125 2.0ghz Quad-Core

Short Description:

COMPT 15.6″ Industrial All In One Pc , Adopting all-aluminum alloy structure, fanless and fully enclosed design scheme, low power consumption of the whole machine, compact shape, is specially designed for a variety of harsh environments and industrial products, can be a long time to work stably, in the machine’s materials we pay more attention to its reliability, environmental adaptability, real-time, scalability, EMC-compatible and other performances, configured with Intel Celeron J4125 quad-core 2.0 GHz ( The configuration uses Intel Celeron J4125 quad-core 2.0 GHz (maximum RWI 2.4G) CPU equipped with windows 10 system, with a variety of high-definition display interfaces, to meet the needs of the field of a variety of application interfaces to provide a variety of work efficiency, widely used in industrial control, military, communications, power, network and other high-end automation field.


Product Detail

Product Tags

Description

- COMPT 15.6 Industrial PC adopts Intel Celeron J4125 quad-core processor.

- Capacitive touch screen, the operation is more intuitive, more interesting, not easy to accidentally touch the durability is extremely high, and compatible with resistive touch.

- The whole machine anti-shock, anti-vibration standards up to GB2423, easy to cope with transportation/industrial/maritime and other operating environments.

- COMPT 15.6 industrial computer all-in-one, can be flame-proof, explosion-proof, moisture-proof, PCB using green substrate design and production (FR4).

- Anti-static, ESD: contact 4KV, air 8KV; anti-interference up to EMI / EMC standards, lightning, anti-magnetic design.

- Power management chip, wide voltage: support for 9V ~ 36V power input anti-shedding industrial interface.

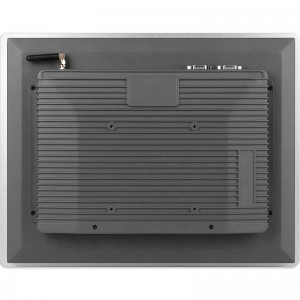

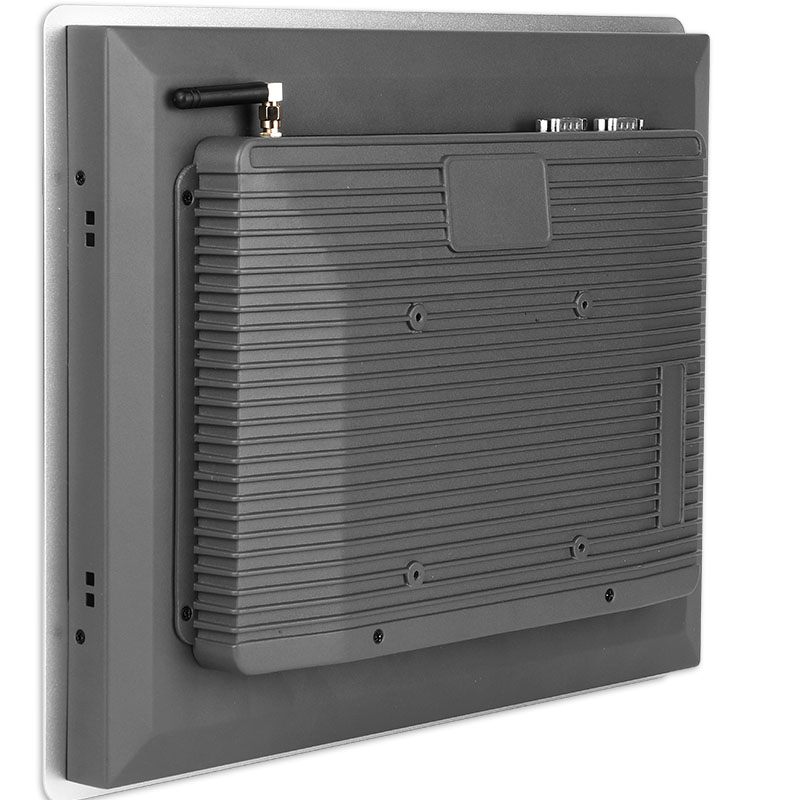

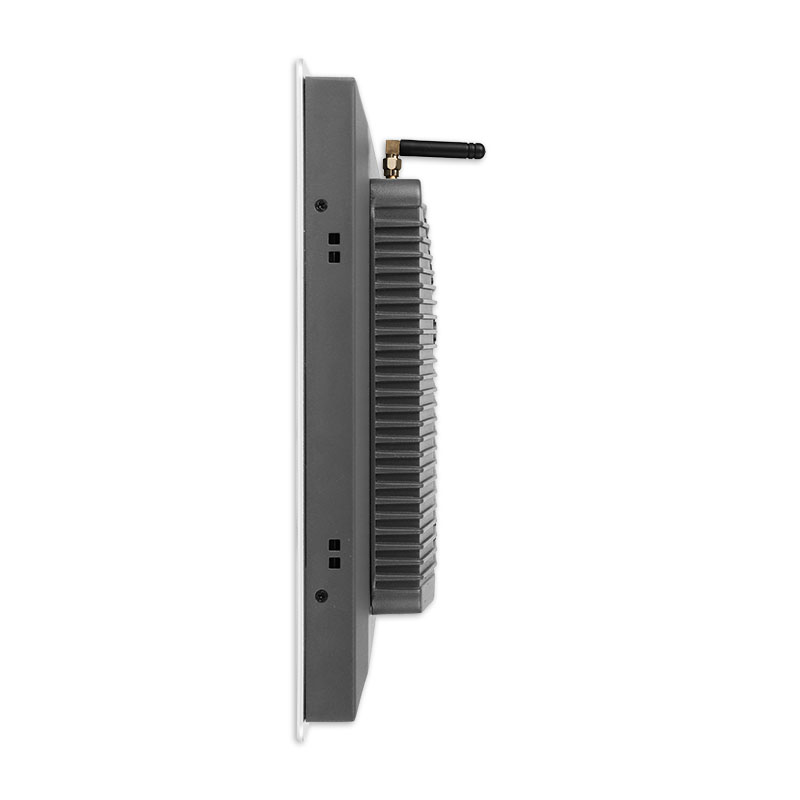

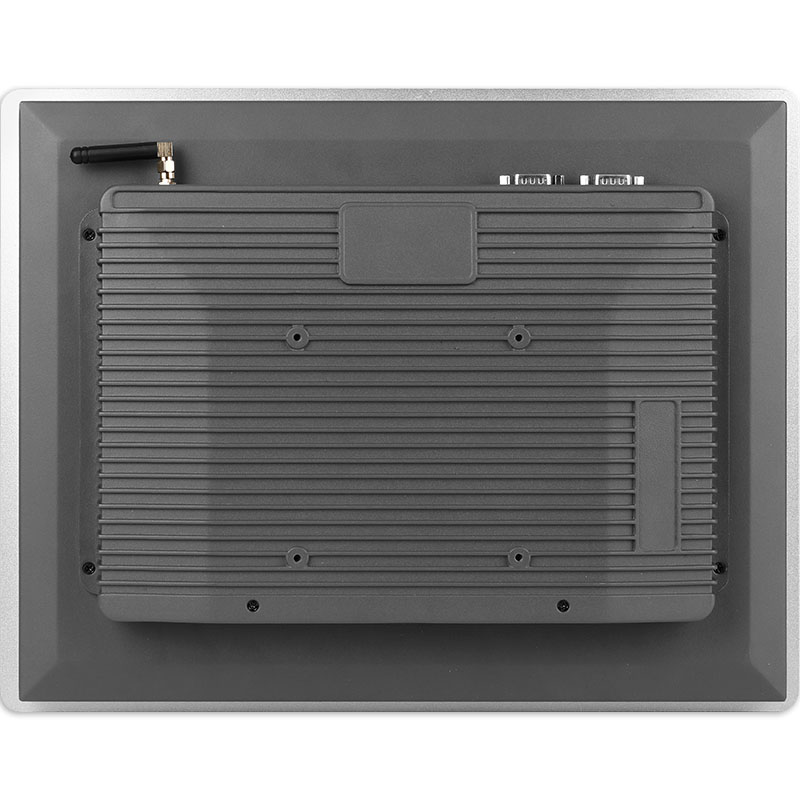

edrtgf (1)
https://www.gdcompt.com/15-6industrial-all-in-one-pc-with-integrated-intelceleron-j4125-2-0ghz-quad-core-product/

Product Parameters

Display

Screen Size 15.6 inch
Screen Resolution 1920*1080
Luminous 300 cd/m2
Color Quantitis 16.7M
Contrast 800:1
Visual Range 85/85/85/85 (Typ.)(CR≥10)
Display Size 344.16(W)×193.59(H) mm

Touch parameter

Reaction Type Electric capacity reaction
Lifetime More than 50 million times
Surface Hardness >7H
Effective Touch Strength 45g
Glass Type Chemical reinforced perspex
Luminousness >85%

Hardware

MAINBOARD MODEL J4125
CPU Integrated Intel®Celeron J4125 2.0GHz quad-core
GPU Integrated Intel®UHD Graphics  600 core card
Memory 4G(maximum 16GB)
Harddisk 64G solid state disk(128G replacement available)
Operate system Default Windows 10(Windows 11/Linux/Ubuntu replacement available)
Audio ALC888/ALC662 6 channels Hi-Fi Audio controller/Supporting MIC-in/Line-out
Network Integrated giga network card
Wifi Internal wifi antenna,supporting wireless connect

Interfaces

DC Port 1 1*DC12V/5525 socket
DC Port 2 1*DC9V-36V/5.08mm phonix 4 pin
USB 2*USB3.0,1*USB 2.0
Serial-Interface RS232 0*COM(upgrade able)
Ethernet 2*RJ45 giga ethernet
VGA 1*VGA
HDMI 1*HDMI OUT
WIFI 1*WIFI antenna
Bluetooth 1*Bluetooch antenna
Audio imput 1* earphone Interfaces
Audio output 1*MIC Interfaces

Parameter

Material CNC aluminum oxgenated drawing craft for the front surface frame
Color Black
Power adapter AC 100-240V  50/60Hz CCC certificated、CE certificated
Power dissipation ≈20W
Power output DC12V / 5A

Other parameter

Backlight lifetime 50000h
Temperature Working:-10°~60°;storage-20°~70°
Install Embedded snap-fit
Guarantee Whole computer free for maintain in 1 year
Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain

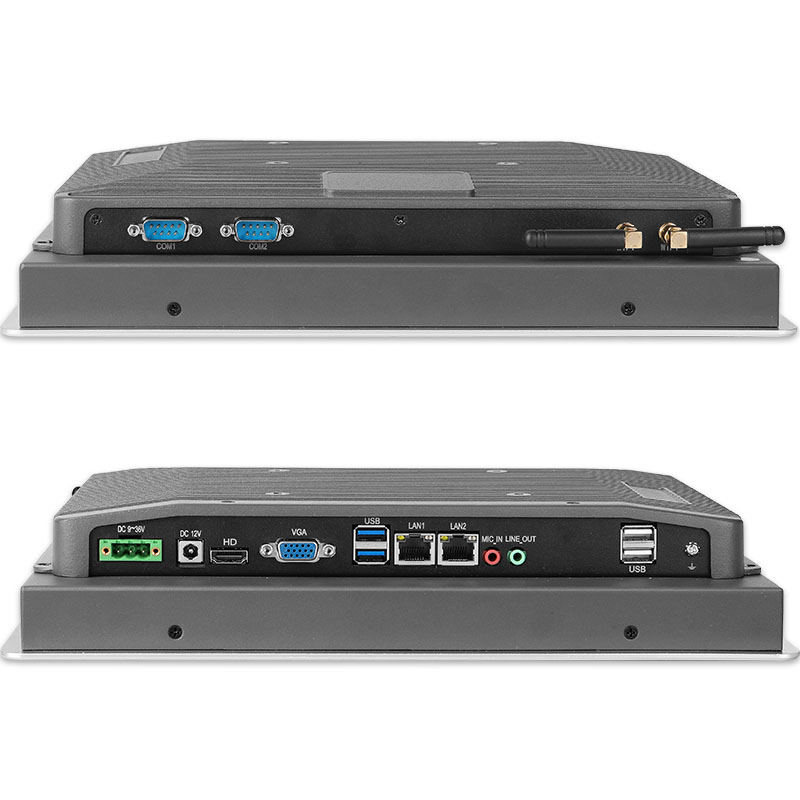

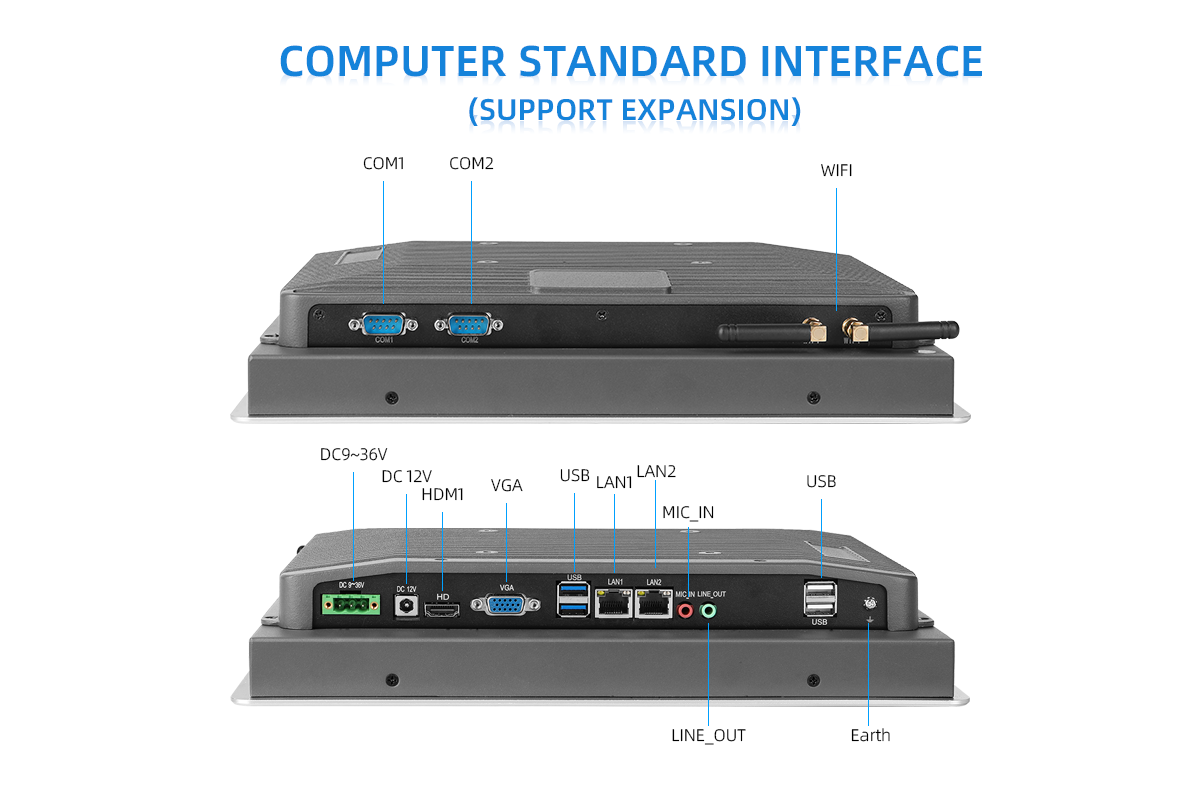

Panel Interface

sredf (1)
dtyrf
MIC_IN

DC

USB2.0

USB3.0

LAN

HDMI

SIM

VGA

Audio I/O

COM

Earth

Wifi

Product Size

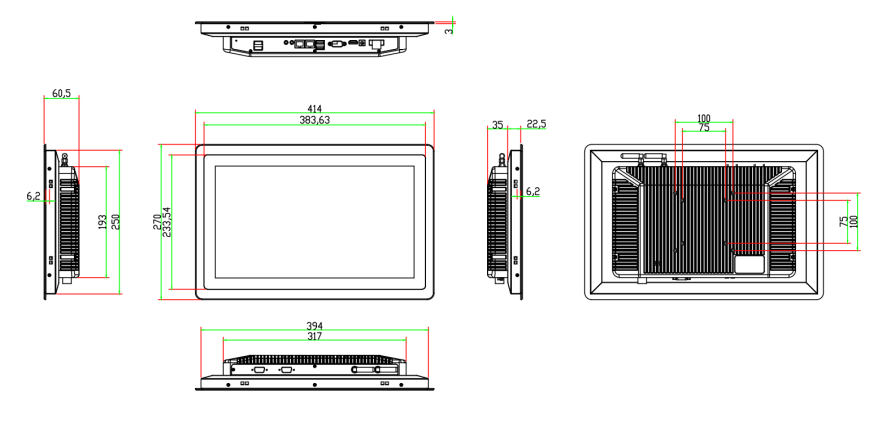

Engineering Dimention Drawing

sredf (2)

Product size

414*270*60.5mm

Packing List

Packing list

N.W. 4.5KG
Product size(not in cluding brackt) 414*270*60.5mm
Range for embedded trepanning 396*252mm
Carton size 500*355*125mm
Power adapter Available for purchase
Power line Available for purchase
Parts for install Embedded snap-fit * 4,PM4x30 screw * 4
