Industrial panel Android features
1. Most of the front panels of industrial panel Android are made of aluminum magnesium alloy by die casting, and the front panel reaches NEMA IP65 protection level. It is strong, durable and light in weight.
2. Industrial panel Android is the structure of an all-in-one machine. The host, LCD and touch screen are integrated into one, with good stability.
3. The more popular touch function can simplify the work, be more convenient and fast, and be more humanized.
4. Industrial panel Android is small and easy to install and maintain.

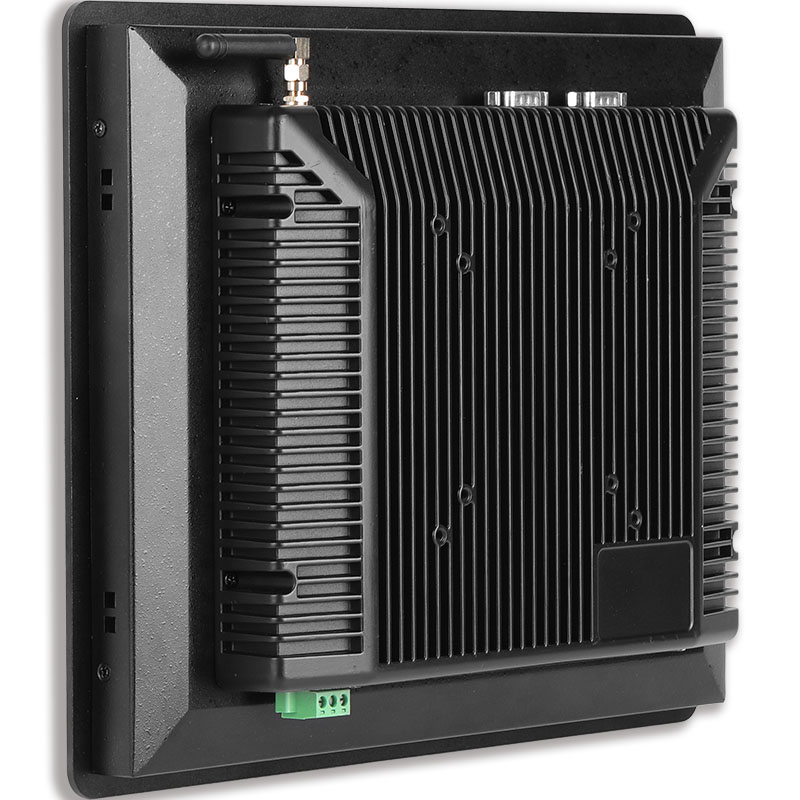

5. Most industrial panel Android adopts fan free design and uses large-area fin shaped aluminum block for heat dissipation, which has less power consumption and noise.
6. Beautiful appearance and wide application.
Industrial panel Android advantages
1. good scalability: Industrial paenl Android has good scalability and can add system content and data at any time, providing convenience for future networking and multi database operations.
2. dynamic networking: the industrial panel Android system can establish various network connections according to the needs of users, such as connecting with the telecom business network and telecom billing network, dynamically querying the telephone acceptance process and personal telephone billing, and can also communicate with the external Internet and Internet connection.
3. safe and reliable: long-term continuous operation has no impact on the system, the system is stable and reliable, and there will be no error or crash in normal operation. Easy to maintain, the system includes a management and maintenance system with the same interface as the demo system, which can easily add, delete, modify and other management operations of data content.
4. friendly interface: customers can clearly understand all the information, instructions and tips on the touch screen without knowing the professional knowledge of industrial panel Android. The interface is very friendly and suitable for customers of all levels and ages.
5. fast response: the system uses mainstream technology, and its response speed to large-scale data query is also instantaneous. There is no need to wait, and it really reaches the speed of "Pentium".
6. simple operation: you can enter the information world by simply touching the buttons on the relevant parts of the industrial panel Android screen with your fingers. Relevant information can include text, animation, music, etc.
7. rich information: the amount of information storage is almost unlimited. Any complex data information can be included in the multimedia system. The information type is rich, which can realize audio-visual and the changeable display effect is satisfactory.
Display | Screen Size | 15.6 inch |
Screen Resolution | 1920*1080 | |
Luminous | 300 cd/m2 | |
Color Quantitis | 16.7M | |
Contrast | 800:1 | |
Visual Range | 85/85/85/85 (Typ.)(CR≥10) | |
Display Size | 344.16(W)×193.59(H) mm | |
Touch Parameter | Reaction Type | Electric capacity reaction |
Lifetime | More than 50 miliion times | |
Surface Hardness | >7H | |
Effective Touch Strength | 45g | |
Glass Type | Chemical reinforced perspex | |
Luminousness | >85% | |
Hardware | MAINBOARD MODEL | RK3399 |
CPU | RK3399 Cortex-A72 quad-core+Cortex-A53 quad-core 1.8HZ | |
GPU | Mali-T860 quad-core | |
Memory | 4G | |
Harddisk | 32G | |
Operate system | Android 7.1 | |
3G Module | replacement available | |
4G Module | replacement available | |
WIFI | 5G | |
Bluetooth | BT4.0 | |
GPS | replacement available | |
MIC | replacement available | |
RTC | Supporting | |
Awaken through network | Supporting | |
Startup & Shutdown | Supporting | |
System upgrade | Supporting hardware TF/USB upgrade | |

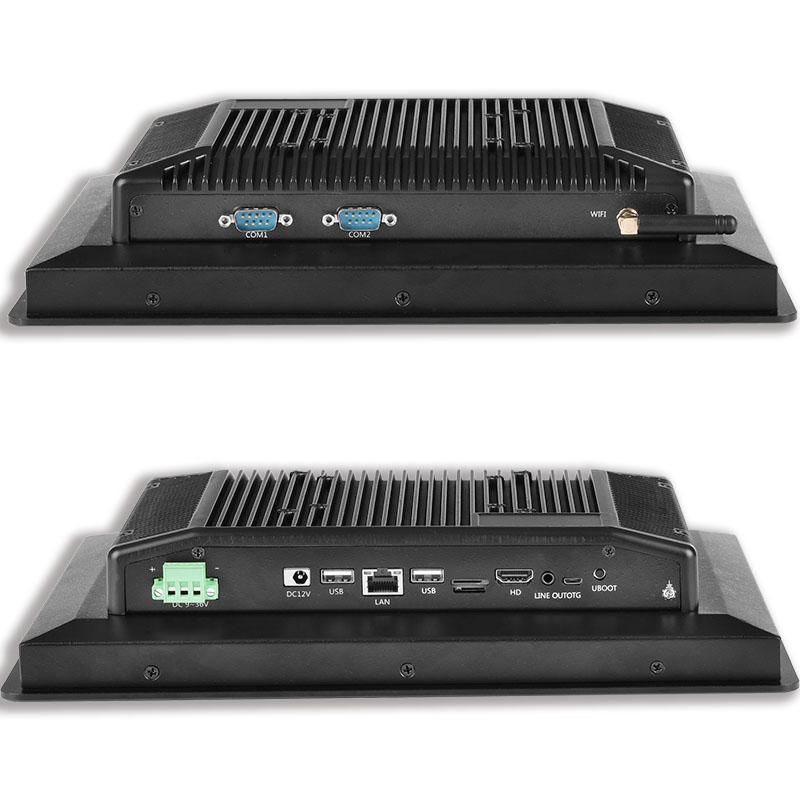

Interfaces | MAINBOARD MODEL | RK3399 |
DC Port 1 | 1*DC12V/5525 socket | |
DC Port 2 | 1*DC9V-36V / 5.08mm phonix 4 pin | |
HDMI | 1*HDMI | |
USB-OTG | 1*Type-c | |
USB-HOST | 1*USB2.0,1*USB3.0 | |
RJ45 Ethernet | 1*10M/100M/1000M Self-adaptive ethernet | |
SD/TF | 1*TF datas storage,maximum 128G | |
Earphone jack | 1*3.5mm Standard | |
Serial-Interface RS232 | 1*COM | |
Serial-Interface RS422 | Replacement available | |
Serial-Interface RS485 | Replacement available | |
SIM Card | SIM card standard interfaces,customization available | |
Parameter | Material | Sand blasting oxygenated aluminum craft for the front surface frame |
Color | Black | |
Power adapter | AC 100-240V 50/60Hz CCC certificated、CE certificated | |
Power dissipation | ≤15W | |
Power output | DC12V / 5A | |
Other Parameter | Backlight lifetime | 50000h |
Temperature | Working:-10°~60°;storage-20°~70° | |
Install mode | Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type | |
Guarantee | Whole computer free for maintain in 1 year | |
Maintenance terms | Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain | |
Packing List | N.W. | 4.5KG |

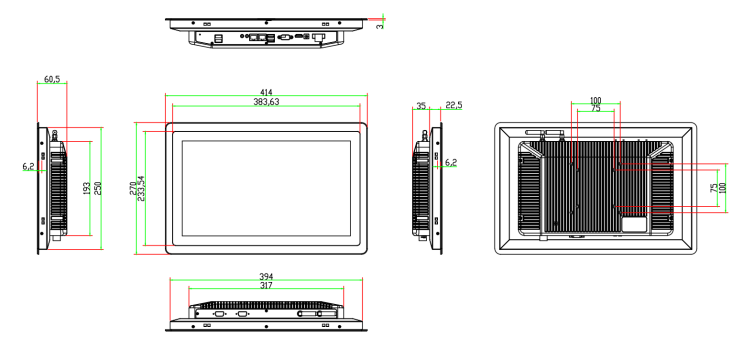

Product size(not in cluding brackt) | 414*270*60.5mm | |
Range for embedded trepanning | 396*252mm | |
Carton size | 500*355*125mm | |
Power adapter | Available for purchase | |
Power line | Available for purchase | |
Parts for install | Embedded snap-fit * 4,PM4x30 screw * 4 |
