15.6 inch J4125 all in one touch screen computer for Industrial automation equipment

Short Description:

Introducing our newest product, a 15.6-inch all-in-one touchscreen computer designed for industrial automation equipment. This product is a game-changer for the industry, offering innovative features and capabilities that increase the efficiency and productivity of various manufacturing processes.

As the name suggests, this computer is an all-in-one solution that combines multiple components including a computer, monitor, and input devices into a single unit. This design reduces the need for additional hardware, making it easier to set up and operate. Plus, it’s the perfect solution for those working in confined space environments.

Download as pdf whatsapp email

Product Detail

Product Tags

Products Video

This video shows the product in 360 degrees.

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

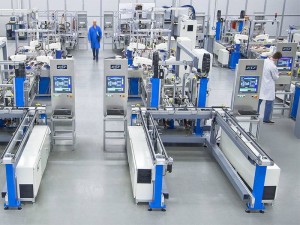

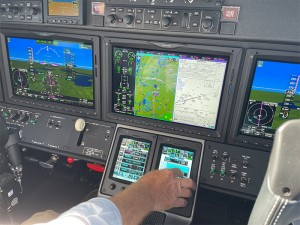

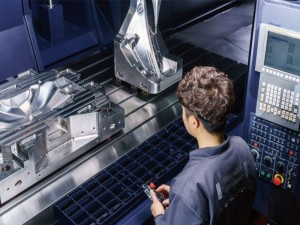

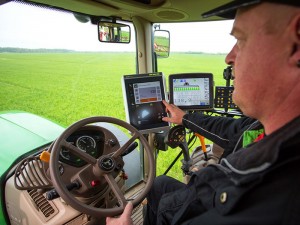

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

Product feature：

The 15.6-inch display is ideally sized for viewing and analyzing critical data, making it an ideal solution for monitoring and controlling a wide variety of industrial applications. The high-definition display also ensures that all data is clearly readable to aid in the decision-making process.

A key feature of this computer is its ruggedness, which makes it ideal for use in harsh industrial environments. It's dustproof, waterproof and shockproof, which means it can withstand a variety of environmental conditions, including extreme heat and cold.

This all-in-one touchscreen computer is also equipped with a variety of connectivity options, including multiple USB ports, Ethernet jacks, and serial ports. This ensures that it can be easily connected to other industrial equipment and equipment for enhanced communication and data sharing.

all in one touch screen computer,all in one,touch screen computer36-1 800

Product superiority:

Industrial aesthetic design
Streamlined appearance design
Independent research and development independent mold opening
Stable performance and low power consumption
Front panel waterproof design
Flat panel up to IP65 waterproof standard
GB2423 anti-vibration standard
Added shock-proof EVA material

Recessed cabinet installation
3mm tightly fitted to the embedded cabinet
Fully enclosed dust-proof design
Greatly improve the service life of the fuselage
Aluminum alloy body
Aluminum alloy die-casting integrated forming
EMC/EMI Anti-interference standard Anti-electromagnetic interference

Product Solution:

Parameter information:

Display	Screen Size	15.6 inch
	Screen Resolution	1920*1080
	Luminous	300 cd/m2
	Color Quantitis	16.7M
	Contrast	800:1
	Visual Range	85/85/85/85 (Typ.)(CR≥10)
	Display Size	344.16(W)×193.59(H) mm
Touch parameter	Reaction Type	Electric capacity reaction
	Lifetime	More than 50 million times
	Surface Hardness	＞7H
	Effective Touch Strength	45g
	Glass Type	Chemical reinforced perspex
	Luminousness	＞85%
Hardware	MAINBOARD MODEL	J4125
	CPU	Integrated Intel®Celeron J4125 2.0GHz quad-core
	GPU	Integrated Intel®UHD Graphics 600 core card
	Memory	4G（maximum 16GB）
	Harddisk	64G solid state disk（128G replacement available）
	Operate system	Default Windows 10（Windows 11/Linux/Ubuntu replacement available）
	Audio	ALC888/ALC662 6 channels Hi-Fi Audio controller/Supporting MIC-in/Line-out
	Network	Integrated giga network card
	Wifi	Internal wifi antenna,supporting wireless connect
Interfaces	DC Port 1	1*DC12V/5525 socket
	DC Port 2	1*DC9V-36V/5.08mm phonix 4 pin
	USB	2USB3.0，1USB 2.0
	Serial-Interface RS232	0*COM（upgrade able）
	Ethernet	2*RJ45 giga ethernet
	VGA	1*VGA
	HDMI	1*HDMI OUT
	WIFI	1*WIFI antenna
	Bluetooth	1*Bluetooch antenna
	Audio imput	1* earphone Interfaces
	Audio output	1*MIC Interfaces
Parameter	Material	CNC aluminum oxgenated drawing craft for the front surface frame
	Color	Black
	Power adapter	AC 100-240V 50/60Hz CCC certificated、CE certificated
	Power dissipation	≈20W
	Power output	DC12V / 5A
Other parameter	Backlight lifetime	50000h
	Temperature	Working：-10°~60°；storage-20°~70°
	Install	Embedded snap-fit
	Guarantee	Whole computer free for maintain in 1 year
	Maintenance terms	Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain
Packing list	N.W.	4.5KG
	Product size（not in cluding brackt）	41427060.5mm
	Range for embedded trepanning	396*252mm
	Carton size	500355125mm
	Power adapter	Available for purchase
	Power line	Available for purchase
	Parts for install	Embedded snap-fit * 4，PM4x30 screw * 4

Engineering dimention drawing:
