13.3 Inch All-In-One Computers For Industrial Manufacturing Industry

Short Description:

Our 13.3-inch all-in-one computers are equipped with high-performance processors and large-capacity memory to ensure speed and task processing efficiency. At the same time, it is also equipped with a high-resolution display to ensure that you have a clear visual experience when displaying data and operating interfaces. In addition, our products also provide multiple interfaces, such as USB, HDMI, Ethernet, etc., to meet the needs of different devices and external connections.


Product Detail

Product Tags

Products Video

13.3 Inch All-In-One Computers For Industrial Manufacturing Industry

This video shows the product in 360 degrees.

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

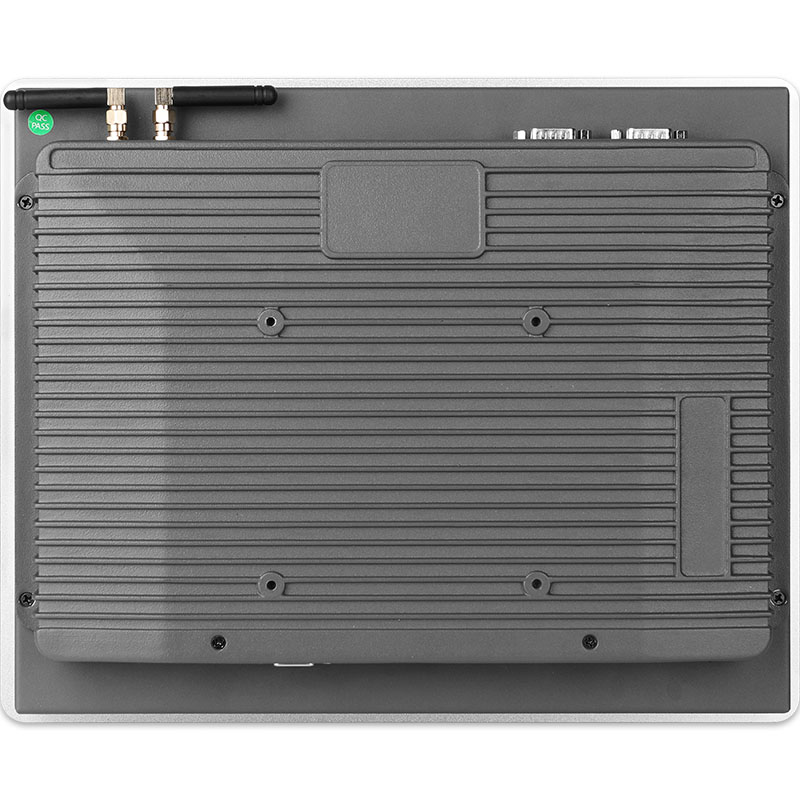

13.3 Inch All-In-One Computers

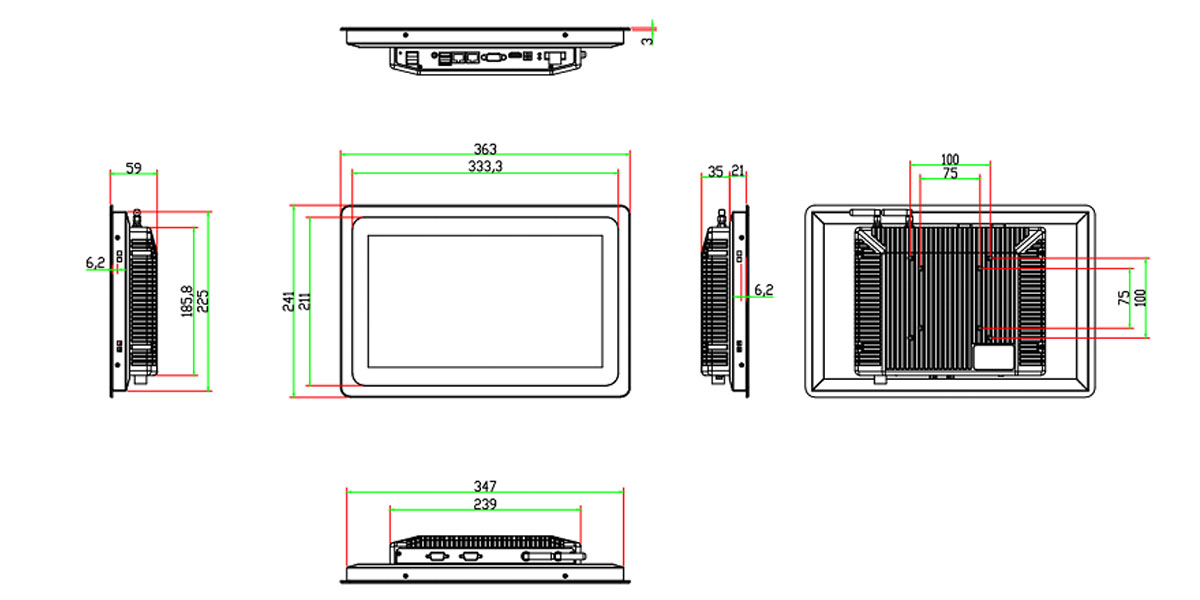

Engineering Dimention Drawing:

13.3

Parameter information:

Display Screen Size 13.3 inch
Screen Resolution 1920*1080
Luminous 350 cd/m2
Color Quantitis 16.7M
Contrast 1000:1
Visual Range 89/89/89/89 (Typ.)(CR≥10)
Display Size 293.76(W)×165.24(H) mm
Touch parameter Reaction Type Electric capacity reaction
Lifetime More than 50 million times
Surface Hardness >7H
Effective Touch Strength  45g
Glass Type Chemical reinforced perspex
Luminousness >85%
Hardware MAINBOARD MODEL I5-8265U
CPU Integrated Intel®Core i5-8265U quad-core eight-thread
1.6GHz (maximum 3.9GHz)
GPU Integrated Intel®UHD Graphics 10th genneration core graphics card
Memory 8G(maximum 16GB)
Harddisk 128G solid state disk
Operate system Default Windows 10(Windows 11/Linux/Ubuntu replacement avaivable)
Audio ALC897 7.1channels Hi-Fi Audio controller on board/supporting MIC/Line-out
Network Integrated giga network card
Wifi Internal wifi antenna,supporting wireless connect

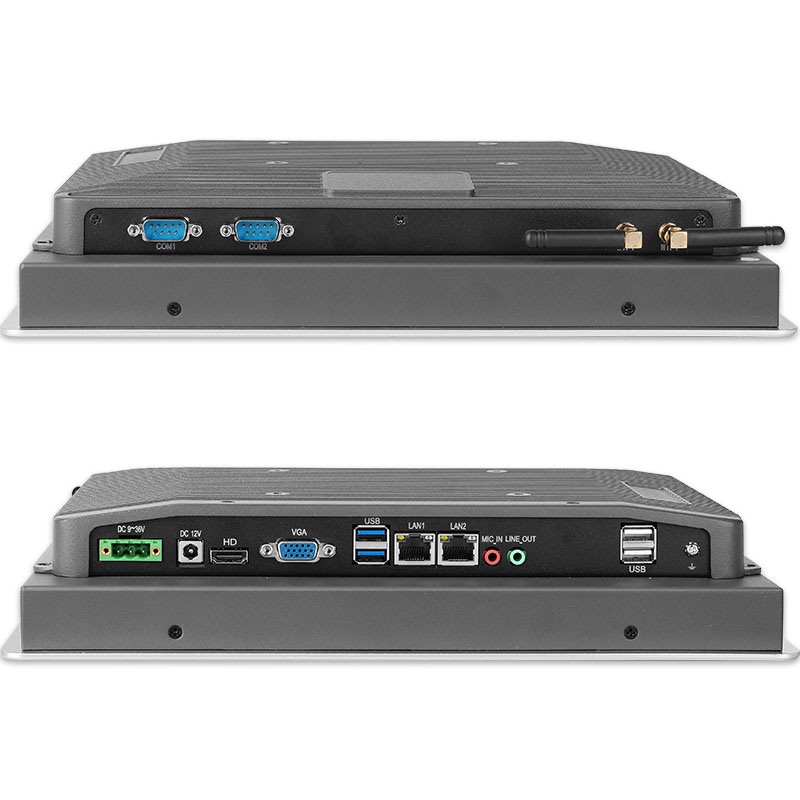

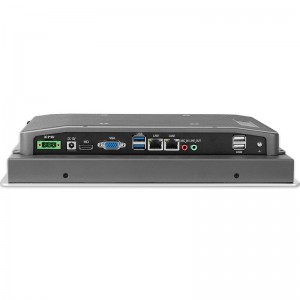

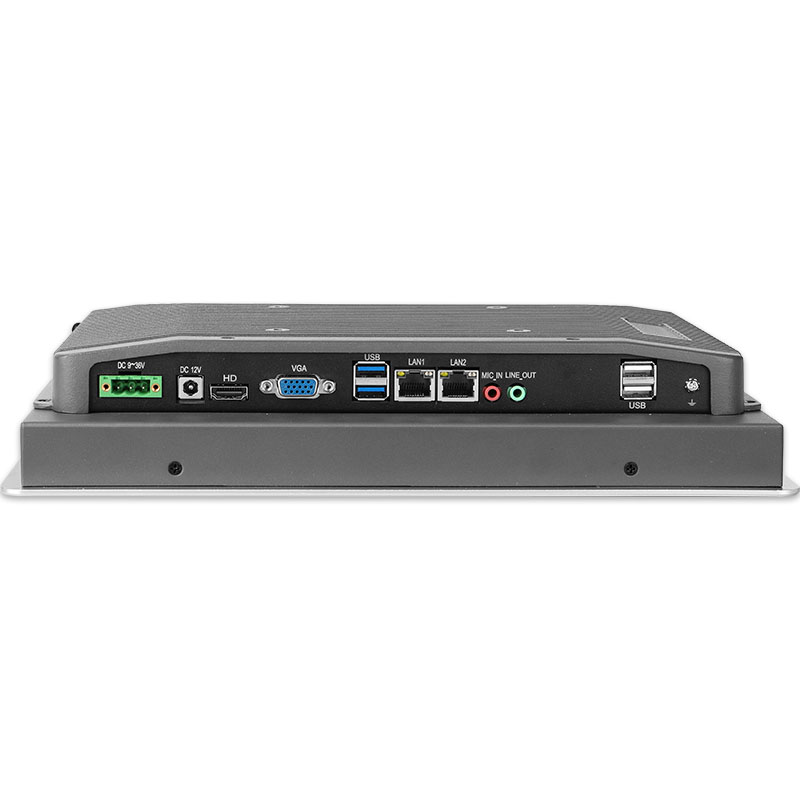

Interfaces DC Port 1 1*DC12V/5525 socket
DC Port 2 1*DC9V-36V/5.08mm phonix 4 pin
USB 2*USB3.0,1*USB 2.0

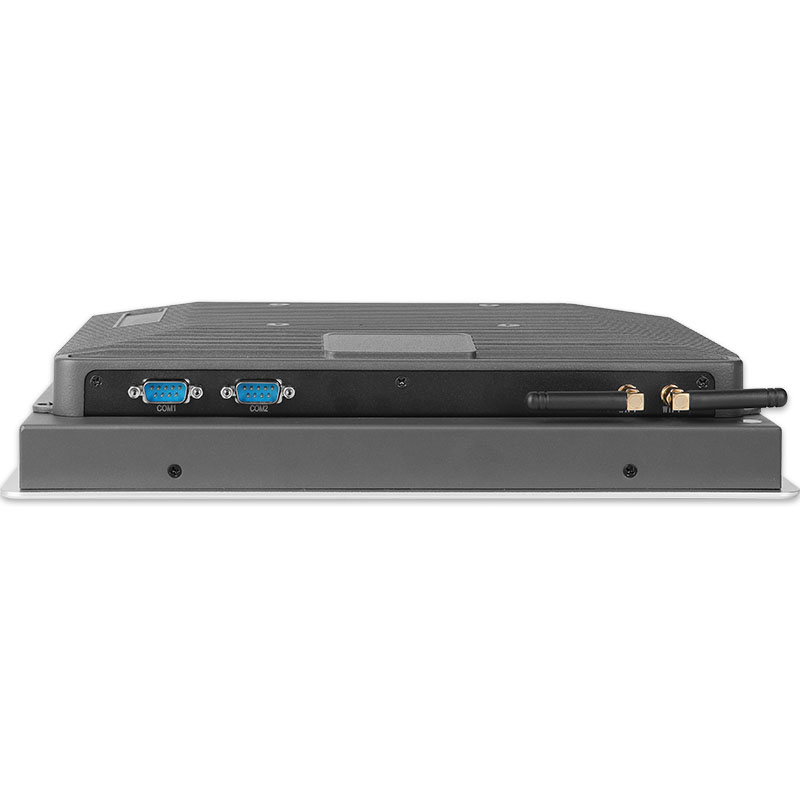

Serial-Interface RS232 0*COM(upgrade able)
Ethernet 2*RJ45 giga ethernet
VGA 1*VGA
HDMI 1*HDMI OUT
WIFI 1*WIFI antenna
Bluetooth 1*Bluetooch antenna
Audio imput 1* earphone Interfaces
Audio output 1*MIC Interfaces
Parameter Material CNC aluminum oxgenated drawing craft for the front surface frame
Color Black
Power adapter AC 100-240V  50/60Hz CCC certificated、CE certificated
Power dissipation ≈20W
Power output DC12V / 5A
Other parameter Backlight lifetime 50000h
Temperature Working:-10°~60°;storage-20°~70°
Install Embedded snap-fit
Guarantee Whole computer free for maintain in 1 year
Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain
Packing list N.W. 4KG
Product size(not in cluding brackt) 363*241*59mm
Range for embedded trepanning 349*227mm
Carton size 448*326*125mm
Power adapter Available for purchase
Power line Available for purchase
Parts for install Embedded snap-fit * 4,PM4x30 screw * 4
PRODUCT INTRODUCTION (9)

Product Superiority:

  • Industrial aesthetic design
  • Streamlined appearance design
  • Independent research and development independent mold opening
  • Stable performance and low power consumption
  • Front panel waterproof design
  • Flat panel up to IP65 waterproof standard
  • GB2423 anti-vibration standard
  • Added shock-proof EVA material
  • Recessed cabinet installation
  • 3mm tightly fitted to the embedded cabinet
  • Fully enclosed dust-proof design
  • Greatly improve the service life of the fuselage
  • Aluminum alloy body
  • Aluminum alloy die-casting integrated forming
  • EMC/EMI Anti-interference standard Anti-electromagnetic interference

Product Solutions:

1. Industrial control: This industrial PC is suitable for various control systems such as automatic production line control and robot control. Due to its high reliability and durability, it can perform excellent stability in high-risk and harsh environments.

2. Intelligent Internet of Things: As a high-performance industrial computer, it can connect to various devices and embedded systems in the network, improve data processing and management capabilities, and facilitate rapid and efficient work in the field of intelligent Internet of Things .

3. Office PC: This industrial PC has a high-resolution screen and excellent performance, and can be used to complete different office applications, such as data processing and file management, etc. In addition, it can also provide higher security and stability.

4. Intelligent security: As the core computer of the intelligent security system, this industrial PC can connect sensors and equipment, and provide various functions such as monitoring, detection and alarm.

5. Visual inspection: With a high-resolution screen and excellent performance, this industrial PC can be used as a visual inspection device to complete multiple inspection applications and obtain accurate results.

6. 3D printer control: The industrial computer is connected to various 3D printers, and as the control core, it can improve the performance and precision of the 3D printer and make your printing effect more excellent.

7. Medical equipment: Computers with high performance can play an important role in various medical equipment, such as electronic medical record management, medical imaging, etc.

8. Public transportation: Industrial PCs can be used in public transportation management systems, such as taxi management, bus GPS positioning, etc. Provide better public transport services to the public by improving operational management efficiency.

9. Power equipment: As the core component of the power equipment management system, this industrial PC can improve the efficiency of power grid monitoring, substation management, etc., and further promote the digital transformation of the power industry.

10. Smart home: As the core computer of the smart home system, the industrial PC can connect various smart devices to achieve intelligent linkage control and help users realize the dream of smart home life.
