13.3″ android industrial panel pc with USB vga hdmi tf for industrial
This video shows the product in 360 degrees.
android industrial panel pc Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.
Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

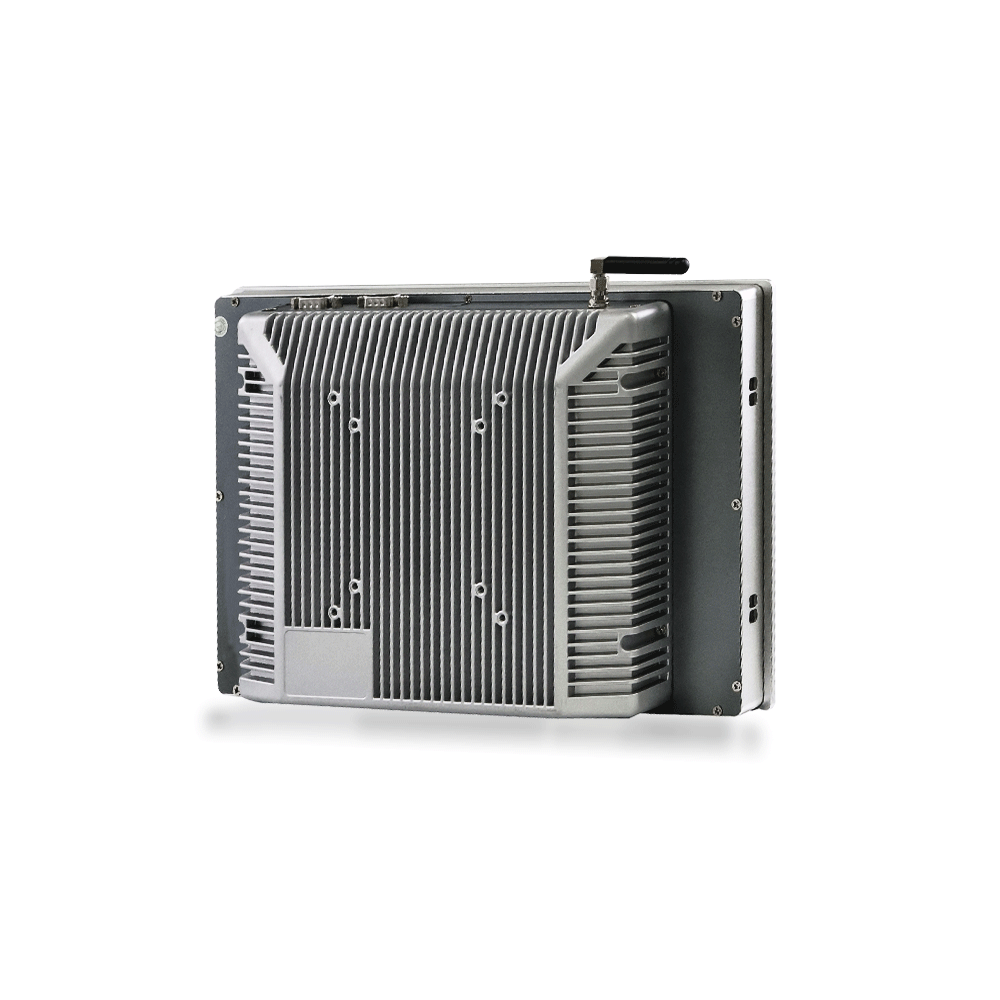

Made of aluminum alloy with excellent heat dissipation and durability, the Android Industrial Panel PC provides you with a perfect working partner.
The large 13.3-inch display provides clear, detailed images so you can view and handle your work tasks with ease.

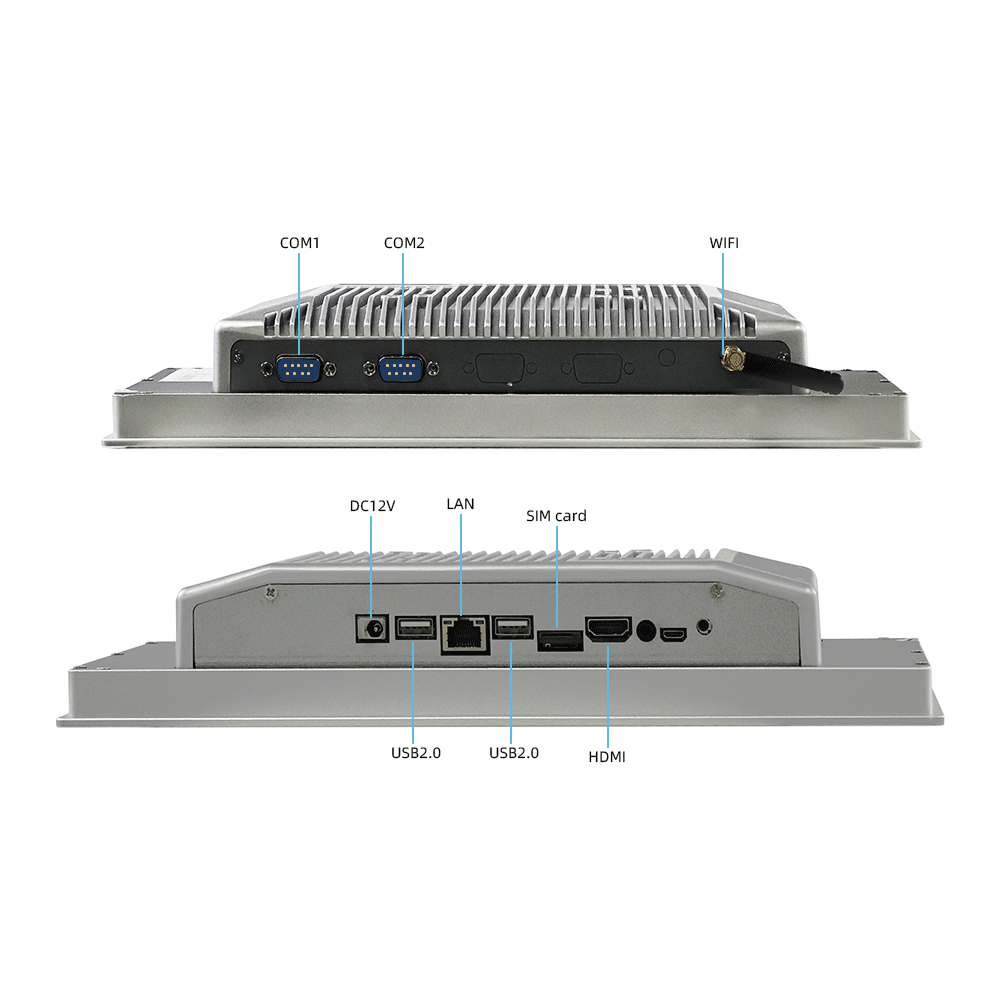

android industrial panel pc Meanwhile, multiple ports including USB, VGA, HDMI and a TF card slot make connecting external devices easy.
The ability to run continuously for 24 hours ensures that you can work at any time without worrying about system crashes or performance degradation.
IP65-rated dust and waterproofing protects internal components from dust, water droplets, and other impurities, keeping your equipment running stably and safely.To ensure durability and fast heat dissipation, we chose a high-quality aluminum alloy.
Aluminum alloy has excellent thermal conductivity, which can quickly dissipate heat to keep the device running at a low temperature and effectively extend its service life.
- Industrial aesthetic design
- Streamlined appearance design
- Independent research and development independent mold opening
- Stable performance and low power consumption
- Front panel waterproof design
- Flat panel up to IP65 waterproof standard
- GB2423 anti-vibration standard
- Added shock-proof EVA material
- Recessed cabinet installation
- 3mm tightly fitted to the embedded cabinet
- Fully enclosed dust-proof design
- Greatly improve the service life of the fuselage
- Aluminum alloy body
- Aluminum alloy die-casting integrated forming
- EMC/EMI Anti-interference standard Anti-electromagnetic interference
| android industrial panel pc Display | Screen Size | 13.3 inch |
| Screen Resolution | 1920*1080 | |
| Luminous | 400 cd/m2 | |
| Color Quantitis | 16.7M | |
| Contrast | 1000:1 | |
| Visual Range | 85/85/85/85 (Typ.)(CR≥10) | |
| Display Size | 293.76(W)×165.24(H) mm | |
| Touch Parameter | Reaction Type | Electric capacity reaction |
| Lifetime | More than 50 miliion times | |
| Surface Hardness | ＞7H | |
| Effective Touch Strength | 45g | |
| Glass Type | Chemical reinforced perspex | |
| Luminousness | ＞85% | |
| Hardware | MAINBOARD MODEL | RK3288 |
| CPU | RK3288 Cortex-A17 quad-core 1.8GHz | |
| GPU | Mali-T764 quad-core | |
| Memory | 2G | |
| Harddisk | 16G | |
| Operate system | Android 7.1 | |
| 3G Module | replacement available | |
| 4G Module | replacement available | |
| WIFI | 2.4G | |
| Bluetooth | BT4.0 | |
| GPS | replacement available | |
| MIC | replacement available | |
| RTC | Supporting | |
| Awaken through network | Supporting | |
| Startup & Shutdown | Supporting | |
| System upgrade | Supporting hardware TF/USB upgrade |
