12 inch j4125 Industrial embedded computers with Screen Resolution 1024*768

Short Description:

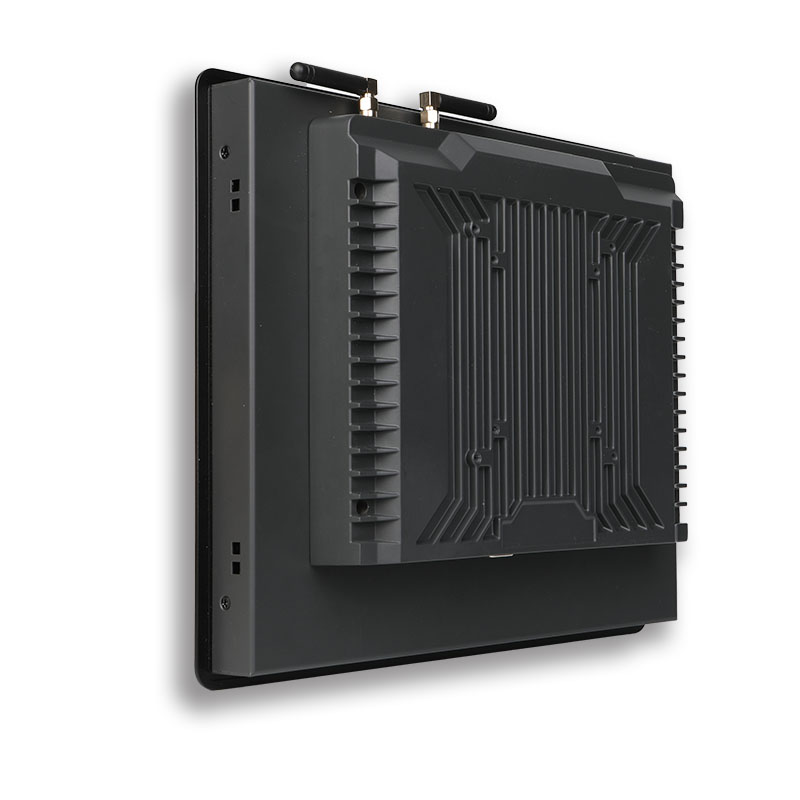

COMPT 12 inch j4125 Industrial embedded computers has Reasonable appearance design: The shell is mainly made of all aluminum alloy material, which can not only resist vibration and rapid cooling, but also prevent dust and electromagnetic interference.
A computer that occupies a small space and integrates industrial displays and industrial control computers can completely replace the screen+host solution.

Model: CPT-120PXBC2-J4125

Screen Size: 12 inch

Screen Resolution: 1024*768

Luminous: 400 cd/m2

Download as pdf whatsapp email

Product Detail

Product Tags

Features of Industrial embedded computers：

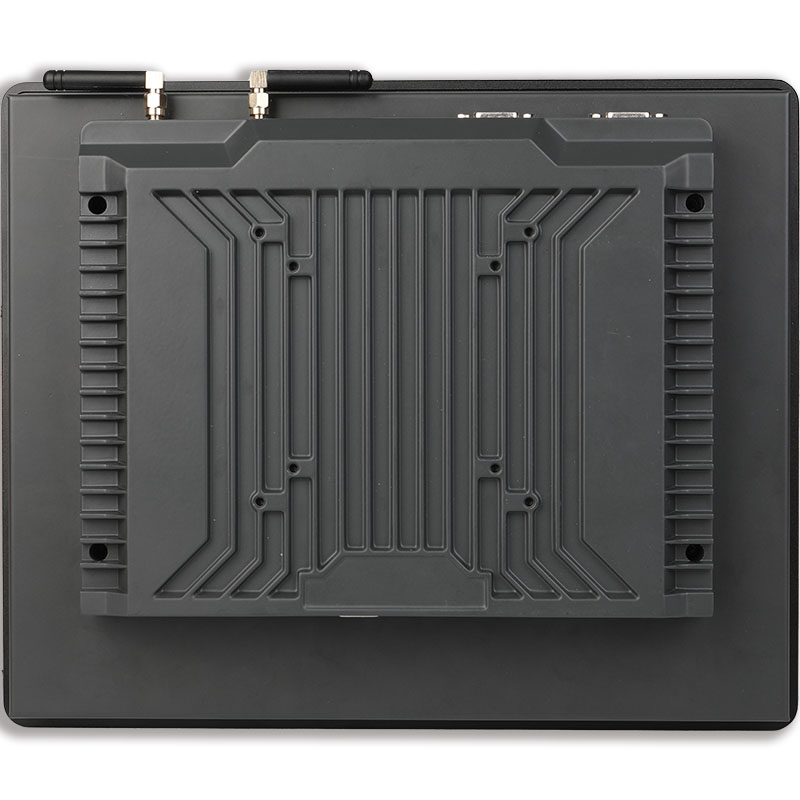

COMPT j4125 Industrial embedded computers Simply using a heat dissipation board can effectively solve the heat dissipation problem.

With a heat dissipation fan running for a long time, they are prone to malfunctions and also have noise, which has significant limitations.

The internal motherboard adopts a wireless cable design, and all interfaces are integrated into the motherboard, reducing issues such as loose motherboard interfaces.

Hardware Configuration information:

Display	Screen Size	12 inch
	Screen Resolution	1024*768
	Luminous	400 cd/m2
	Color Quantitis	16.7M
	Contrast	1000:1
	Visual Range	85/85/85/85 (Typ.)(CR≥10)
	Display Size	246(W)×184.5(H) mm
Touch parameter	Reaction Type	Electric capacity reaction
	Lifetime	More than 50 million times
	Surface Hardness	＞7H
	Effective Touch Strength	45g
	Glass Type	Chemical reinforced perspex
	Luminousness	＞85%
Hardware	MAINBOARD MODEL	J4125
	CPU	Integrated Intel®Celeron J4125 2.0GHz quad-core
	GPU	Integrated Intel®UHD Graphics 600 core card
	Memory	4G（maximum 16GB）
	Harddisk	64G solid state disk（128G replacement available）
	Operate system	Default Windows 10（Windows 11/Linux/Ubuntu replacement available）
	Audio	ALC888/ALC662 6 channels Hi-Fi Audio controller/Supporting MIC-in/Line-out
	Network	Integrated giga network card
	Wifi	Internal wifi antenna,supporting wireless connect

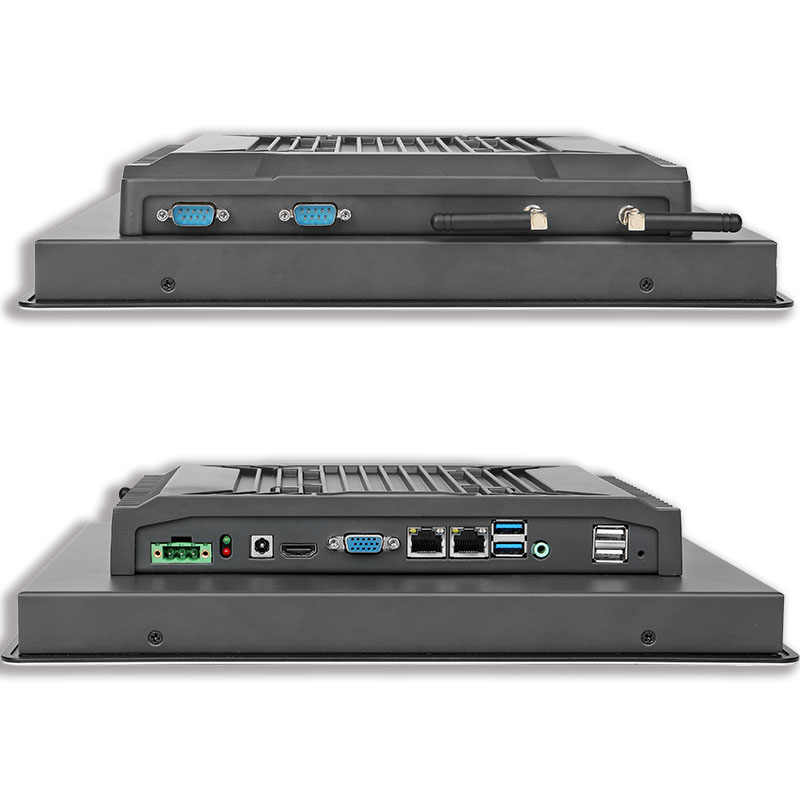

Interfaces	DC Port 1	1*DC12V/5525 socket
	DC Port 2	1*DC9V-36V/5.08mm phonix 4 pin
	USB	2USB3.0，1USB 2.0
	Serial-Interface RS232	0*COM（upgrade able）
	Ethernet	2*RJ45 giga ethernet
	VGA	1*VGA
	HDMI	1*HDMI OUT
	WIFI	1*WIFI antenna
	Bluetooth	1*Bluetooch antenna
	Audio imput & output	1*earphone & MIC two-in-one
Parameter	Material	CNC aluminum oxgenated drawing craft for the front surface frame
	Color	Black
	Power adapter	AC 100-240V 50/60Hz CCC certificated、CE certificated
	Power dissipation	≈20W
	Power output	DC12V / 5A
Other parameter	Backlight lifetime	50000h
	Temperature	Working：-10°~60°；storage-20°~70°
	Install	Embedded snap-fit
	Guarantee	Whole computer free for maintain in 1 year
	Maintenance terms	Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain
Packing list	N.W.	3.5KG
	Product size（not in cluding brackt）	31725262mm
	Range for embedded trepanning	303*238mm
	Carton size	402337125mm
	Power adapter	Available for purchase
	Power line	Available for purchase
	Parts for install	Embedded snap-fit * 4，PM4x30 screw * 4

Industrial embedded Solution:

Industrial computer in AGV Forklift solutions

Industrial computers in Intelligent Transportation solutions

Industrial Android All-in-One Solution in Smart Home Robotics

Industrial android panel cp in cnc machine Solutionr

industrial computer Heavy Industry Equipment Solution

Industrial computers in intelligent security solutions

https://www.gdcompt.com/solution/smart-agriculture-solution/

Hospital self-service inquiry and payment equipment

what is an embedded computer

Embedded technology is a special computer technology, which refers to a specific application, such as for network, communication, audio, video, industrial control, etc.

from an academic point of view, embedded system is application centered, based on computer technology, and the software and hardware can be tailored, which is suitable for the application system for function, reliability, cost, volume The special computer system with strict power consumption requirements is generally composed of embedded microprocessor, peripheral hardware, embedded operating system and user application program.

Embedded industrial computer is a kind of reinforced industrial computer, which can be used as an industrial controller to run reliably in the industrial environment.

Embedded industrial control computer is a compact computer specially designed for industrial site. Embedded industrial control computers can be flexibly applied in harsh environments such as temperature and space, including vehicle, retail, monitoring, electronic billboards, factory control and other application markets with low power consumption system requirements.

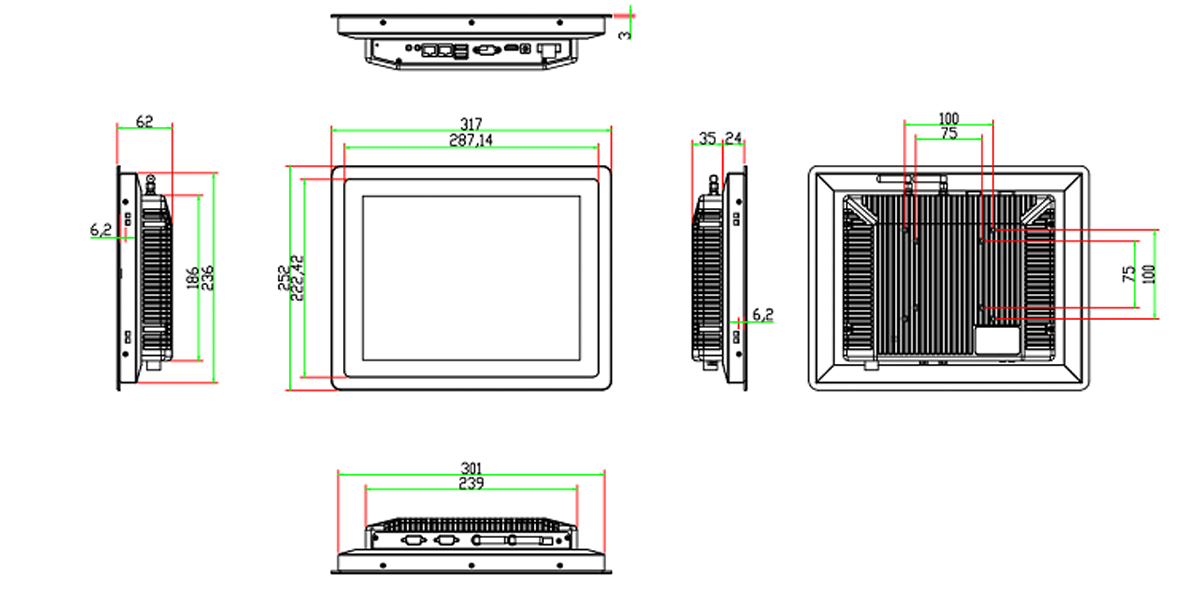

Industrial embedded Engineering dimention drawing:

Industrial embedded Install：
