12.1″ Industrial Waterproof Touch Screens Marine Monitors
This video shows the industrial marine monitor in 360 degrees.
Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.
Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.
COMPT's newest product: the 12.1-inch industrial monitors touchscreen. With advanced technology and incredible features, this touch screen monitor not only meets the demands of industrial environments, but is also IP65 rated and waterproof.
This 12.1-inch industrial touchscreen marine monitor is a high-quality LCD monitor with excellent image quality and clarity. It is equipped with advanced touchscreen technology that allows users to interact with it easily.
Not only that, this industrial marine monitors also has a reliable IP65 waterproof rating that allows it to work in harsh environments. Whether it's in a marine environment or in an industrial location, our products can stand the test of time and maintain excellent performance.
In addition to being waterproof, the industrial marine monitors is equipped with a wide range of functions and features to meet the needs of the user. The innovative Touch Screens technology allows users to interact with the monitor in a simple and intuitive way.
| Touch parameter | Reaction Type | Electric capacity reaction |
| Lifetime | More than 50 miliion times | |
| Surface Hardness | ＞7H | |
| Effective Touch Strength | 45g | |
| Glass Type | More than 50 miliion times | |
| Luminousness | ＞85% | |
| Parameter | Power suplier mode | 12V/5A external power adapter / industral interface |
| Power specs | 100-240V，50-60HZ | |
| Anti-static | Contact discharge 4KV-air discharge 8KV（customization available≥16KV） | |
| Rate of work | ≤8W | |
| Vibration proof | GB242 standard | |
| Anti-interference | EMC|EMI anti-electromagnetic interference | |
| Protection | Front panel IP65 dustproof waterproof | |
| Color of shell | Black | |
| Environment temperature | <80%,Condesation forbidden | |
| Working temperature | Working：-10°~60°；Storage：-20°~70° | |
| Language menu | Chinese、English、Gemman、French、Korean、Spanish、 Italia、Russia |
|
| Install mode | Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type | |
| Guarantee | Whole computer free for maintain in 1 year | |
| Maintenance terms | Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain | |

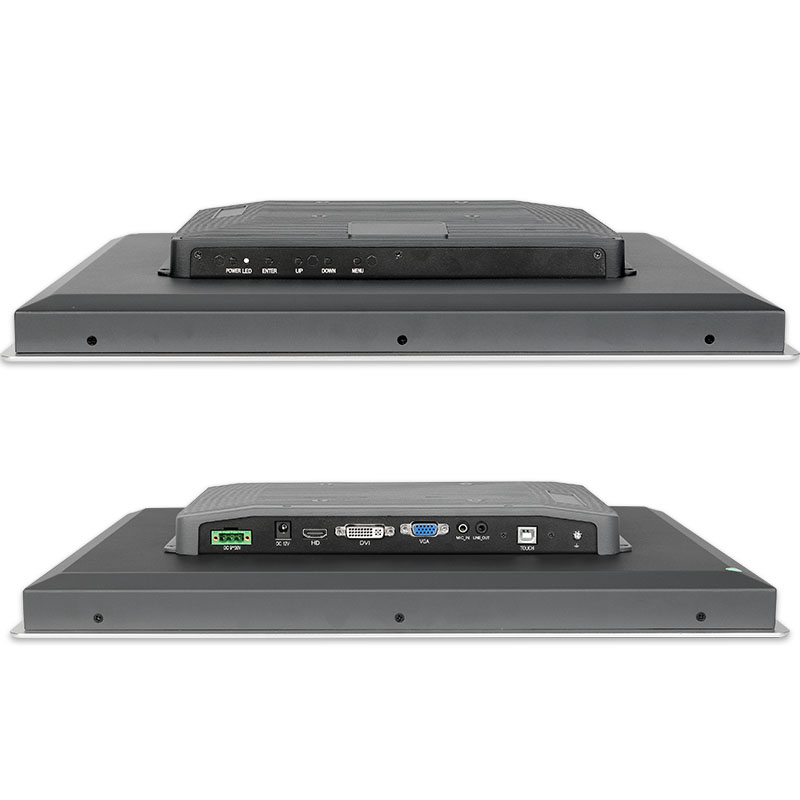

| I/O interface parameter | DC port 1 | 1*DC12V/5525 socket |
| DC port 2 | 1*DC9V-36V/5.08mm phoneix 3 pin | |
| Touch function | 1*USB-B external interface | |
| VGA | 1*VGA IN | |
| HDMI | 1*HDMI IN | |
| DVI | 1*DVI IN | |
| PC AUDIO | 1*PC AUDIO | |
| EARPHONE | 1*earphone |
- Industrial aesthetic design
- Streamlined appearance design
- Independent research and development independent mold opening
- Stable performance and low power consumption
- Front panel waterproof design
- Flat panel up to IP65 waterproof standard
- GB2423 anti-vibration standard
- Added shock-proof EVA material
- Recessed cabinet installation
- 3mm tightly fitted to the embedded cabinet
- Fully enclosed dust-proof design
- Greatly improve the service life of the fuselage
- Aluminum alloy body
- Aluminum alloy die-casting integrated forming
- EMC/EMI Anti-interference standard Anti-electromagnetic interference
Industrial touchscreen marine monitors have a wide range of applications in marine and offshore applications. Here are some of the common application scenarios:
Hull monitoring systems: Traffic vessels and offshore vessels are often equipped with hull monitoring systems to monitor the status of the ship's structure and equipment. Industrial touch screen marine monitors can be used as a display and operator interface to provide real-time hull information and control functions.
Navigation and Radar Systems: Navigation and radar systems are essential equipment for ships during navigation. Industrial touch screen marine monitors can be used to display navigational charts, porthole radar and other navigational data to assist the crew in navigating and positioning.
Communication systems: Ships need reliable communication systems to communicate with shore and other vessels. Industrial touch screen marine monitors can be integrated into communications equipment to display communications status, call interfaces and messaging information.
Engine Control Room: A ship's engines and power systems require specialised monitoring and control. Industrial touch screen marine monitors can be used to display key data such as engine parameters, temperatures, pressures, etc. and provide operator interfaces to control and adjust engine performance.
Load Monitoring and Control: In the marine industry, ships are often required to carry various loads such as cargo, equipment, etc. The industrial touch screen marine monitors can be used to monitor and control these loads and provide an operator interface to control and adjust engine performance. Industrial touch screen monitors can be used to monitor and control the status, location and safety of the cargo to ensure stable and safe transport of the ship's load.
In short, industrial touch screen marine monitors play a vital role in marine and offshore applications. They provide reliable displays and operator interfaces that help crew members monitor ship status, navigate the voyage, communicate, control engine performance, and manage ship loads. These monitors are highly durable, waterproof and adaptable to harsh environments, ensuring that marine systems function properly in harsh marine environments.
All in all, our 12.1-inch industrial touchscreen marine monitor is a long-lasting and high-performance product for a variety of demanding environments. Its IP65-rated waterproofness and advanced Touch Screens technology make it ideal for use in marine and industrial applications. Whether you need to monitor or interact on the job, this monitor has you covered.
Penny
Web Content Writer
4 years of experience
This article is edited by Penny, the website content writer of COMPT, who has 4 years working experience in the industrial PCs industry and often discusses with colleagues in R&D, marketing and production departments about the professional knowledge and application of industrial controllers, and has a deep understanding of the industry and products.
Please feel free to contact me to discuss more about industrial controllers. zhaopei@gdcompt.com
| Display | Screen Size | 12.1 inch marine monitors |
| Screen Resolution | 1280*800 | |
| Luminous | 300 cd/m2 | |
| Color Quantitis | 16.2M | |
| Contrast | 1000:1 | |
| Visual Range | 85/85/85/85 (Typ.)(CR≥10) | |
| Display Size | 261.12(W)×163.2(H) mm | |
| Touch parameter | Reaction Type | Electric capacity reaction |
| Lifetime | More than 50 miliion times | |
| Surface Hardness | ＞7H | |
| Effective Touch Strength | 45g | |
| Glass Type | More than 50 miliion times | |
| Luminousness | ＞85% | |
| Parameter | Power suplier mode | 12V/5A external power adapter / industral interface |
| Power specs | 100-240V，50-60HZ | |
| Anti-static | Contact discharge 4KV-air discharge 8KV（customization available≥16KV） | |
| Rate of work | ≤8W | |
| Vibration proof | GB242 standard | |
| Anti-interference | EMC|EMI anti-electromagnetic interference | |
| Protection | Front panel IP65 dustproof waterproof | |
| Color of shell | Black | |
| Environment temperature | <80%,Condesation forbidden | |
| Working temperature | Working：-10°~60°；Storage：-20°~70° | |
| Language menu | Chinese、English、Gemman、French、Korean、Spanish、 Italia、Russia |
|
| Install mode | Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type | |
| Guarantee | Whole computer free for maintain in 1 year | |
| Maintenance terms | Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain | |
| I/O interface parameter | DC port 1 | 1*DC12V/5525 socket |
| DC port 2 | 1*DC9V-36V/5.08mm phoneix 3 pin | |
| Touch function | 1*USB-B external interface | |
| VGA | 1*VGA IN | |
| HDMI | 1*HDMI IN | |
| DVI | 1*DVI IN | |
| PC AUDIO | 1*PC AUDIO | |
| EARPHONE | 1*earphone | |
| Packing list | N.W. | 3.5KG |

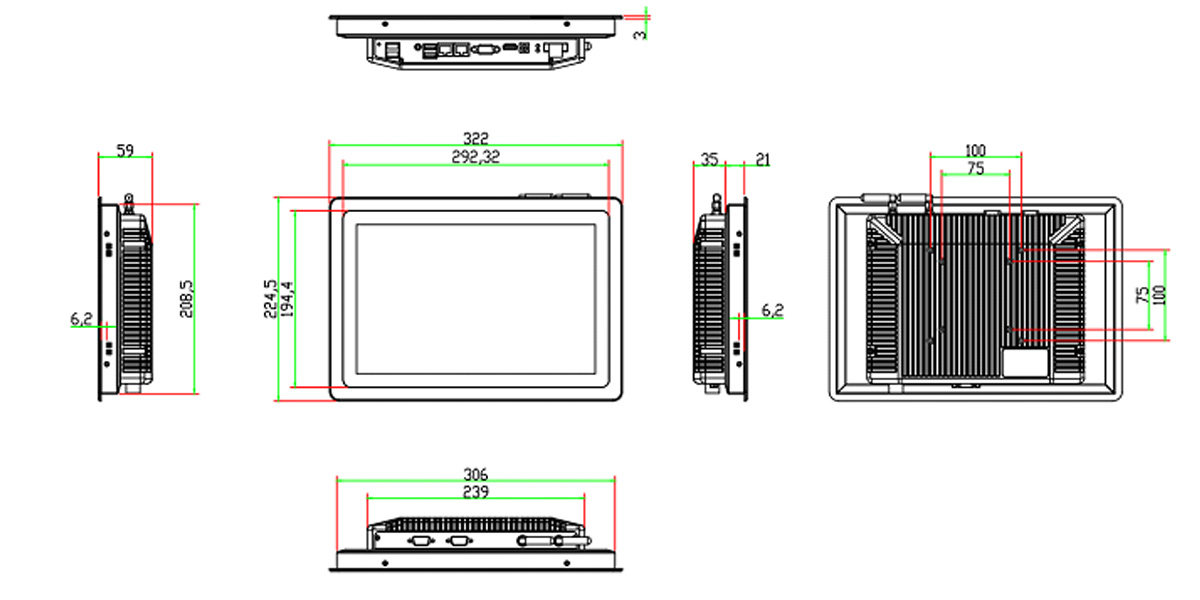

| Product size | 322*224.5*59mm | |
| Range for embedded trepanning | 308*210.5mm | |
| Carton size | 407*310*125mm | |
| Power adapter | Optional | |
| Power line | Optional | |
| Parts for install | Embedded snap-fit * 4，PM4x30 screw * 4 |
| Display | Screen Size | 13.3 inch marine monitors |
| Screen Resolution | 1920*1080 | |
| Luminous | 400 cd/m2 | |
| Color Quantitis | 16.7M | |
| Contrast | 1000:1 | |
| Visual Range | 85/85/85/85 (Typ.)(CR≥10) | |
| Display Size | 293.76(W)×165.24(H) mm | |
| Touch parameter | Reaction Type | Electric capacity reaction |
| Lifetime | More than 50 miliion times | |
| Surface Hardness | ＞7H | |
| Effective Touch Strength | 45g | |
| Glass Type | More than 50 miliion times | |
| Luminousness | ＞85% | |
| Parameter | Power suplier mode | 12V/5A external power adapter / industral interface |
| Power specs | 100-240V，50-60HZ | |
| Imput voltage | 9-36V/12V | |
| Anti-static | Contact discharge 4KV-air discharge 8KV（customization available≥16KV） | |
| Rate of work | ≤8W | |
| Vibration proof | GB242 standard | |
| Anti-interference | EMC|EMI anti-electromagnetic interference | |
| Protection | Front panel IP65 dustproof waterproof | |
| Color of shell | Black | |
| Environment temperature | <80%,Condesation forbidden | |
| Working temperature | Working：-10°~60°；Storage：-20°~70° | |
| Language menu | Chinese、English、Gemman、French、Korean、Spanish、 Italia、Russia |
|
| Install mode | Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type | |
| Guarantee | Whole computer free for maintain in 1 year | |
| Maintenance terms | Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain | |
| I/O interface parameter | DC port 1 | 1*DC12V/5525 socket |
| DC port 2 | 1*DC9V-36V/5.08mm phoneix 3 pin | |
| Touch function | 1*USB-B external interface | |
| VGA | 1*VGA IN | |
| HDMI | 1*HDMI IN | |
| DVI | 1*DVI IN | |
| PC AUDIO | 1*PC AUDIO | |
| EARPHONE | 1*earphone | |
| Packing list | N.W. | 4KG |
| Product size | 363*241*59mm | |
| Range for embedded trepanning | 349*227mm | |
| Carton size | 448*326*125mm | |
| Power adapter | Optional | |
| Power line | Optional | |
| Parts for install | Embedded snap-fit * 4，PM4x30 screw * 4 |
| Display | Screen Size | 15.6 inch industrial monitors |
| Screen Resolution | 1920*1080 | |
| Luminous | 300 cd/m2 | |
| Color Quantitis | 16.7M | |
| Contrast | 800:1 | |
| Visual Range | 85/85/85/85 (Typ.)(CR≥10) | |
| Display Size | 344.16(W)×193.59(H) mm | |
| Touch parameter | Reaction Type | Electric capacity reaction |
| Lifetime | More than 50 miliion times | |
| Surface Hardness | ＞7H | |
| Effective Touch Strength | 45g | |
| Glass Type | More than 50 miliion times | |
| Luminousness | ＞85% | |
| Parameter | Power suplier mode | 12V/5A external power adapter / industral interface |
| Power specs | 100-240V，50-60HZ | |
| Imput voltage | 9-36V/12V | |
| Anti-static | Contact discharge 4KV-air discharge 8KV（customization available≥16KV） | |
| Rate of work | ≤8W | |
| Vibration proof | GB242 standard | |
| Anti-interference | EMC|EMI anti-electromagnetic interference | |
| Protection | Front panel IP65 dustproof waterproof | |
| Color of shell | Black | |
| Environment temperature | <80%,Condesation forbidden | |
| Working temperature | Working：-10°~60°；Storage：-20°~70° | |
| Language menu | Chinese、English、Gemman、French、Korean、Spanish、 Italia、Russia |
|
| Install mode | Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type | |
| Guarantee | Whole computer free for maintain in 1 year | |
| Maintenance terms | Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain | |
| I/O interface parameter | DC port 1 | 1*DC12V/5525 socket |
| DC port 2 | 1*DC9V-36V/5.08mm phoneix 3 pin | |
| Touch function | 1*USB-B external interface | |
| VGA | 1*VGA IN | |
| HDMI | 1*HDMI IN | |
| DVI | 1*DVI IN | |
| PC AUDIO | 1*PC AUDIO | |
| EARPHONE | 1*earphone | |
| Packing list | N.W. | 4.5KG |
| Product size | 414*270*60.5mm | |
| Range for embedded trepanning | 396*252mm | |
| Carton size | 500*355*125mm | |
| Power adapter | Optional | |
| Power line | Optional | |
| Parts for install | Embedded snap-fit * 4，PM4x30 screw * 4 |
-
