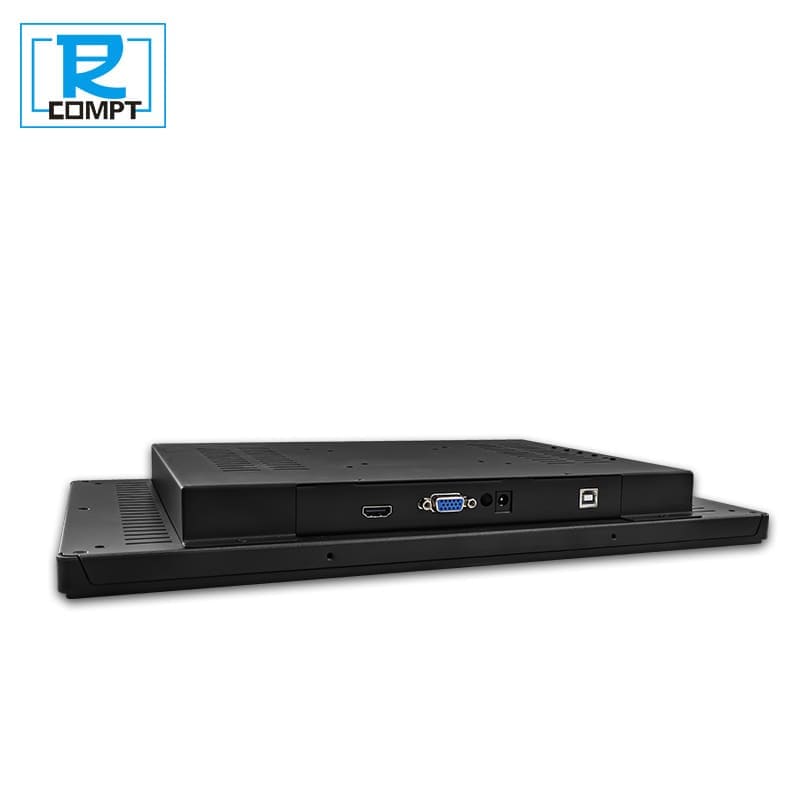

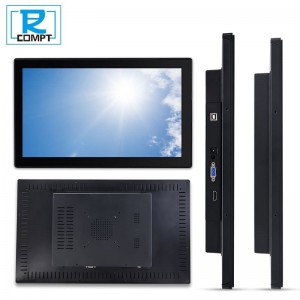

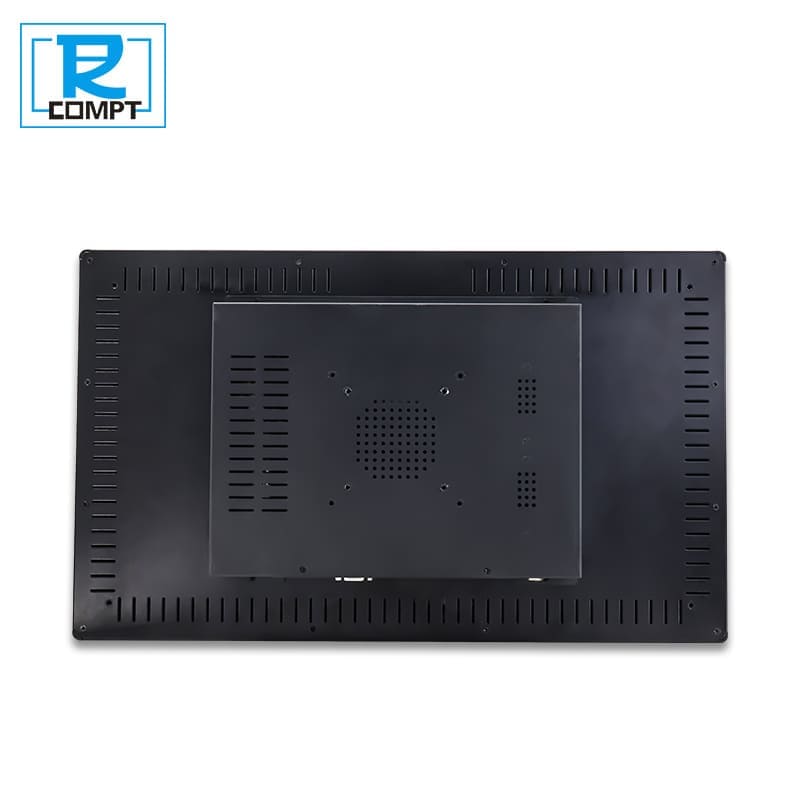

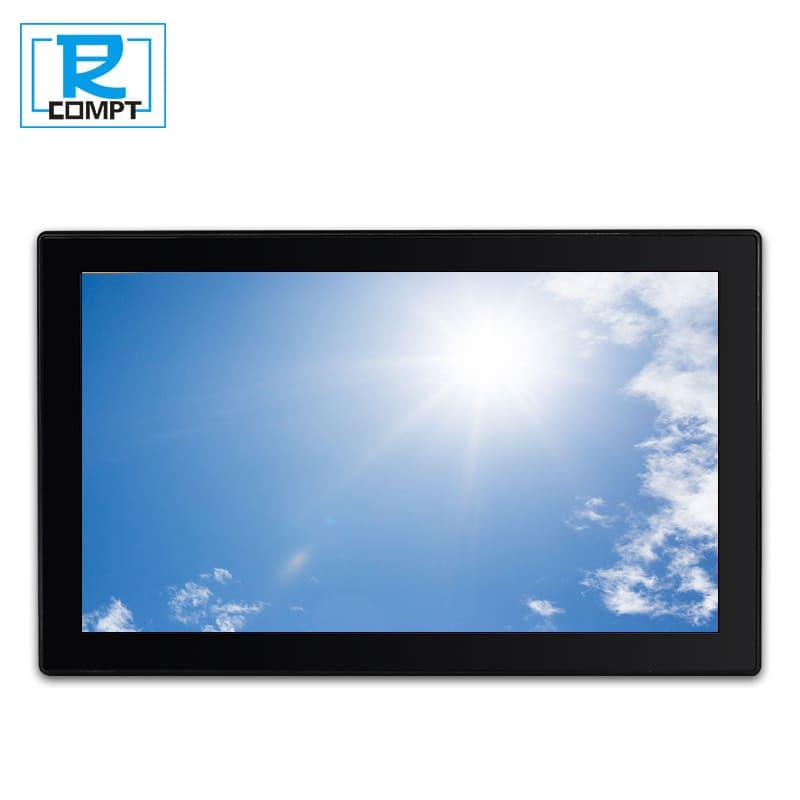

11.6″ industrial touch screen marine computer display moniotr Featured Image
  • 11.6″ industrial touch screen marine computer display moniotr
  • 11.6″ industrial touch screen marine computer display moniotr
  • 11.6″ industrial touch screen marine computer display moniotr
  • 11.6″ industrial touch screen marine computer display moniotr
  • 11.6″ industrial touch screen marine computer display moniotr

11.6″ industrial touch screen marine computer display moniotr

Short Description:

Mould：CPT-116M-XBC3A01

Screen Size：11.6 inch

Screen Resolution：1920*1080

Luminous：300 cd/m2

Product size：326*212*57mm

Visual Range：89/89/89/89(Typ.)(CR≥10)


Download as pdf whatsapp email

Product Detail

10.1"

11.6"

13.3"

15.6"

21.5"

Product Tags

Products Video

This video shows the product in 360 degrees.

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

Parameter Information:

COMPT's 11.6-inch industrial computer monitor, this industrial-grade computer monitor will provide excellent image quality and outstanding performance for your work environment. This 11.6-inch computer monitor features a compact size for a variety of industrial application scenarios. Its high resolution and wide-angle viewing features ensure that you can clearly see any detail on the screen, no matter what environment you are using it in.

The industrial-grade design of this computer monitor gives it outstanding durability and reliability. It has been rigorously tested and validated to perform well in harsh working environments. Whether it's in high or low temperatures, humidity or vibration, it maintains a stable performance.

In addition, this computer monitor features a wide range of connectivity options including HDMI, VGA and USB ports to meet your various external device connectivity needs. It also supports touchscreen technology, enabling you to perform direct touch operations for improved productivity.

Parameter parameter:

Display Screen Size 11.6 inch
Screen Resolution 1920*1080
Luminous 300 cd/m2
Color Quantitis 16.7M
Contrast 1000:1
Visual Range 89/89/89/89(Typ.)(CR≥10)
Display Size 257(W)×144.8(H) mm
Touch parameter Reaction Type Electric capacity reaction
Lifetime More than 50 miliion times
Surface Hardness ＞7H
Effective Touch Strength  45g
Glass Type More than 50 miliion times
Luminousness ＞85%
Parameter Power suplier mode 12V/5A external power adapter / industral interface
Power specs 100-240V，50-60HZ
Imput voltage 9-36V/12V
Anti-static Contact discharge 4KV-air discharge 8KV（customization available≥16KV）
Rate of work ≤8W
Vibration proof GB242 standard
Anti-interference EMC|EMI anti-electromagnetic interference
Protection Front panel IP65 dustproof waterproof
Color of shell Black
Environment temperature <80%,Condesation forbidden
Working temperature Working：-10°~60°；Storage：-20°~70°
Language menu Chinese、English、Gemman、French、Korean、Spanish、
Italia、Russia
Install mode Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type
Guarantee Whole computer free for maintain in 1 year
Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain

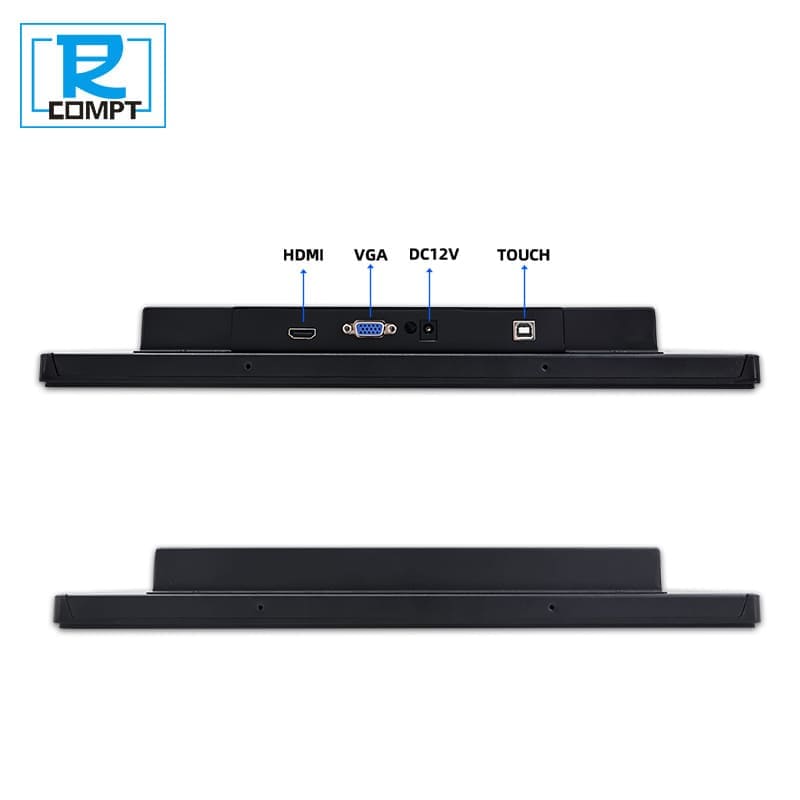

I/O interface parameter DC port 1 1*DC12V/5525 socket
DC port 2 1*DC9V-36V/5.08mm phoneix 3 pin
Touch function 1*USB-B external interface
VGA 1*VGA IN
HDMI 1*HDMI IN
DVI 1*DVI IN
PC AUDIO 1*PC AUDIO
EARPHONE 1*earphone
Packing list N.W. 2.5KG
Product size 326*212*57mm
Range for embedded trepanning 313.5*200mm
Carton size 411*297*125mm
Power adapter Optional
Power line Optional
Parts for install Embedded snap-fit * 4，PM4x30 screw * 4



Product Solutions：

1.Industrial Automation: Industrial computer monitors play a key role in factory automation systems, monitoring and displaying production processes, equipment status and production data to improve production efficiency and quality control.

2. Logistics Management: Industrial computer monitors can be used in warehousing and logistics management systems to help track logistics processes, manage inventory, and provide real-time data updates and accurate cargo tracking.
Transport and Traffic Control: Industrial computer monitors are widely used in the transport and traffic field for displaying and controlling traffic signals, vehicle tracking and road condition monitoring, etc. to improve traffic flow and safety.

3. Energy and power management: Industrial computer monitors can be used for energy and power system monitoring, providing real-time data and operation status monitoring and control in power plants, substations and power grid management.

4. Medical diagnosis and monitoring: Industrial computer monitors can be used in the medical field as monitoring monitors for medical equipment, such as for operating theatre monitoring, ward diagnosis and medical image display.

5. Environmental monitoring and control: Industrial computer monitors can be used in environmental monitoring and control systems to display and analyse meteorological data, environmental pollution indicators or water quality monitoring data.

6. Server room and data centre management: Industrial computer monitors can be used for server room and data centre monitoring to display server status, temperature and humidity control and network connection status.

7. Security Surveillance: Industrial computer monitors can be used in security surveillance systems to display video surveillance images, monitor and record abnormal events in real time, and improve security and crime prevention.

8. Food and Beverage Production: Industrial computer monitors can be used in the food and beverage production process to monitor and control the production line to ensure the quality and consistency of the production process.

9. Environmental control and building automation: Industrial computer monitors can be used in building automation systems for displaying and controlling equipment such as lighting, heating, ventilation and air conditioning to improve energy efficiency and comfort.

SOLUTIONS
SOLUTIONS
SOLUTIONS
SOLUTIONS
https://www.gdcompt.com/solution/
SOLUTIONS
SOLUTIONS1
AI in Manufacturing

Product Superiority:

  • Industrial aesthetic design
  • Streamlined appearance design
  • Independent research and development independent mold opening
  • Stable performance and low power consumption
  • Front panel waterproof design
  • Flat panel up to IP65 waterproof standard
  • GB2423 anti-vibration standard
  • Added shock-proof EVA material
  • Recessed cabinet installation
  • 3mm tightly fitted to the embedded cabinet
  • Fully enclosed dust-proof design
  • Greatly improve the service life of the fuselage
  • Aluminum alloy body
  • Aluminum alloy die-casting integrated forming
  • EMC/EMI Anti-interference standard Anti-electromagnetic interference

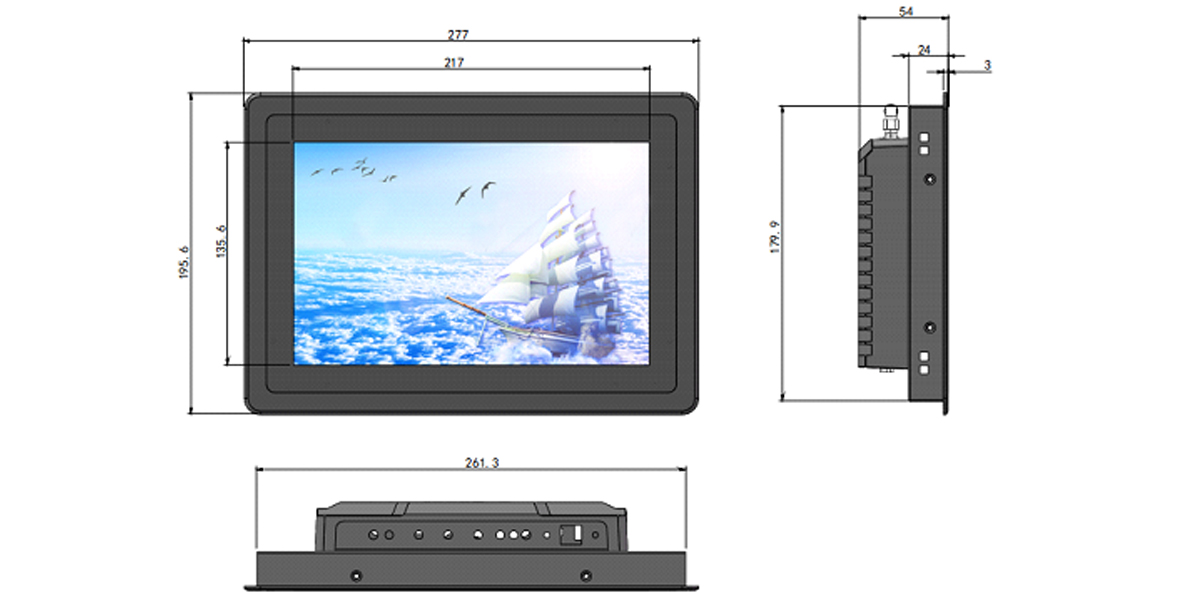

Engineering Dimention Drawing:

industrial display all-in-one

Not only that, but this industrial computer monitor also features low power consumption and high energy efficiency. It features advanced energy-saving technology that saves on energy consumption and provides a more sustainable solution for your work environment.
If you're looking for a high-performance, durable and reliable industrial computer monitor, our 11.6-inch industrial computer monitor is the perfect choice for you. Whether you work in industrial automation, logistics management or control systems, it will provide you with a superior display experience that will help you work more efficiently and smoothly.

  • Previous:
  • Next:
    • Name Industrial dispaly
    Display Screen Size 10.1 inch
    Screen Resolution 1280*800
    Luminous 350 cd/m2
    Color Quantitis 16.7M
    Contrast 1000:1
    Visual Range 85/85/85/85(Typ.)(CR≥10)
    Display Size 217 (W) × 135.6 (H)mm
    Touch parameter Reaction Type Electric capacity reaction
    Lifetime More than 50 miliion times
    Surface Hardness ＞7H
    Effective Touch Strength  45g
    Glass Type More than 50 miliion times
    Luminousness ＞85%
    Parameter Power suplier mode 12V/5A external power adapter / industral interface
    Power specs 100-240V，50-60HZ
    Imput voltage 9-36V/12V
    Anti-static Contact discharge 4KV-air discharge 8KV（customization available≥16KV）
    Rate of work ≤8W
    Vibration proof GB242 standard
    Anti-interference EMC|EMI anti-electromagnetic interference
    Protection Front panel IP65 dustproof waterproof
    Color of shell Black
    Environment temperature <80%,Condesation forbidden
    Working temperature Working：-10°~60°；Storage：-20°~70°
    Language menu Chinese、English、Gemman、French、Korean、Spanish、
    Italia、Russia
    Install mode Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type
    Guarantee Whole computer free for maintain in 1 year
    Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain
    I/O interface parameter DC port 1 1*DC12V/5525 socket
    DC port 2 1*DC9V-36V/5.08mm phoneix 4 pin
    Touch function 1*USB-B external interface
    VGA 1*VGA IN
    HDMI 1*HDMI IN
    DVI 1*DVI IN
    PC AUDIO 1*PC AUDIO
    EARPHONE 1*earphone
    Packing list N.W. 2KG
    Product size 277*195.6*54mm
    Range for embedded trepanning 263*182mm
    Carton size 362*280.5*125mm
    Power adapter Available for purchase
    Power line Available for purchase
    Parts for install Embedded snap-fit * 4，PM4x30 screw * 4
    Name Industrial dispaly
    Display Screen Size 11.6 inch
    Screen Resolution 1920*1080
    Luminous 300 cd/m2
    Color Quantitis 16.7M
    Contrast 1000:1
    Visual Range 89/89/89/89(Typ.)(CR≥10)
    Display Size 257(W)×144.8(H) mm
    Touch parameter Reaction Type Electric capacity reaction
    Lifetime More than 50 miliion times
    Surface Hardness ＞7H
    Effective Touch Strength  45g
    Glass Type More than 50 miliion times
    Luminousness ＞85%
    Parameter Power suplier mode 12V/5A external power adapter / industral interface
    Power specs 100-240V，50-60HZ
    Imput voltage 9-36V/12V
    Anti-static Contact discharge 4KV-air discharge 8KV（customization available≥16KV）
    Rate of work ≤8W
    Vibration proof GB242 standard
    Anti-interference EMC|EMI anti-electromagnetic interference
    Protection Front panel IP65 dustproof waterproof
    Color of shell Black
    Environment temperature <80%,Condesation forbidden
    Working temperature Working：-10°~60°；Storage：-20°~70°
    Language menu Chinese、English、Gemman、French、Korean、Spanish、
    Italia、Russia
    Install mode Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type
    Guarantee Whole computer free for maintain in 1 year
    Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain
    I/O interface parameter DC port 1 1*DC12V/5525 socket
    DC port 2 1*DC9V-36V/5.08mm phoneix 3 pin
    Touch function 1*USB-B external interface
    VGA 1*VGA IN
    HDMI 1*HDMI IN
    DVI 1*DVI IN
    PC AUDIO 1*PC AUDIO
    EARPHONE 1*earphone
    Packing list N.W. 2.5KG
    Product size 326*212*57mm
    Range for embedded trepanning 313.5*200mm
    Carton size 411*297*125mm
    Power adapter Optional
    Power line Optional
    Parts for install Embedded snap-fit * 4，PM4x30 screw * 4
    Display Screen Size 13.3 inch
    Screen Resolution 1920*1080
    Luminous 400 cd/m2
    Color Quantitis 16.7M
    Contrast 1000:1
    Visual Range 85/85/85/85 (Typ.)(CR≥10)
    Display Size 293.76(W)×165.24(H) mm
    Touch parameter Reaction Type Electric capacity reaction
    Lifetime More than 50 miliion times
    Surface Hardness ＞7H
    Effective Touch Strength  45g
    Glass Type More than 50 miliion times
    Luminousness ＞85%
    Parameter Power suplier mode 12V/5A external power adapter / industral interface
    Power specs 100-240V，50-60HZ
    Imput voltage 9-36V/12V
    Anti-static Contact discharge 4KV-air discharge 8KV（customization available≥16KV）
    Rate of work ≤8W
    Vibration proof GB242 standard
    Anti-interference EMC|EMI anti-electromagnetic interference
    Protection Front panel IP65 dustproof waterproof
    Color of shell Black
    Environment temperature <80%,Condesation forbidden
    Working temperature Working：-10°~60°；Storage：-20°~70°
    Language menu Chinese、English、Gemman、French、Korean、Spanish、
    Italia、Russia
    Install mode Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type
    Guarantee Whole computer free for maintain in 1 year
    Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain
    I/O interface parameter DC port 1 1*DC12V/5525 socket
    DC port 2 1*DC9V-36V/5.08mm phoneix 3 pin
    Touch function 1*USB-B external interface
    VGA 1*VGA IN
    HDMI 1*HDMI IN
    DVI 1*DVI IN
    PC AUDIO 1*PC AUDIO
    EARPHONE 1*earphone
    Packing list N.W. 4KG
    Product size 363*241*59mm
    Range for embedded trepanning 349*227mm
    Carton size 448*326*125mm
    Power adapter Optional
    Power line Optional
    Parts for install Embedded snap-fit * 4，PM4x30 screw * 4
    Display Screen Size 15.6 inch
    Screen Resolution 1920*1080
    Luminous 300 cd/m2
    Color Quantitis 16.7M
    Contrast 800:1
    Visual Range 85/85/85/85 (Typ.)(CR≥10)
    Display Size 344.16(W)×193.59(H) mm
    Touch parameter Reaction Type Electric capacity reaction
    Lifetime More than 50 miliion times
    Surface Hardness ＞7H
    Effective Touch Strength  45g
    Glass Type More than 50 miliion times
    Luminousness ＞85%
    Parameter Power suplier mode 12V/5A external power adapter / industral interface
    Power specs 100-240V，50-60HZ
    Imput voltage 9-36V/12V
    Anti-static Contact discharge 4KV-air discharge 8KV（customization available≥16KV）
    Rate of work ≤8W
    Vibration proof GB242 standard
    Anti-interference EMC|EMI anti-electromagnetic interference
    Protection Front panel IP65 dustproof waterproof
    Color of shell Black
    Environment temperature <80%,Condesation forbidden
    Working temperature Working：-10°~60°；Storage：-20°~70°
    Language menu Chinese、English、Gemman、French、Korean、Spanish、
    Italia、Russia
    Install mode Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type
    Guarantee Whole computer free for maintain in 1 year
    Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain
    I/O interface parameter DC port 1 1*DC12V/5525 socket
    DC port 2 1*DC9V-36V/5.08mm phoneix 3 pin
    Touch function 1*USB-B external interface
    VGA 1*VGA IN
    HDMI 1*HDMI IN
    DVI 1*DVI IN
    PC AUDIO 1*PC AUDIO
    EARPHONE 1*earphone
    Packing list N.W. 4.5KG
    Product size 414*270*60.5mm
    Range for embedded trepanning 396*252mm
    Carton size 500*355*125mm
    Power adapter Optional
    Power line Optional
    Parts for install Embedded snap-fit * 4，PM4x30 screw * 4
    Display Screen Size 21.5 inch
    Screen Resolution 1920*1080
    Luminous 250 cd/m2
    Color Quantitis 16.7M
    Contrast 1000:1
    Visual Range 85/85/80/80 (Typ.)(CR≥10)
    Display Size 476.64(W)×268.11(H) mm
    Touch parameter Reaction Type Electric capacity reaction
    Lifetime More than 50 miliion times
    Surface Hardness ＞7H
    Effective Touch Strength  45g
    Glass Type More than 50 miliion times
    Luminousness ＞85%
    Parameter Power suplier mode 12V/5A external power adapter / industral interface
    Power specs 100-240V，50-60HZ
    Imput voltage 9-36V/12V
    Anti-static Contact discharge 4KV-air discharge 8KV（customization available≥16KV）
    Rate of work ≤18W
    Vibration proof GB242 standard
    Anti-interference EMC|EMI anti-electromagnetic interference
    Protection Front panel IP65 dustproof waterproof
    Color of shell Black
    Install mode Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type
    Environment temperature <80%，Condesation forbidden
    Working temperature Working：-10 ~ 60 °C；Storage -20 ~ 70 °C
    Language menu Chinese、English、Gemman、French、Korean、Spanish、Italia、Russia
    Guarantee Whole computer free for maintain in 1 year
    Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain
    I/O interface parameter DC port 1 1*DC12V/5525 socket
    DC port 2 1*DC9V-36V/5.08mm phoneix 3 pin
    Touch function 1*USB-B external interface
    VGA 1*VGA IN
    HDMI 1*HDMI IN
    DVI 1*DVI IN
    PC AUDIO 1*PC AUDIO
    EARPHONE 1*earphone
    Packing list N.W. 5.5KG
    Product size 560*358*66mm
    Range for embedded trepanning 536.3*340mm
    Carton size 645*443*125mm
    Power adapter Optional
    Power line Optional
    Parts for install Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain
    • Write your message here and send it to us

    Products categories

    Hit enter to search or ESC to close
