11.6 inch Industrial pc with 1920*1080 screen resolution
This video shows the product in 360 degrees.
Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.
Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.
1. Industrial control: This industrial PC is suitable for various control systems such as automatic production line control and robot control. Due to its high reliability and durability, it can perform excellent stability in high-risk and harsh environments.
2. Intelligent Internet of Things: As a high-performance industrial computer, it can connect to various devices and embedded systems in the network, improve data processing and management capabilities, and facilitate rapid and efficient work in the field of intelligent Internet of Things .
3. Office PC: This industrial PC has a high-resolution screen and excellent performance, and can be used to complete different office applications, such as data processing and file management, etc. In addition, it can also provide higher security and stability.
4. Intelligent security: As the core computer of the intelligent security system, this industrial PC can connect sensors and equipment, and provide various functions such as monitoring, detection and alarm.
5. Visual inspection: With a high-resolution screen and excellent performance, this industrial PC can be used as a visual inspection device to complete multiple inspection applications and obtain accurate results.
6. 3D printer control: The industrial computer is connected to various 3D printers, and as the control core, it can improve the performance and precision of the 3D printer and make your printing effect more excellent.
7. Medical equipment: Computers with high performance can play an important role in various medical equipment, such as electronic medical record management, medical imaging, etc.
8. Public transportation: Industrial PCs can be used in public transportation management systems, such as taxi management, bus GPS positioning, etc. Provide better public transport services to the public by improving operational management efficiency.
9. Power equipment: As the core component of the power equipment management system, this industrial PC can improve the efficiency of power grid monitoring, substation management, etc., and further promote the digital transformation of the power industry.
10. Smart home: As the core computer of the smart home system, the industrial PC can connect various smart devices to achieve intelligent linkage control and help users realize the dream of smart home life.
- Industrial aesthetic design
- Streamlined appearance design
- Independent research and development independent mold opening
- Stable performance and low power consumption
- Front panel waterproof design
- Flat panel up to IP65 waterproof standard
- GB2423 anti-vibration standard
- Added shock-proof EVA material
- Recessed cabinet installation
- 3mm tightly fitted to the embedded cabinet
- Fully enclosed dust-proof design
- Greatly improve the service life of the fuselage

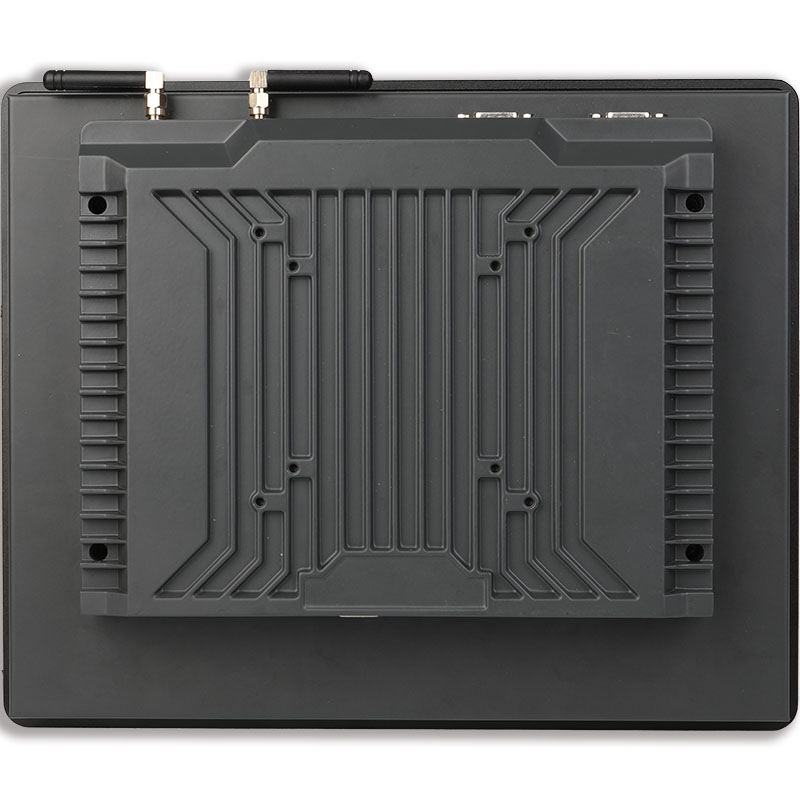

- Aluminum alloy body
- Aluminum alloy die-casting integrated forming
- EMC/EMI Anti-interference standard Anti-electromagnetic interference
| Display | Screen Size | 11.6 inch |
| Screen Resolution | 1920*1080 | |
| Luminous | 300 cd/m2 | |
| Color Quantitis | 16.7M | |
| Contrast | 1000:1 | |
| Visual Range | 89/89/89/89(Typ.)(CR≥10) | |
| Display Size | 257(W)×144.8(H) mm | |
| Touch parameter | Reaction Type | Electric capacity reaction |
| Lifetime | More than 50 miliion times | |
| Surface Hardness | ＞7H | |
| Effective Touch Strength | 45g | |
| Glass Type | Chemical reinforced perspex | |
| Luminousness | ＞85% | |
| Hardware | MAINBOARD MODEL | J4125 |
| CPU | Integrated Intel®Celeron J4125 2.0GHz quad-core | |
| GPU | Integrated Intel®UHD Graphics 600 core card | |
| Memory | 4G（maxmum 16GB） | |
| Harddisk | 64G solid state disk（128G replacement available） | |
| Operate system | Default Windows 10（Windows 11/Linux/Ubuntu replacement available） | |
| Audio | ALC888/ALC662 6 channels Hi-Fi Audio controller/Supporting MIC-in/Line-out | |
| Network | Integrated giga network card | |
| Wifi | Internal wifi antenna,supporting wireless connect | |

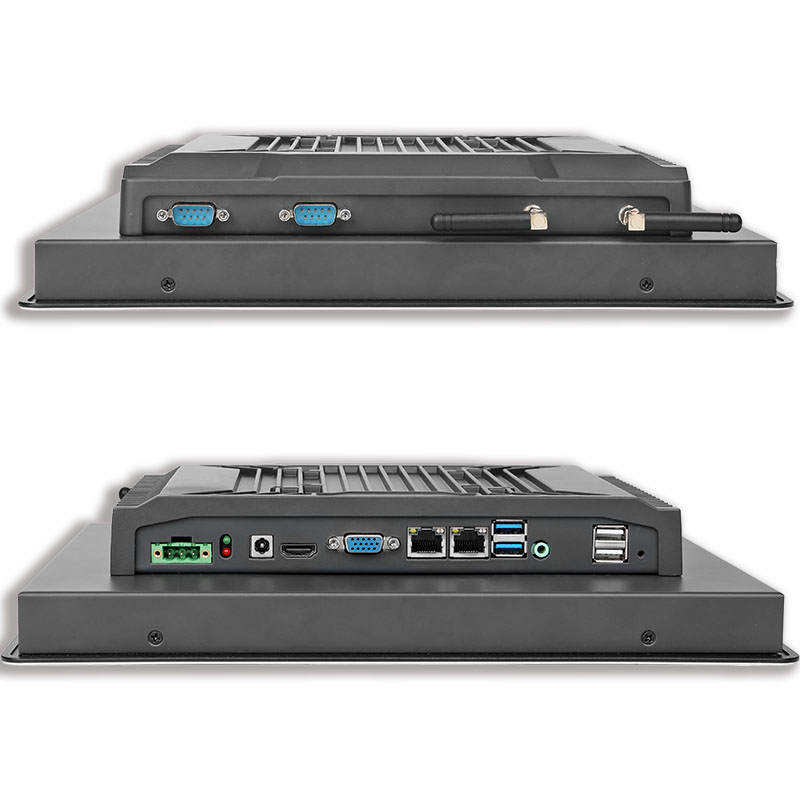

| Interfaces | DC Port 1 | 1*DC12V/5525 socket |
| DC Port 2 | 1*DC9V-36V/5.08mm phonix 4 pin | |
| USB | 2*USB3.0，1*USB 2.0 | |
| Serial-Interface RS232 | 0*COM（upgrade able） | |
| Ethernet | 2*RJ45 giga ethernet | |
| VGA | 1*VGA | |
| HDMI | 1*HDMI OUT | |
| WIFI | 1*WIFI antenna | |
| Bluetooth | 1*Bluetooch antenna | |
| Audio imput & output | 1*earphone & MIC two-in-one | |
| Parameter | Material | CNC aluminum oxgenated drawing craft for the front surface frame |
| Color | Black | |
| Power adapter | AC 100-240V 50/60Hz CCC certificated、CE certificated | |
| Power dissipation | ≈20W | |
| Power output | DC12V / 5A | |
| Other parameter | Backlight lifetime | 50000h |
| Temperature | Working：-10°~60°；storage-20°~70° | |
| Install | Embedded snap-fit | |
| Guarantee | Whole computer free for maintain in 1 year | |
| Maintenance terms | Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain | |
| Packing list | N.W. | 2.5KG |

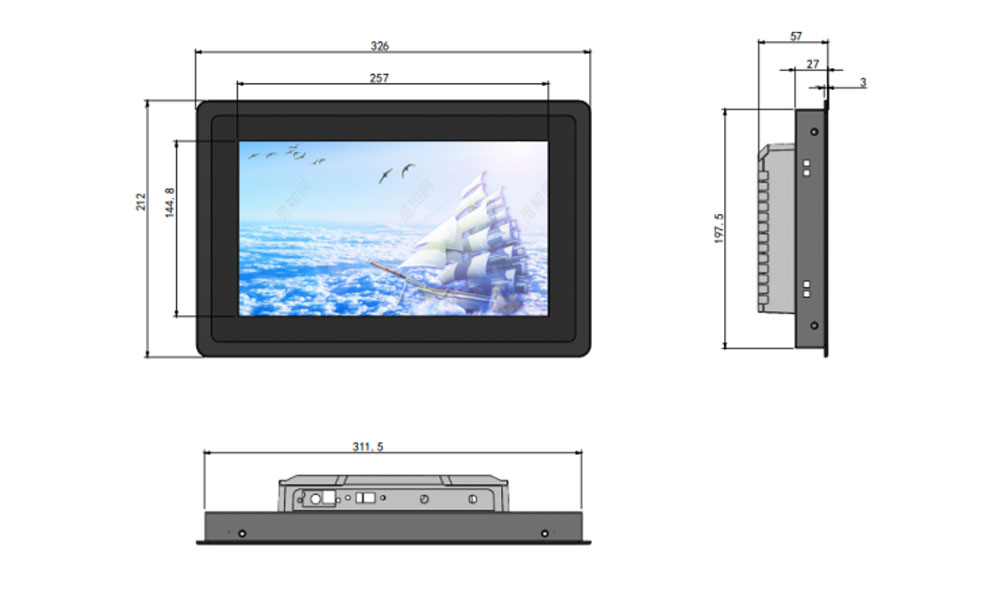

| Product size（not in cluding brackt） | 326*212*57mm | |
| Range for embedded trepanning | 313.5*200mm | |
| Carton size | 411*297*125mm | |
| Power adapter | Available for purchase | |
| Power line | Available for purchase | |
| Parts for install | Embedded snap-fit * 4，PM4x30 screw * 4 |
