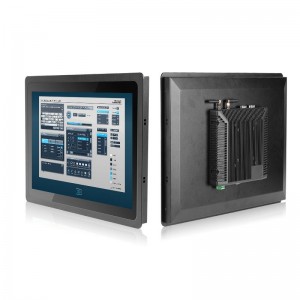

10 points capacitive industrial pc with 12.1 inch j4125 touch screen computers
This video shows the product in 360 degrees.
Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.
Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.
- It supports multiple operating systems such as Android and Windows.
- Modular peripheral design, a variety of peripheral modules can be replaced.
- Expansion interface base design.
- Design and production capacity of surface coating (AG anti-glare /AR anti-reflection /AF anti-fingerprint /AS anti-dirt).
| Display | Screen Size | 12.1 inch | ||
| Screen Resolution | 1280*800 | |||
| Luminous | 300 cd/m2 | |||
| Color Quantitis | 16.7M | |||
| Contrast | 1000:1 | |||
| Visual Range | 89/89/89/89 (Typ.)(CR≥10) | |||
| Display Size | 261.12(W)×163.2(H) mm | |||
| Touch Parameter | Reaction Type | Electric capacity reaction | ||
| Lifetime | More than 50 miliion times | |||
| Surface Hardness | >7H | |||
| Effective Touch Strength | 45g | |||
| Glass Type | Chemical reinforced perspex | |||
| Luminousness | >85% | |||

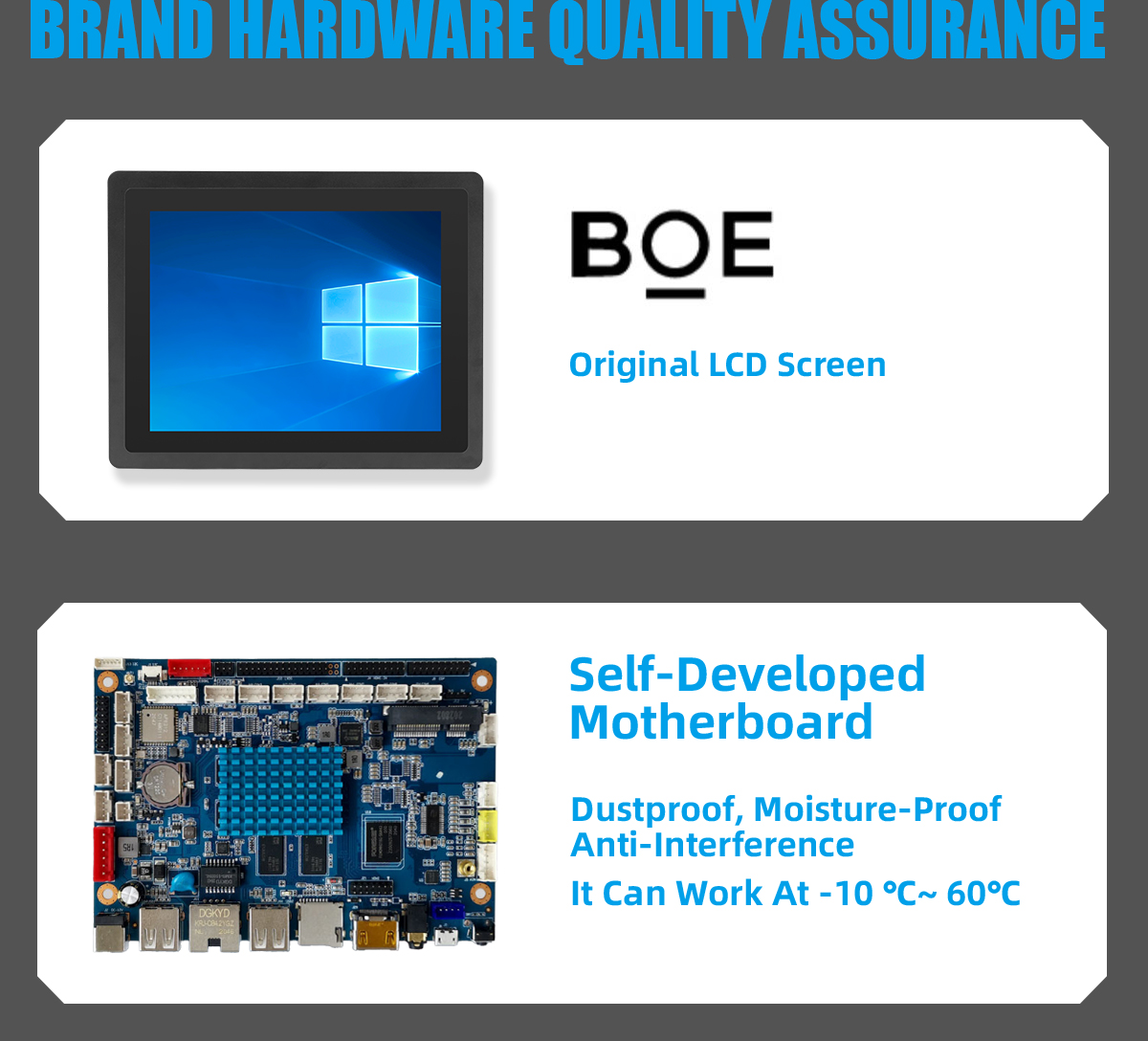

| Hardware | Mainboard | J4125 | ||
| CPU | Integrated Intel®Celeron J4125 2.0GHz quad-core | |||
| GPU | Integrated Intel®UHD Graphics 600 core card | |||
| Memory | 4G（highest 16GB） | |||
| Harddisk | 64G solid state disk（128G replacement available） | |||
| Operate system | default Windows 10（Windows 11/Linux/Ubuntu replacement available） | |||
| Audio | ALC888/ALC662 6 channels Hi-Fi audio controller/supporting MIC-in/Line-out | |||
| Network | Integrated giga network card | |||
| Wifi | Internal wifi antenna,supporting wireless connect | |||

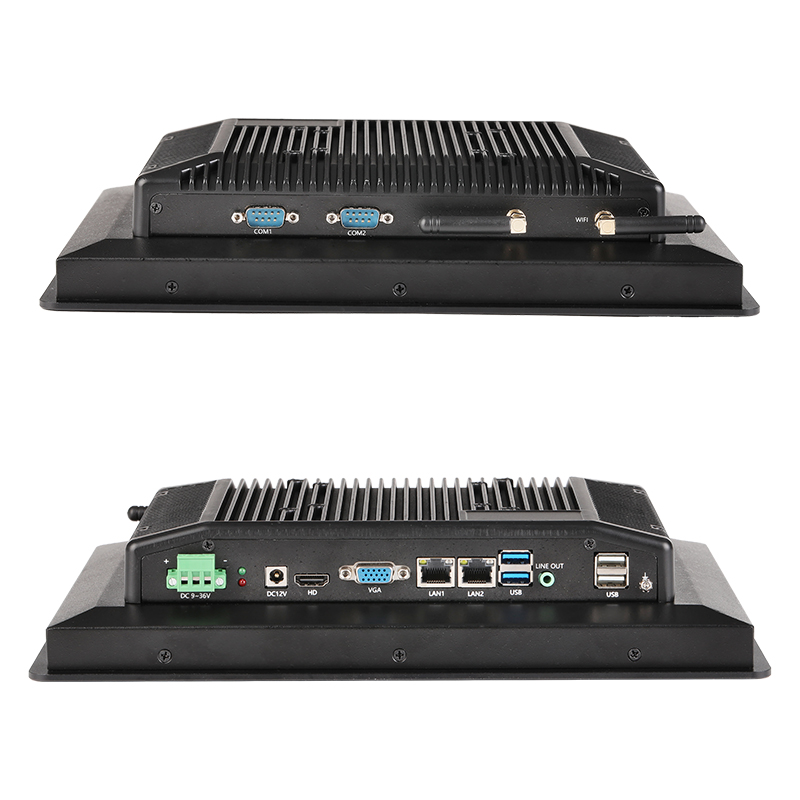

| Interfaces | DC Port 1 | 1*DC12V/5525 socket | ||

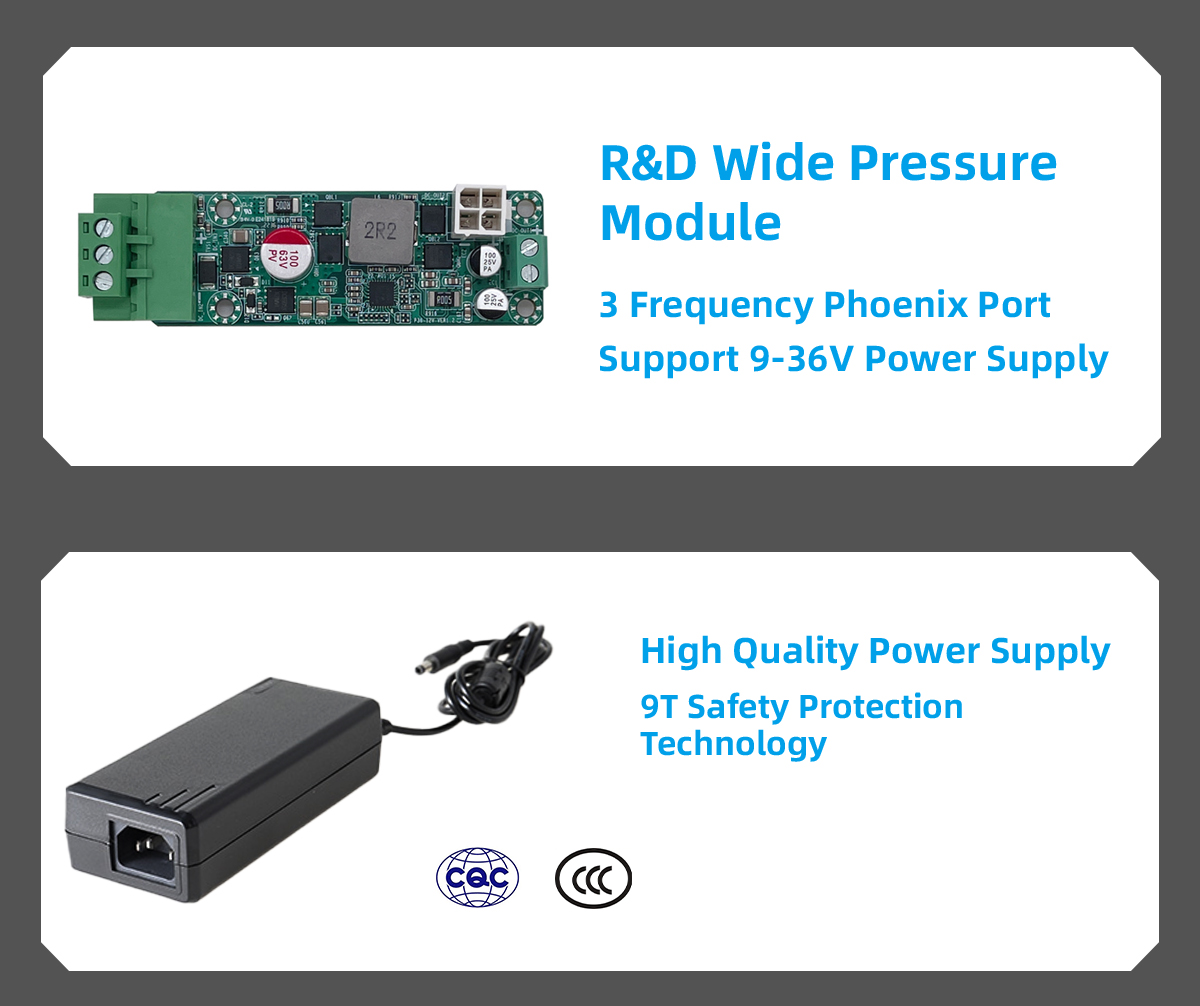

| DC Port 2 | 1*DC9V-36V/5.08mm phonix 4 pin | |||
| USB | 2*USB3.0，2*USB 2.0 | |||
| Serial-Interface RS232 | 2*COM | |||
| Ethernet | 2*RJ45 giga ethernet | |||
| VGA | 1*VGA IN | |||
| HDMI | 1*HDMI IN | |||
| WIFI | 1*WIFI antenna | |||
| Bluetooth | 1*Bluetooch antenna | |||
| Audio imput & output | 1*earphone & MIC two-in-one | |||
| Parameter | Material | CNC aluminum oxgenated drawing craft for the front surface frame | ||
| Color | Black | |||
| Power adapter | AC 100-240V 50/60Hz CCC certificated、CE certificated | |||
| Power disspation | ≤12W | |||
| Power output | DC12V / 5A | |||
| Other parameter | Backlight lifetime | 50000h | ||
| Temperature | Working:0 ~ 50 °C ; Storage: -20 ~ 60 °C | |||
| Install | Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type | |||
| Guarantee | Whole computer free for maintain in 1 year | |||
| Maintenance terms | Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain | |||
| Packing list | N.W. | 3.5KG | ||
| Product size（not in cluding brackt） | 322*224.5*59mm | |||
| Range for embedded trepanning | 308*210.5mm | |||
| Carton size | 407*310*125mm | |||
| Power adapter | optional | |||
| Power line | optional | |||
| Parts for install | Embedded snap-fit * 4，PM4x30 screw * 4 | |||
- Snap Embedded.
- Wall Bracket.
- Desktop.
- Cantilever.
- Boom Type.
