10 inch 10.1 inch Open Frame Embedded Android Industrial Panel PC

Short Description:

COMPT customized 10 inch 10.1 inch fanless open frame panel PC with waterproof flat touch screen is seamless integration within various devices, it is the ideal choice for those seeking a reliable and compatible display component.



1, Waterproof and dust-proof, outdoor-readable high-brightness screen customization making it suitable for challenging environments.

2, Operating system: Android, Windows, Linux, Ubuntu and more customized, This ensures that it can effortlessly adapt to the diverse software requirements of different applications.

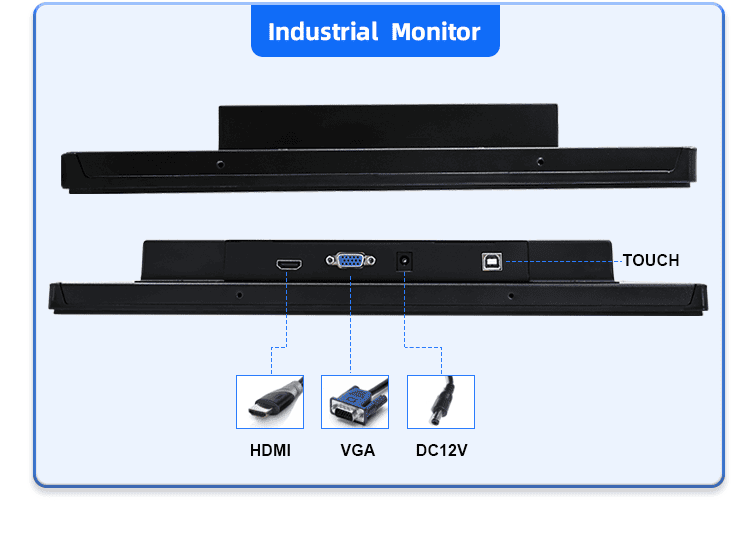

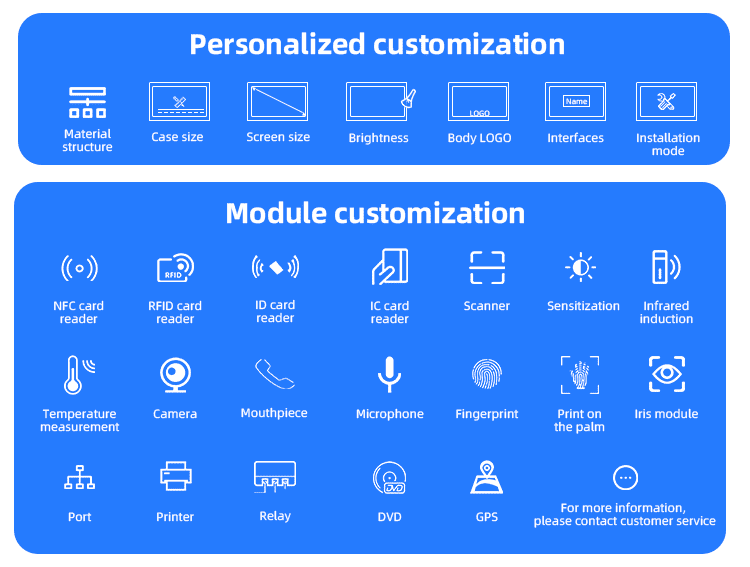

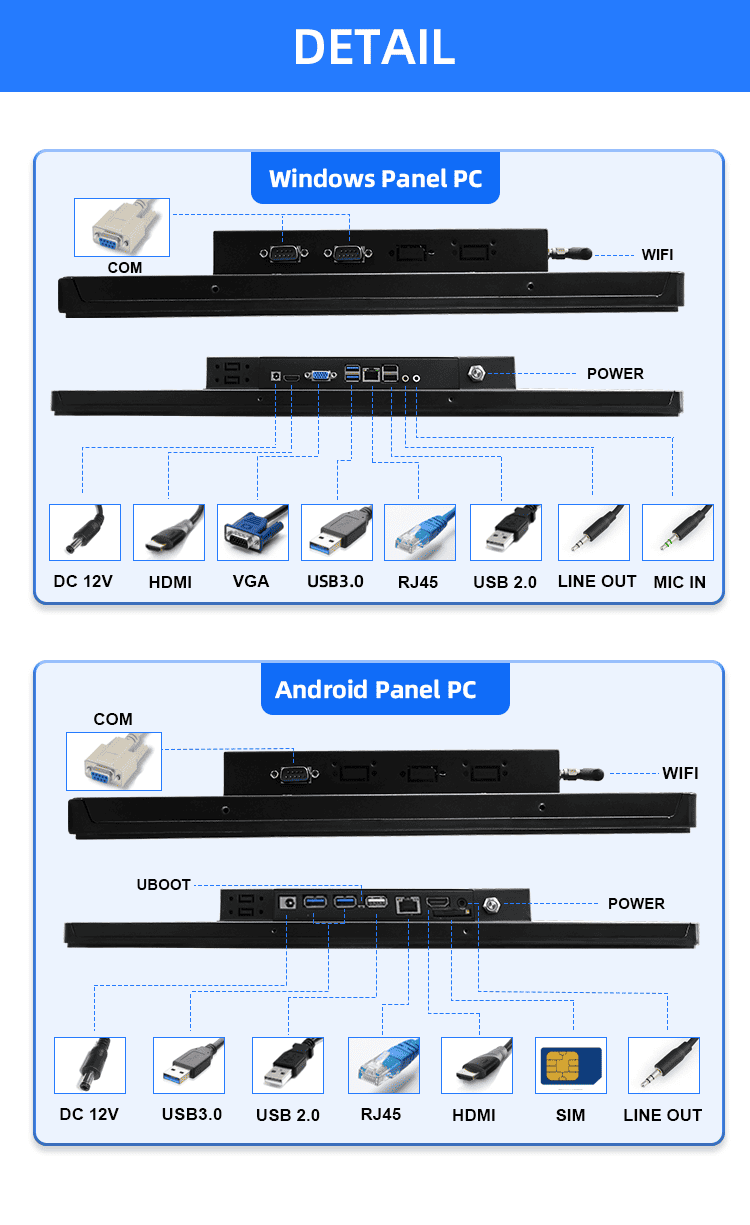

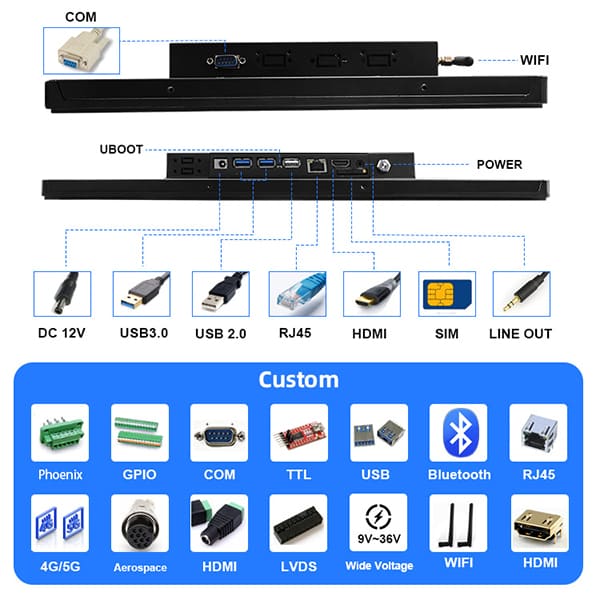

3, Supports rich interface customization: DVI, RS232, RS485,POE, VGA, HDMI, speaker, Phoenix, gpio, WIFI, bluetooth, Aerospace more

4, Size, logo, carton to meet your unique branding needs.

5, Moreover, we can accommodate specific requests to ensure the panel pc perfectly aligns with the overall design and functionality of the device it is being integrated into.



With its seamless embedding capabilities, compatibility with multiple operating systems, and customization features, the Open Frame Panel PC is set to highly enhance the performance and user experience.


Product Detail

Date Sheet

Performance Test Videos

Product Tags

open frame embedded panel pc custom interfaceopen frame embedded panel pc monitor screen custom interfaceopen frame embedded panel pc featureopen frame embedded panel pc (5)open frame embedded panel pc monitor screen custom sizeopen frame embedded panel pc (10)open frame embedded panel pc (3)industrial panle pc applicationopen frame embedded panel pc manufactureopen frame embedded panel pc manufacture


  • Previous:
  • Next:

  •

    Data Sheet
    Performance parameter Screen parameter
    Normal power

     ≤60W

    Screen type  Industrial grade LCD screen
    Operating temperature -10℃~60℃ Viewing Angle  Full viewing Angle/Wide viewing Angle/super wide Angle
    Working humidity 10%~90%(non-condensation) Screen brightness 250~1000cd/m2(Customizable)
    Storage temperature -20℃~70℃ Refresh frequency  60Hz
    Anti-interference level   ESD/EMC electromagnetic anti-interference standard Response speed <0.5s
    Network  Gigabit network card Impact resistance  10g acceleration, 11ms cycle
    Vibration resistance 5~19Hz/1.0mm amplitude, 19~200Hz/1.0g acceleration Ratio  3000:1/1000:1
        Backlight type LED

    Touch parameter     Other parameters
    Touch type  Capacitive touch/resistive touch/Infrared touch/non-touch… Power input  DC12V/5A external power adapter
    Input Capacitance screen (finger/pen), resistance screen (fingertip/stylus) AC100-240V 50/60Hz
    Surface hardness Capacitive screen (Mohs hardness 7H), resistance screen (Mohs hardness 3H) Body material Aluminum alloy/sheet metal
    Touch life can withstand ≥ 100 million clicks Fuselage color   Black/silver/grey/white…

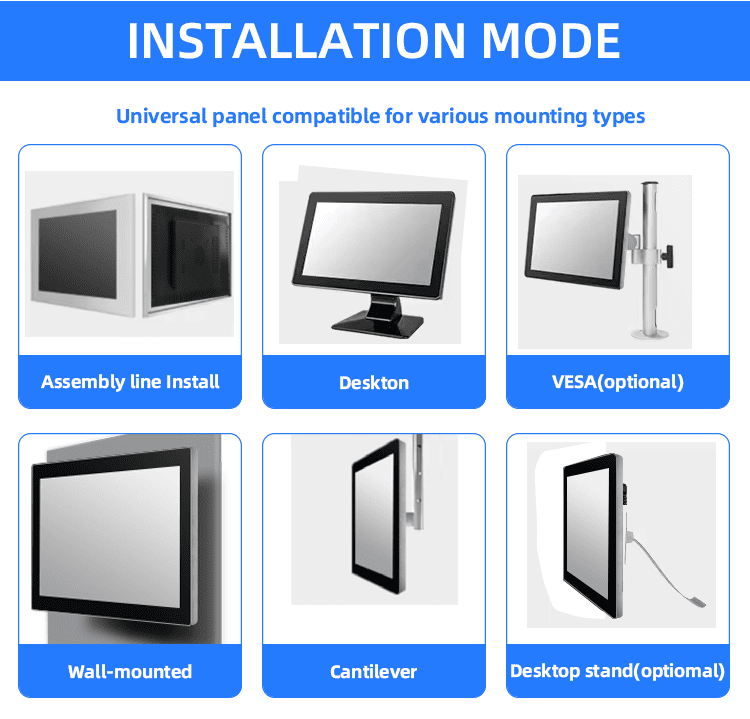

        VESA hole  75mm*75mm/100mm*100mm

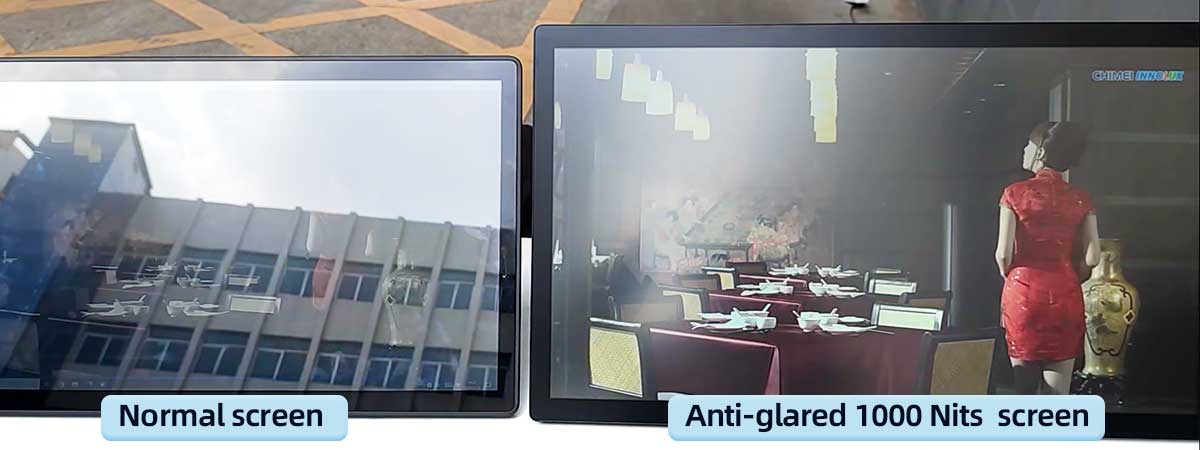

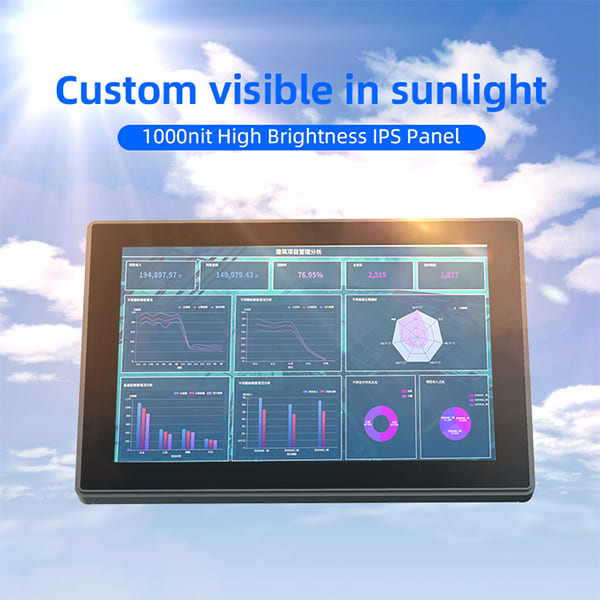

    1, High brightness outdoor sunlight readable test



    high-brightness-anti-glare-screen

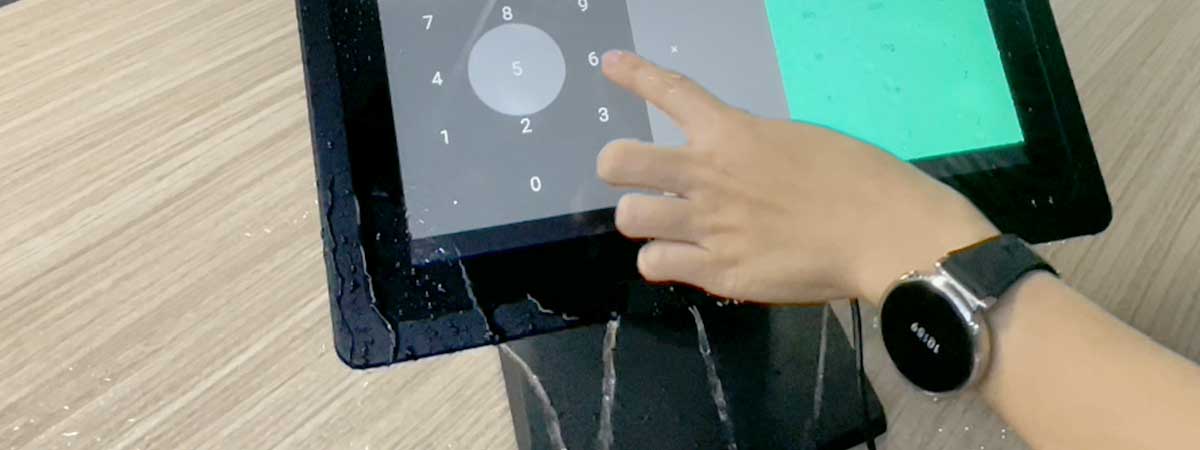

    2, Waterproof wet touch test



    wet touch screen waterproof panel pc

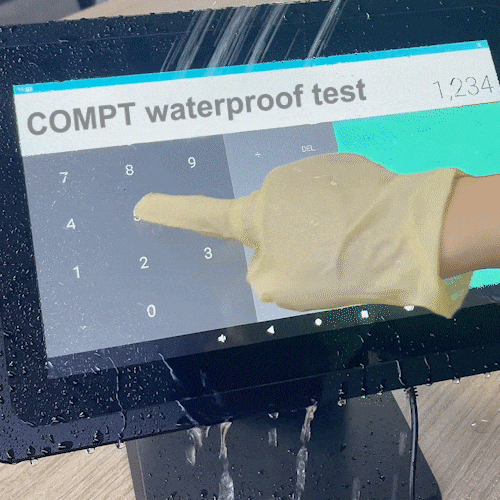

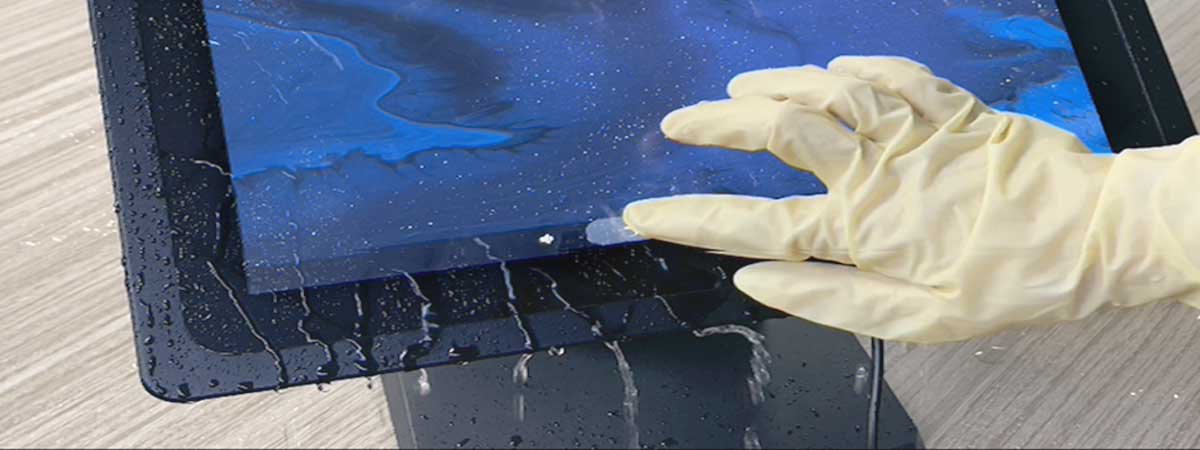

    3, Waterproof wet glove touch test



    wet glove touch screen waterproof panel pc
