10 Inch Industrial Panel Touch Screen Pc Flush Mount

Short Description:

COMPT’s 10 inch industrial panel pc is a high-performance device designed specifically for industrial environments, suitable for control and monitoring applications in various harsh industrial environment conditions.

For 9 years, we have provided one-stop customization solutions in the intelligent computer industry and have successfully executed thousands of remarkable cases across the globe since our establishment in 2014.


Product Detail

Product Tags

Products Video

This video shows the product in 360 degrees.

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

Product Information:

The 10 inch industrial panel pc of COMPT has the following key characteristics: it has IP65 level dust and waterproof characteristics, and can continue to operate stably in industrial scenes with severe pollution and strong water vapor, ensuring the long-term service life of the equipment. Secondly, it is made of aluminum alloy material, which has high durability and corrosion resistance, and can adapt to various harsh environmental conditions, such as high temperature, low temperature, humidity, etc., and can operate reliably. Aluminum alloy material is also beneficial for heat dissipation, making the heat dissipation effect of the equipment better.

In addition, the 10 inch industrial panel pc  can be customized in various sizes according to customer requirements, including 10.1 inches, 10.4 inches, 11.6 inches, 12.1 inches, 13.3 inches, 15.6 inches, 17.3 inches, 18.5 inches, 19 inches, and 21.5 inches, which can meet the needs of different users.

This product also offers multiple CPU configuration options, including J6412, J6413, RK3288, RK3588, etc., to meet the performance requirements of different application scenarios. In practical applications, this 10 inch industrial panel pc can be used in various application scenarios such as industrial automation control systems, intelligent warehouse management, video surveillance systems, industrial equipment maintenance, environmental monitoring systems, and transportation control systems. It operates reliably and stably, providing reliable data display and control support for industrial production and management.

Product Solution:

10 inch industrial panel pc can be applied in scenarios such as industrial automation control systems, intelligent warehousing management, video surveillance systems, industrial equipment maintenance, environmental monitoring systems, and transportation control systems.
Its powerful dust and water resistance, durable materials, diverse sizes, and CPU configuration options provide reliable data display and control support in harsh industrial environments.
In industrial production and management, 10 inch industrial panel pc can operate stably, improve work efficiency, improve production processes, and bring higher production management benefits to enterprises.

SOLUTIONS
SOLUTIONS
SOLUTIONS
SOLUTIONS1
SOLUTIONS
SOLUTIONS
AI in Manufacturing
Medical equipment

Product superiority:

  • Industrial aesthetic design
  • Streamlined appearance design
  • Independent research and development independent mold opening
  • Stable performance and low power consumption
  • Front 10 inch industrial panel pc waterproof design
  • Flat 10 inch industrial panel pc up to IP65 waterproof standard
  • GB2423 anti-vibration standard
  • Added shock-proof EVA material
  • Recessed cabinet installation
  • 3mm tightly fitted to the embedded cabinet
  • Fully enclosed dust-proof design
  • Greatly improve the service life of the fuselage
  • Aluminum alloy body
  • Aluminum alloy die-casting integrated forming
  • EMC/EMI Anti-interference standard Anti-electromagnetic interference

Parameter Parameters:

Name X86 All-in-One Computer  10 inch industrial panel pc
Display Screen Size 10.1 inch
Screen Resolution 1280*800
Luminous 350 cd/m2
Color Quantitis 16.7M
Contrast 1000:1
Visual Range 85/85/85/85(Typ.)(CR≥10)
Display Size 217 (W) × 135.6 (H)mm
Touch parameter Reaction Type Electric capacity reaction
Lifetime More than 50 miliion times
Surface Hardness >7H
Effective Touch Strength  45g
Glass Type Chemical reinforced perspex
Luminousness >85%
Hardware MAINBOARD MODEL J4125
CPU Integrated Intel®Celeron J4125 2.0GHz quad-core
GPU Integrated Intel®UHD Graphics  600 core card
Memory 4G(maxmum 16GB)
Harddisk 64G solid state disk(128G replacement available)
Operate system Default Windows 10(Windows 11/Linux/Ubuntu replacement available)
Audio ALC888/ALC662 6 channels Hi-Fi Audio controller/Supporting MIC-in/Line-out
Network Integrated giga network card
Wifi Internal wifi antenna,supporting wireless connect

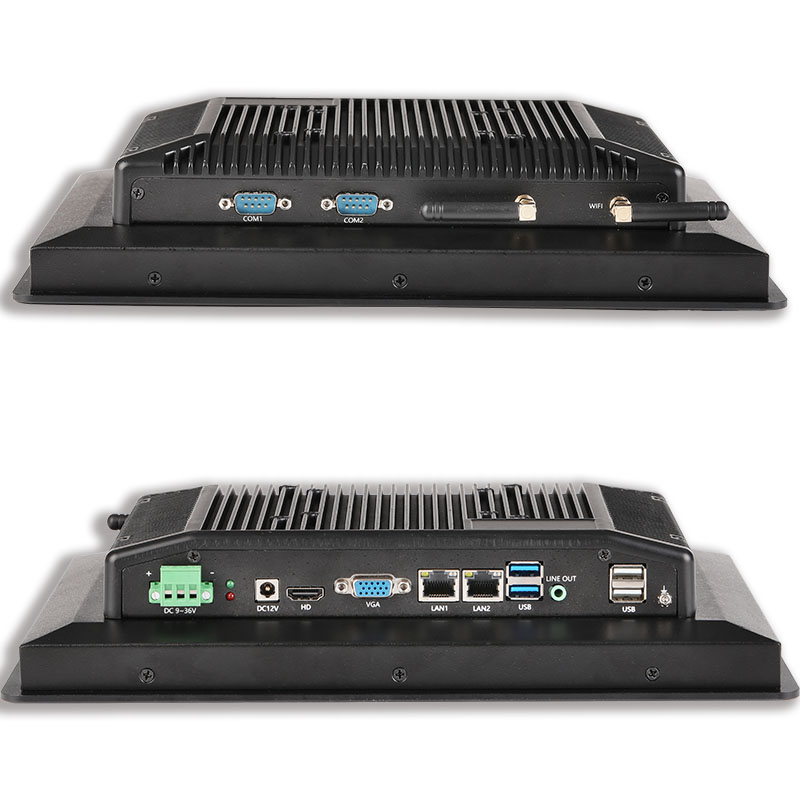

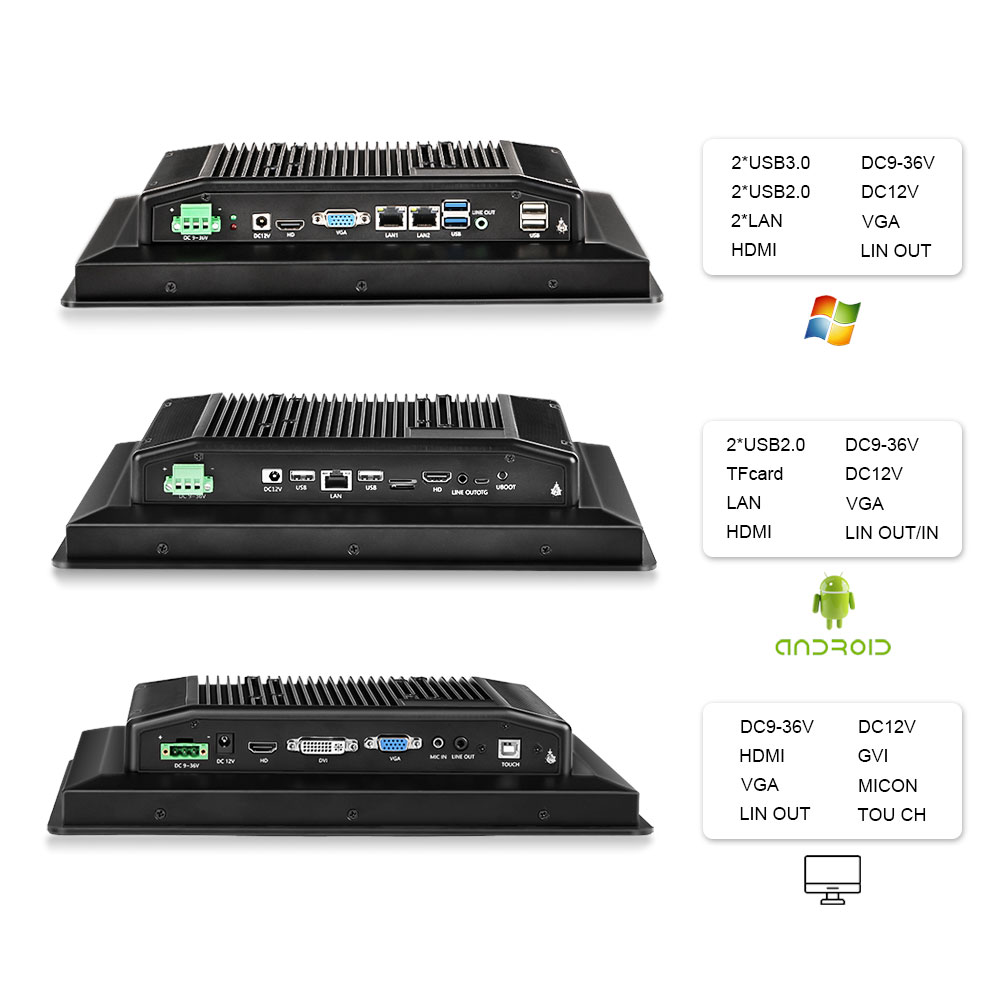

Interfaces DC Port 1 1*DC12V/5525 socket
DC Port 2 1*DC9V-36V/5.08mm phonix 4 pin
USB 2*USB3.0,1*USB 2.0
Serial-Interface RS232 0*COM (upgrade able)
Ethernet 2*RJ45 giga ethernet
VGA 1*VGA
HDMI 1*HDMI OUT
WIFI 1*WIFI antenna
Bluetooth 1*Bluetooch antenna
Audio imput & output 1*earphone & MIC two-in-one
Parameter Material CNC aluminum oxgenated drawing craft for the front surface frame
Color Black
Power adapter AC 100-240V  50/60Hz CCC certificated、CE certificated
Power dissipation ≈20W
Power output DC12V / 5A
10 inch industrial panel pc Other parameter Backlight lifetime 50000h
Temperature Working:-10°~60°;storage-20°~70°
Install Embedded snap-fit
Guarantee Whole computer free for maintain in 1 year
Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain
10 inch industrial panel pc Packing list N.W. 2KG
Product size(not in cluding brackt) 277*195.6*54mm
Range for embedded trepanning 263*182mm
Carton size 362*280.5*125mm
Power adapter Available for purchase
Power line Available for purchase
Parts for install Embedded snap-fit * 4,PM4x30 screw * 4

Engineering Dimention Drawing:
