10.4 inch Industrial android pc with fanless industrial panel all in one

Short Description:

An industrial tablet is a computing device specifically designed and manufactured to withstand the harsh operating conditions commonly encountered in industries such as manufacturing, energy, and transportation. These PCs feature rugged enclosures and components that protect against dust, moisture, vibration, and extreme temperatures. They are capable of running software applications critical to industrial processes.


  • Screen Size: 10.4 inch
  • Screen Resolution: 1024*768
  • Memory: 2G
  • Harddisk: 16G
  • CPU: RK3288 Cortex-A17 quad-core 1.8GHz
  • Product Detail

    Product Tags

    Products Video

    This video shows the product in 360 degrees.

    Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

    Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

    Product feature:

    1. The Industrial android pc is designed for use in harsh industrial environments with high levels of shock, vibration, moisture, and temperature fluctuations. This makes them ideal for use in demanding applications such as manufacturing plants, oil and gas facilities, and transportation infrastructure.

    2. Unlike consumer-grade computers, industrial tablets are typically built with durable, high-quality components designed to withstand years of continuous use. This means they are less likely to fail or require costly repairs, reducing downtime and maintenance costs.

    3. The industrial panel PC is also highly versatile, with a range of customizable functions and configurations to meet specific application requirements. This makes them suitable for a variety of industries and use cases, from automation and control to healthcare and retail.

    4. Many industrial panel PCs are designed for easy integration with other industrial systems and equipment, using a range of standard communication protocols such as Modbus, Ethernet and CANbus. This enables seamless data exchange and efficient process automation, increasing operational efficiency and reducing errors.

    5. Finally, industrial tablets often offer enhanced security features to protect against cyber threats and unauthorized access. This includes features such as secure boot, intrusion detection, and data encryption that help protect sensitive data and ensure compliance.

    Industrial panel pc
    https://www.gdcompt.com/10-4-inch-industrial-panel-pc-with-fanless-industrial-panel-pc-product/

    Product superiority:

    • Industrial aesthetic design
    • Streamlined appearance design
    • Independent research and development independent mold opening
    • Stable performance and low power consumption
    • Front panel waterproof design
    • Flat panel up to IP65 waterproof standard
    • GB2423 anti-vibration standard
    • Added shock-proof EVA material
    • Recessed cabinet installation
    • 3mm tightly fitted to the embedded cabinet
    • Fully enclosed dust-proof design
    • Greatly improve the service life of the fuselage
    • Aluminum alloy body
    • Aluminum alloy die-casting integrated forming
    • EMC/EMI Anti-interference standard Anti-electromagnetic interference

    Parameter information:

    Display Screen Size 10.4 inch Industrial android pc
    Screen Resolution 1024*768
    Luminous 350 cd/m2
    Color Quantitis 16.7M
    Contrast 1000:1
    Visual Range 85/85/85/85(Typ.)(CR≥10)
    Display Size 211.3 (W) × 159.5 (H) mm
    Touch Parameter Reaction Type Electric capacity reaction
    Lifetime More than 50 miliion times
    Surface Hardness >7H
    Effective Touch Strength  45g
    Glass Type Chemical reinforced perspex
    Luminousness >85%
    Hardware MAINBOARD MODEL RK3288
    CPU RK3288 Cortex-A17 quad-core 1.8GHz
    GPU Mali-T764 quad-core
    Memory 2G
    Harddisk 16G
    Operate system Android 7.1
    3G Module replacement available
    4G Module replacement available
    WIFI 2.4G
    Bluetooth BT4.0
    GPS optional
    MIC optional
    RTC Supporting
    Awaken through network Supporting
    Startup & Shutdown Supporting
    System upgrade Supporting hardware TF/USB upgrade
    Interfaces MAINBOARD MODEL RK3288
    DC Port 1 1*DC12V/5525 socket
    DC Port 2 1*DC9V-36V/5.08mm
    HDMI 1*HDMI
    USB-OTG 1*Mirco
    USB-HOST 2*USB2.0
    RJ45 Ethernet 1*10M/100M Self-adaptive ethernet
    SD/TF 1*TF datas storage,maximum 128G
    Earphone jack 1*3.5mm Standard
    Serial-Interface RS232 1*COM
    Serial-Interface RS422 optional
    Serial-Interface RS485 optional
    SIM Card SIM card standard interfaces,customization available
    Parameter Material Sand blasting oxygenated aluminum craft for the front surface frame
    Color Black
    Power adapter AC 100-240V  50/60Hz  CCC certificated、CE certificated
    Power dissipation ≤10W
    Power output DC12V / 5A
    Other Parameter Backlight lifetime 50000h
    Temperature Working:-10°~60°;storage-20°~70°
    Install mode Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type
    Guarantee Whole computer free for maintain in 1 year
    Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain
    Packing List N.W. 2.5KG
    Product size(not in cluding brackt) 283*225.2*61mm
    Range for embedded trepanning 270*212.5mm
    Carton size 371*310*125mm
    Power adapter optional
    Power line optional
    Parts for install Embedded snap-fit * 4,PM4x30 screw * 4

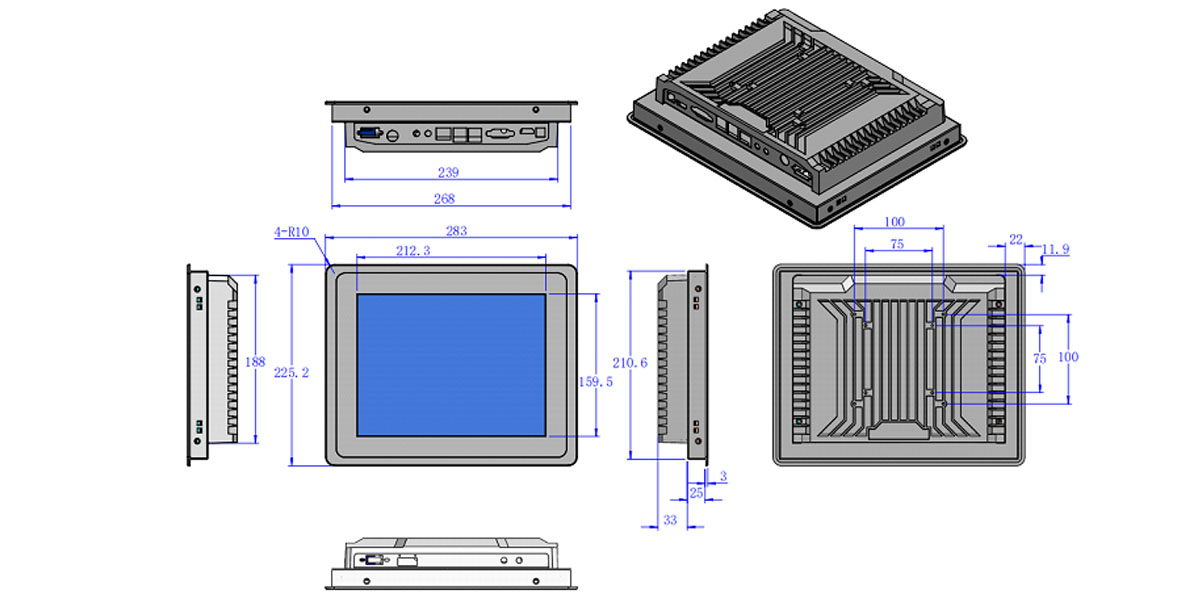

    Industrial android pc Engineering dimention drawing:

    Engineering dimention drawing

    Penny

    Web Content Writer

    4 years of experience

    This article is edited by Penny, the website content writer of COMPT, who has 4 years working experience in the industrial PCs industry and often discusses with colleagues in R&D, marketing and production departments about the professional knowledge and application of industrial controllers, and has a deep understanding of the industry and products.

    Please feel free to contact me to discuss more about industrial controllers. zhaopei@gdcompt.com
