The 10 inch industrial panel pc is an IP65 waterproof, dustproof and shockproof panel computer produced by COMPT for the manufacturing industry for durability in manufacturing environments.
The 10 panel pc is a ruggedized panel pc designed by COMPT for the industrial manufacturing industry with a regular temperature range of -10~60°C. It is not only durable in manufacturing environments, but also adapted to harsh working environments.
Featuring an embedded design, it can be set in a variety of cabinets and is available in a wide range of sizes, such as 7 8 10.1 10.4 11.6 12 12.1 13.3 15 17 17.3 18.5 19 21.5 23.8inches, with a small 10 inch screen and IP65 rated flat bezel, it is perfect for installing in a confined area or displaying limited data to employees.
The CPU is an Intel® Celeron J4125 2.0GHz for powerful processing, and the optional 8 GB of memory allows for connection to a cloud-based ERP system or data entry into your manufacturing software platform.
The industrial panel pc is a widely used device in the industrial control field, which is characterized by stability, reliability, durability and high performance. Among them, 10 inch industrial panel pc is a common specification for various industrial environments and application scenarios. It utilizes advanced technology and design concepts to provide powerful support for industrial automation control systems.
This 10 inch industrial panel pc solution can be widely used in industrial automation control, intelligent manufacturing, equipment monitoring, data acquisition and other fields. It has rich interfaces and expandability to meet the needs of different industries. At the same time, it also has the characteristics of anti-interference, dustproof and waterproof, high and low temperature resistance to adapt to a variety of harsh environments.
In industrial automation control system, panel pc can be used as human-machine interface to realize human-machine interaction and data display. It supports multi-touch and high-definition display, easy and intuitive operation. At the same time, it can also be connected with various industrial equipment and sensors to realize data acquisition and real-time monitoring.
For different industrial application scenarios, 10.4 inch panel pc can be customized with design and development services. Users can customize the shell material, installation method, interface type, etc. according to their needs to achieve better adaptation and integration.
Overall, panel pc is a powerful, stable and reliable industrial control equipment, which provides important support and guarantee for industrial automation control system. With the continuous development of industrial intelligence, this solution will be applied in more fields and play an increasingly important role.
| Hard ware SPEC |
CPU | Intel®Celeron J4125 2.0GHz |
| GPU | Intel®UHD Graphics 600 | |
| RAM | 4G（MAX 8GB） | |
| ROM | 64G SSD（Optional 128G/256G/512G） | |
| System | Deafult Windows 10（Windows 11/Linux/Ubuntu OPTIONAL） | |
| Audio | ALC888/ALC662 /Support MIC-in/Line-out | |
| Network | Integrated Gigabit network RJ45 | |
| Wireless Network | WiFi autenna,wireless internet support | |

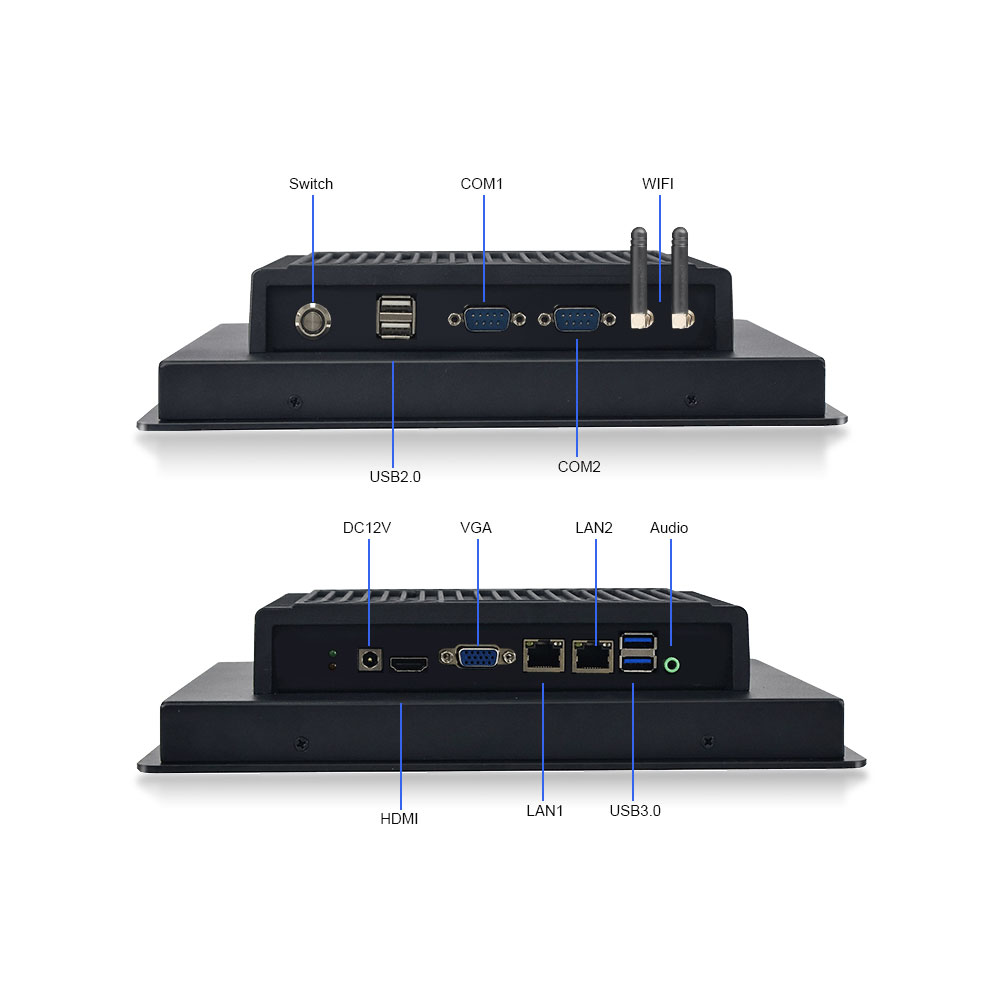

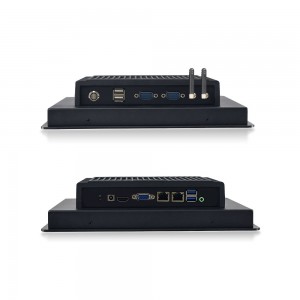

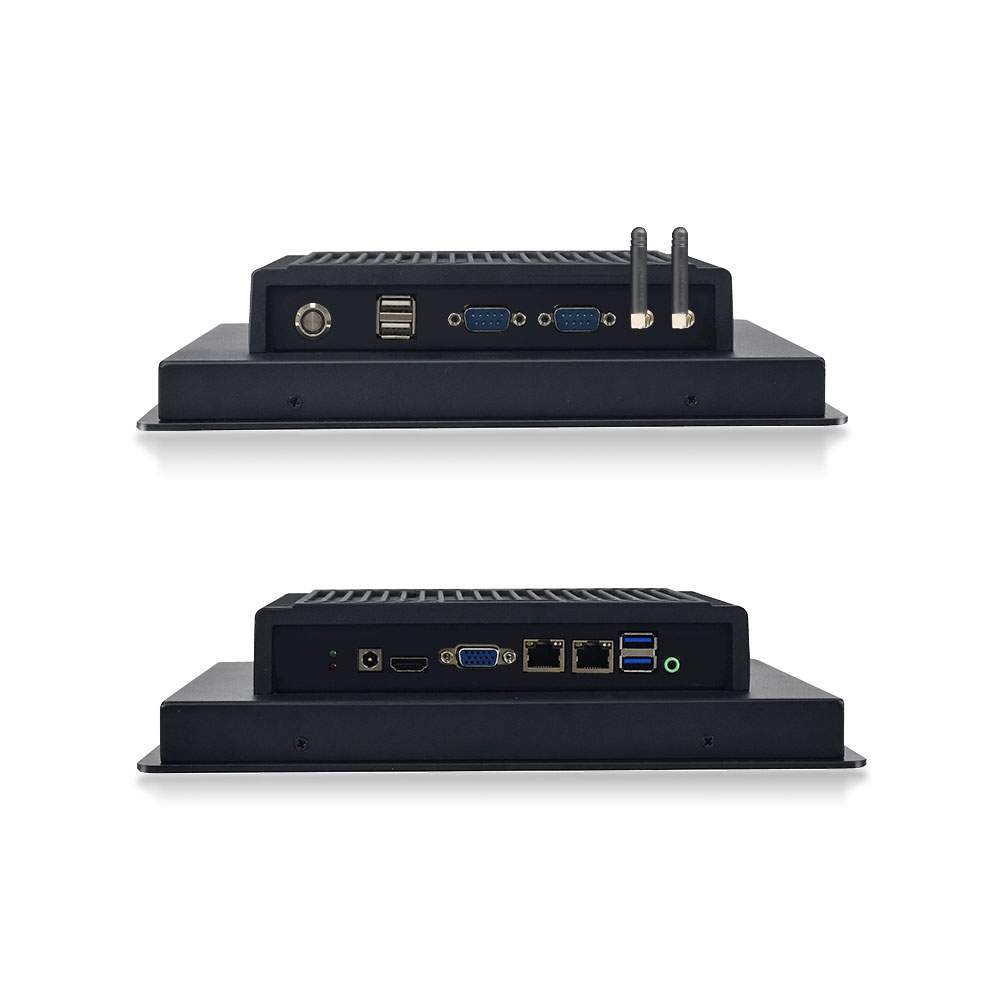

| Interface | DC 1 | 1*DC12V/5525 |
| DC 2 | 1*DC9V-36V/5.08mm（optional） | |
| USB | 2*USB3.0，2*USB 2.0 | |
| RS232 | 2*COM | |
| Network | 2*RJ45 1000Mbps | |
| VGA | 1*VGA IN | |
| HDMI | 1*HDMI IN | |
| WIFI | 1*WIFI autenna | |
| BT | 1*Blue tooth Autenna | |
| Audio | 1*3.5MM |
Penny
Web Content Writer
4 years of experience
This article is edited by Penny, the website content writer of COMPT, who has 4 years working experience in the industrial PCs industry and often discusses with colleagues in R&D, marketing and production departments about the professional knowledge and application of industrial controllers, and has a deep understanding of the industry and products.
Please feel free to contact me to discuss more about industrial controllers. zhaopei@gdcompt.com
| Brand | COMPT | |
| Name | X86 AIO computer | |
| Display | Screen size | 10.4 inches |
| Resolution | 1024*768 | |
| Brightness | 300 cd/m2 | |
| Colour | 16.7M | |
| Ratio | 1000:1 | |
| visual Angle | 88/88/88/88 (Typ.)(CR≥10) | |
| Display area | 210.4(W)×157.8(H) mm | |
| Touch Feature |
Type | Capactive |
| Communication mode | USB communicate | |
| Touch method | Fingure/Capactive pen | |
| Touch life | Capactive＞50 Milion | |
| luminousness | >87% | |
| Surface hardness | ＞7H | |
| Glass type | Chemically enhanced plexiglass | |
| Hard ware SPEC |
CPU | Intel®Celeron J4125 2.0GHz |
| GPU | Intel®UHD Graphics 600 | |
| RAM | 4G（MAX 8GB） | |
| ROM | 64G SSD（Optional 128G/256G/512G） | |
| System | Deafult Windows 10（Windows 11/Linux/Ubuntu OPTIONAL） | |
| Audio | ALC888/ALC662 /Support MIC-in/Line-out | |
| Network | Integrated Gigabit network RJ45 | |
| Wireless Network | WiFi autenna,wireless internet support | |
| Interface | DC 1 | 1*DC12V/5525 |
| DC 2 | 1*DC9V-36V/5.08mm（optional） | |
| USB | 2*USB3.0，2*USB 2.0 | |
| RS232 | 2*COM | |
| Network | 2*RJ45 1000Mbps | |
| VGA | 1*VGA IN | |
| HDMI | 1*HDMI IN | |
| WIFI | 1*WIFI autenna | |
| BT | 1*Blue tooth Autenna | |
| Audio | 1*3.5MM | |
| Feature | Material | CNC Sand blasting oxidation process of aluminum alloy |
| Colour | Blackc | |
| Adapter Input | AC 100-240V 50/60Hz CCC、CE certificate | |
| Power input | DC12V / 5A | |
| Power consume | ≤25W | |
| Backlit life | 50000h | |
| Environment temp | Function temp：-10-60℃，Storage temp：-20-70℃ | |
| Humidity | ≤95% | |
| installation | Embedded/Wallmounted/Foldable stand/Cantilever mounting | |
| Warranty | 12 month | |
| Maintenance | Post | |
| Packing list | N.W. | 2.05KG |
| G.W. | 2.95KG | |

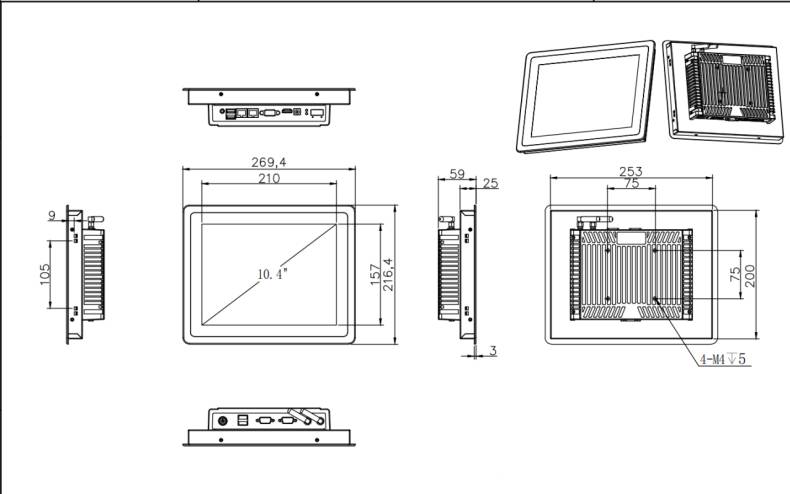

| Dimension | 269.4*216.4*59mm | |
| installation frame size | 253*200mm | |
| Carton dimension | 371*310*125 | |
| Power cable | 1*Power cable1.2M | |
| Power adapter | 1*Power adapter1.2M | |
| QC Certificate | 1*QC certificate | |
| Warranty | 1*Warranty | |
-
