Short Description:

COMPT 10.1 inch touchscreen Industrial display adopts all-aluminum alloy structure, fan-less fully closed design scheme, the whole machine low power consumption, compact appearance, is specially designed for a variety of environment and industrial products, can ensure long-term stable work in harsh environment, in the material we pay more attention to its reliability, environmental adaptability, real-time, scalability, EMC compatibility and other performance, Configuration using RTD2556 chip, with a variety of high-definition display interface, to meet the field needs of a variety of application interface, to provide a variety of work efficiency, widely used in industrial control, military, communications, power, network and other high-end automation fields.


  • Model:: CPT-101MXBC3
  • Screen Size: 10.1 inch
  • Screen Resolution: 1280*800
  • Product size: 3277*195.6*54mm
    • Download as pdf whatsapp email

    Product Detail

    PRODUCT INTRODUCTION

    Product Tags

    Products Video

    This video shows the product in 360 degrees.

    Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

    Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

    Product feature：

    1. New liquid crystal.
    Using the original LCD screen, big brand, quality worry-free long-term display, no color precipitation or residual no turbidity screen phenomenon high contrast, display more real.
    2.Thin/beautiful/good heat dissipation.
    3.The whole machine is fully enclosed design.
    4.IP65 dustproof and waterproof standard.
    5.Stable performance, support all-day operation.
    6.It is made of aluminum alloy material.

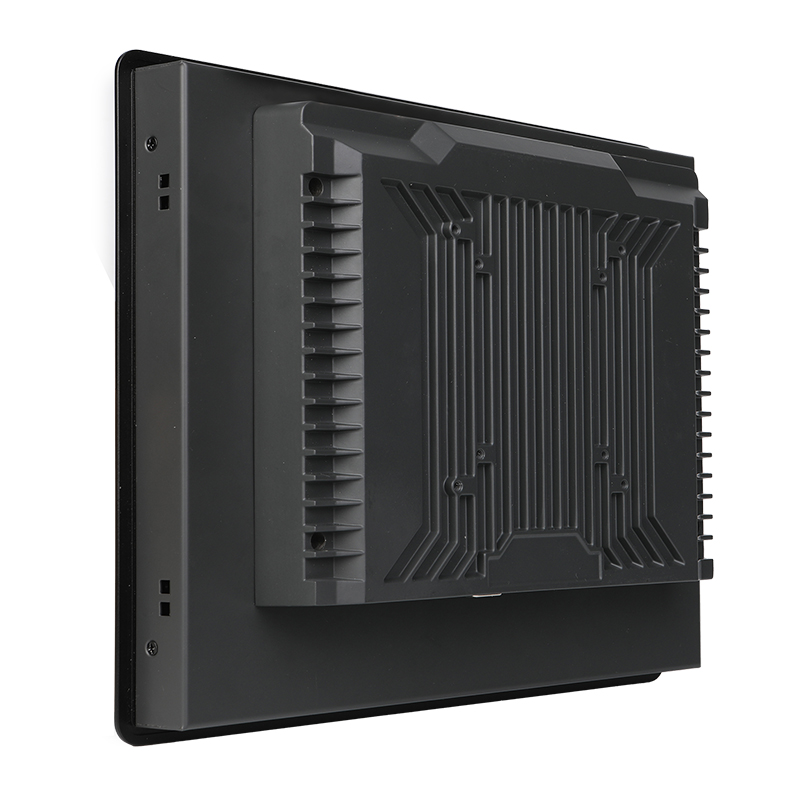

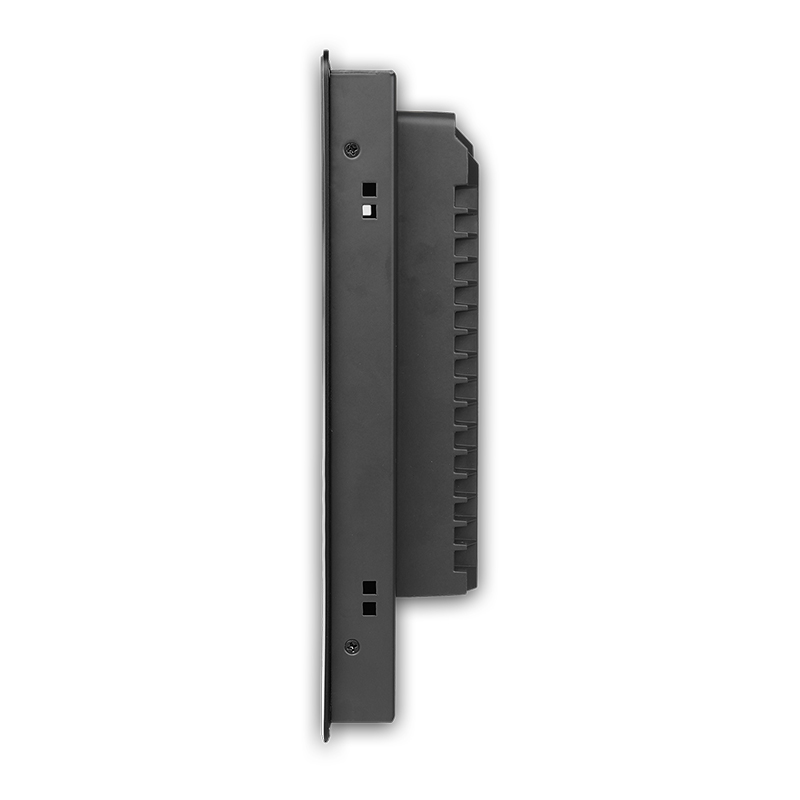

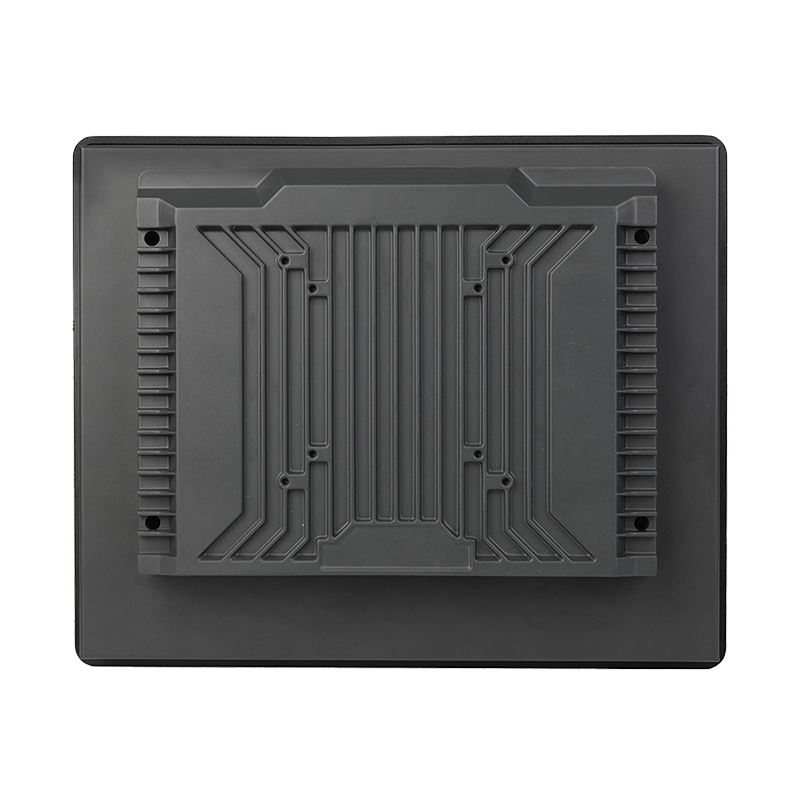

    10.1inch industrial display all-in-one with a slim bezel on the front3
    10.1inch industrial display all-in-one with a slim bezel on the front2
    10.1inch industrial display all-in-one with a slim bezel on the front4

    Product superiority:

    • Industrial aesthetic design
    • Streamlined appearance design
    • Independent research and development independent mold opening
    • Stable performance and low power consumption
    • Front panel waterproof design
    • Flat panel up to IP65 waterproof standard
    • GB2423 anti-vibration standard
    • Added shock-proof EVA material
    • Recessed cabinet installation
    • 3mm tightly fitted to the embedded cabinet
    • Fully enclosed dust-proof design
    • Greatly improve the service life of the fuselage
    • Aluminum alloy body
    • Aluminum alloy die-casting integrated forming
    • EMC/EMI Anti-interference standard Anti-electromagnetic interference

    Parameter information:

    Display Screen Size 10.1 inch
    Screen Resolution 1280*800
    Luminous 350 cd/m2
    Color Quantitis 16.7M
    Contrast 1000:1
    Visual Range 80/80/80/80(Typ.)(CR≥10)
    Display Size 217 (W) × 135.6 (H)mm
    Touch parameter Reaction Type Electric capacity reaction
    Lifetime More than 50 miliion times
    Surface Hardness ＞7H
    Effective Touch Strength  45g
    Glass Type More than 50 miliion times
    Luminousness ＞85%
    Parameter Power suplier mode 12V/5A external power adapter / industral interface
    Power specs 100-240V，50-60HZ
    Imput voltage 9-36V/12V
    Anti-static Contact discharge 4KV-air discharge 8KV（customization available≥16KV）
    Rate of work ≤40W
    Vibration proof GB242 standard
    Anti-interference EMC|EMI anti-electromagnetic interference
    Protection Front panel IP65 dustproof waterproof
    Color of shell Black
    Install mode Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type
    Environment temperature <80%,Condesation forbidden
    Working temperature Working：-10°~60°；Storage：-20°~70°
    Language menu Chinese、English、Gemman、French、Korean、Spanish、
    Italia、Russia
    Install mode Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type
    Guarantee Whole computer free for maintain in 1 year
    Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain

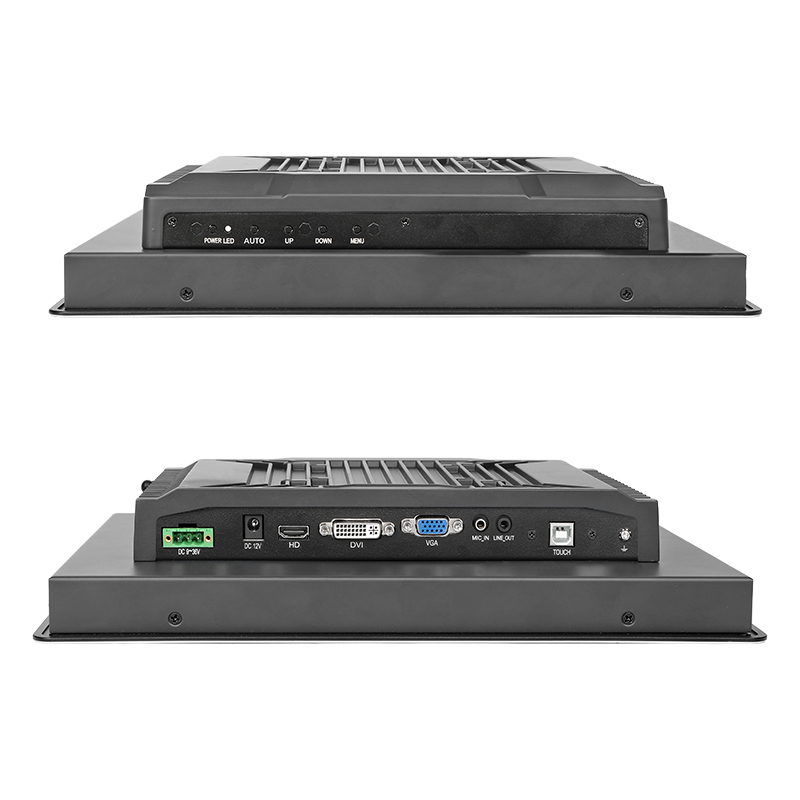

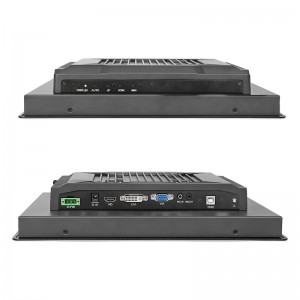

    I/O interface parameter DC port 1 1*DC12V/5525 socket
    DC port 2 1*DC9V-36V/5.08mm phonix 4 pin
    Touch function 1*USB-B external interface for
    VGA 1*VGA IN
    HDMI 1*HDMI IN
    DVI 1*DVI IN
    PC AUDIO 1*PC AUDIO
    EARPHONE 1*EARPHONE
    Packing list N.W. 2KG
    Product size 277*195.6*54mm
    Range for embedded trepanning 263*182mm
    Carton size 362*280.5*125mm
    Power adapter Available for purchase
    Power line Available for purchase
    Parts for install Embedded snap-fit * 4，PM4x30 screw * 4

    Engineering dimention drawing:

    industrial display all-in-one

    Penny

    Web Content Writer

    4 years of experience

    This article is edited by Penny, the website content writer of COMPT, who has 4 years working experience in the industrial PCs industry and often discusses with colleagues in R&D, marketing and production departments about the professional knowledge and application of industrial controllers, and has a deep understanding of the industry and products.

    Please feel free to contact me to discuss more about industrial controllers. zhaopei@gdcompt.com
