10.1 inch Industrial android Panel PCs with IP65 waterproof rating

Short Description:

COMPT Industrial android Panel PCs is an industrial control computer for industrial use, its basic performance and compatibility with commercial computers are almost the same, but industrial tablet computer is more focused on security and stability in different environments. It provides the best solution for man-machine interface and production process control.

Model:10.1 inch CPT-101AXBC1-RK3288
Screen Size：10.1 inch
Screen Resolution:1280*800
Product size:277*195.6*54mm

Download as pdf whatsapp email

Product Detail

PRODUCT INTRODUCTION

Product Tags

Products Video

This video shows the product in 360 degrees.

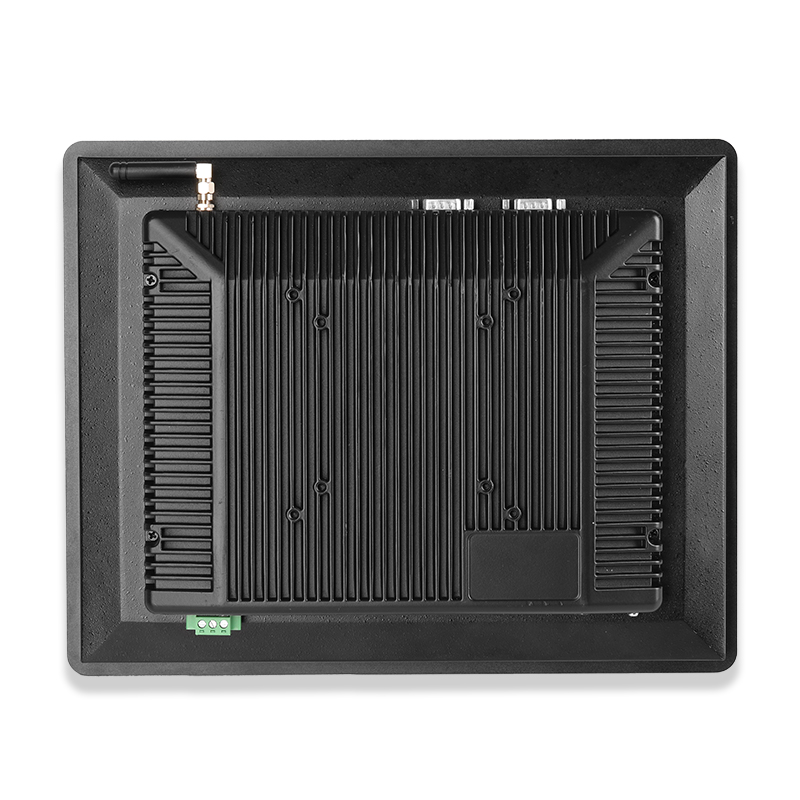

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

Functional characteristics

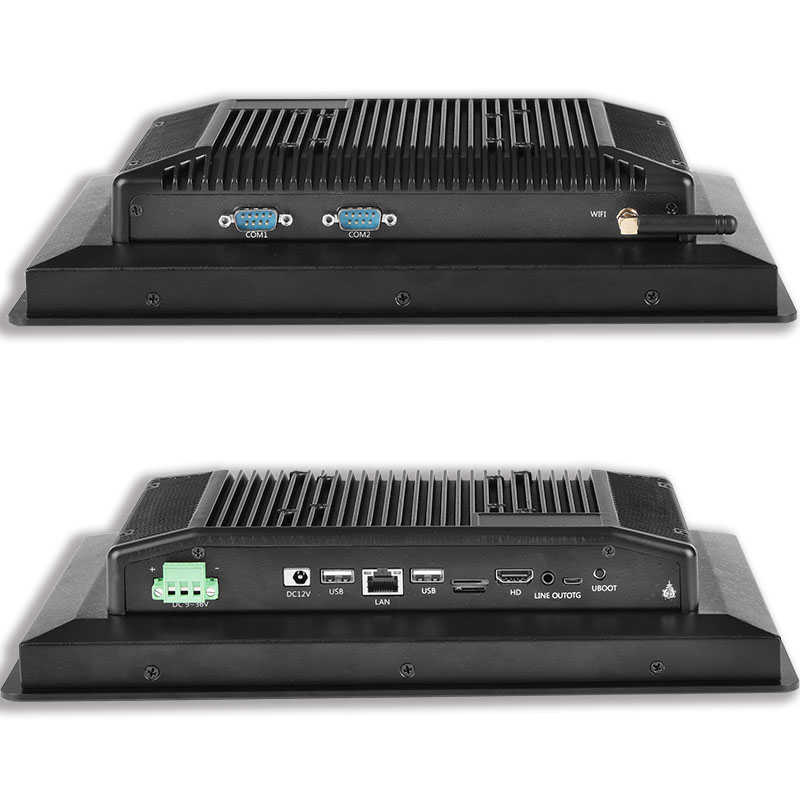

Unlike general business computers, the industrial tablet series products are strong, shockproof, moisture-proof, dust-proof, heat-resistant, multi-slot and easy to expand according to the characteristics of the environment. It is the best platform for various industrial control, traffic control, environmental control and other applications in the field of automation.

Industrial tablet computer is used by the industry, often must run in a special environment, or for a long time uninterrupted boot, such as production line automation equipment, telecom room data switch, monitoring equipment, enterprise network security server, navigation system, must be a long time continuous stable operation and can not interrupt when the machine, otherwise it will cause huge losses, Therefore, the stability of the computer system is particularly strict.

https://www.gdcompt.com/10-4-inch-industrial-panel-pc-with-fanless-industrial-panel-pc-product/

Main application field

■ Industrial site can be embedded into the machine, cabinet or placed on the operating table, to do man-machine display operation interface.

■ It is used in telecommunication, electric power, multimedia, national defense, automation equipment, manufacturing and other fields. It is used as human-machine interface, thin client, PLC and POS communication and control terminal.

■ Digital hospital as bedside service terminal and outpatient terminal, improve hospital service and management level.

Displayer information:

Displayer	screen	10.1 inch
	resolution	1280*800
	brightness	350 cd/m2
	color	16.7M
	Contrast ratio	1000:1
	Visual Angle	80/80/80/80(Typ.)(CR≥10)
	Display area	217(W) × 135.6 (H)mm

Hardware configuration imformation:

Hardware configuration	Motherboard type	RK3288
	CPU	RK3288 Cortex-A17 Quad-core 1.8GHz
	GPU	Mali-T764 quad-core
	memory	2G (4G optional)
	Hard disk	16G (up to 128G optional)
	Operating system	Android 7.1
	3G module	optional
	4G module	optional
	WIFI	2.4 G
	bluetooth	BT4.0
	GPS	optional
	MIC	optional
	RTC Real-time clock	support
	Network wake up	support
	Timing switch	support
	System upgrade	Supports local SD and USB upgrades

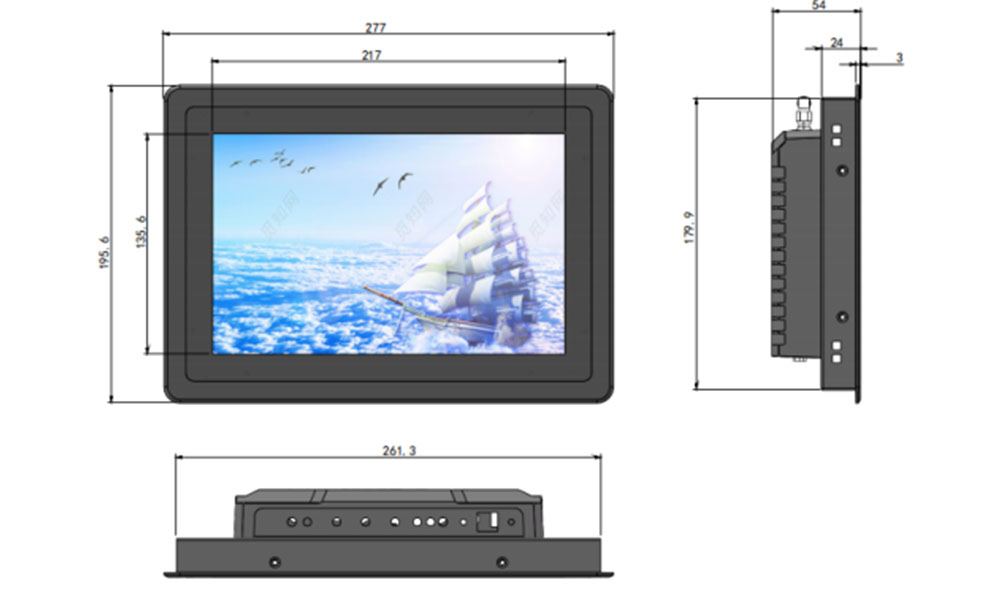

Dimension figure：

Machine weight	2KG
Product size	277 * 195.6 * 54 mm
Recessed hole size	263*182mm
Carton size	362 * 280.5 * 125 mm

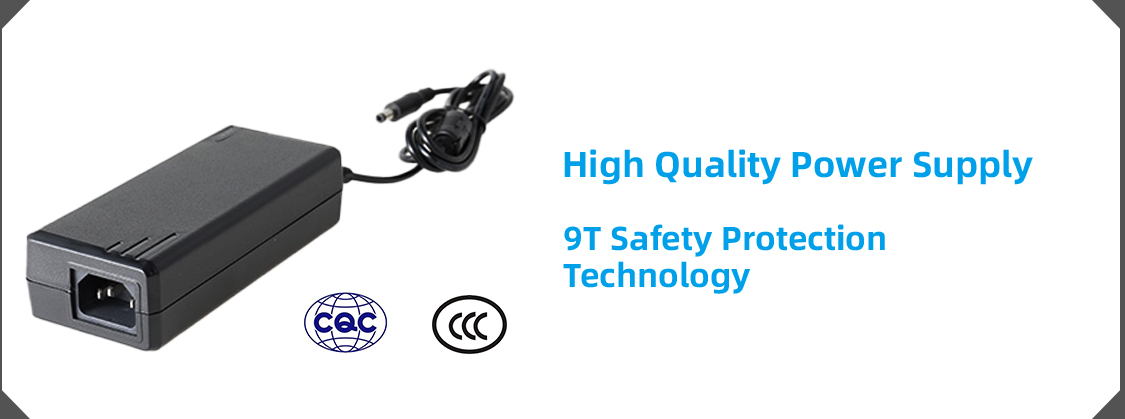

Power adapter	matching
Power cord	matching
install	Recessed buckle 4, PM4x30 screws 4

https://www.gdcompt.com/10-1-inch-industrial-panel-pcs-with-ip65-waterproof-rating-product/

Penny

Web Content Writer

4 years of experience

This article is edited by Penny, the website content writer of COMPT, who has 4 years working experience in the industrial PCs industry and often discusses with colleagues in R&D, marketing and production departments about the professional knowledge and application of industrial controllers, and has a deep understanding of the industry and products.

Please feel free to contact me to discuss more about industrial controllers. zhaopei@gdcompt.com
